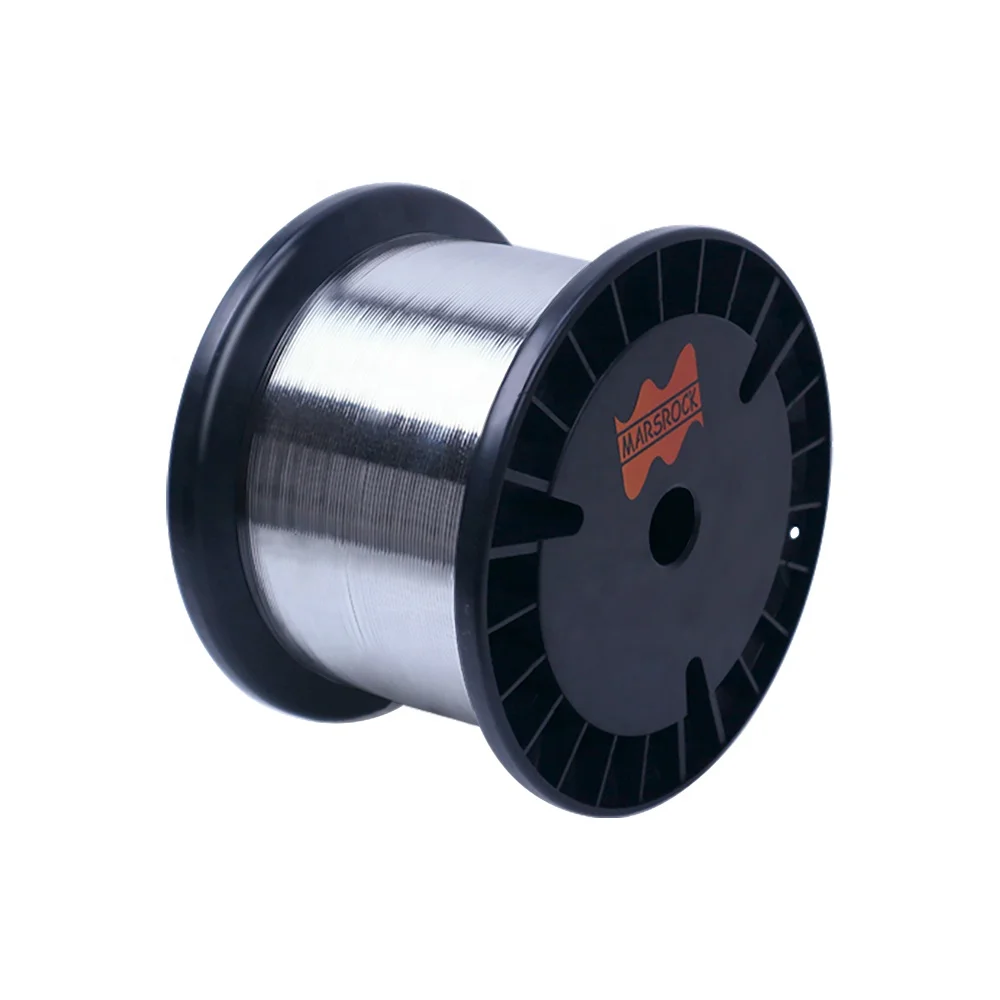

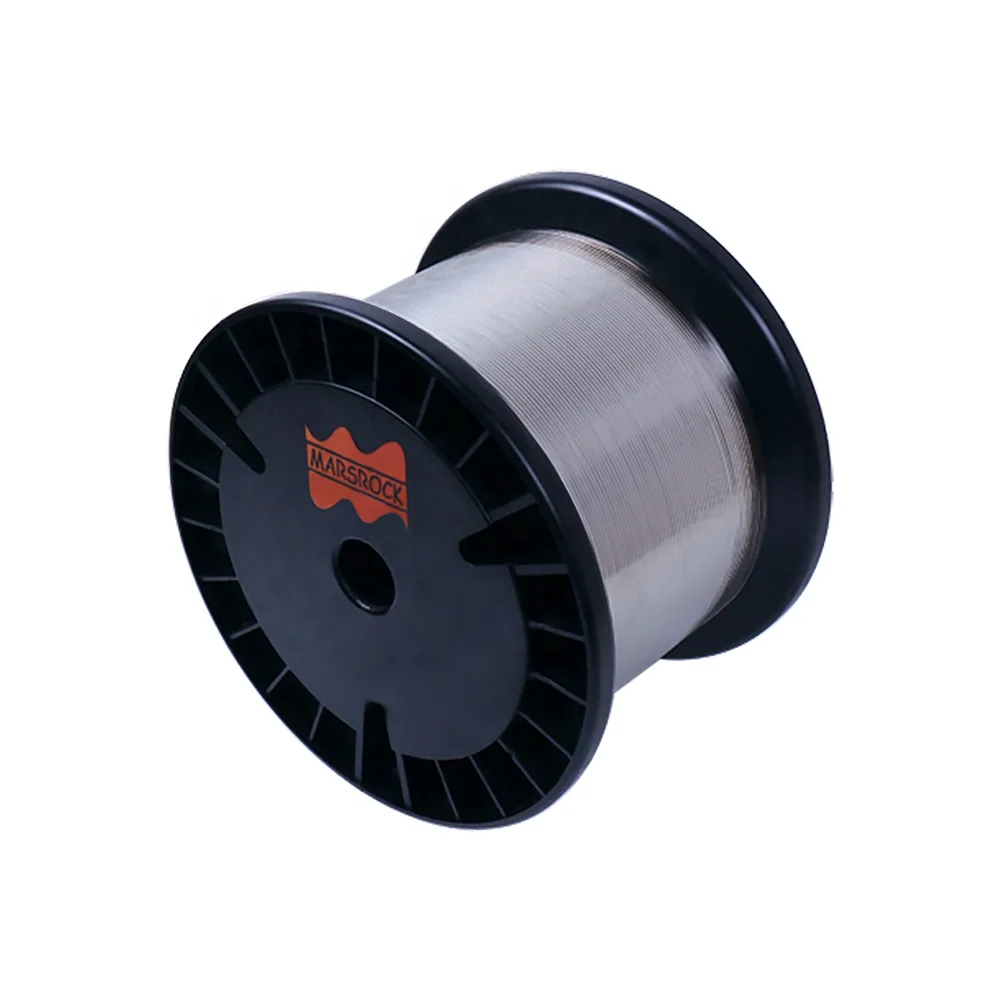

0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells
0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells

0.12x1.5mm PV Ribbon Wire Copper Busbar for Machine Automatic Soldering Solar Cells

Share on (60719265132):


Price:

Quantity:


Product Overview

Description

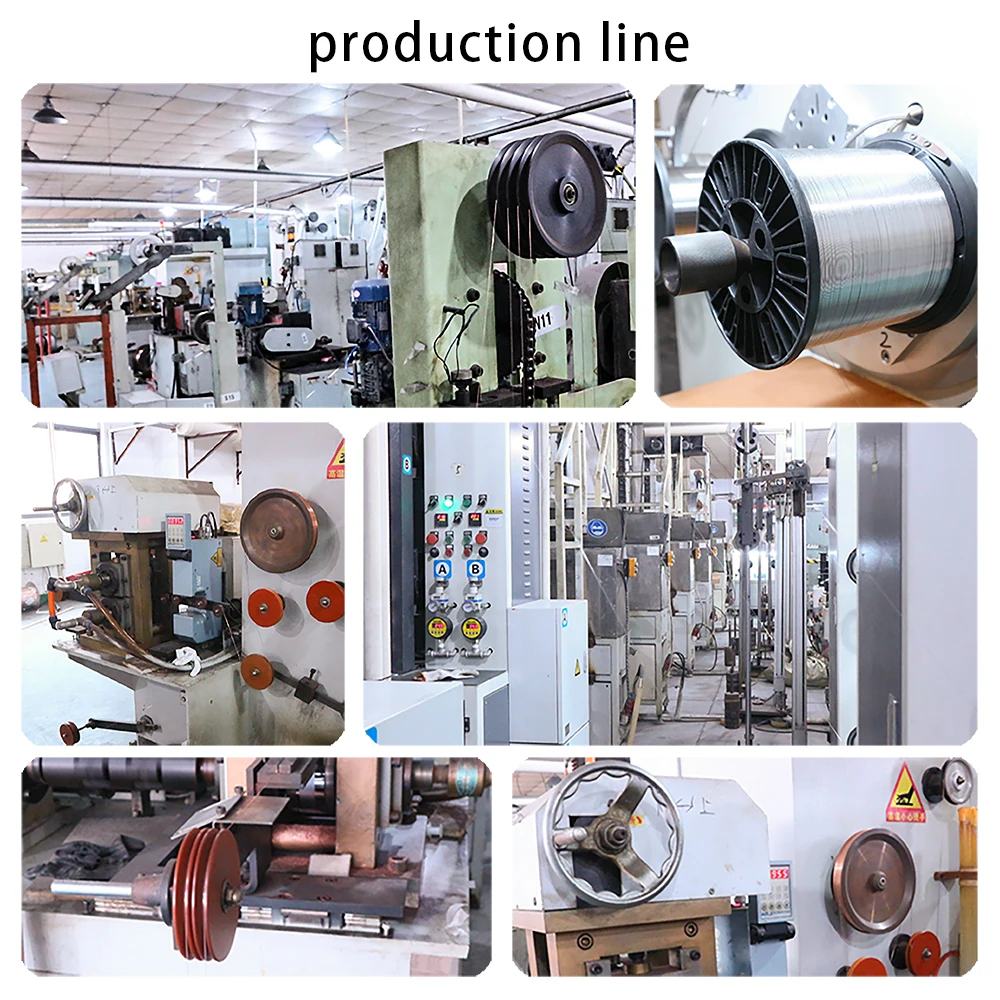

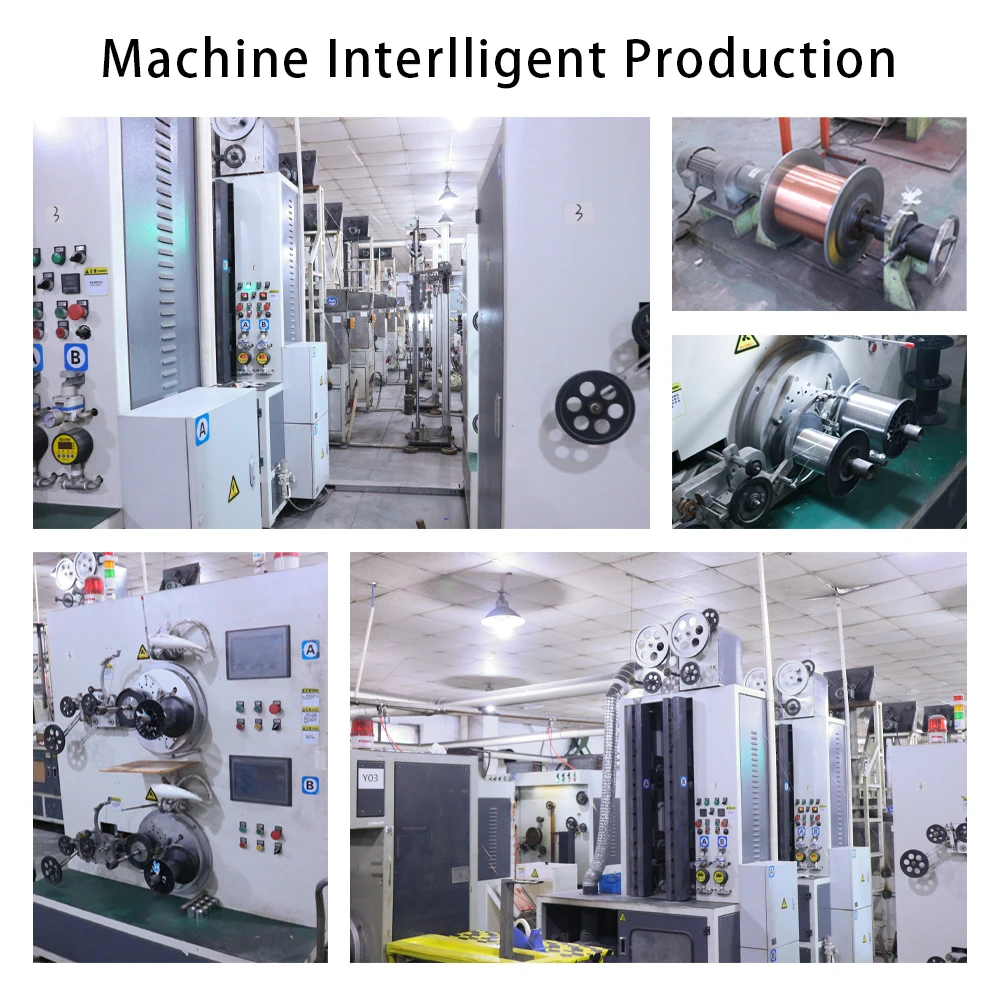

About our PV Ribbon Production
As a professional PV RIBBON supplier, we are specializing in the area of R&D, production and sales of tinned-copper ribbon for solar photovoltaic modules, as well as the area of providing solutions to photovoltaic welding. We will always adhere to the high quality but low cost of development ideas, uphold quality first, credit supreme management idea, can according to the requirements of supers provide all kinds of solar cell module with cooper tape.

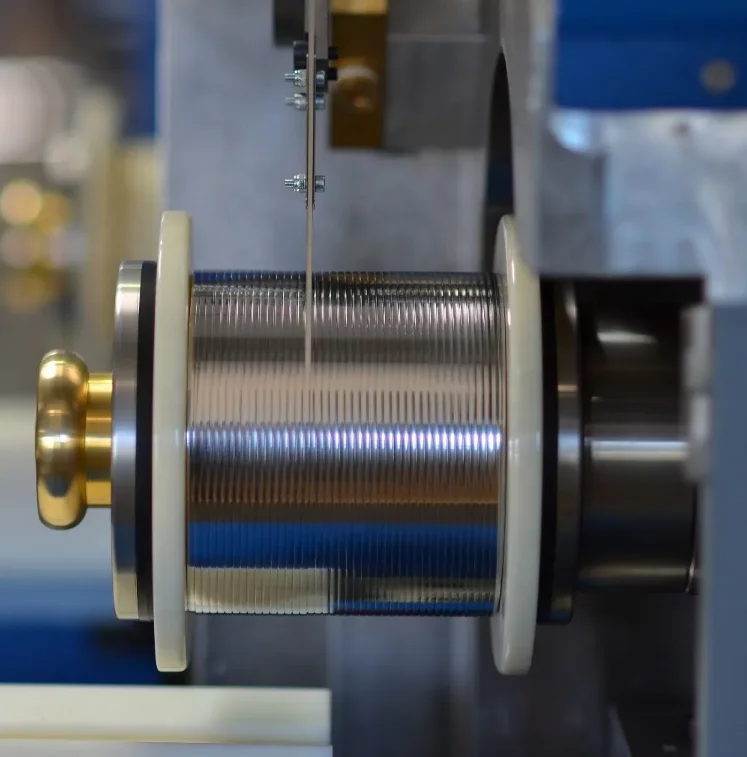

We succeeded in developing the super soft tinned-copper ribbon and spool ribbon exclusively for automatic stringer independently which has effectively reduced cell crack and breakage ratio during customer working process, which has cut the cost as well as strengthened the power, quality and performance of products.


Product Description




Specification


item
value
Place of Origin
China
Fujian
Brand Name
MARSROCK
Model Number
MR-PV090025
Size
0.12x1.5mm
Flux Content
Sn 63%, Pb 37%
Material
Copper / Copper Alloy
Cu Purity(%)
99.99%
Pb Purity(%)
99.99%
Sn Purity(%)
99.99%
Ag Purity(%)
99.99%
Melting Point
179-210 degree
Thickness
0.2mm


Width
Thick*Width
Thickness(mm)

Reference  Length(2KGS/4.4Lb)
Base Copper
Side Coat
Meters
Inch
Feet
0.6mm
0.12*0.6mm
0.05
0.015
3,121
122,878
10,240
0.8mm
0.08*0.8mm
0.05
0.015
3,511
138,238
11,520
0.10*0.8mm
0.05
0.025
2,809
110,591
9,216
1mm
0.08*1.0mm
0.05
0.015
2,809
110,591
9,216
0.1*1.0mm
0.05
0.025
2,247
88,465
7,372
1.5mm
0.08*1.5mm
0.05
0.025
1,873
73,740
6,145
0.10*1.5mm
0.05
0.025
1,498
58,976
4,915
0.12*1.5mm
0.15
0.025
1,248
49,134
4,094
0.15*1.5mm
0.1
0.025
999
39,331
3,278
0.2*1.5mm
0.15
0.025
749
29,488
2,457
1.6mm
0.15*1.6mm
0.1
0.025
936
36,850
3,071
0.18*1.6mm
0.125
0.0275
780
30,709
2,559
0.20*1.6mm
0.15
0.025
702
27,638
2,303
1.8mm
0.12*1.8mm
0.15
0.025
1,040
40,945
3,412
0.15*1.8mm
0.1
0.025
832
32,756
2,730
0.16*1.8mm
0.11
0.025
780
30,709
2,559
0.18*1.8mm
0.125
0.0275
694
27,323
2,277
0.20*1.8mm
0.15
0.025
624
24,567
2,047
2mm
0.10*2.0mm
0.05
0.025
1,124
44,252
3,688
0.12*2.0mm
0.15
0.025
936
36,850
3,071
0.13*2.0mm
0.08
0.025
864
34,016
2,835
0.15*2.0mm
0.1
0.025
749
29,488
2,457
0.16*2.0mm
0.11
0.025
702
27,638
2,303
0.18*2.0mm
0.125
0.0275
624
24,567
2,047
0.20*2.0mm
0.15
0.025
562
22,126
1,844
Remark:
1.
Above data only for reference,
2.
Tolearance: +/-0.05mm
3.
Coating Component
1)Lead-Free:Sn 98%, Ag 2%(Optional)
2)Leady  A.Sn 60% Pb 40%  B.Sn 63% Pb 37%   C.Sn 62% Pb 36% Ag 2%  D.Sn 60% Pb 39.5% Ag 0.5%

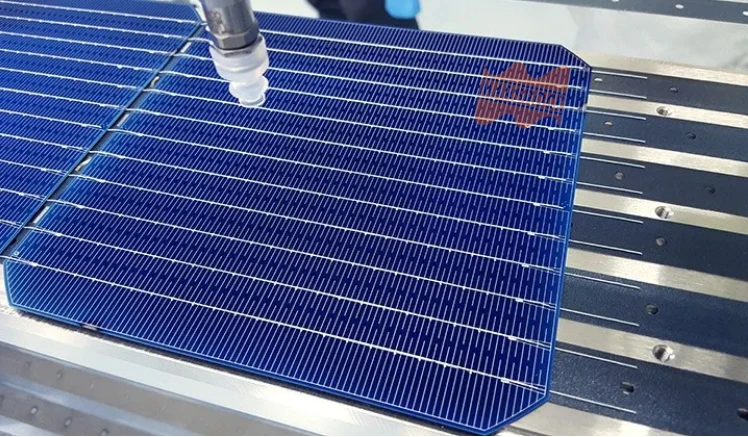

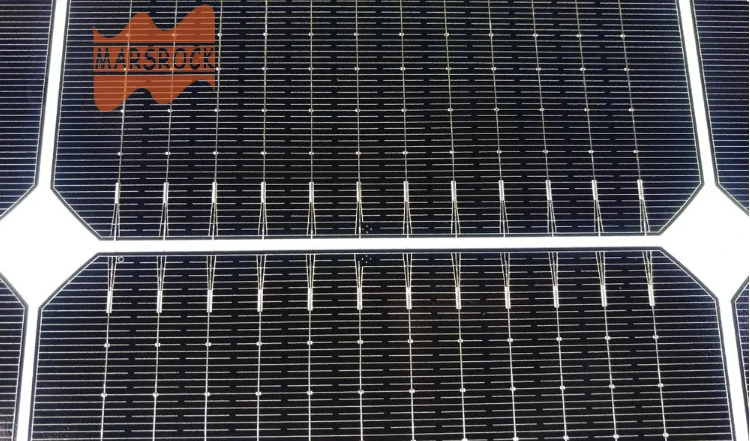

Product Application

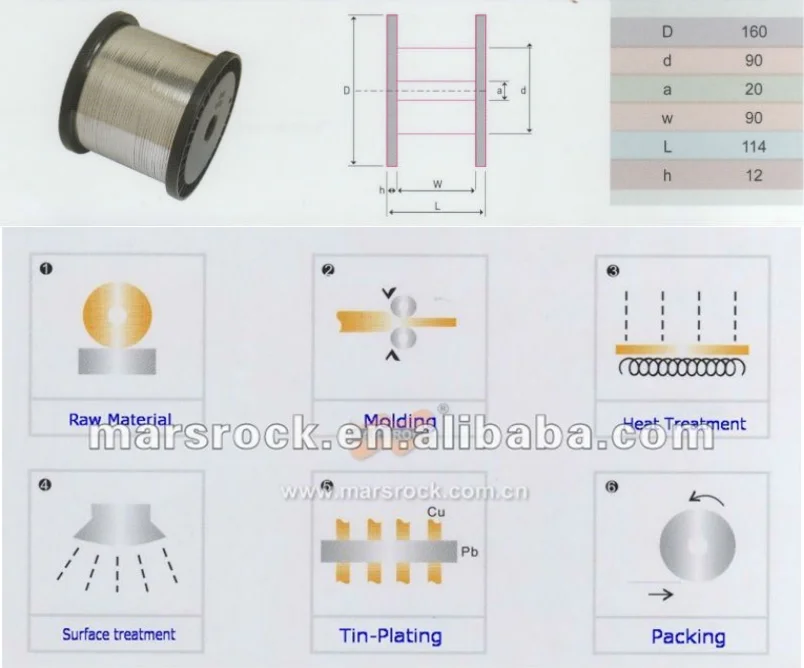

Product Making Crafts Process

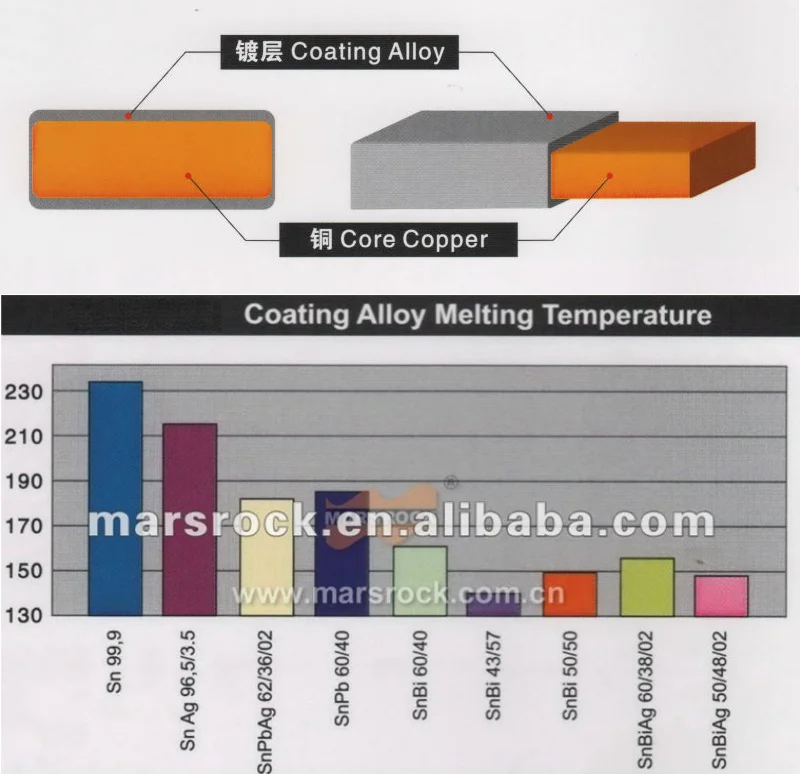

PV ribbon is composed of Copper and coating alloys, and divided into Tabbing Ribbon and Bus bar ribbon.
1. Tabbing Ribbon
Tabbing Ribbon commonly connects the positive and negative sides of the cells in series.
2. Bus bar Ribbon
Bus bar Ribbon concentrates the cell stringing into junction box and channels electrical current.


The coating type is determined by the customer’s design and demand. It is divided into leaded and dead-free coating. At moment the leaded coating type is widely used, but in the future it will be developed to lead-free coating type.
Main coating alloy types and melting temperatures as follows:

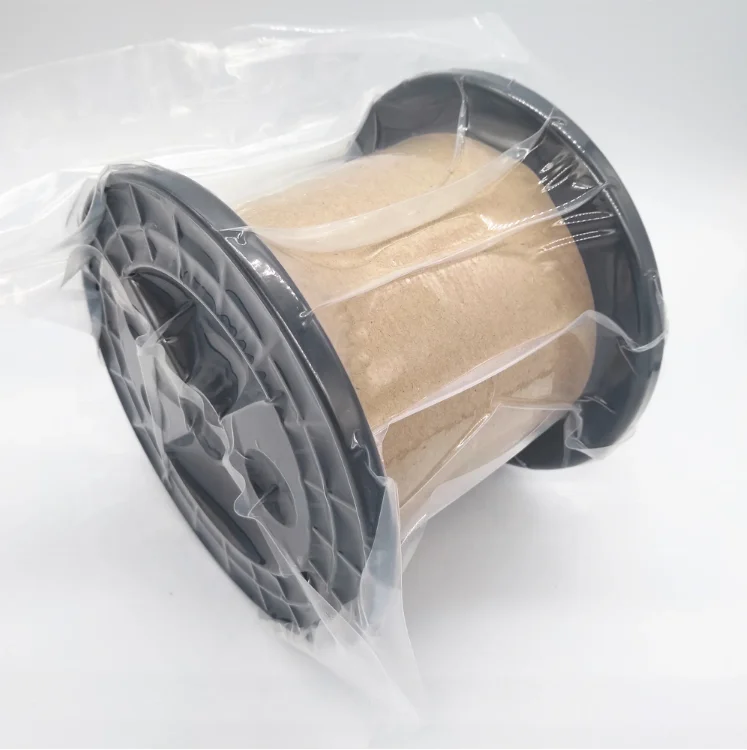

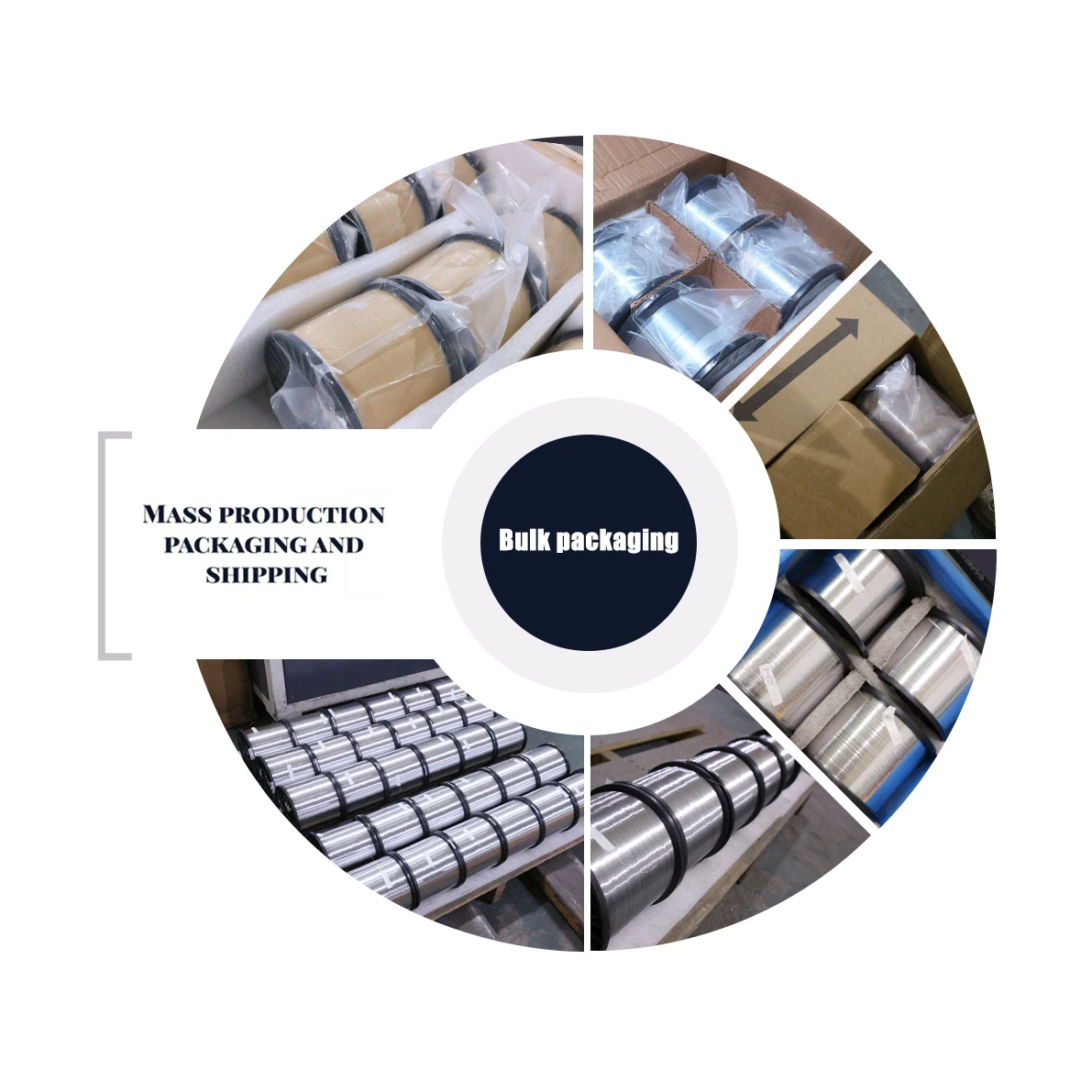

Packing & Delivery




Company Profile








XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer, base on self-produce and self-market management. Our yearly output has grown to over USD120, 000,000, of which 80 percent are from exports. Considering the regional production advantage, we set Shenzhen Fleda Solar Produce Co., Ltd as our solar factory in Shenzhen. And Owing to competitive challenges and ascendant seaport condition, we set Xiamen Mars Rock Science Technology Co., Ltd. as our head office, which trades solar products with clients from Europe, North America, Africa and Asia.

For the past years, we have dedicated ourselves to the environment-friendly solar products, our products include: monocrystalline/polycrystalline solar cells, monocrystalline/polycrystalline epoxy solar panels, Laminated PET/TPT sealed solar modules,various toughened glass laminating solar modules, and noncrystalline silicon solar panels. The products are widely applied to the charge of digital-electronic products, out-of-doors illumination, and project power generation etc. Besides, to meet the demands of both domestic and aboard markets, we have manufactured many kinds of solar landscape illumination device, solar traffic lamps, solar charger, solar POLY arts and crafts, and solar power supply system. Furthermore, Since Our powerful production capacity we provide OEM service and correlative plan for the customers as well. We can also make necessary modification or innovation by customer design.

Based on the solid capability of research and development and the skilled professionals in each area, we have gained high reputation from our customers. The advanced producing equipment and detecting imported from abroad provide a daily capacity of appr 50,000 kw, and keep 20% increase yearly. We have established a long-term business relationship with Europe, South and North America, Mid-East, South-East and some Africa countries. Every year we ship thousands of orders, no order is big or small; with our just-in-time manufacturing we make every order to your specifications. Every single piece of product from MARS ROCK SOLAR is designed to deliver the perfection, innovation and reputation.

The ultimate relationship between MARS ROCK and its customers is "to grow together, to win together". To be the first choice of customers, once you choose MARS ROCK as your business partner, we can guarantee our quality and competitive prices. We are expecting to make the profit and share the glorious tomorrow with you by our eximious quality and first-grade services. Sincerely hope to receive your inquiries and enter into long-term relationships.


FAQ


1. who are we?
We are based in Fujian, China, start from 2006,sell to South America(20.00%),Eastern Europe(20.00%),Western Europe(10.00%),Africa(10.00%),Mid East(10.00%),North America(10.00%),Oceania(5.00%),Eastern Asia(5.00%),Southeast Asia(5.00%),Northern Europe(3.00%),Central America(1.00%),South Asia(0.50%),Southern Europe(0.50%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Cell,Solar Panel,Solar Flexible panel,Grid Tie Inverter,Off Grid Inverter
4. why should you buy from us not from other suppliers?
XIAMEN MARS ROCK SCIENCE TECHNOLOGY CO., LTD specializes in the development, production, marketing, construction and after-service of the photovoltaic solar product. Now as one of the most professional solar products manufacturer.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
