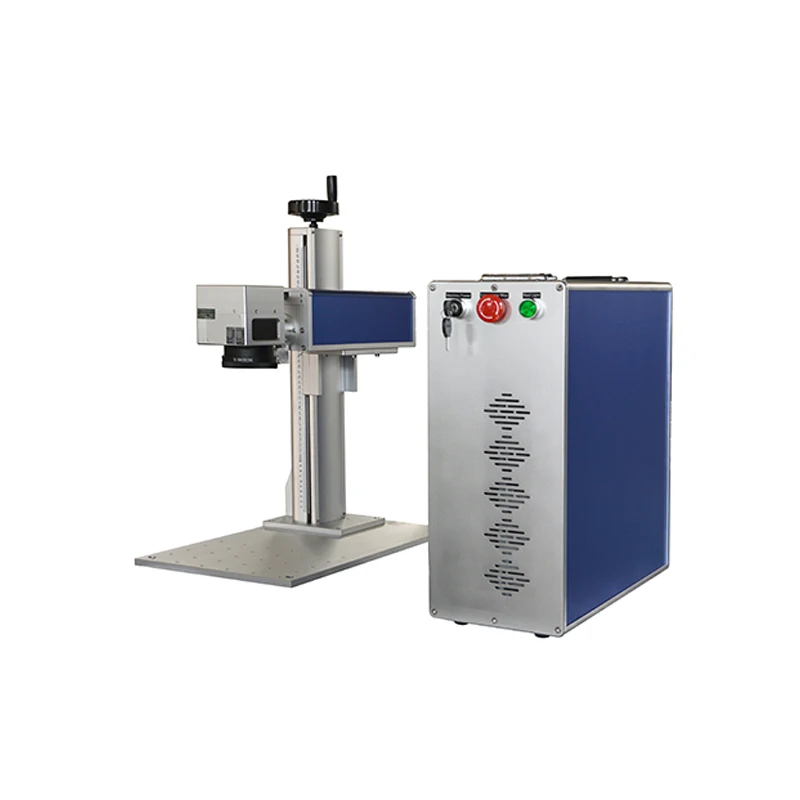

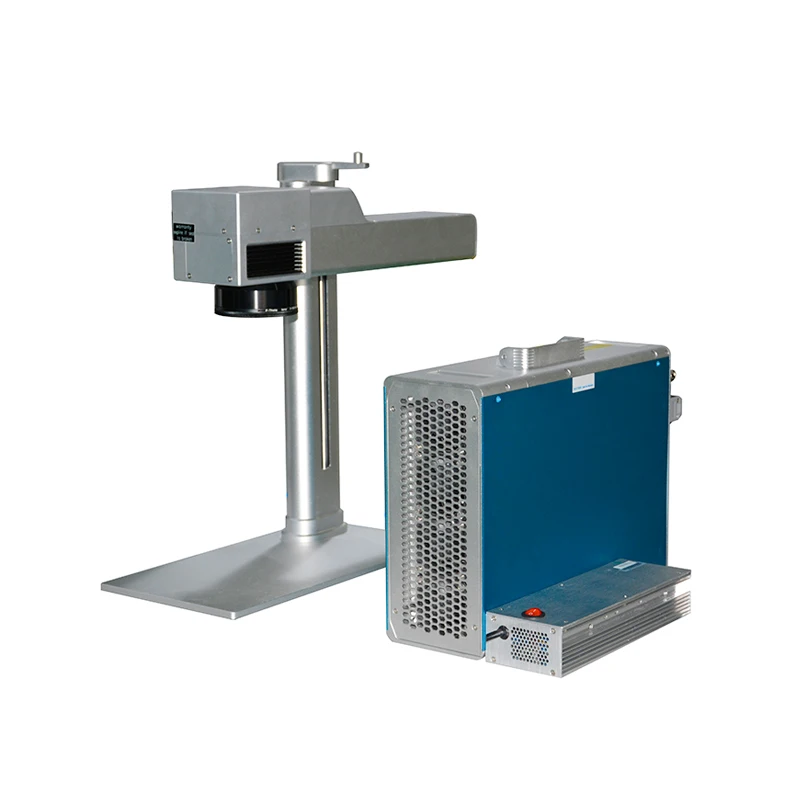

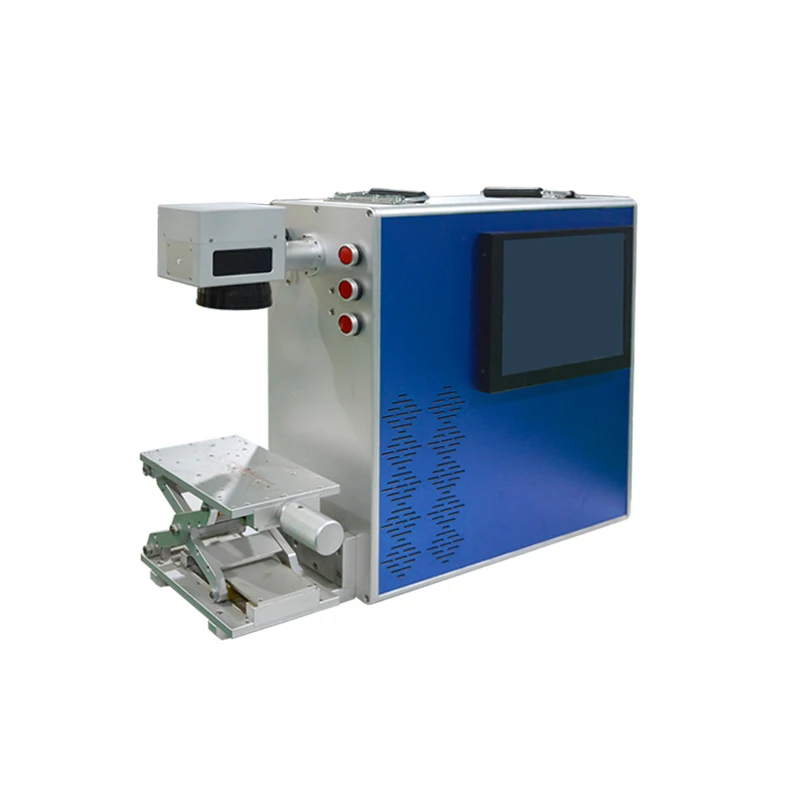

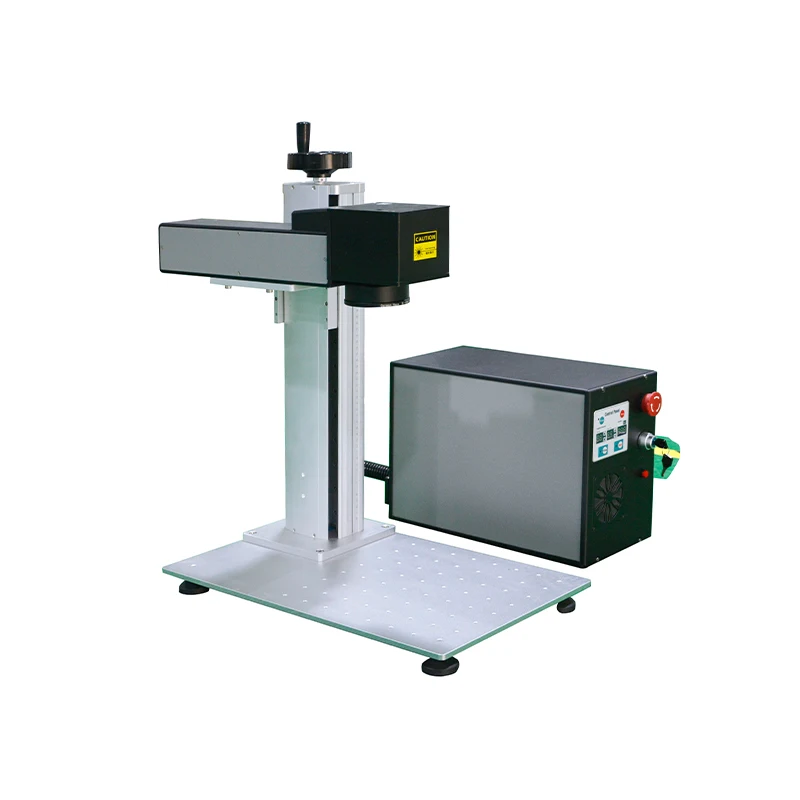

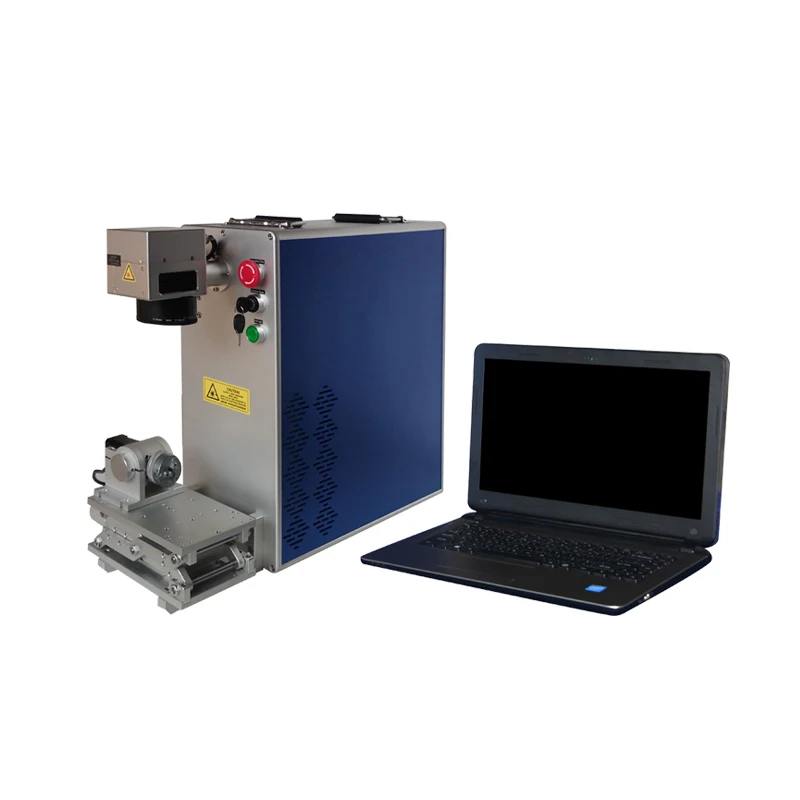

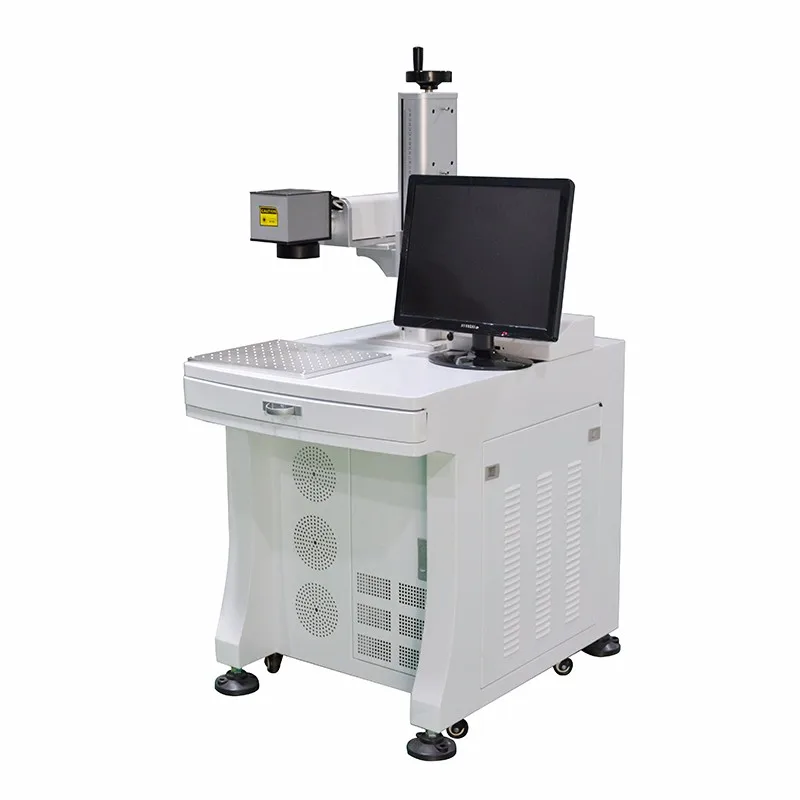

20w laser writing machine for steel

Share on (60719269339):


Price:RUB 275,224.00 - RUB 306,687.16

Quantity:


Product Overview

Description

20w laser writing machine for steel



We care what customers concerned:

1. Our 20w laser writing machine complies with CE and FDA standards.
2. We supply 2 years warranty service
3. We have full sets laser parts for laser marking machine in stock.
Which can ensure timely delivery and replacement for laser parts on time.
4. We train customer for machine operation at our factory for free.
5. Machine operation manual will be sent together with machine delivery.
6. Before shipment, our engineer will do machine checking within 48 continuous hours to ensure high performance and high stability.
7. We have a professional after sales service team with 5 engineers.



Laser marking machine.jpg



Product Description



1. Description of 20w laser writing machine

20w laser writing machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals. It does not have consumable. Its very cost effective. It boasts fast marking speed and high marking precision. Its widely used and well accepted in prevailing international market.



2. Key Information of 20w laser writing machine

Product Type

20w laser writing machine

Marking Material

Both metals and some non-metals

Metals: carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal and alloy steel (gold, silver, titanium, etc.); special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)

Non-metals: plastics, rubber, resin, carton box, etc.

Applied Industries

electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes, etc.



Marking Content

logo, character, serial number, bar code, data matrix

 Main Parts

Fiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer

Core Parts & Brand & Lifetime

Core Parts: Fiber Laser Source

Brand: IPG, SPI, Raycus, Max, JPT (optional)

Lifetime: 100, 000 hours

Cooling Mode

Air Cooling

Continuous Working Hours

22 hours

Marking Software

English Version

Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc.

Easy Operation

With Powerful Function

Certification

CE, FDA



3. Feature of 20w laser writing machine



fiber laser marking machine features





4. Main Parts Introduction

Fiber Laser Source

Scan Head

F-theta Lens

Marking Software

Rotary Device (for rotary marking)



Machine configuration

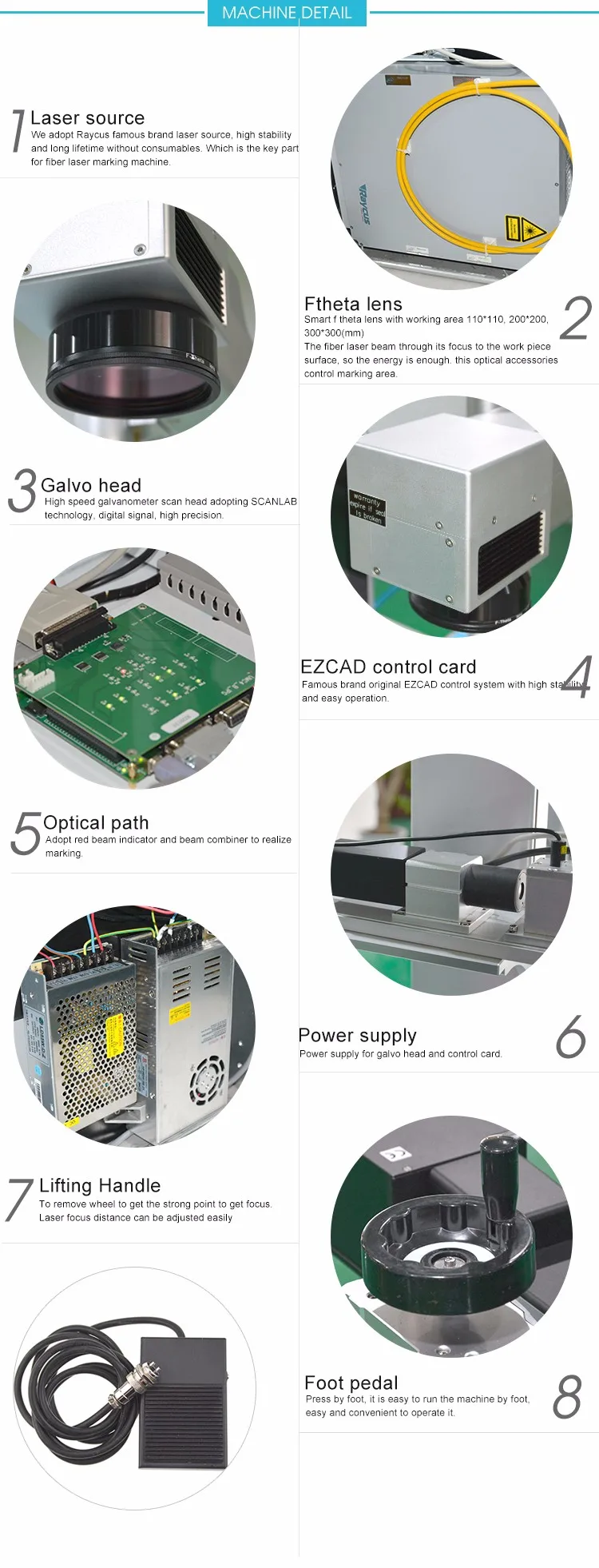

  Machine detail











    (EZCAD JCZ control card)

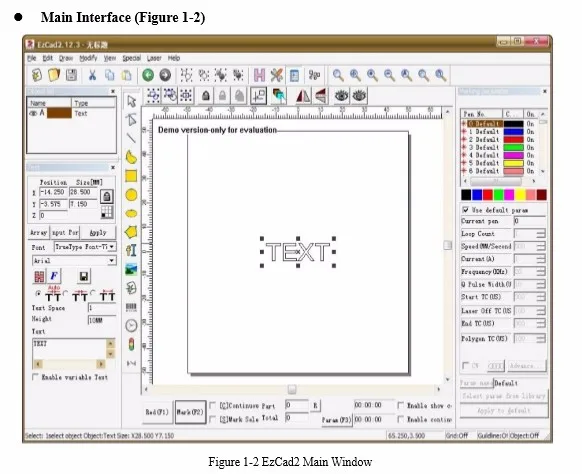

interface for marking software.jpg

       ( Interface for EZCAD marking software)



5. Technical Parameters of 20w laser writing machine

Model

LP-FLM10;LP FLM-20, LP-FLM30, LP-FLM50

Laser Power

10W, 20W, 30W,50W

Wavelength

1064nm

Fiber Laser Source

IPG, SPI, Raycus, Max. JPT (optional); Lifetime: 100, 000 hours

Marking Area

Max. 110mmx110mm; 200mm*200mm, 300*300mm

Min. Line Width

0.03mm

Min. Character Size

≤0.5mm

Marking Speed

≤16000mm/s

Pulse Width

≤60us

Repetition Positioning Accuracy

10urad

Positioning Way

Red Light

Power Supply

Single Phase AC 220V, 50/60HZ



6. Marking Samples For 20w laser writing machine

 marking sample with marking interface







Packaging & Shipping



7. Delivery Time & Package & Transportation Mode For Laser Marking Machine

Delivery Time: 5-7 working days after receive the payment.

Package: plywood case.

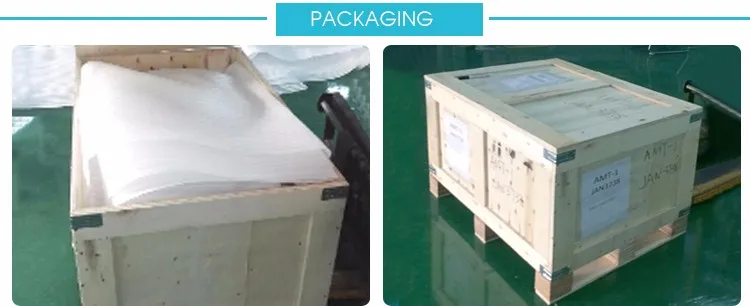

 machine package



Transportation Mode:20w 20w laser writing machine would be shipped by ocean transportation, air transportation or by express.



Our Services



8. Our Service

We provide two-years machine warranty. In case it exists machine problem, we will solve the problem through email, skype, phone or video. If the problem still exists, we will send our technician to customers plan for machine repair. We will respond to customers question within two hours.



9. Quality Control of 20w laser writing machine

20w laser writing machine is our core competencies. Quality is our culture. Our professional quality control team will make strict quality checking for every part of the machine before entering into warehouse. Before shipment, our engineer will do machine checking within 24 continuous hours to ensure high performance and high stability.



Company Information



10. About Us

 Our factory



 Client visit

 Certificate



FAQ



11. FAQ

Q: How to Install the machine?

A: After receive our machine, customers do not need to install it and can use it directly.



Q: How to operate the machine? is training necessary?

A: The machine is mainly controlled by software. Its very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with 20w laser writing machine before can still operate it very well. According to customers requests, we can send our technician to customer plant for machine training or customers can come to our plant for machine training if needed.



Q: In case machine exists problem, how to do after sales service?

A: We provide two years machine warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.



Q: Whats package?

A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.



Q: Whats delivery time?

A: Generally speaking, lead time is 5-7 working days after receive the payment.



Q: Can we add a protection cover?

A: Yes, we can add a protection cover if you need. We can customize the design as customers requests.
