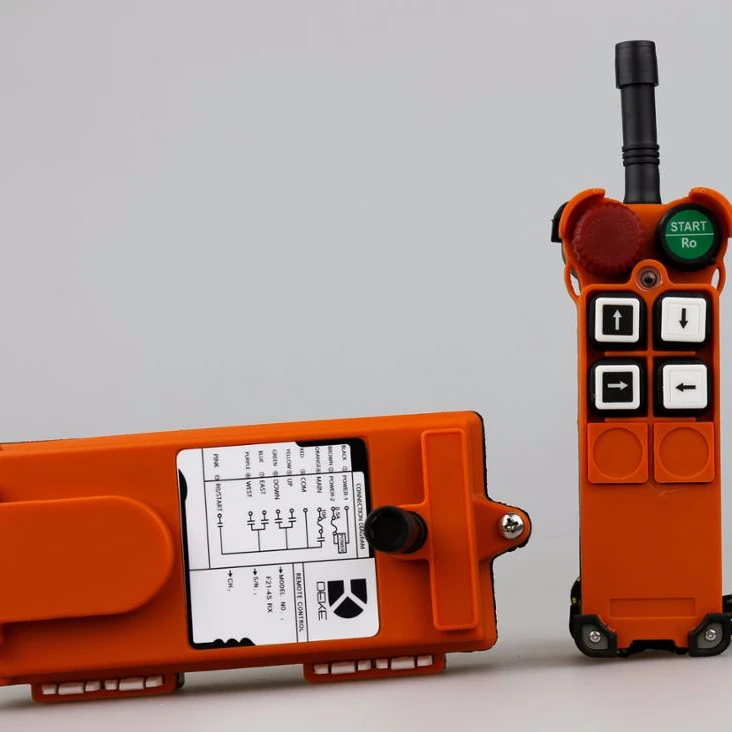

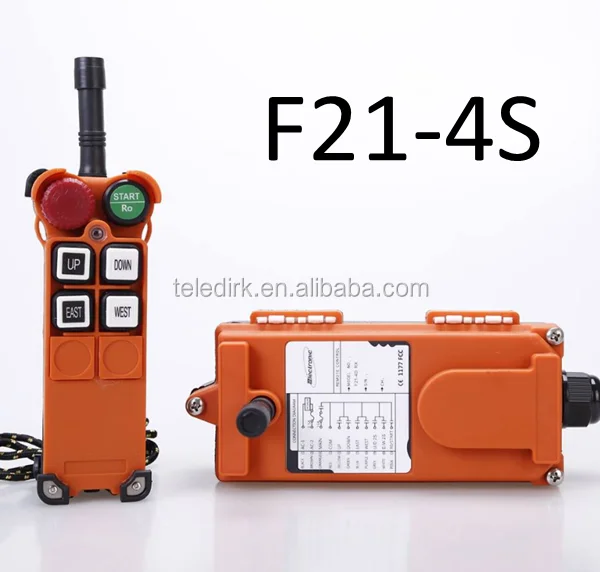

12V Forest Winch Industrial Remote Control with momentary switch, Radio Wireless Remote Control for up/down And Left/right

Product Overview

Description

433 mhz universal remote control, remote control on off switch,electric winch remote control

Application:

 Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 4 control points etc.

Features:

• Control points up to 4.
• With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
• Set the internal functions by computer interface.
• Safety Switch Key is to prevent from unauthorized user.
• Up/Down ,East/West push buttons can be set ordinary,jump strokes,mutural inhibition or not.
• START button can be set start ,inching,jump strokes,ordinary etc.

Technical Specification:





Unique I.D.Code	over  4.3 billion
Numbers of Buttons	4 Single Speed buttons,1 START button,1 MUSHROOM button
Button Marking	arrow tip
Transmitter Power Supply	two 1.5v Batteries(AA size) ( up to 3 months usage)
Receiver Power Supply	AC380V/220V/110V/48V/36V/24V/12V OR DC12V
Relays	4 Relays control Functions,1 relay control EMS and 1 relay reserve
Output relays	5Amp Omniseal Relays(AC250V/10A relays,10Amp fuse)
Operating Frequency	310.0325-331.1650MHz(VHF)
Channel Spacing	0.2675MHz
Working Temperature	-35℃~ +85℃
Interface	Cable Output
Protection Degree	IP65
RF Power	<10DBm
Channel	80CH





Standard Configuration:



 Transmitter*1( with strap),

 Reiceiver*1

Receiver with 1m Cable,

Operation and maintain manual *1



Our Products Advantages:



All the products have got CE,FCC Certificate.

All operate process according to ISO9001:2008 and international quality control system.

Easy to operate to keep workers safety.

One year warranty.

OEM orders can be acceptable.





Packaging & Shipping





1 set per box, 10 set per carton





Company Information





Our Services





♦ Your inquiry will be replied in the first time.



♦ If any problem during installation or operation,please contact us directly,we will provide our professional instruction.



♦ OEM and sample orders acceptable, provide customized products for our customers.



♦ One year warranty.



All the products line:



F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control and Explosion-proof radio remote controls.
