Product Overview
Description
Product description
Main features:

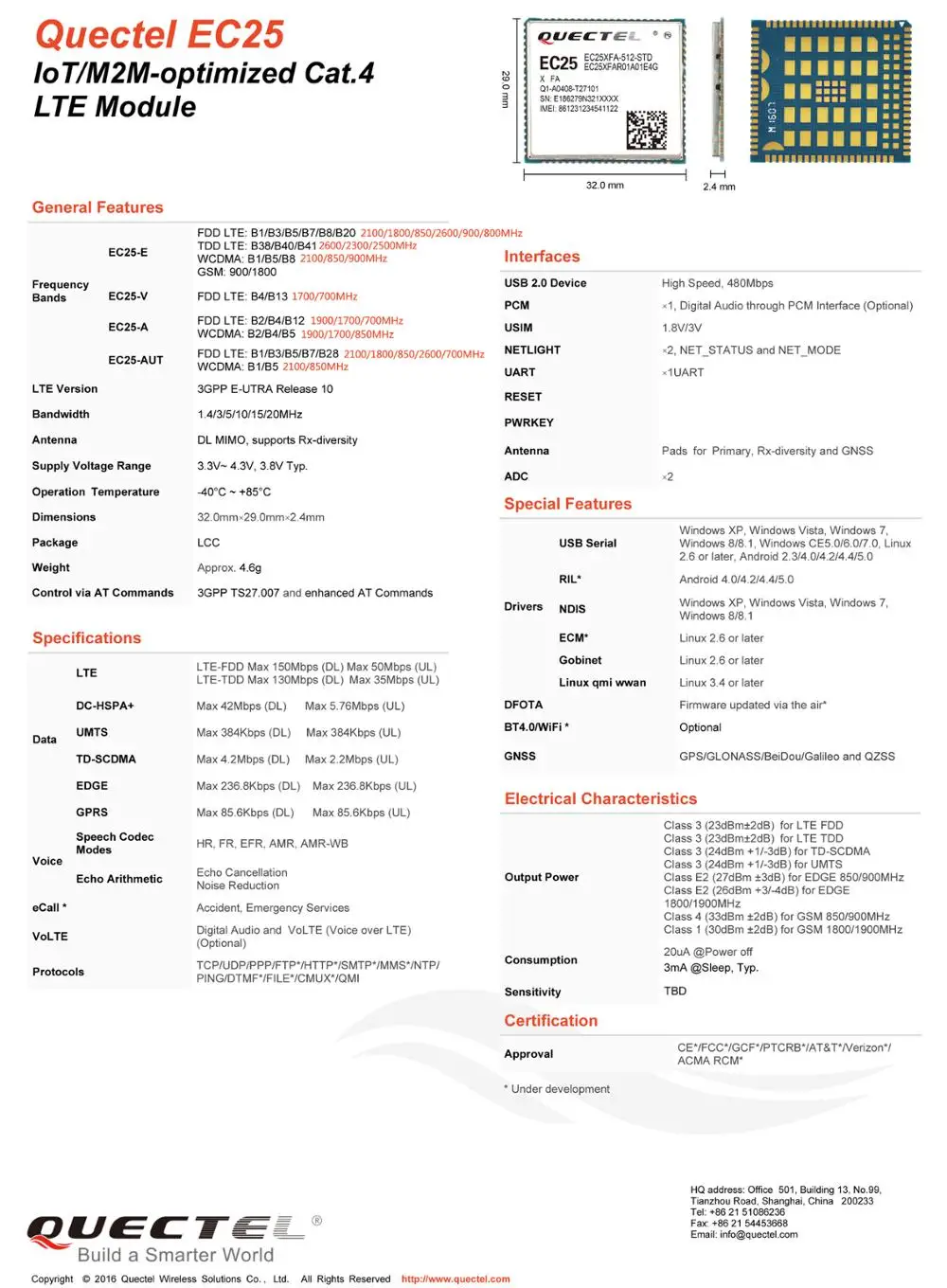

| Module: Quectel | Quectel 4G EC-20/21/25A/E/C/CE |
| 4G frequency band: | EC25-E FDD LTE: B1/B3/B5/B7/B8/B20 2100/1800/850/2600/900/800MHZ TDD LTE: B38/B40/B41 2600/2300/2500MHZ WCDMA: B1/B5/B8 2100/850/900MHZ GSM:B3/B8 900/1800 |
| EC25-J LTE: B1/B3/B8/B18/B18/B19/B26 2100/1800/900/850/800/850 MHZ TDD LTE: B41 2500MHZ WCDMA: B1/B6/B19 2100/850/800MHZ GSM:B3/B8 900/1800 | |
| EC25-A FDD LTE: B2/B4/B12 1900/1700/700MHZ WCDMA: B2/B4/B5 1900/1700/850MHZ | |
EC25-AU TDD LTE: B40 2300MHZ GSM:B2/B3/B5/B8 1900/1800/850/900MHZ | |
| EC25-V FDD LET:B4/B13 1700/700MHZ | |
| Specifications | Data LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps LTE-TDD Max 130Mbps (DL) Max 35Mbps DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps UMTS Max 384Kbps (DL) Max 384Kbps TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps GPRS Max 85.6Kbps (DL) Max 85.6Kbps |
| LTE Version | LTE Version 3GPP E-UTRA Release 10 Bandwidth 1.4/3/5/10/15/20MHz Antenna DL MIMO, supports Rx-diversity Supply Voltage Range 3.3V~ 4.3V, 3.8V Typ. Operation Temperature -40°C ~ +85°C Dimensions 32.0mm×29.0mm×2.4mm Package LCC Weight Approx. 4.6g Control via AT Commands 3GPP TS27.007 and enhanced AT Commands |
| Interfaces | USB 2.0 Device High Speed, 480Mbps PCM ×1, Digital Audio through PCM Interface (Optional) USIM 1.8V/3V NETLIGHT ×2, NET_STATUS and NET_MODE UART ×1UART RESET PWRKEY Antenna Pads for Primary, Rx-diversity and GNSS ADC ×2 |
| Protocols | TCP/UDP/PPP/FTP*/HTTP*/SMTP*/MMS*/NTP/ PING/DTMF*/FILE*/CMUX*/QMI |
Voice
Speech Codec
Modes HR, FR, EFR, AMR, AMR-WB
Echo Arithmetic Echo Cancellation
Noise Reduction
eCall * Accident, Emergency Services
VoLTE
Digital Audio and VoLTE (Voice over LTE)
(Optional)
Special Features
Drivers
USB Serial
Windows XP, Windows Vista, Windows 7,
Windows 8/8.1, Windows CE5.0/6.0/7.0, Linux
2.6 or later, Android 2.3/4.0/4.2/4.4/5.0
RIL* Android 4.0/4.2/4.4/5.0
NDIS Windows XP, Windows Vista, Windows 7,
Windows 8/8.1
ECM* Linux 2.6 or later
Gobinet Linux 2.6 or later
Linux qmi wwan Linux 3.4 or later
DFOTA Firmware updated via the air*
BT4.0/WiFi * Optional
GNSS GPS/GLONASS/BeiDou/Galileo and QZSS
Electrical Characteristics
Output Power
Class 3 (23dBm±2dB) for LTE FDD
Class 3 (23dBm±2dB) for LTE TDD
Class 3 (24dBm +1/-3dB) for TD-SCDMA
Class 3 (24dBm +1/-3dB) for UMTS
Class E2 (27dBm ±3dB) for EDGE 850/900MHz
Class E2 (26dBm +3/-4dB) for EDGE
1800/1900MHz
Class 4 (33dBm ±2dB) for GSM 850/900MHz
Class 1 (30dBm ±2dB) for GSM 1800/1900MHz
Consumption
20uA @Power off
3mA @Sleep, Typ.
Sensitivity TBD
Certification
Approval CE*/FCC*/GCF*/PTCRB*/AT&T*/Verizon*/
ACMA RCM*
Product Description
Packing:
