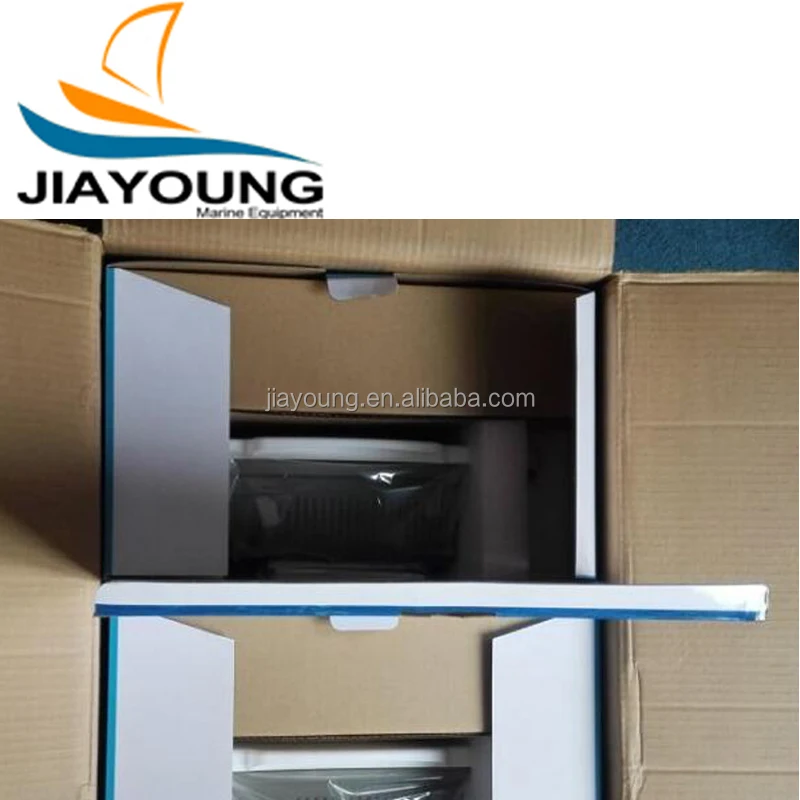

5.6/8/12 Inches Boat GPS Fish Finder
- Category: >>>
- Supplier: Chongqing Jiayoung Marine Co. Ltd.
Share on (60719334498):
Product Overview
Description
5.6/8/12 Inches Boat GPS Fish Finder
Product Description
| PLOTTER CHARACTERISTICS | ||
| Waypoints/icons | 15,000 waypoints with name, symbol, 10 proximity waypoint | |
| Routes | waypoint up to 200 points each, plus MOB and Track Navigation or Goto Track modes | |
| Tracks | 30,000 point automatic track log; 15 saved track (up to 2000 track points each)let you retrace your path in both directions | |
| Alarms | XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time,AIS alarm. | |
| Pallete | NormalDaylight exposed to sunlih Night in dark environment NOAA paperchart colors | |
| Tides | Tide data | |
| Projection | Mercator projection | |
| Position format | Lat/Lon | |
| Base map | Built-in K-Chart | |
| External Map | SD Cards slot for C-Map MAX | |
| User data storage | Internal backup of user settings, or external SD-card | |
| Plot Interval | 1s to 99h or 0.01 nm to 9.99nm | |
| Plotting scales | 0.01nm to 1,000nm | |
| Nav Datat | Inputs: $–DBT, $–DPT, $–GGA, $–GLL,$–GSA, $–GSV, $–HDG,$–HDM,$–HDT,$–MTW, $–RMB,$–RMC, $–VTG, $–ZDA, $–VWR,$–VWT,$–MWD, $–VPW Outputs: $–AAM, $–APB, $–BOD,$–BWC,$–GGA, $–GLL, $–RMB,$–RMC,$–VTG, $–XTE, $–ZDA Outputs for autopilot: $–AAM, $–APB, $–BOD,$–VTG | |
| Perspective View | On/off | |
| POWER SUPPLY | KP-6299C: 10.5 to 35VDC, current drain 1.0A at 12VKP-8299C/1299C: 10.5 to 35VDC, current drain 1.2A at 12V | |
| PHYSICAL | ||
| Size | KP-6299C: 228mm(H) X 138mm(W) X 79mm(D)KP-8299C: 290mm(H) X 195.5mm(W) X 99.5mm(D KP-1299C: 364mm(H) X 268mm(W) X 106mm(D) | |
| Weight | KP-6299C: 0.9kgKP-8299C:2.43kg
KP-1299C:3.95kg | |
| Display | KP-6299C: 5.6 inches Color TFT Display,640×480 pixelsKP-8299C: 8.0 inches Color TFT Display,800×600 pixels
KP-1299C: 12.1 inches Color TFT Display,800×600 pixels | |
| Waterproofing | Display unit: IPX5 Antenna unit: IPX6 | |
| Temperature range | Display unit: -15℃ to +55℃ Antenna unit: -25℃ to +70℃ | |
| EQUIPMENT LIST | ||
| Standard | Display unitAntenna unit with 10m cable Transducer Operator manual Installation materials and standard spare parts | |
| GPS RECEIVER CHARACTERISTICS | ||
| Receiver | 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position | |
| Acquisition times | Cold start: 27 seconds average Warm start: 27 seconds average Hot start: 1 second average | |
| Update rate | 1/second,continuous | |
| Accuracy | Position: 2.5 meters(95%) without S/A Velocity: 0.1 Meter/sec without S/A Time: ±100ns synchronized to GPS time | |
| Dynamics | Altitude: 50,000m Max Velocity: 500 m/s Acceleration: 4g Max | |
| Datum | WGS 84 & Others | |
| Interfaces | NMEA 0183 input and output,RS232 and RS422 output | |
| Antenna | KA07 | |
| AIS INTERFACE | ||
| Data input | NMEA 0183 , RS232 or RS422 | |
| Baud rate | 38,400 | |
| ECHO SOUNDER | ||
| Echo Color | 8 colors (including background color) according to echo intensity. Monochrome display is also available. The background color is selectable from blue, light blue, white and black. | |
| Basic Range | Meters 5/10/20/40/80/150/200/300/600 Feet 15/30/60/120/200/400/600/1000/1500 Fathoms 3/5/10/20/40/80/100/150/200 Passi/Braza 3/5/10/30/50/100/150/200/300 The basic ranges can be changed on the system menu. | |
| Range Shift | Up to 300 meters (1500 feet,200fathoms,300 passi/braza) | |
| Zoom Range | Times 2,3,4 and 5 ranges | |
| Bottom Lock Expansion Range | 5/10meters,10/20feet,2/5fathoms,2/5passi/braza | |
| Auto Mode | Automatic adjustment of range and gain | |
| Display Mode | High Frequency (200K),Low Frequency (50K), Dual (200K and 50K 1/2display on each), Zoom (200K and 50K zoom) and A-scope Display | |
| Zoom Display | Marker Zoom, Bottom Zoom and Bottom-lock Expansion | |
| Display Advance Speed | Lines/TX:Freeze,1/8,1/4,1/2,1/1,2/1 | |
| TX Frequency | 50 and 200kHz (alternately transmitted) | |
| Power Output | KP-6299F: 300WKP-8299F/1299F: 600W | |
| Pulse-length/TX rateDisplay End Depth(m) 5 10 20 40 80 150 300
Pulse-Length(ms) 0.2 0.2 0.2 0.4 0.8 1.5 3.0 TX Rate(pulse/min) 600 600 600 375 187 100 50 | ||
| Interference Rejecter | Rejects unwanted signals by comparing last and present echoes in strength. | |
| Alarm | Fish and Bottom alarms, Temperature alarm (sensor required | |
