Digital leeb hardness tester

Product Overview

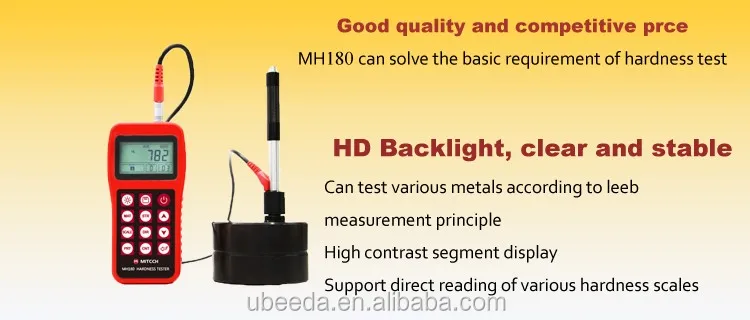

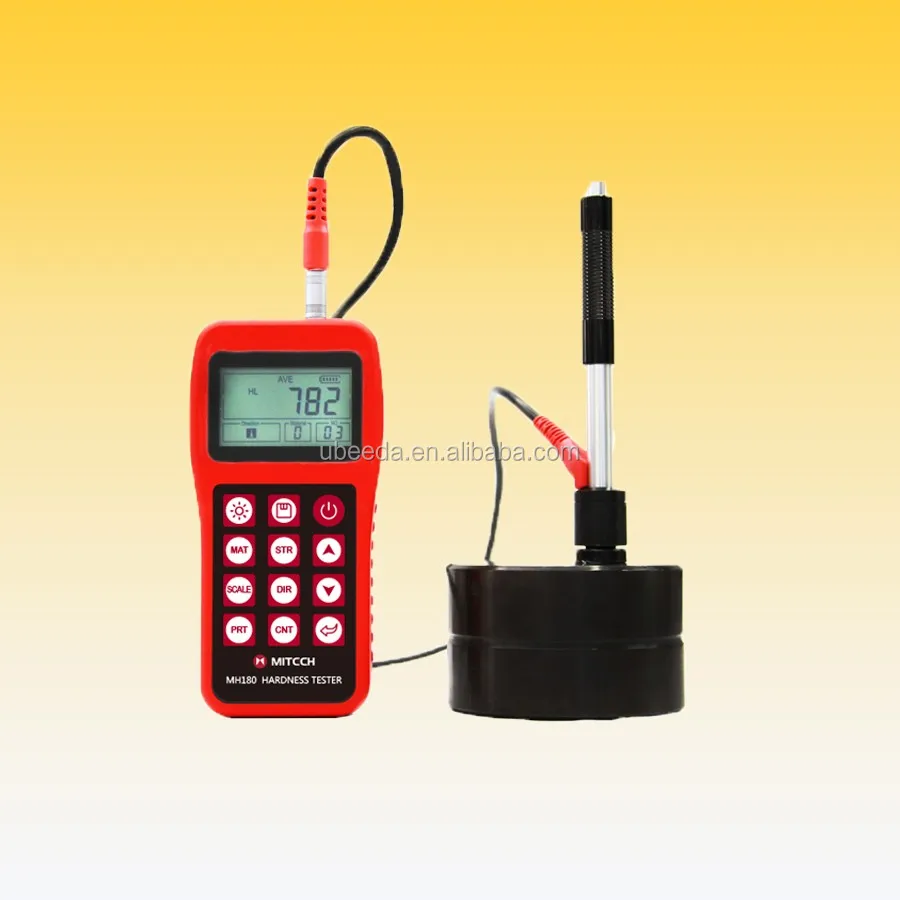

MH180 portable Leeb hardness tester, based on Leeb hardness measuring principle, quick and easy, on site test the hardness of series metallic materials, support free conversion between Leeb, Brine, Rockwell hardness scale and others, it uses high contrast segment LCD to display, small size, tight, portable, stable and reliable performance. It is widely used in failure analysis of metal processing and manufacturing, special equipment, permanent assembly, inspection and other fields. It can meet the regular hardness testing of industrial production, quality and cheap, which is the first choice for practical and economical models.

Main Features

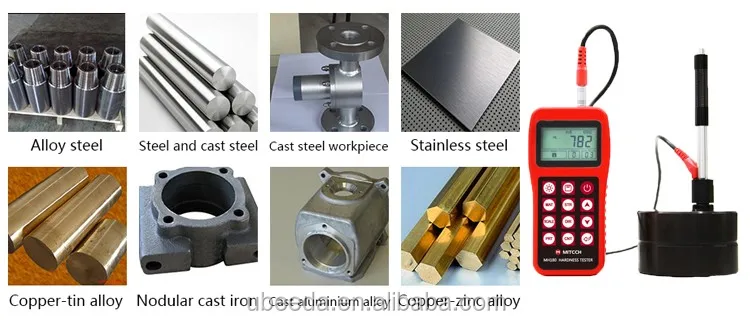

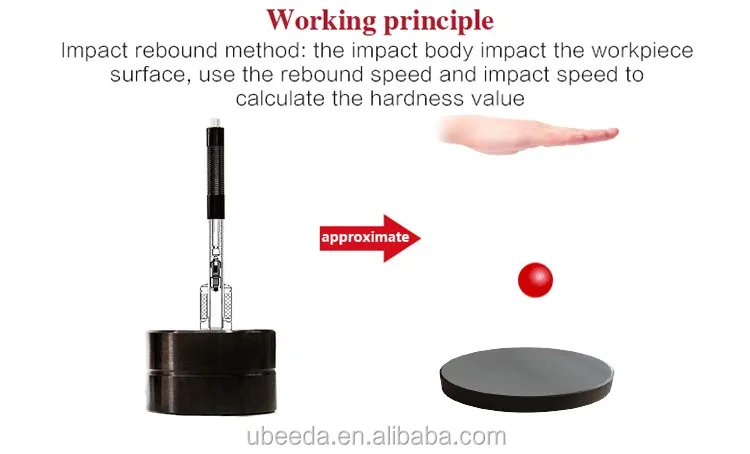

Based on the principle of Leeb hardness testing theory. It can measure many materials.

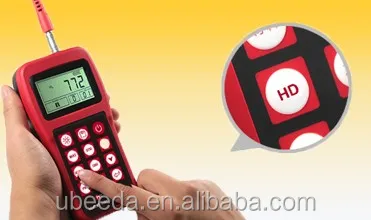

High contrast Segment LCD , easy to use.
One main unit can match to 6 impact devices.
Support Steel ,when using D/DC sensor to test steel ,it can show HB directly, no need to check manually .
Software calibration automatically.
100 groups (impact times 32 - 1) hardness measure value, measurement date / time, impact direction.
Real -time display the remaining battery.
High brightness EL back light display for easy use in dimly environment.
Equipped with PC software (optional), with functions of measurements transmission, value storage management, statistical analysis of the measured value, the print report of measured value, batch setting instrument parameters, to meet the higher requirements of quality for activities and management.
Tow ordinary AA batteries, it can work for not less than 100 hours; automatic screen standby, automatic sleep, automatic shutdown and other power-saving features.
Small size, portable, stable and reliable performance, suitable for harsh environment field operations, prevent from vibration, shock and electromagnetic interference.
Dimension:150mmx74mmx32mm.
Weight: 245g.

Application fields

1、Die cavity of molds.
2、Bearings and other parts.
3、Failure analysis of pressure vessel, steam generator and other equipment.
4、Heavy work piece.
5、The installed machinery and permanently assembled parts.
6、Testing surface of a small hollow space.
7、Requirements of formal original record for test results.

8、Material identification In the warehouse of metallic materials.
9、Rapid testing in large range and multi-measuring areas for large-scale work piece .

Integral casting, firm and durable
Reduce the fault rate effectively

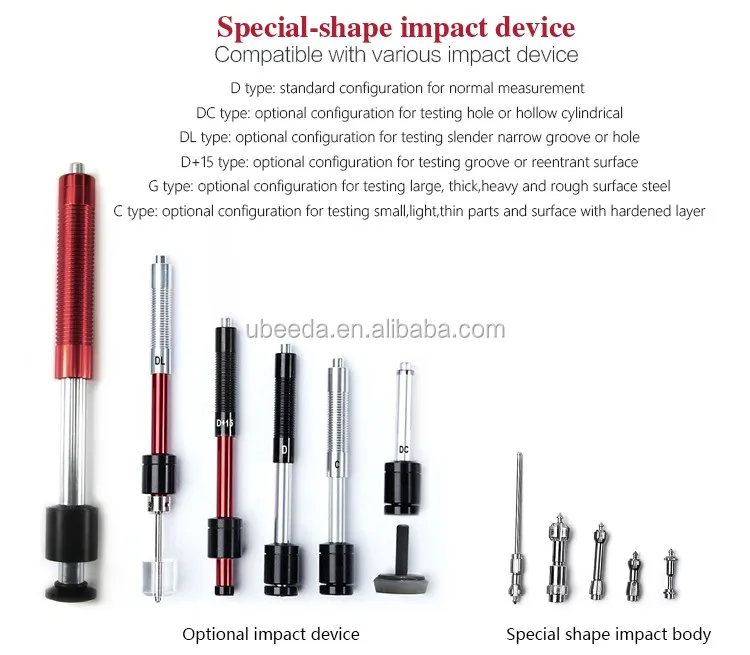

Various special-shaped impact devices are convenient to replace.

Display and convert among various hardness scales
Support hardness scales of HL, HB, HRB, HRC, HRA, HV, HS.
