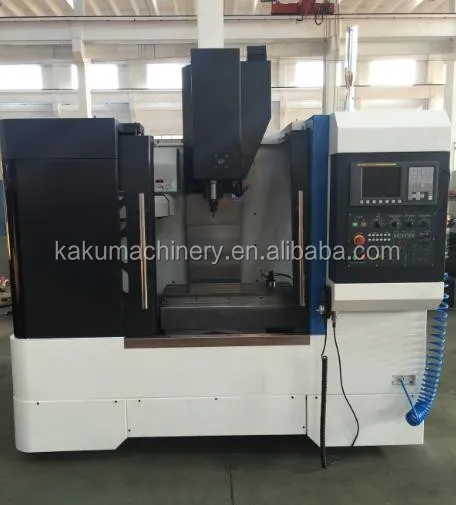

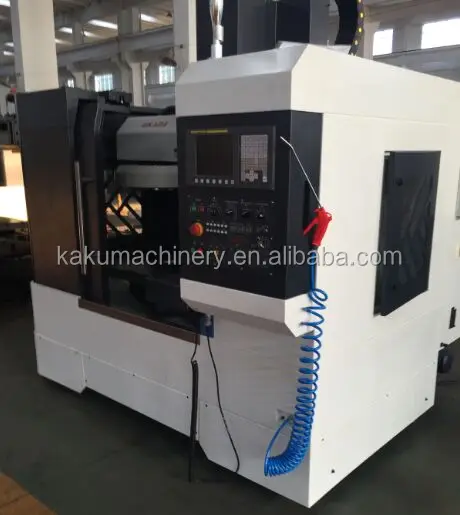

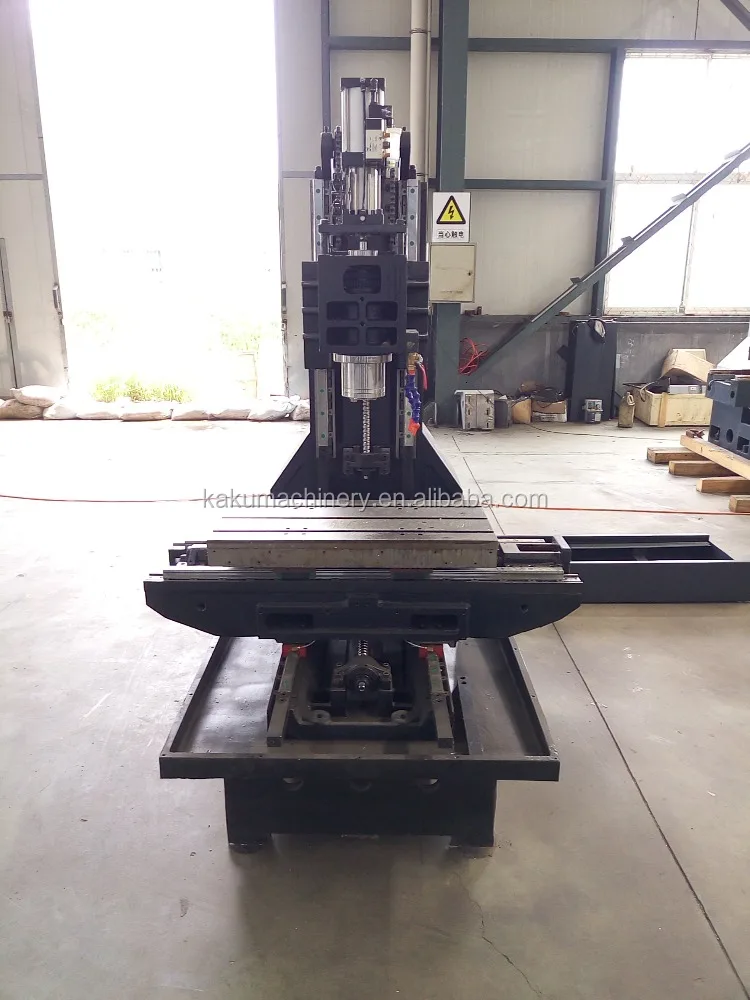

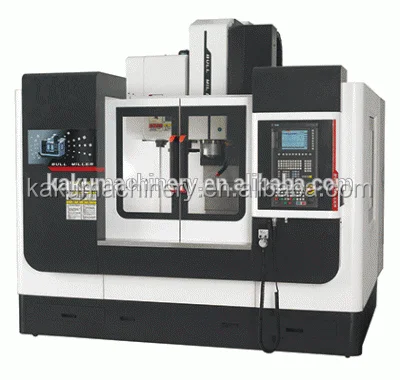

XH7126 VMC Machine CNC Vertical Machining Center

Introduction of XH7126 CNC machining centers

The milling machine X, Y, Z three-axis servo-controlled semi-closed-loop vertical structure, three-axis rail load large, wide span, high precision, sliding surface paste, spindle servo motor driven by synchronous belt, All kinds of discs, plates, shells, cams, molds and other complex parts of a clamping, drilling, milling, boring, expansion, hinge, rigid tapping and other processing processes, suitable for multi-species, small and medium volume products Of the production, to meet the complex, high-precision parts of the processing. Optional fourth rotary shaft to meet the processing requirements of special parts.

Features of XH7126 CNC machining centers

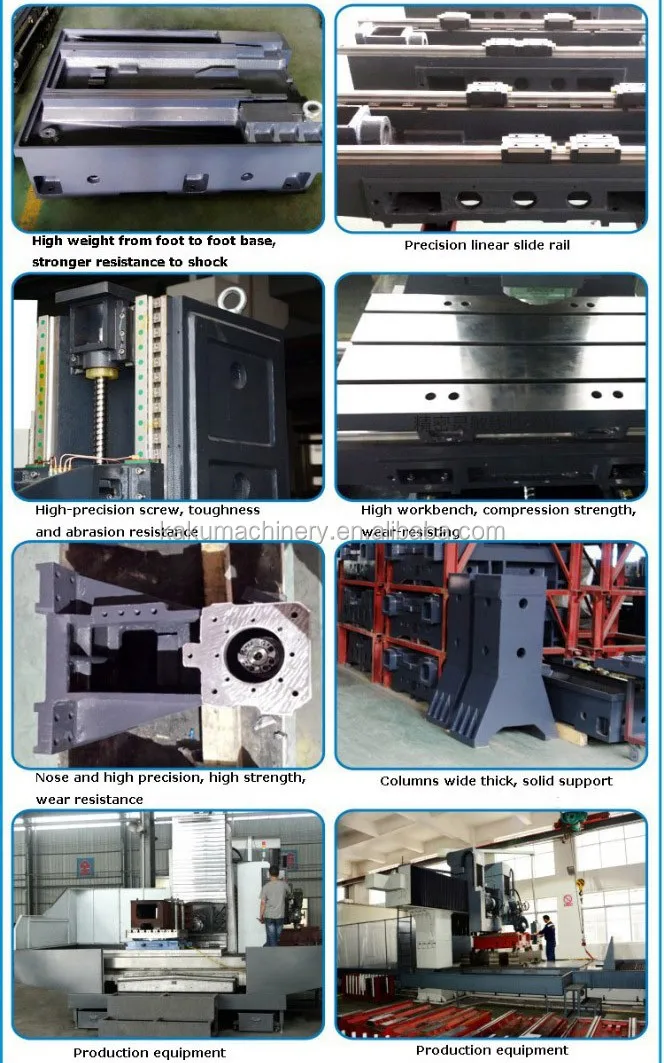

1. The base, carriage, table, column, spindle box and other main parts of the use of HT250 cast iron; base for the box structure, compact and reasonable symmetrical structure to ensure that the basic pieces of high rigidity and bending performance ; Column internal grid-like tendons, effectively ensure the Z-axis strong cutting rigidity and accuracy; basic pieces of resin sand molding and aging treatment for the long-term use of machine tools to provide a guarantee of stability.

2. X, Y, Z guide rails are plastic guide rails, with high rigidity, low friction, low noise, low temperature rise and other characteristics, with automatic forced lubrication, improve the accuracy of machine life;

3. Z-plus plus weight balance to ensure that the spindle box movement is smooth and stable; Z-drive motor with loss of braking device;

4. X, Y, Z three-way feed with high precision and high strength internal circulation double nut preload large lead ball screw, feed speed; drive motor through the flexible coupling and screw directly connected, into To the servo motor directly to the power transmission to the high precision ball screw, no backlash, to ensure the positioning accuracy and synchronization of the machine;

5. High speed, high precision, high rigidity spindle unit, axial and radial bearing capacity, the maximum speed of up to 6000rpm ;;

6. X, Y, Z three guide rails, screw are used protective devices to ensure that the screw and guide rail cleaning to ensure that the machine drive and movement accuracy and life;

7. Machine protection using semi-protective structure design, easy operation, safe and reliable, nice;

8. The use of reliable centralized automatic lubrication device, timing, quantitative lubrication of the machine automatically point to the lubrication, according to the working conditions to adjust the lubrication time;

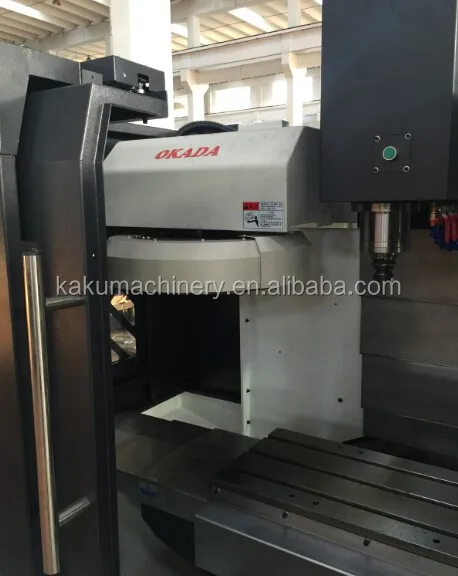

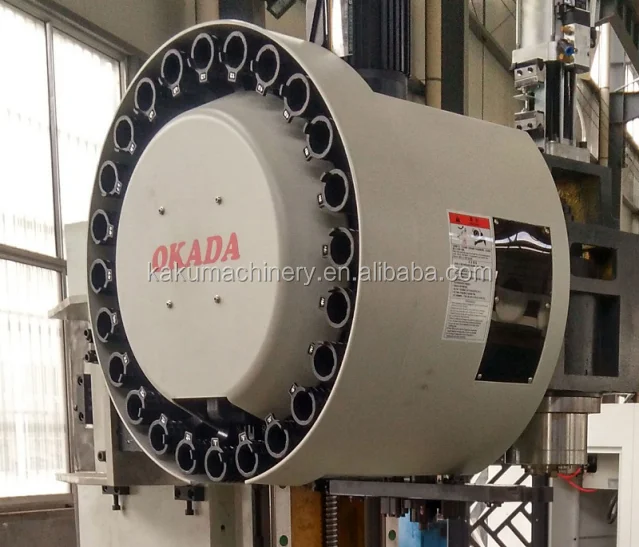

9. The processing center uses 12 professional manufacturers of Taiwan's hats (standard), the tool change is accurate, time is short, high efficiency, after millions of operation test, meet the reliability requirements; with damping structure, can reduce the movement Of the impact, to ensure the life of the magazine; pneumatic drive, easy to use, the shortest path change tool;

10. The use of simple oil-water separation device, the collection of most of the lubricants can be separated from the coolant to prevent the rapid deterioration of coolant, environmentally friendly;

11. Machine operating system using ergonomic principles, operating box independent design, can be rotated, easy to operate.

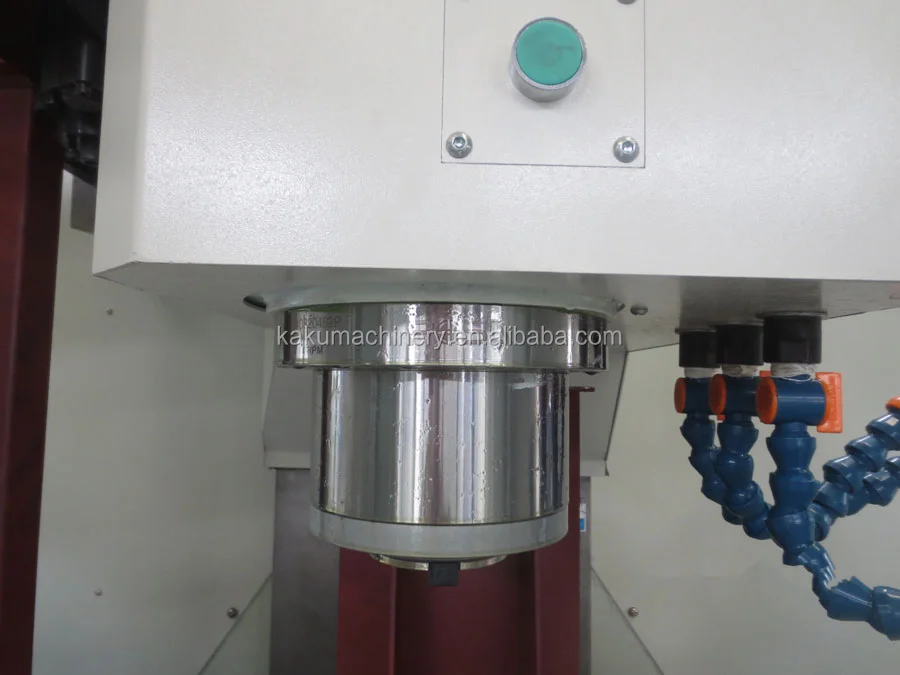

Taiwan BT40 Spindle

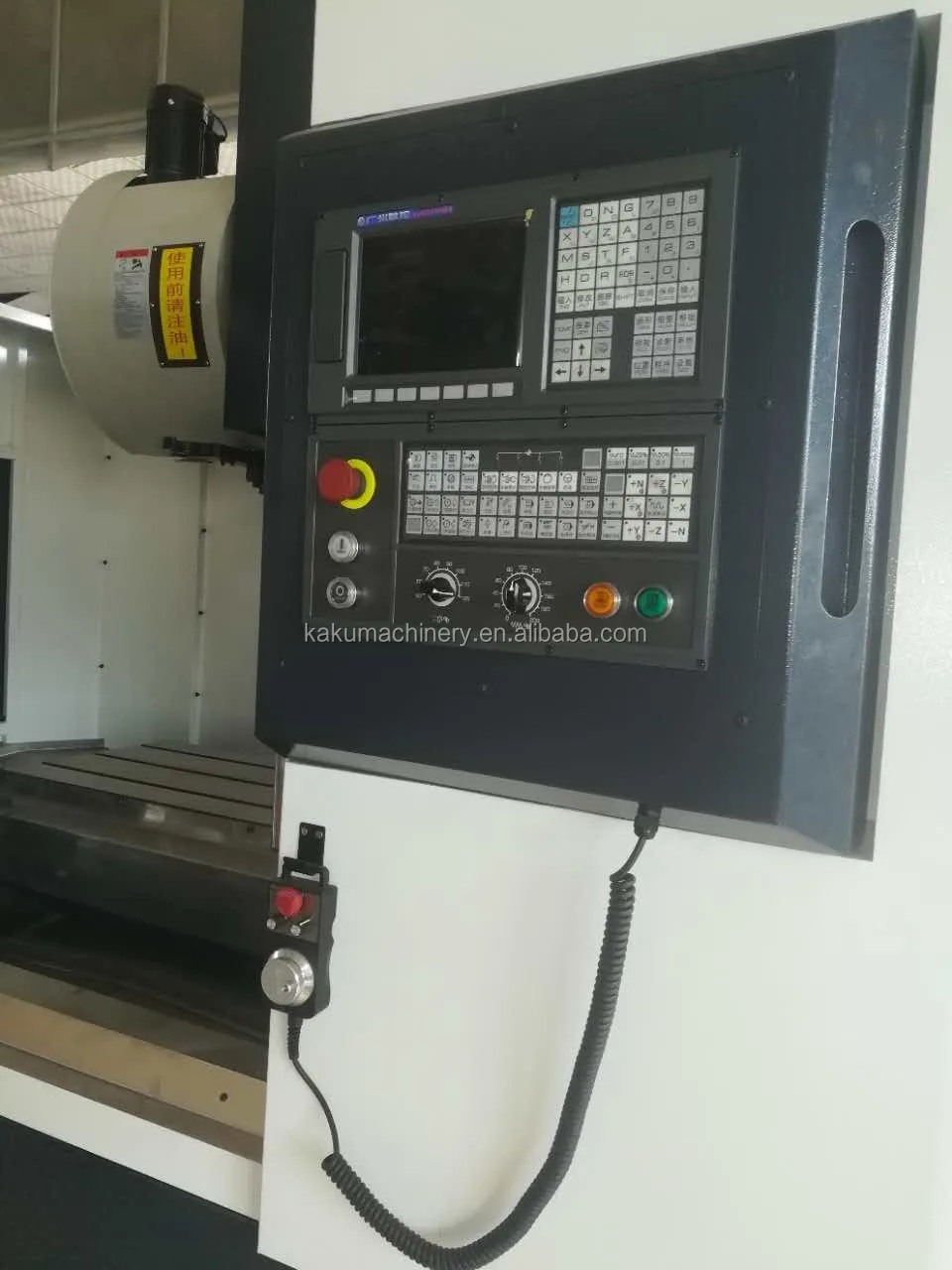

CNC System (Optional: GSK, KND, SIEMENS, FANUC, MITSUBISHI)

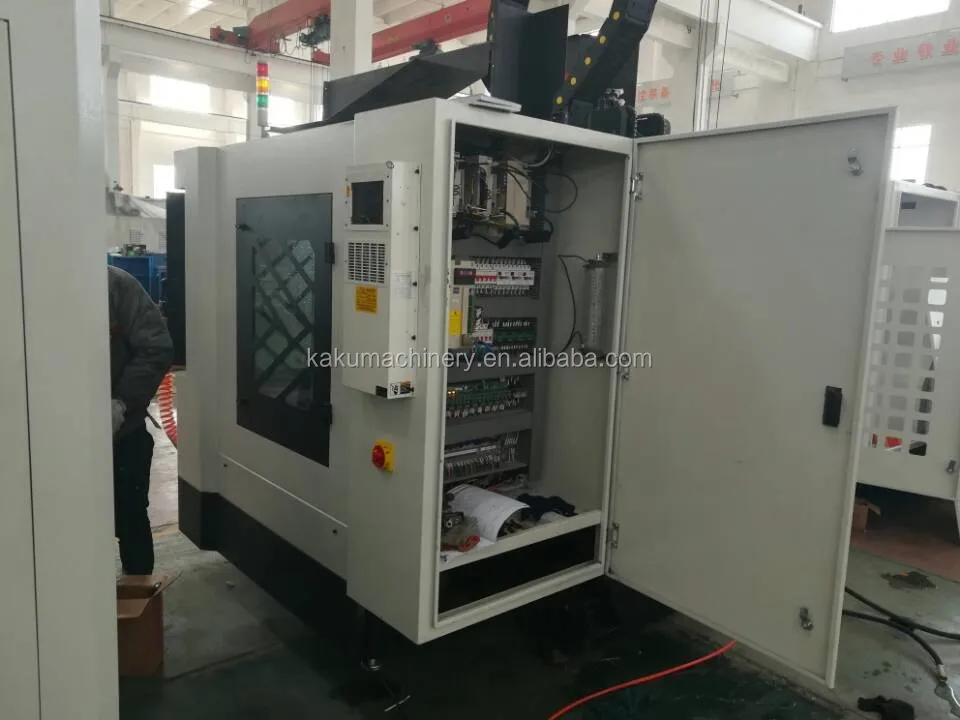

Electrical Carbinet

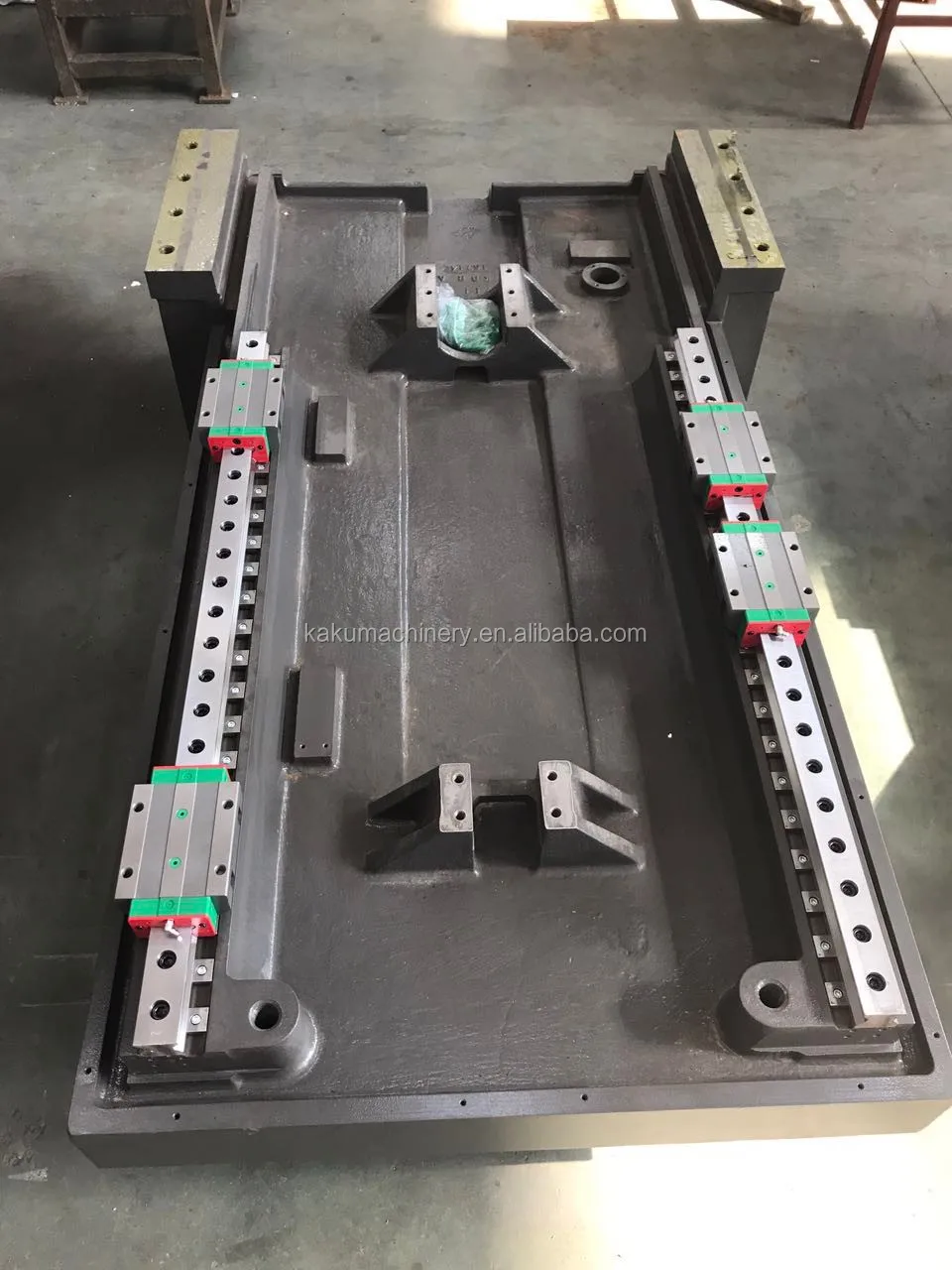

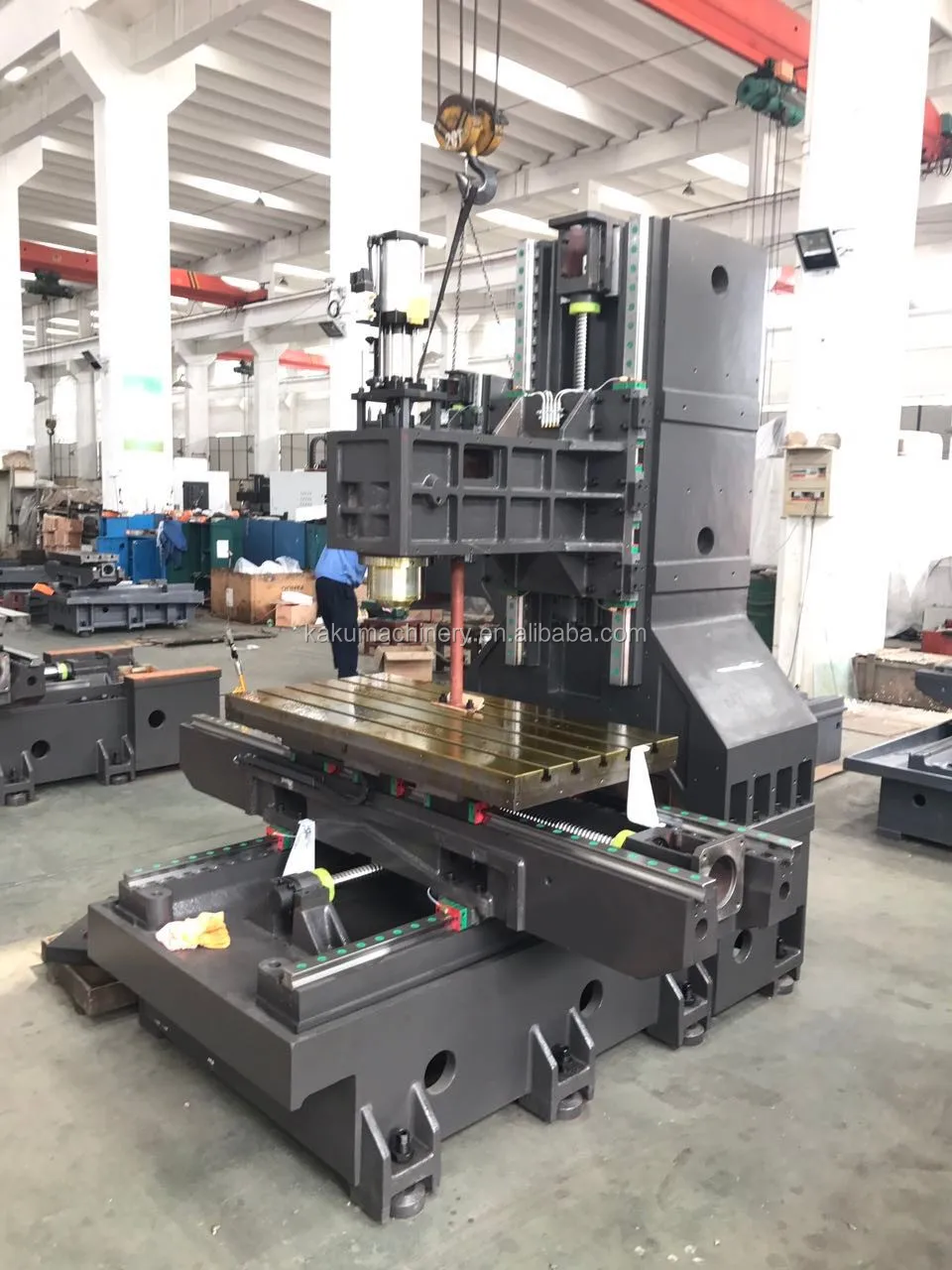

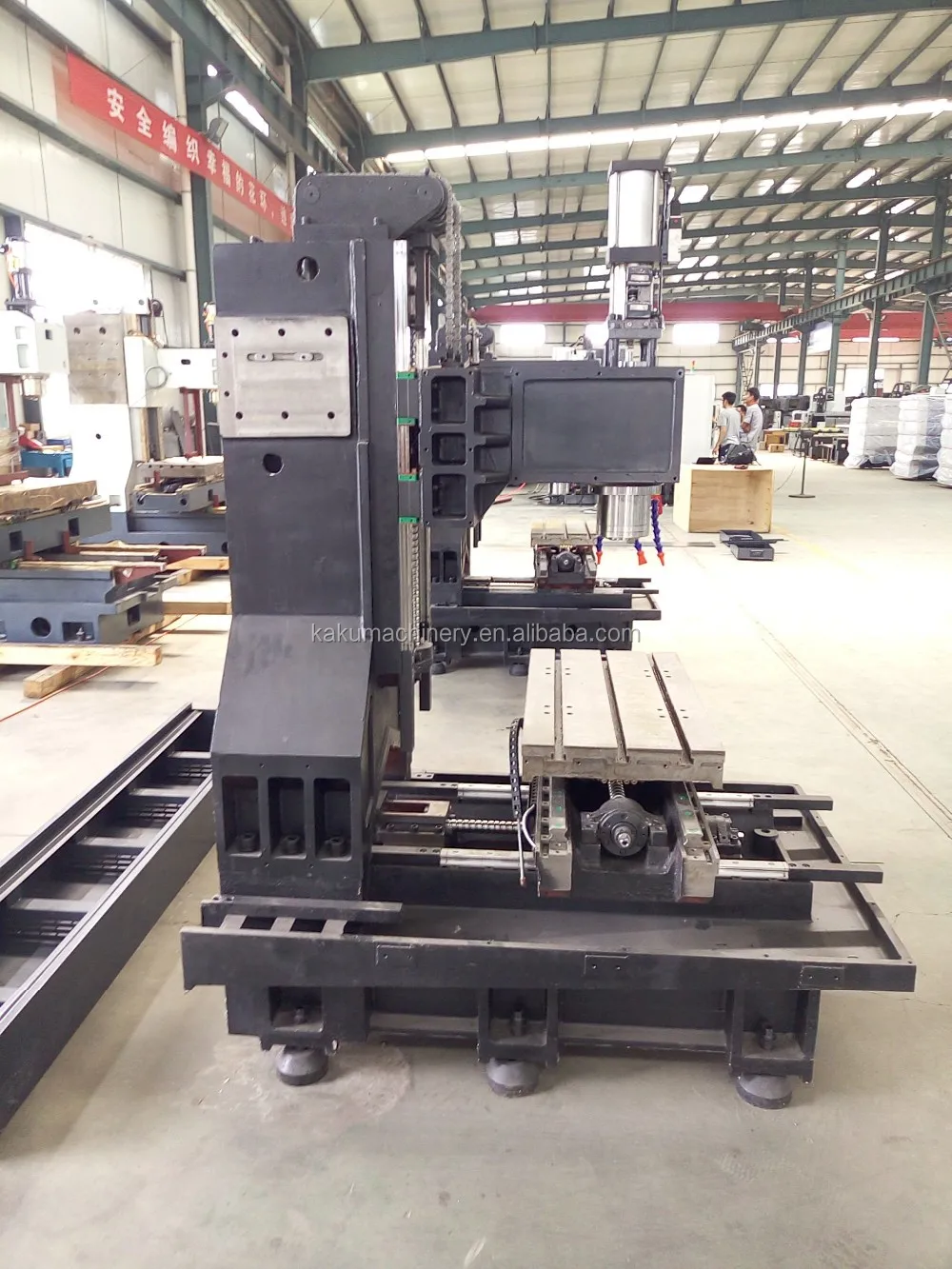

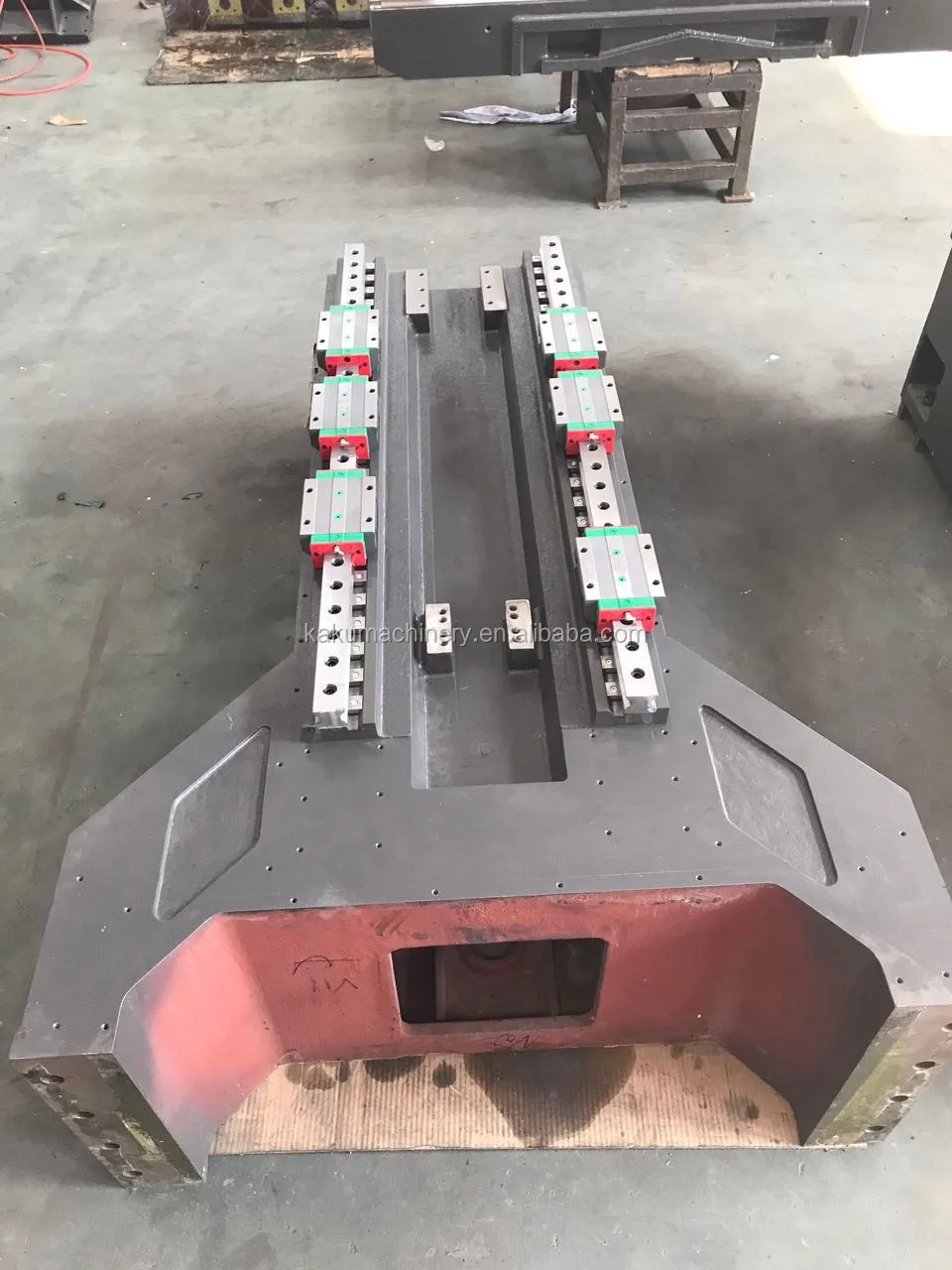

High Quality Casting Structure with Taiwan HIWIN Linear Guide
