TOPLED Digital Sign Board Advertising P10 Stage Elegant Backdrop Led Display Indoor Full color,full Color Customized 2 Years SDK
- Category: >>>
- Supplier: Shenzhen Topled Optotech Co. Ltd.
Share on (60719455800):
Product Overview
Description
Product Description
Characters
1. Ultra bright LED and A grade raw material for plastic part.
2. LED encapsulation uses alloy wire welding and double-welding the red chip technical to ensure the stability.
3. International standard A3 steel plate, throu copper thickness over 20um, column blanking.
4. LED glue (DP), high level LED fog chip, good encapsulation, high level moisture proofness.
5. With single lamp,single module repair,low maintenance costs.
6. With the design of constant current circuit,brightness uniformity,low power consumption.
Parameters
Name | Parameter |
Pixel Pitch(mm) | 10mm |
Physical Density | 10000 |
LED Configuration | 1RGB |
LED type | SMD3528 |

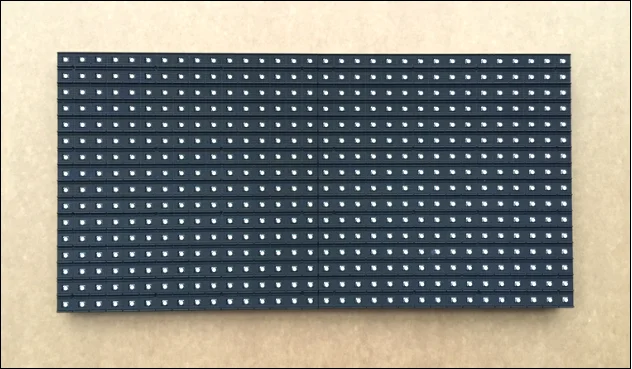

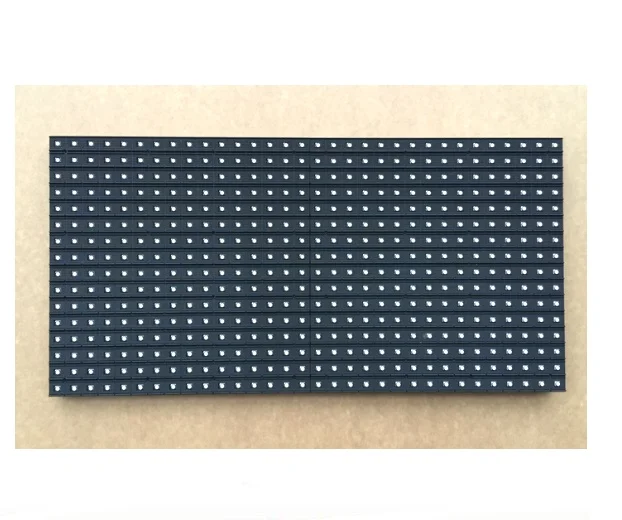

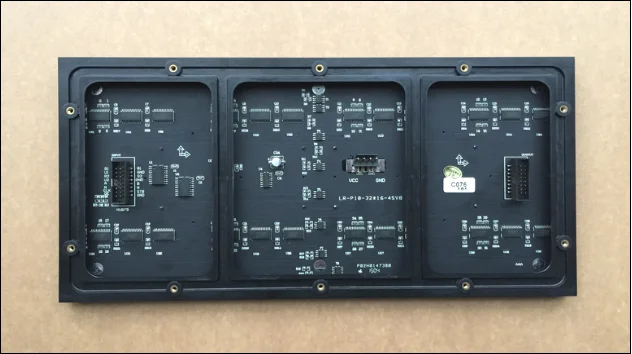

Module Size | 320×160 |
Module Resolution | 32×16 |
Module Power Consumption | 12 |
Driving Mode | Constant Current IC |
Scanning Mode | 1/8 |
Horizontal Viewing Angle | ≥160(+10/-10)degree |
Vertical Viewing Angle | ≥140(+10/-10)degree |
Brightness | ≥2000CD/sqm |
Grey Scale | 16bit |
Refresh Rate | >1500 |
Cabinet Resolution | 128×128 |
Cabinet Max Consumption | 250 |
Cabinet Average Power Consumption | 75 |
Cabinet Size | 960×960 |
Cabinet Weight(kg) | 32kg |
Cabinet Thickness | 75 |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 50~60 |
Protection Level | IP45 |
Working Temperature(℃) | -20° -+50° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
Packing&Shipping
Company Information
After-Sales Service
FAQ
Why so many clients choose TOPLED?
Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose TOPLED, you choose the cost-effective , high quality and good service.
