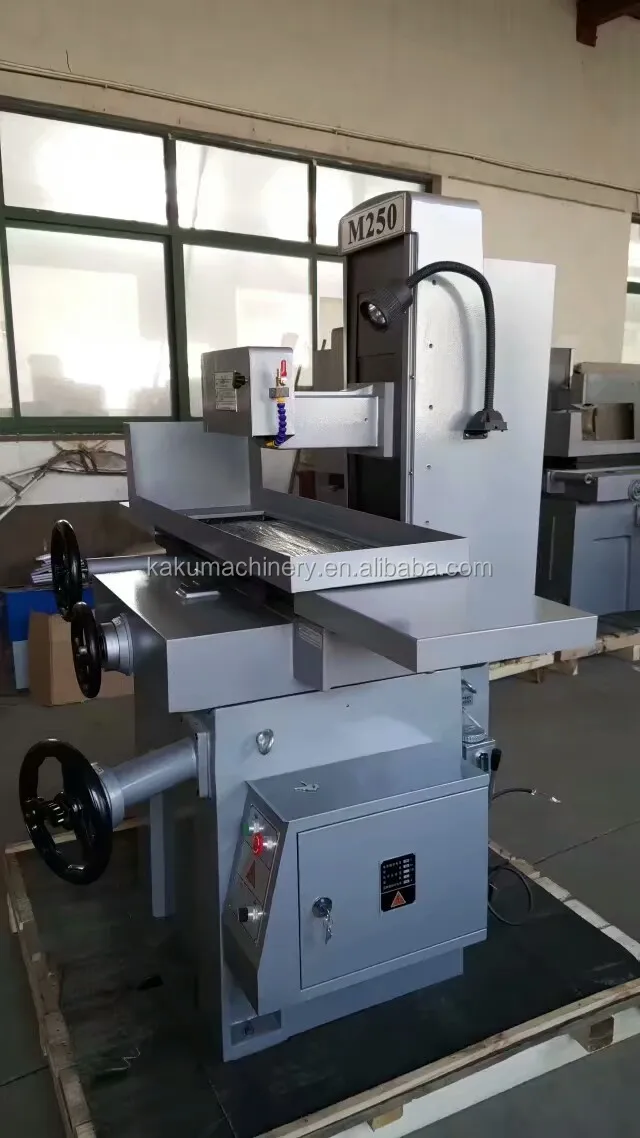

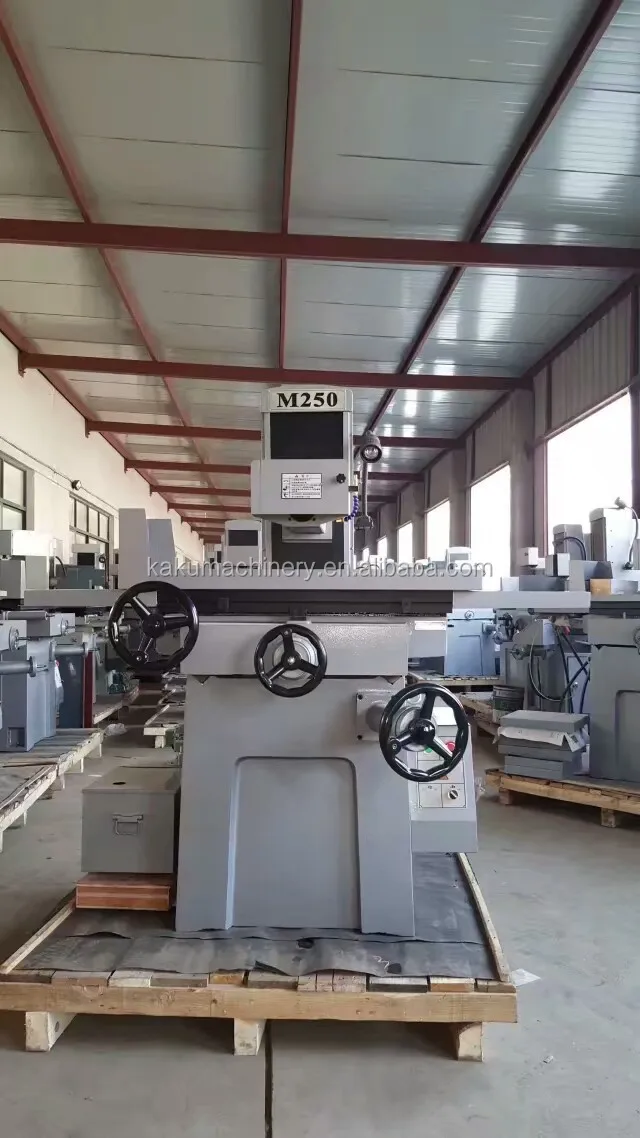

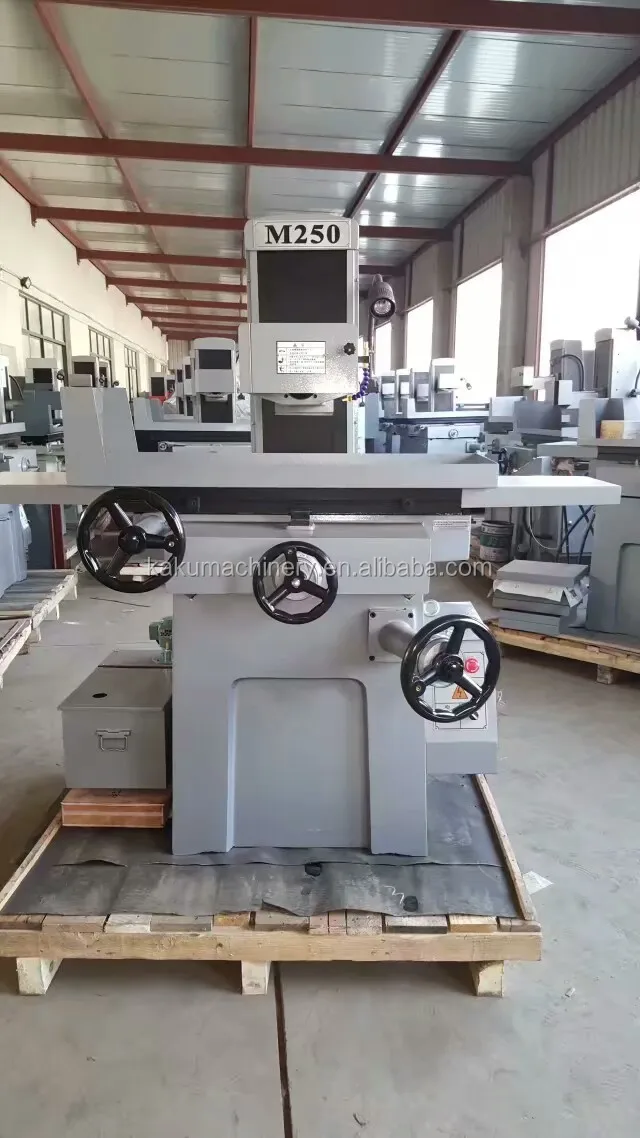

Manual Surface Grinders Grinding Machine MS250

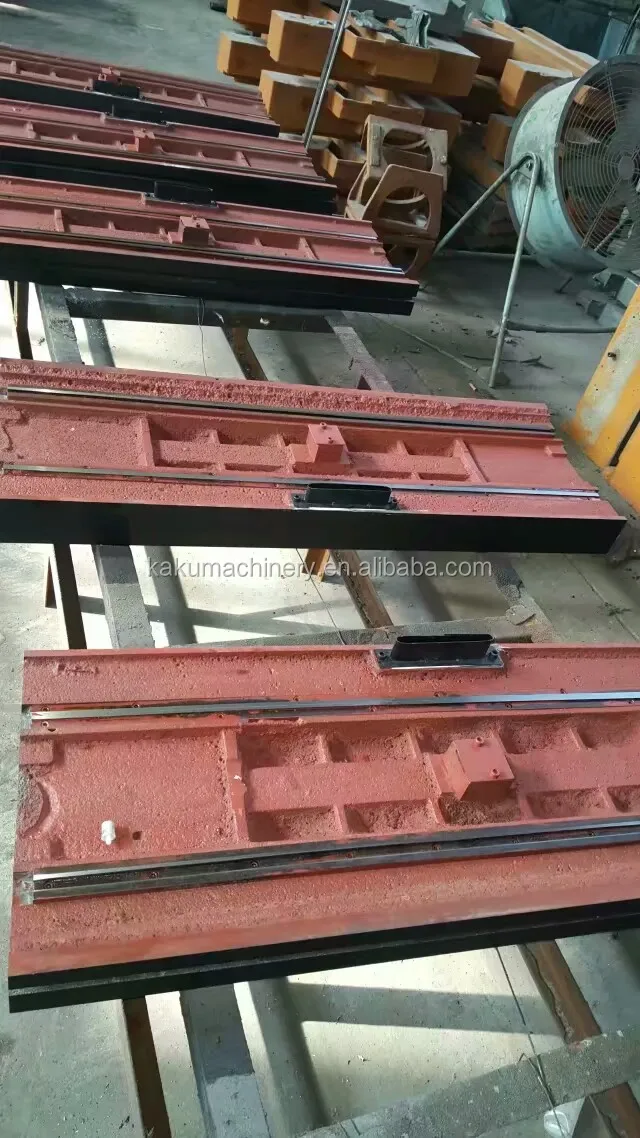

1. Quality castings and Precision ball bearing supporting the spindle

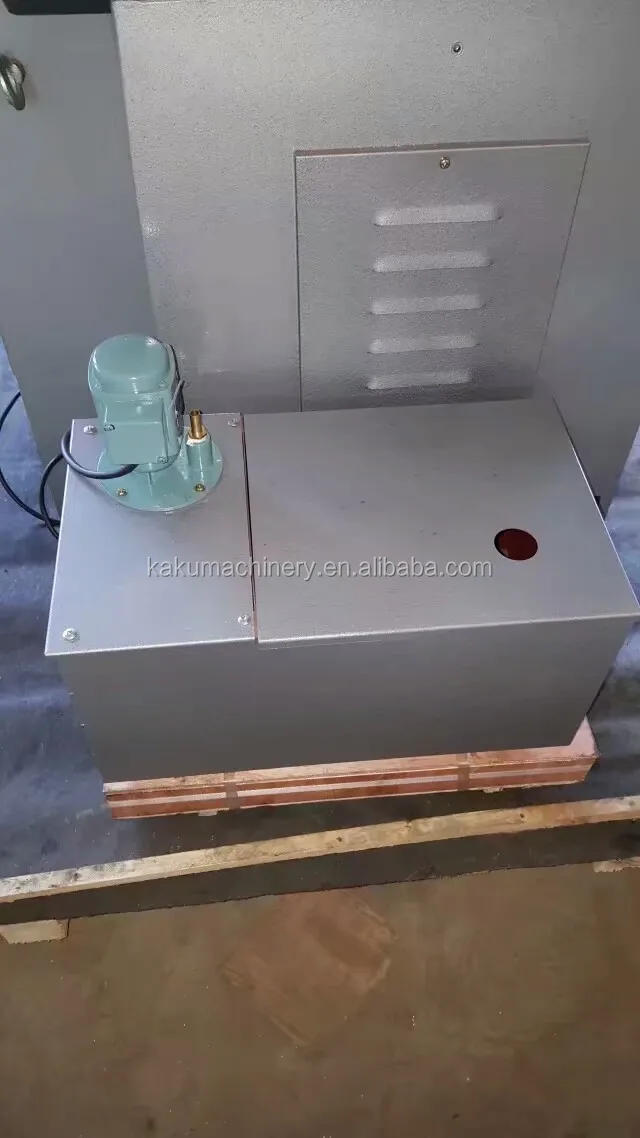

2. Coolant system with nozzle and flow control valve

3. Cast iron machine body and stand for maximum rigidity and smooth operation

4. The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.

5. The machine is suitable for China supplier surface grinder for metal M618A, M820 without auto feed and is installed with permanent magnetic

chuck or electromagnetic chuck according to customer’s requirement.

6. Vertical dial graduations 0.01mm

7. Cross travel graduations 0.02mm

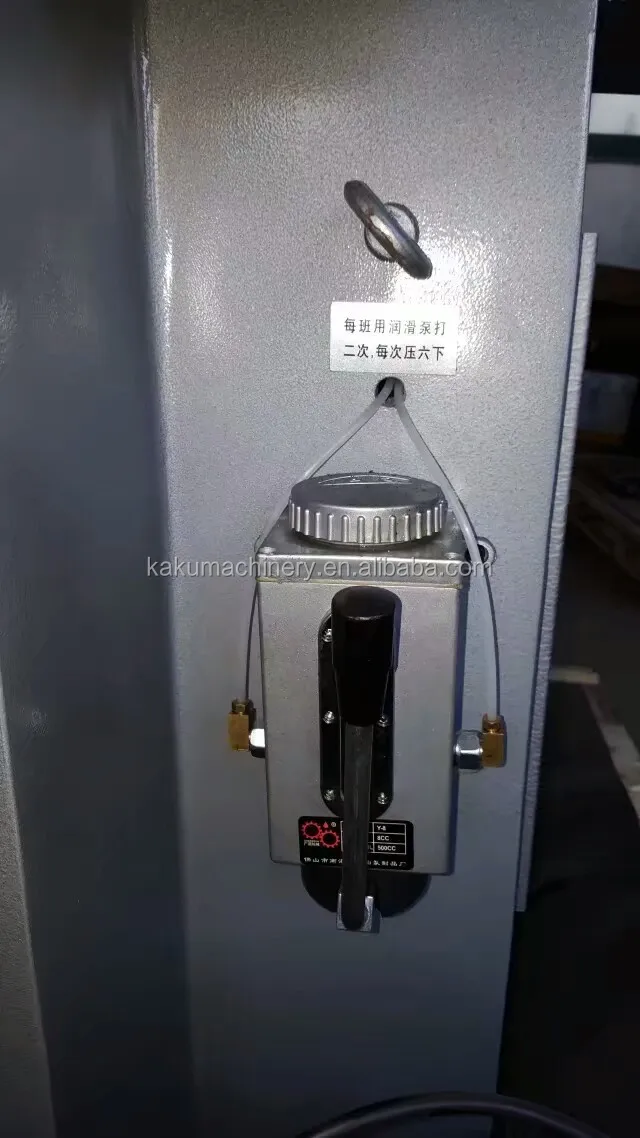

8. Manual one shot lubrication pump

9. Wheel balancing stand and arbor

10. Halogen work light

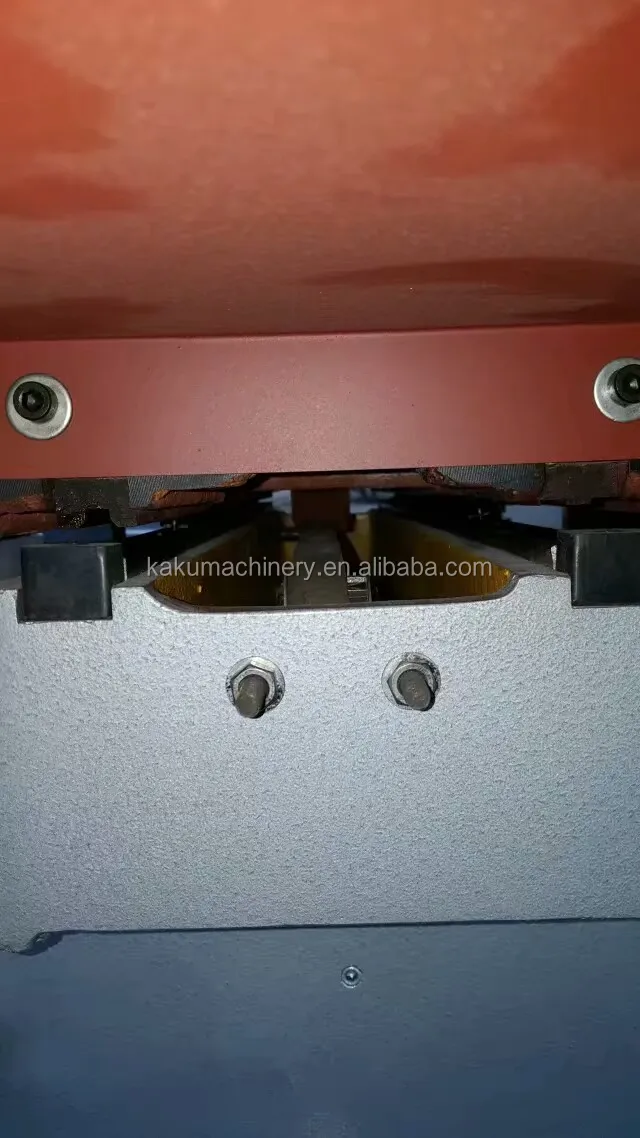

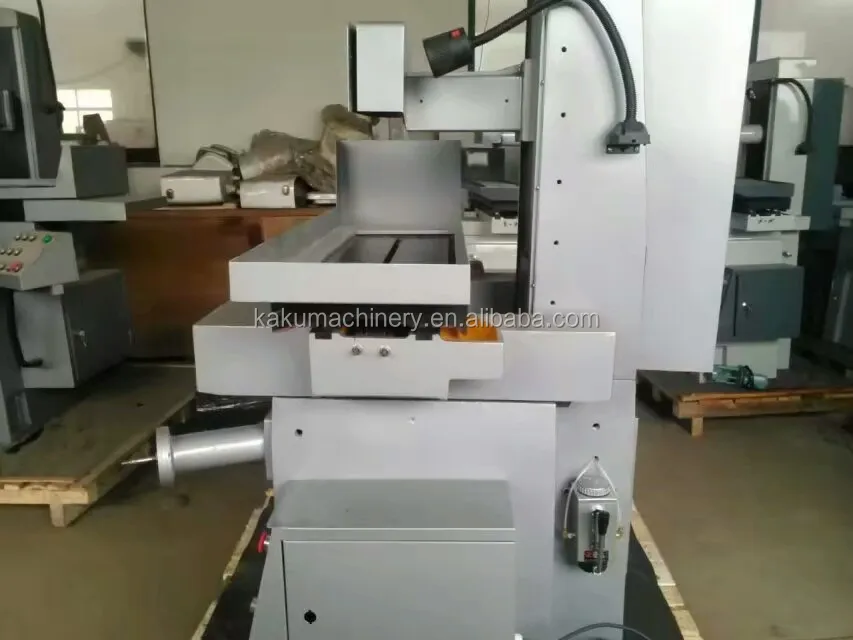

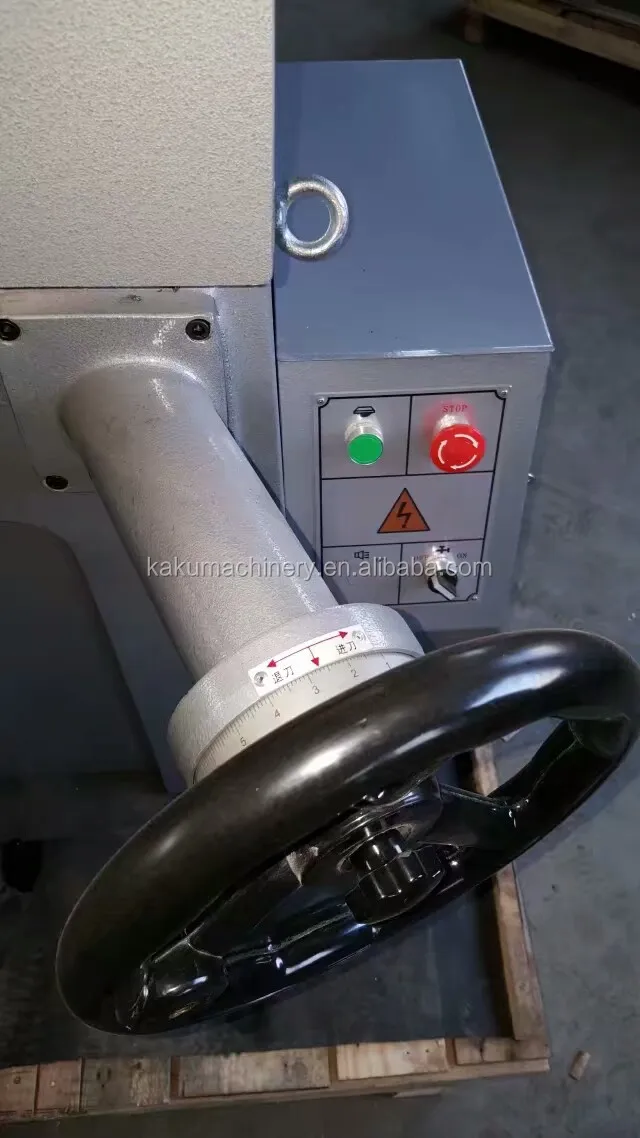

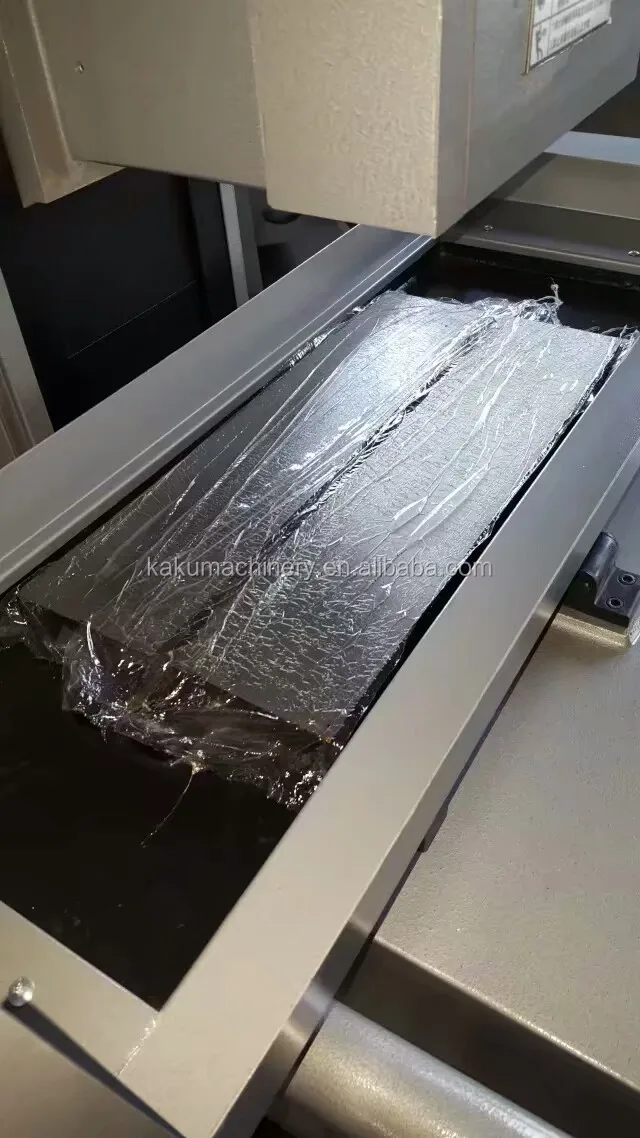

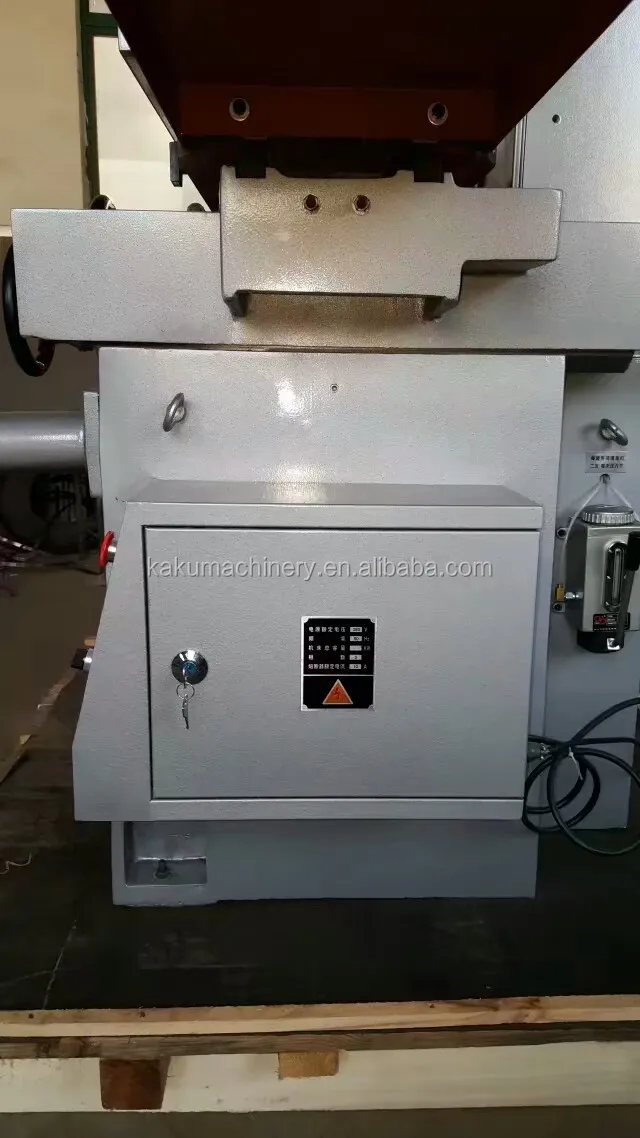

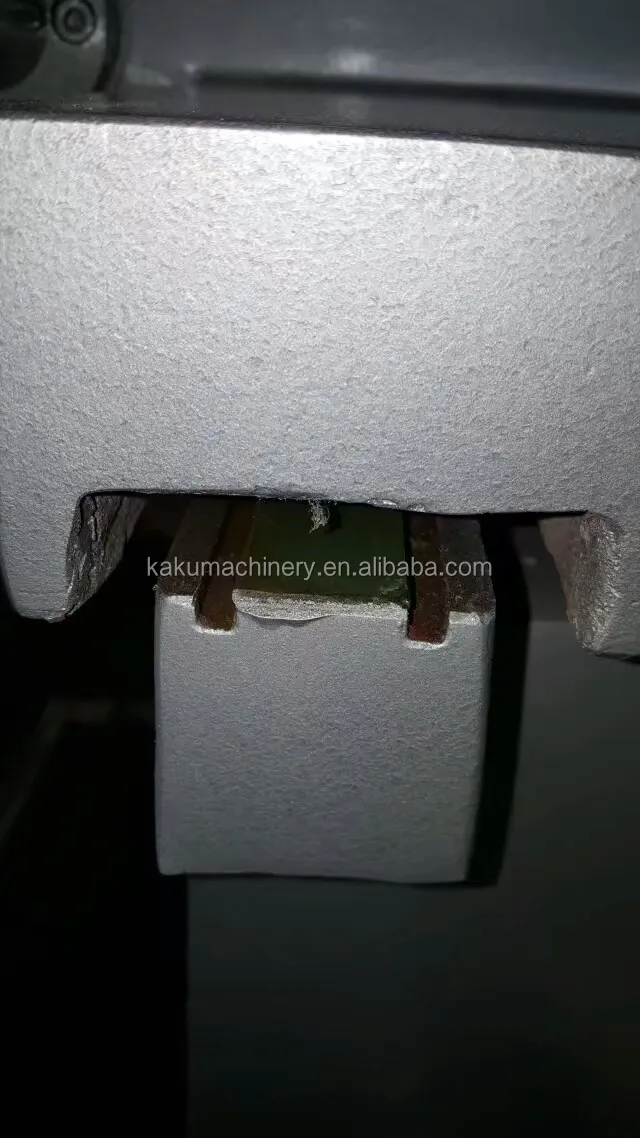

Detailed Images

Configurations

Standard accessories:

Tool box
Balancing stand. Balancing bar Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spanner
Wheel dresser holder
Diamond pen
Machine stand pad
Grinding wheel and wheel flange

Optional accessories:

Tilting permanent chuck
Demagnetizer
Overhead parallel dresser
Angle dresser
Radius dresser
Precision vice
Dust suction device
Digital readout system
Working light
Wheel flange
150×400 Electrical magnetic chuck for M618A/M820

200×400 Electrical magnetic chuck for M818A

200×450 Electrical magnetic chuck for M825

Cooling and Dust collector

Parallel wheel dresser

Dust collector

Parameters

Technical specifications		UnIT	M250	MS250
Maximum grinding area of the table (length*width*height)		mm	540×250×350	540×250×350
Worktable movement	Horizontal	mm	560	560
	Vertical	mm	260	260
Maximum distance from the work surface to the center of the spindle		mm	500	500

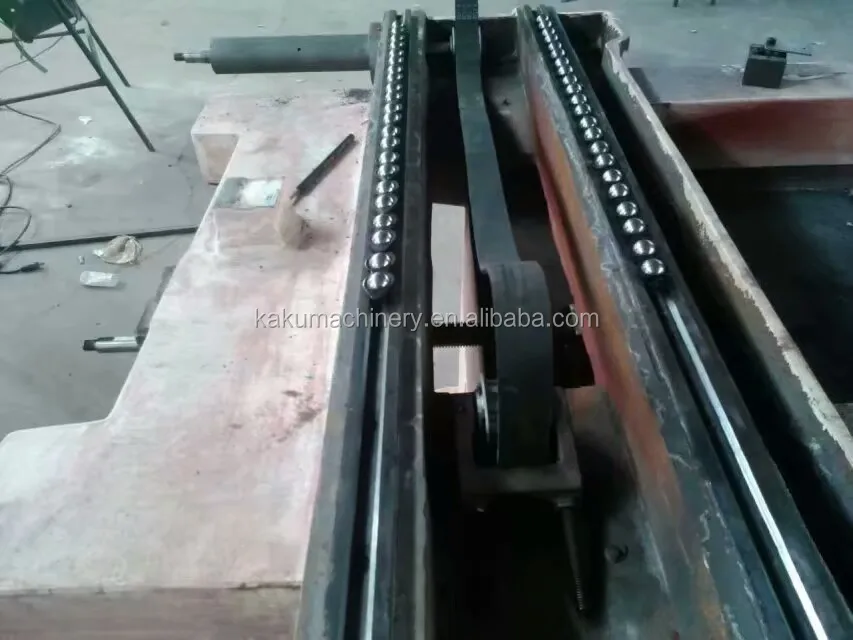

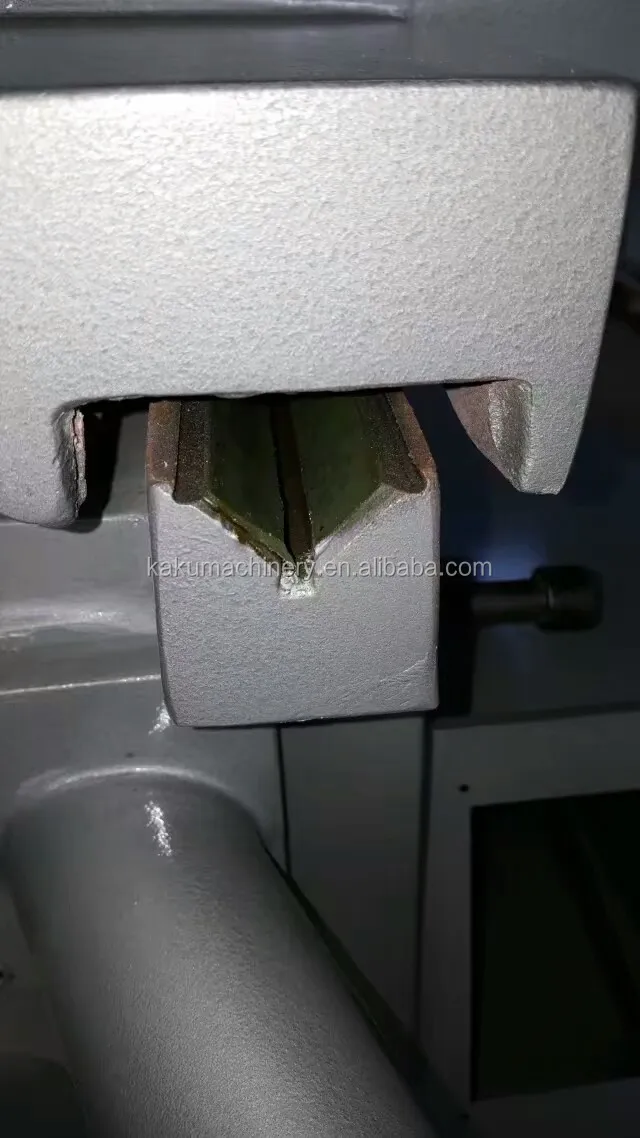

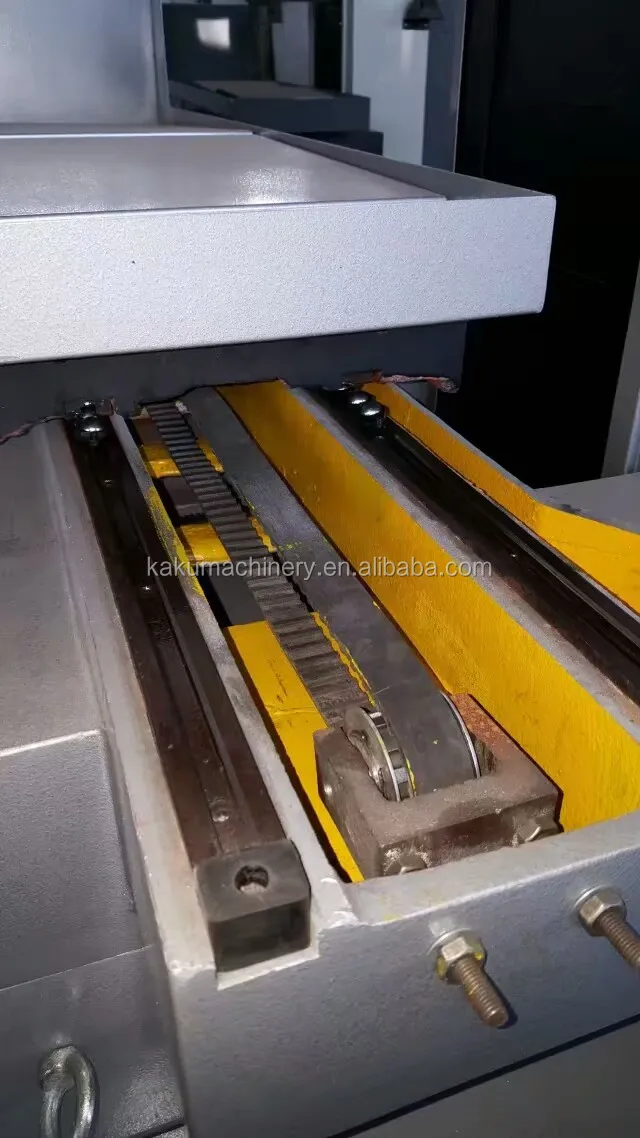

Table slide			Steel ball V flat rail	Steel ball V flat rail
Maximum capacity of the workbench		Kg	200	200
Table table size (length × width)		mm	500×230	500×230
Table T-slot		mm×n	14×1	14×1
Table speed		m/min	3-23	3-23
Before and after the hand wheel into the amount		mm	0.02 / div 2.5 / lap	0.02 / div 2.5 / lap
Up and down hand wheel into the amount		mm	0.01 / div 1.25 / lap	0.01 / div 1.25 / lap
Grinding wheel size (outside diameter × width × inner diameter)		mm	200×20×31.75	200×20×31.75
Spindle speed	50Hz	rpm	2850	2850
	FM motor		0-6000	30-6000
Spindle motor		Kw	1.5	1.5
Cooling the pump		Kw	0.4	0.4
Digital display system minimum display value		mm		0.001-0.005
Machine dimensions (length*width*height)		mm	1680×1220×1720	1680×1220×1720
Box size (L*W*H)		mm	1200×1400×1940	1200×1400×1940
Gross weight, net weight		T	1.05, 0.95	1.09, 0.99
