Product Overview
Description
Product Description
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
Model | MZ415 |
Working length | 200-1500mm |
Working wdith | 30-260mm |
Working thickness | 10-25mm |
Working speed | 20-25pcs/min |
Stock height | 400mm |
Boring motor power | 1.5kw * 4 |
Spacing of drills | 32mm * 7 drills (4 rows ) |
Feeding mode | Pneumatic |
Total power | 6.5kw |
Machine weight | 1600kg |
Machine size | 3150*1520*1820mm |
Automatic stock pneumatic feeding mode
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with 400mm height stock, can load many panels one time to save more time to loading than other one by one feeding mode.
Pneumatic feeding mode can working with short 15mm/30mm width panel.
Digital display meter and air lock
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine
All movable spindles with digital display meter easy to read with high precision.
The air lock for easy to move to adjust working size.

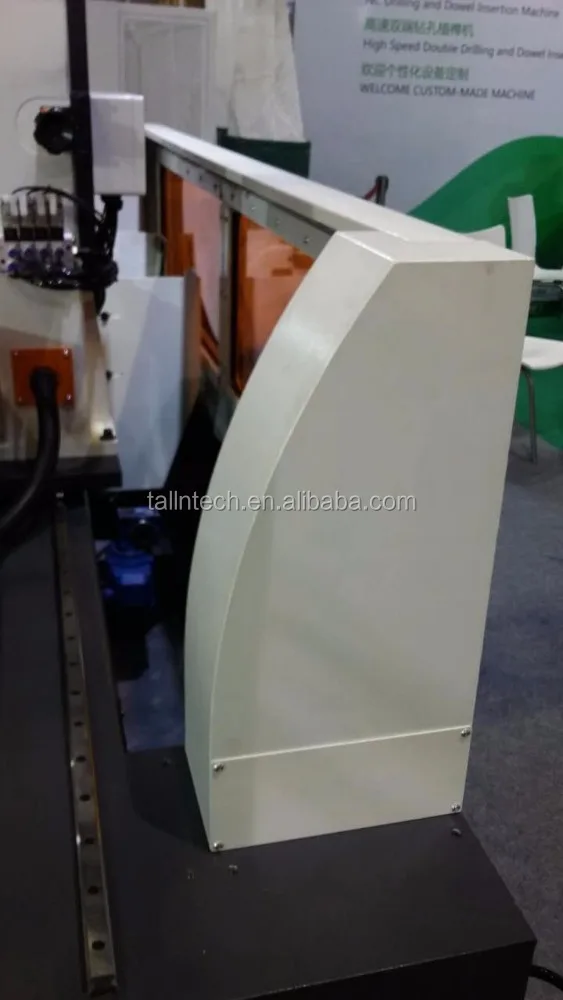

Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with turn over structurn and plastic belt protect the panel incase damage.
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring
machine with return belt, then one worker can do loading and unloading, save labour to receive the finished panels.
Detailed Images
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
Machine with 2 vertical rows boring spindle , 1 left horizontal row boring spindle and 1 right horizontal boring spindle, each spindle with 7 drills
Special vertical boring spindle can do short 200mm panel.
Related Products

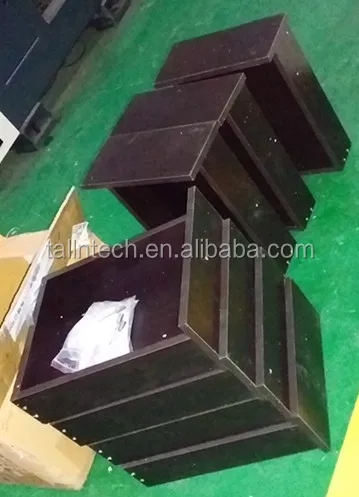

Packing&Shipping
Different package with different loading requirements or customers' requirements. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
After Sales Service
After service
1. One year warranty on right operation except wearing parts, consumable parts and plastic parts.
2. Offer installation and trainning oversea, buyer need afford supplier's technician tickets and accommodation oversea.
3. Within warranty, all the parts delivery charge offord by buyer.
4. We supply online service from 8am to 5pm every working day.
5. Welcome customer come to our company to do trainning.
Company Introduction
Shanghai TALLNTECH Machinery Manufacturer Co.,ltd is a professional company engaged in R&D production of Acrylic diamond polishing machine, multi function NC boring sawing and dowel insertion machine, high speed double end boring and dowel insertion machine, narrow panel high speed four sides boring machine, NC horizontal and vertical boring with dowel insertion machine, drawer panel high efficient boring machine, side boring machine, bed baffle panel boring machine, high speed double end bed panel stapling machine, five sides bevel boring machine , automatic double sided brush panel cleaning machine etc.
FAQ
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel

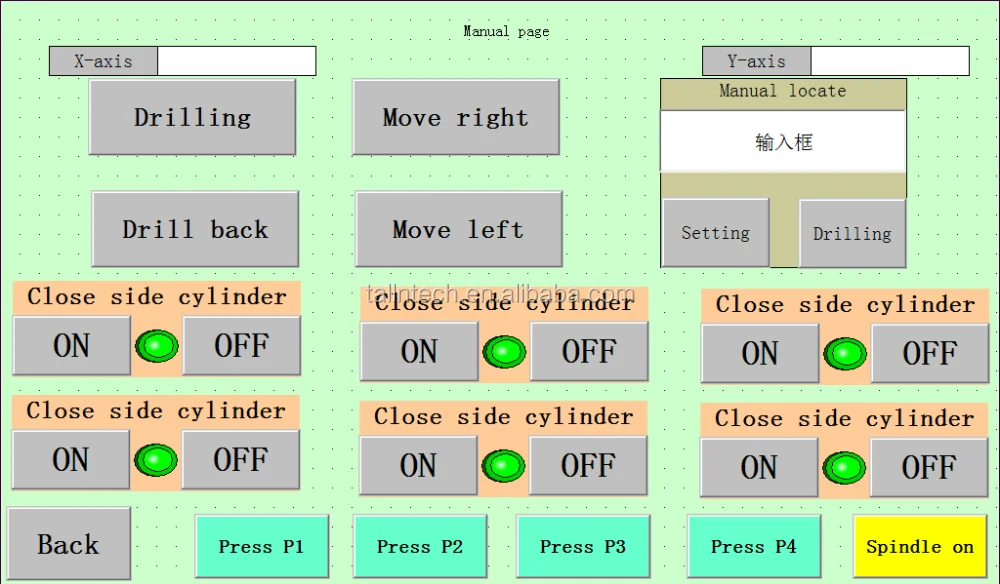

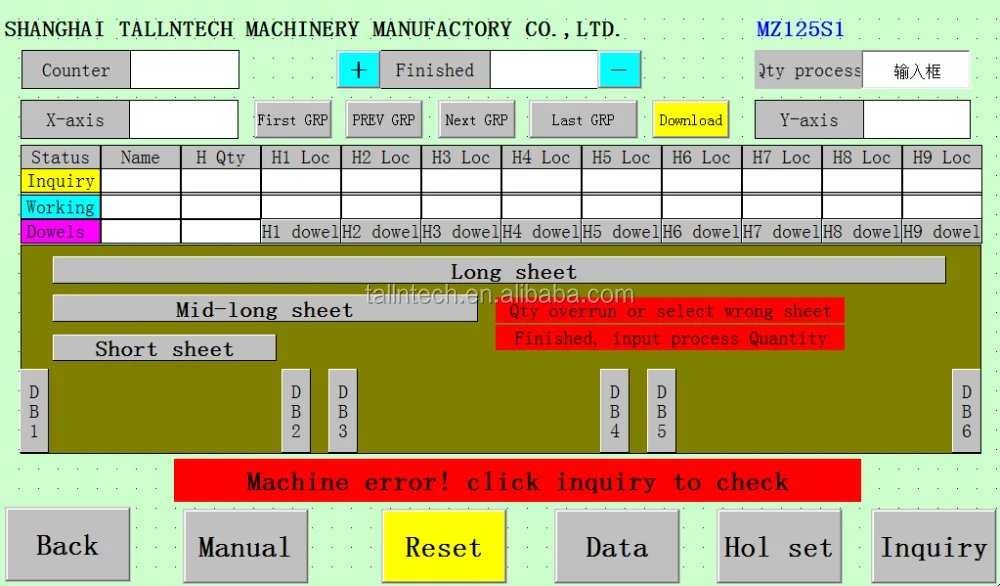

Touch screen operation language
Our machine have two kinds of languages Chinese and English for your choice. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
User Manual
We also have two languages Chinese and English User manual for your choice. Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
Any questions and requirements about our machine please contact us
Automatic stock pneumatic feeding and returning high speed double end narrow panel boring machine with 4 rows 3 sides drilling for drawer and small panel
