Trade assurance 55 inch transparent LCD TV panel display with 1920*1080 resolution
- Category: >>>
- Supplier: Shenzhen Etk Technology Co. Limited
Share on (60719505576):
Product Overview
Description

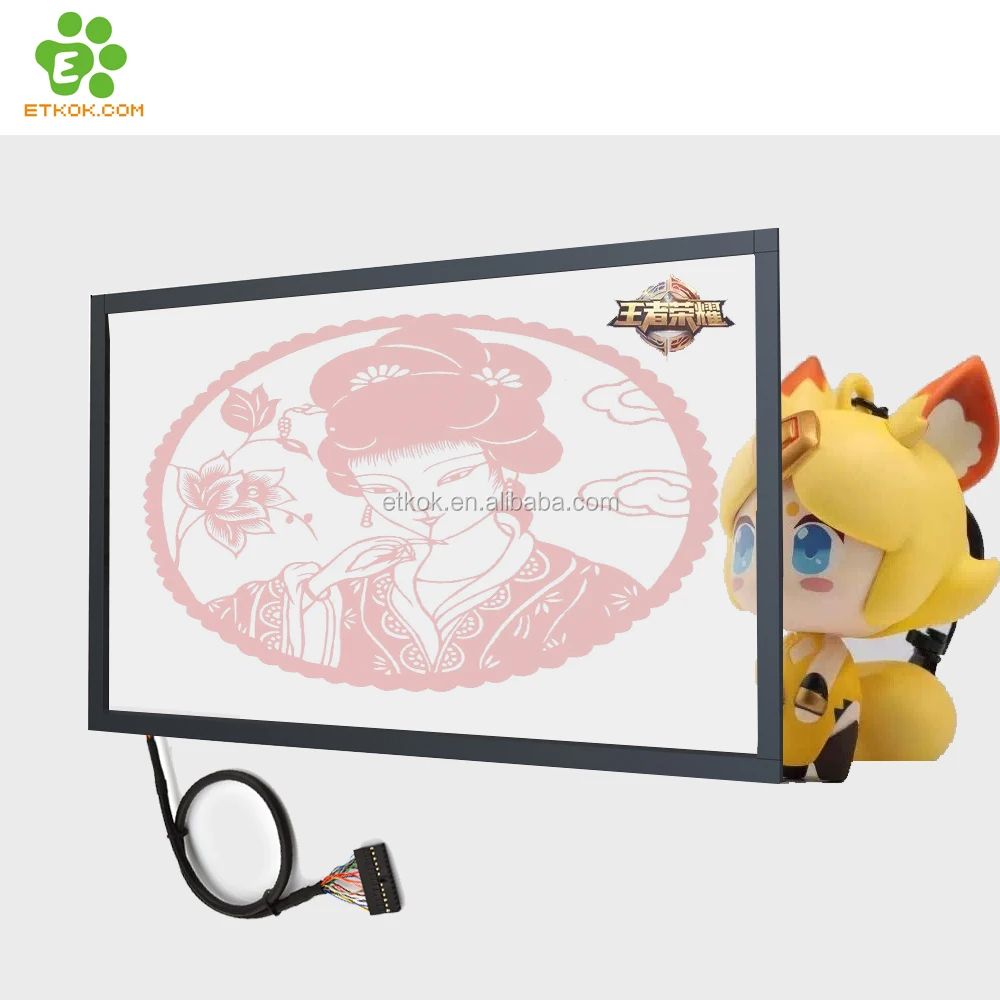

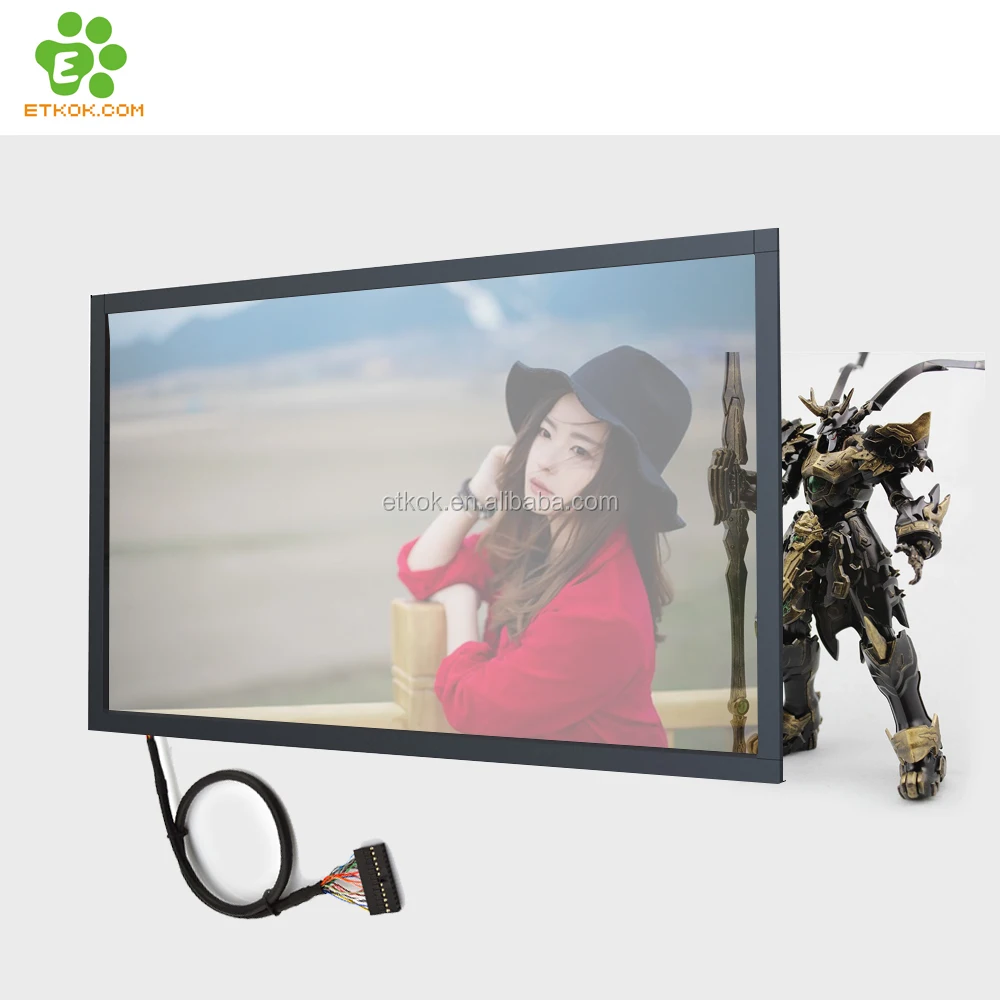

Trade assurance 55 inch transparent LCD TV panel display with 1920*1080 resolution
Product Overviews

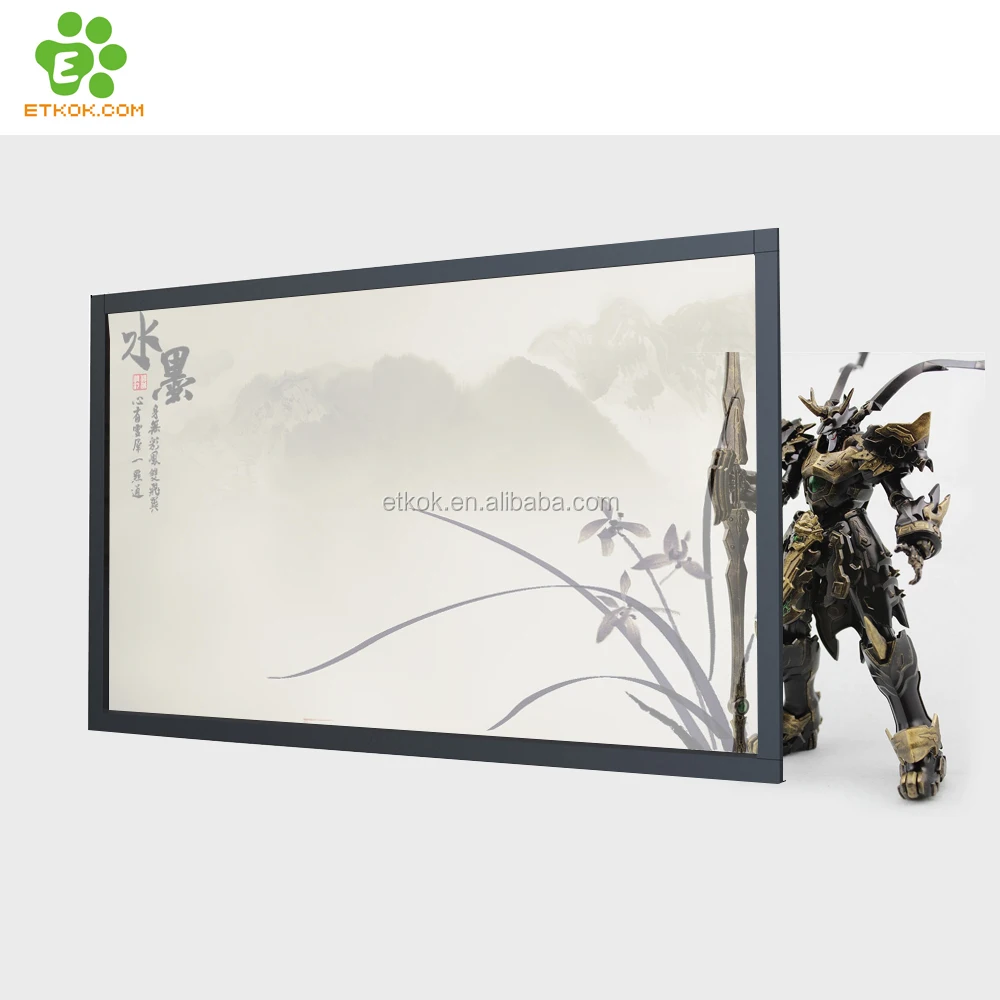

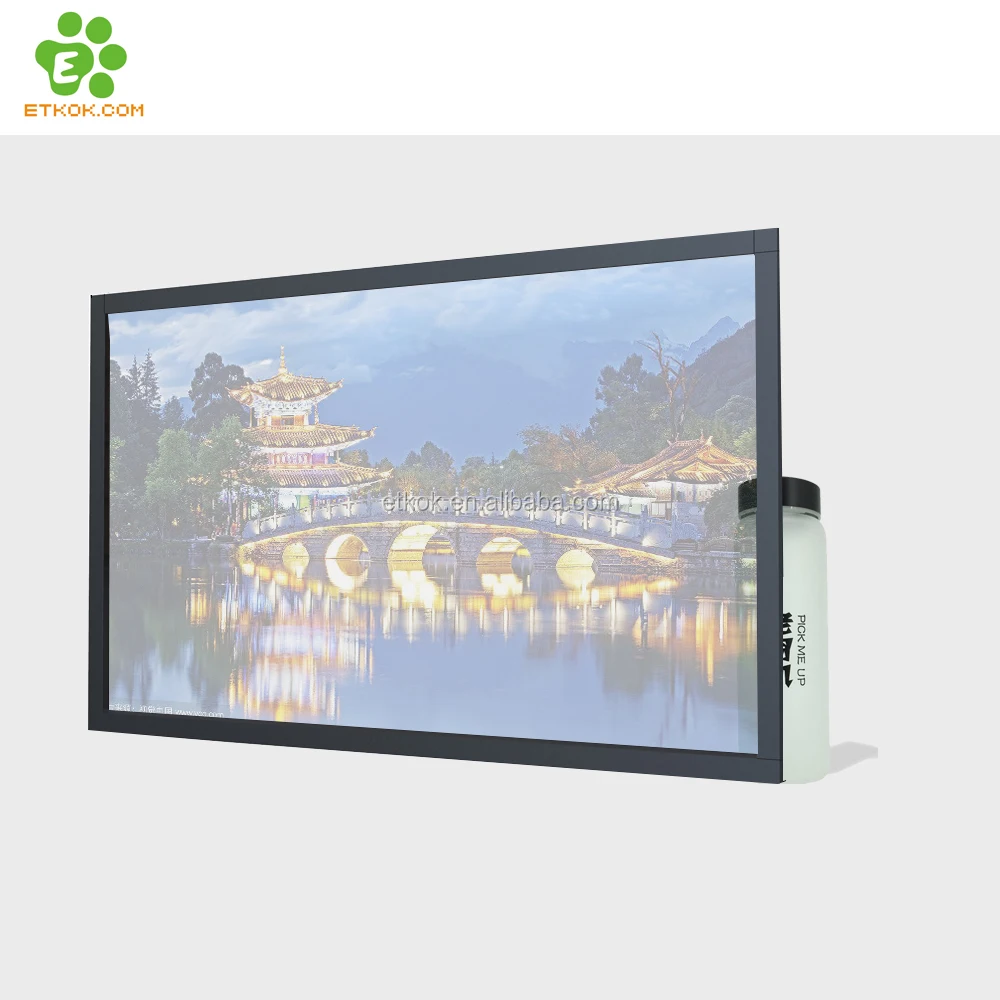

Transparent LCD screen:The inside product can be seen while the pictures or videos are displayed on LCD screen
To attract customer's attention on product with the combination of dynamic information and the actual product
Size optional from 10.4"-65"
Mainly used for Exhibition hall
Panel Specification | Android Motherboard Specification |
55'' TFT LCD Panel: 1209.6 × 680.4 (H×V) mm | CPU: 1.5GHz, Quad Core Operating system: Android 5.1 |
Touch screen type: 10 Points IR touch | RAM/ROM: 2G / 8G (Optional) External Memory: SATA (SSD) / USB / SD card / TF card |
Max. Resolution: 1920×1080 | Storage type: Built-in, USB, SD |
Viewing angle: 178° / 178° | Auto-power on & off: Can be set up |
Display color: 16.7M | Power-off memory function: Can be set up |
Brightness: 500nits (optional) | USB2.0 port: 2* USB slots, external mouse and keyboard |
Contrast: 1400:1 | Optional input & output: VGA input / HDMI input |
Response time: 5ms | System upgrade: USB / network upgrade supported |
Pixel Pitch: 0.4902×0.4902 (H×V) | Video Format / Picture Format: MP3, MP4, JPG, MPEG1, MPEG2, MPEG4, VOB, RM, RMVB etc. / JPG, BMP, PNG etc. |
Max power consumption: 60W | Split screen: Pic / Video / Video+Pic / Video+Subtitle / Video+Subtitle+Pic. Scrolling marquee available |
Standby power consumption: lower than 1W | |
Working humidity: 10%~90% (Without dew) | Power supply: AC100-240V; 50-60HZ |
Working temperature: 0℃~40℃ | |
Storage temperature: -30℃~+60℃ | Remarks: Accessories: Remote-control*1, Instruction manual*1, Anti-theft lock, Key*2, Power supply cable |

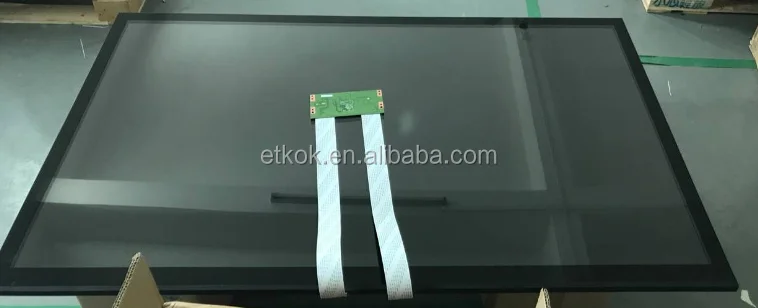

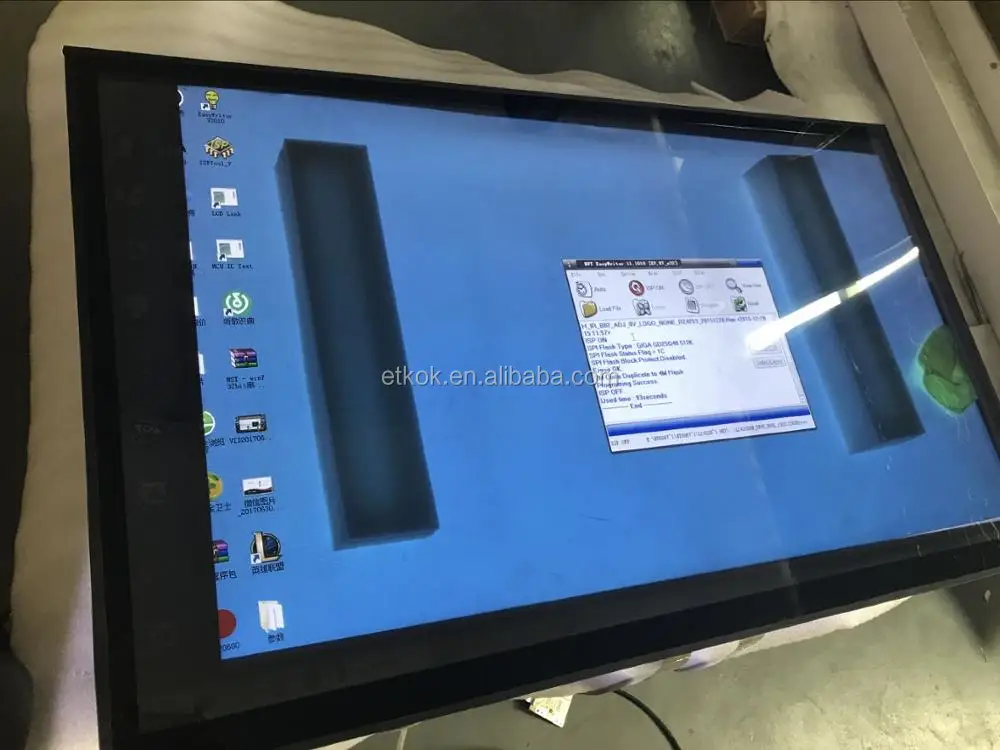

Detailed Images
Size Optional
| LCD Size(Diagonal ) | Part number | Resolution | Aspect ratio | Contrast | Optional touchscren? |
| 10.4" | ETK-TLCD104 | 800*600 | 4:3 | 700:1 | Yes |
| 12.1" | ETK-TLCD121 | 800*600 | 4:3 | 800:1 | Yes |
| 15" | ETK-TLCD150 | 1024*768 | 4:3 | 1000:1 | Yes |
| 17" | ETK-TLCD170 | 1280*1024 | 4:3 | 1000:1 | Yes |
| 19" | ETK-TLCD190 | 1280*1024 | 16:10 | 1000:1 | Yes |
| 21.5" | ETK-TLCD215 | 1920*1080 | 16:9 | 1000:1 | Yes |
| 22" | ETK-TLCD220 | 1680*1050 | 16:10 | 1000:1 | Yes |
| 23.6" | ETK-TLCD236 | 1366*768 | 16:9 | 1000:1 | Yes |
| 26" | ETK-TLCD260 | 1366*768 or 1920*1080 | 16:9 | 1400:1 | Yes |
| 32" | ETK-TLCD320 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 42" | ETK-TLCD420 | 1920*1080 | 16:9 | 3000:1 | Yes |
| 46" | ETK-TLCD460 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 50" | ETK-TLCD500 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 55" | ETK-TLCD550 | 1920*1080 | 16:9 | 4000:1 | Yes |
| 65" | ETK-TLCD650 | 1920*1080 | 16:9 | 4000:1 | Yes |

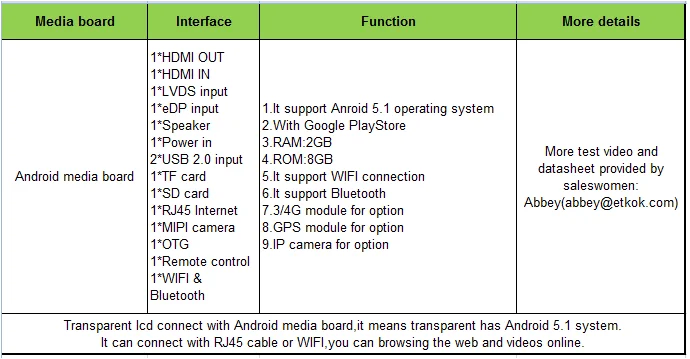

Media board

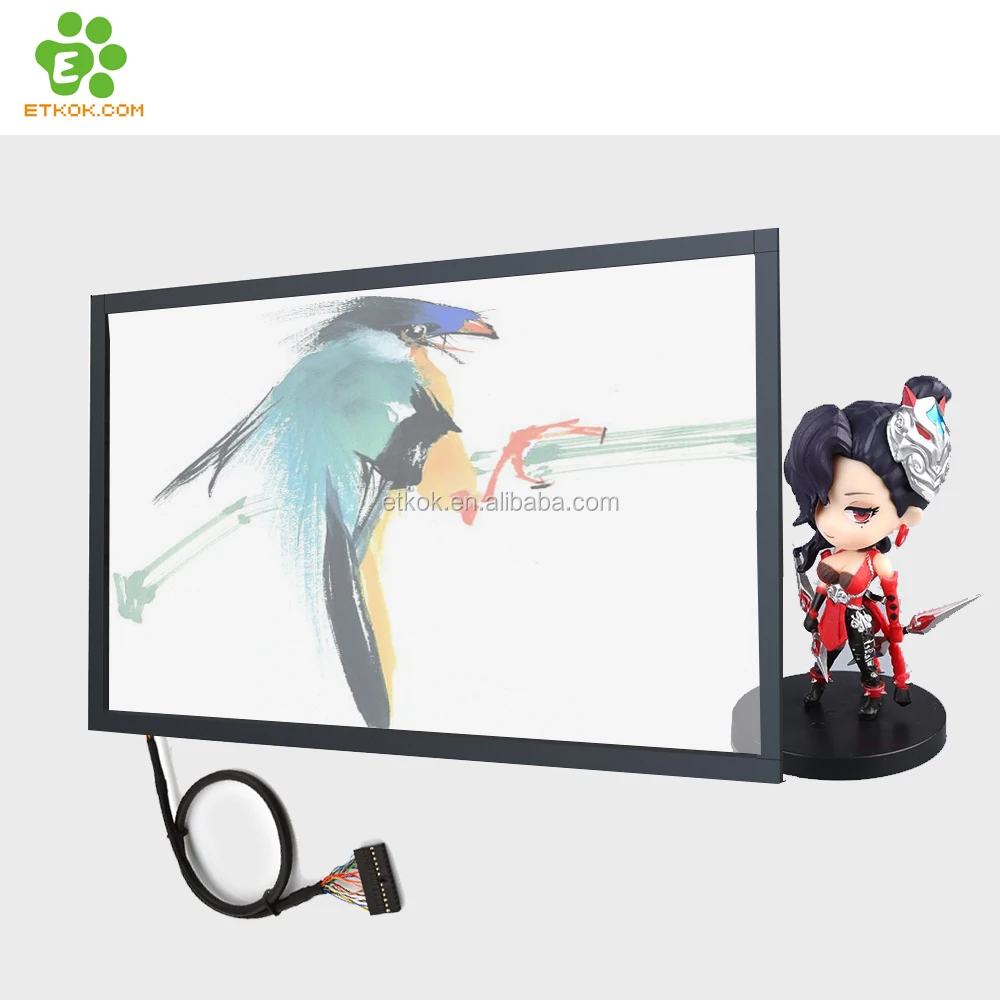

Each transparent LCD is sold as a kit, and includes the transparent lcd display, media board, USB,HDMI or VGA cables for optional and power supply.
We have three kinds of media board for you,Difference media board with difference function,Please choose one media board according to your request and application.

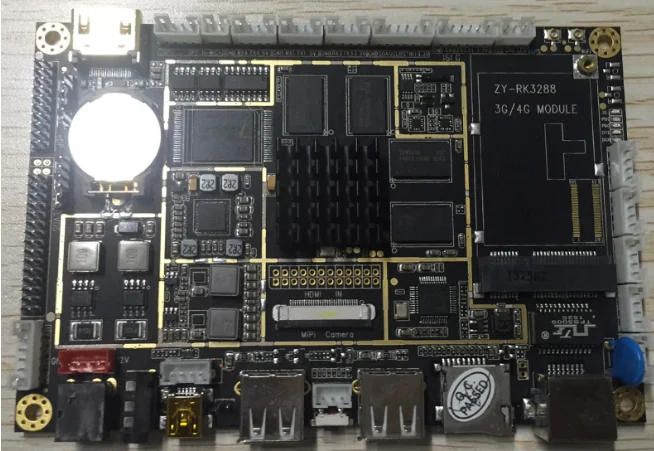

Android media board with Android 5.1 system:
Working Condition
These transparent displays are designed for integration within your own housing / chassis.

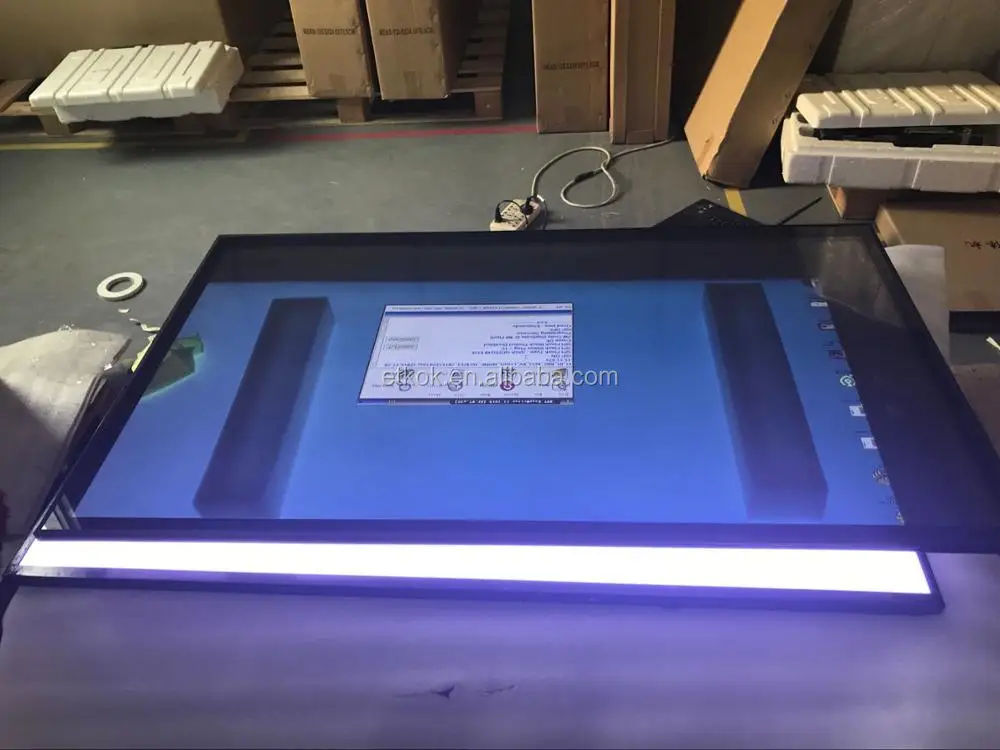

Please note as the displays do not have a backlight you will need to integrate a light source behind the display to gain the transparency.
Application

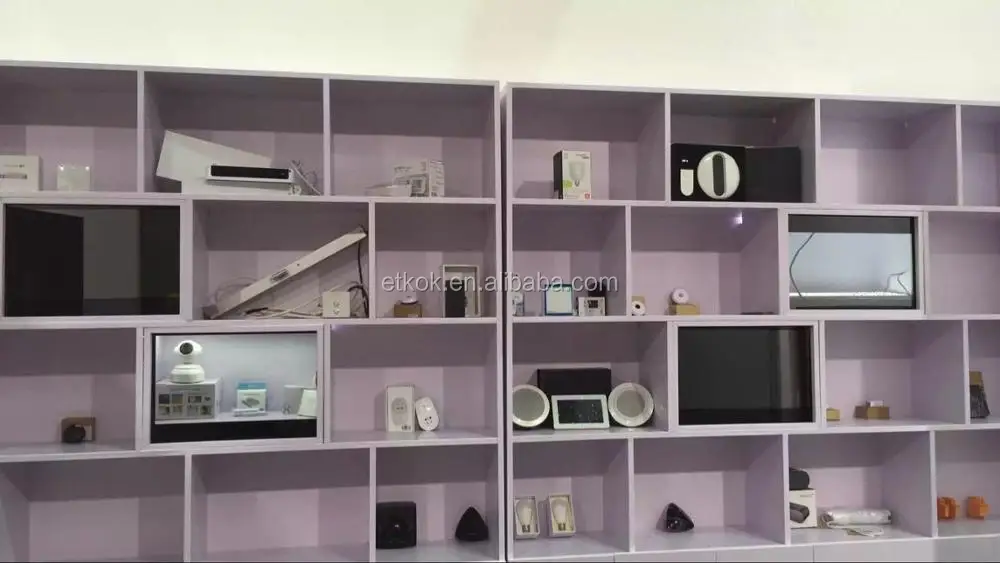

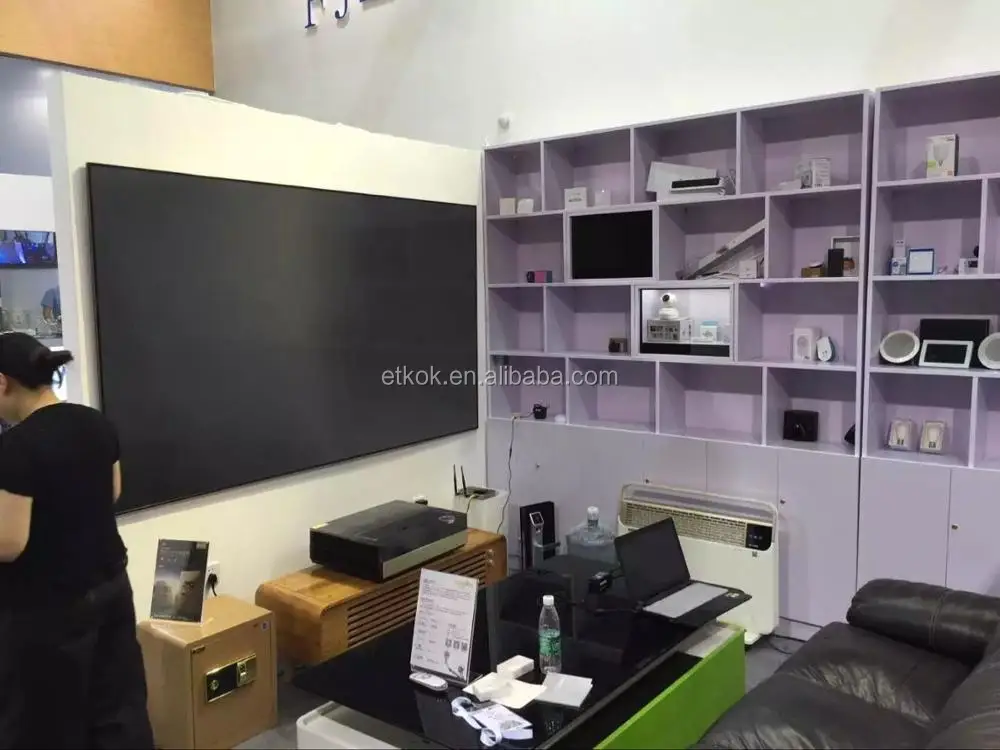

Transparent lcd display used for bookcase in Smart Home Trade Show:

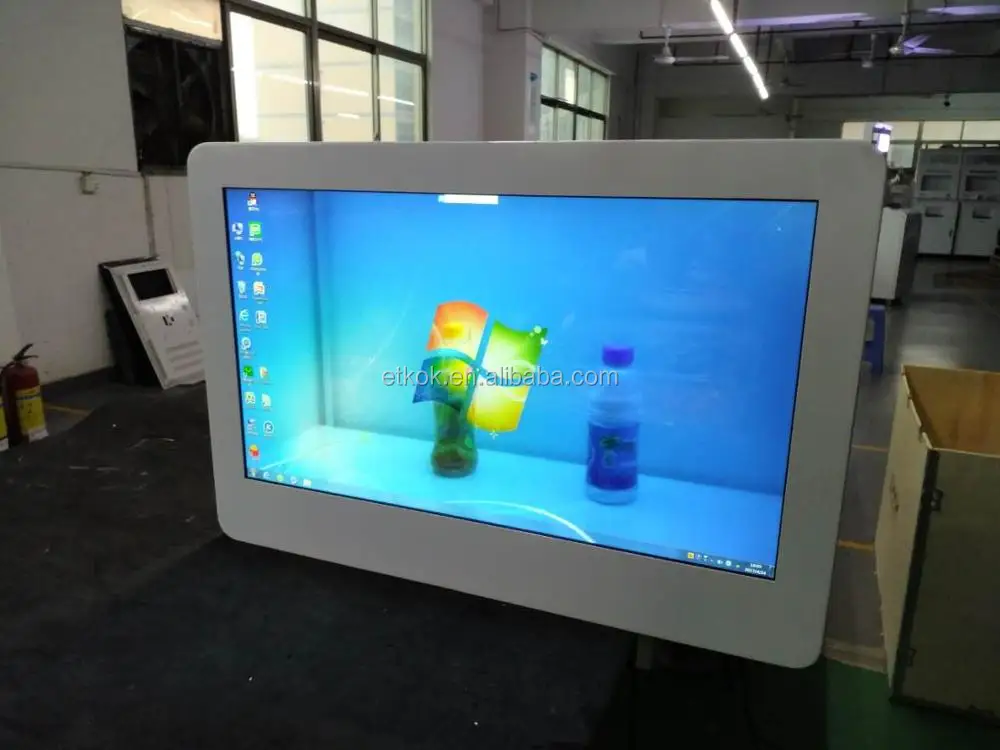

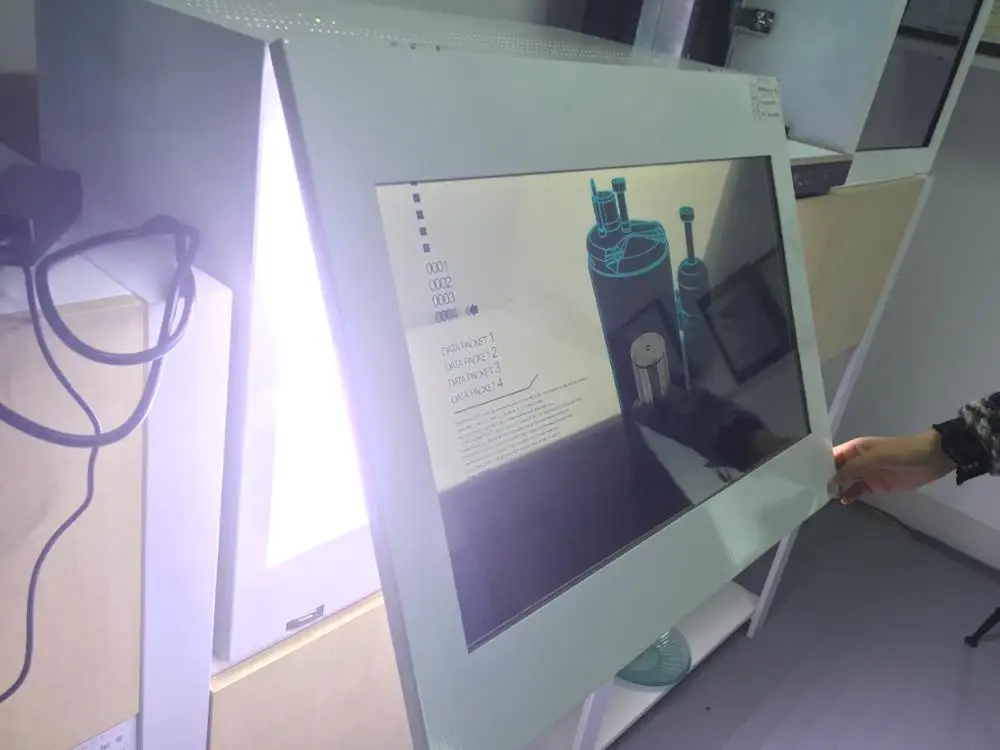

Transparent lcd display used for transparent lcd box with LED back light:

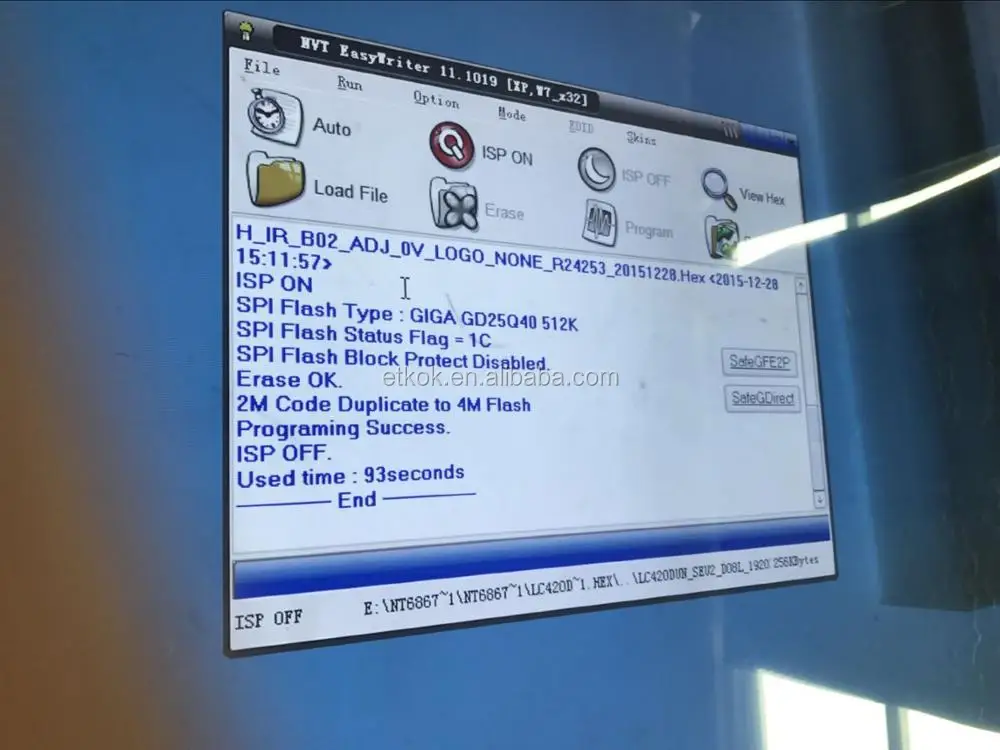

How we make transparent lcd box:
If you are interested in transparent lcd display or transparent lcd box,please send us inquiry,we can answer you in 30 minutes:
