High Quality Steel Roof Roll Forming Machine Trapezoid Roof Machine
- Category: Rolling Mill >>>
- Supplier: Xiamen Youdeli Industrial Co. Ltd.
Share on (60719511008):
Product Overview
Description
High Quality Steel Roll Form Machine Trapezoid Roof Machinery
Roofing Sheet Making Machine
Technical Parameters
Size | 8500*1600*1400mm |
Weight | 6500KGS |
Voltage | 380V/50HZ/3PH |
Motor Power | 7.5KW |
Hydraulic Power | 2.2KW |
Forming Steps | 18 |
Working Speed | 0-15m/min |
Height of Roofing | 32mm |
Effective Width | 1000mm |
Feeding Material Width | 1200mm |
Thickness for Steel | 0.4-0.6mm (Material:PPGI,GI Steel G550) |
Tolerance for Cutting | ±2mm |
Tolerance for roofing width | ±6mm |
Roller material | Gr15 steel with polished and heat treatment, Plated hard grade 45# forged steel |
Material of shaft | High grade 45# forged steel |
Shaft Diameter | 85mm |
After-sales Service Provided | Engineers available to service machinery overseas |
Packing | standard for export |
Main Accessories
No | Items | Quantity | Remarks | |

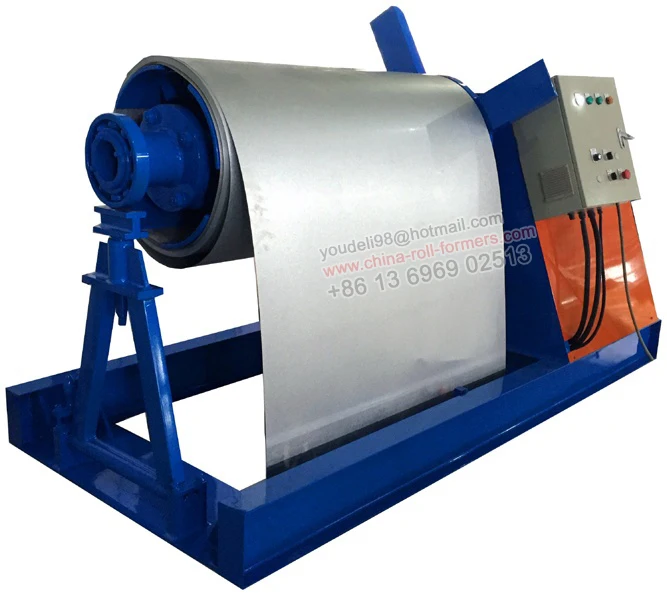

1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
2 | Main forming machine | Pre-cutting device | 1set | Up to customer |
Feeding device | 1set |
| ||
Hydraulic system | 1set |
| ||
Roll forming system | 1set |
| ||
Post cutting device | 1set |
| ||
Protective cover | 1set | Up to customer | ||
3 | PLC control system with touch screen | 1set |
| |
4 | Run out table | 4pcs | Up to customer | |

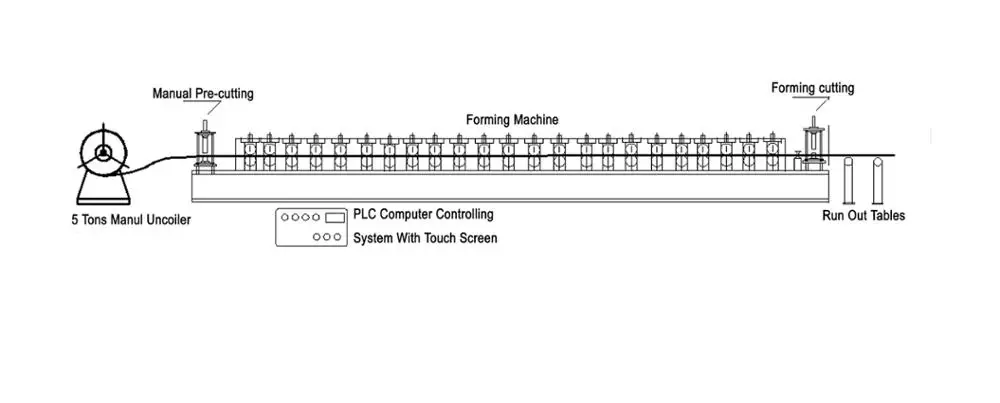

Flow Chart

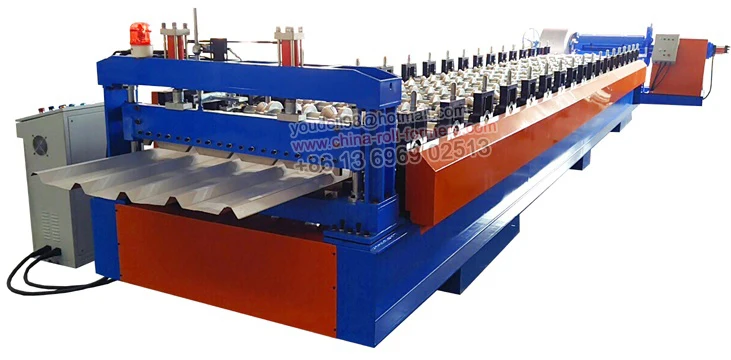

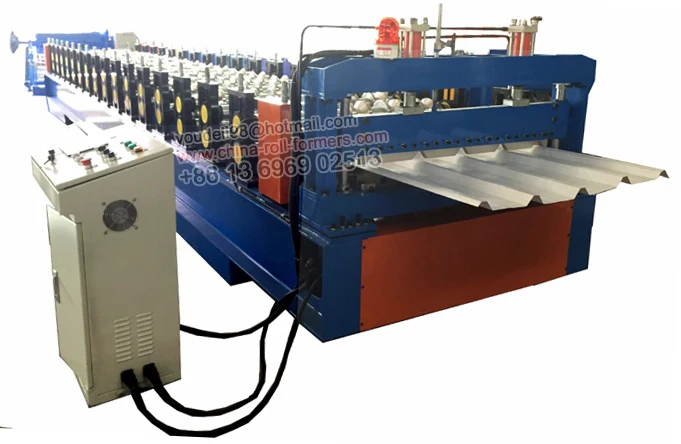

Product Show
FAQ
1. Are you the trade company or factory?
We are professional manufacturer for making cold metal roll forming machines.
2. How to visit your factory?
We can pick up you at the Xiamen International Airport or Xiamen North Railway Station
to our factory.
3. Do you provide customized machines?
Sure, we can design and make the machines as per your requests. We are the professional
designer and manufacturer for cold metal roll forming machines.
4. Does one machine can only produce one size?
Not exactly, it depends on the machine.
5. Is there quality control when manufacturing the machines?
Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.
6. Why your price is higher than others?
Because we insist on that every company must attach importance to the quality at first
place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.
7. What can you do if the machine broken?
The warranty period of our machines is one year.
If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines. Anyway we can promise to provide our technology supports for the whole life of our machines.
8. Do you have after technology support?
Yes, we are glad to give suggestions and also have skilled technicians available to service
machinery oversea if you needed.
9. Do you have oversea engineers?
Yes, we can supply not only good skilled technicians to oversea, and also provide
technology training.
10. Can you response for the transport of machines?
Yes, please check us your destination port or address, we have good services of
cooperated shipping line with us.
