HCHC hydraulic gear motor CMF E5 for engineering machinery with very good price

Performance Character:
1. The external material is made of high strength aluminum alloy.
2. High reliability, good on-off performance under high temperature
3. High working pressure, high volume efficiency.
4. Small starting torque and large output torque.
5. Small output flow pulse, motor runs smoothly and with low noise.
6. Have the capability to resist radial force and axial force.

Specification

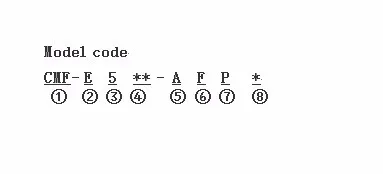

① Product model

② Pressure
③ Gear modulus
④ Nominal displacement
⑤ Mounting type
⑥ Joining port type
⑦ Shaft extension type
⑧ Rotation direction

Model	Nominal displacement (ML/r)	Pressure         (bar)			Speed (r/min)					Volumetric efficiency (≥%)	Output torque (N.m)	Weight(kg)
				Rated	Max.	Min.	Rated	Max.
CMF-E520-AFPS	20	160	200	600	2500	3000	90	41.3	7.3
CMF-E532-AFPS	32													66.0	7.7
CMF-E540-AFPS	40													82.5	7.9
CMF-E545-AFPS	45													92.8	8.1
CMF-E550-AFPS	50													103.1	8.4

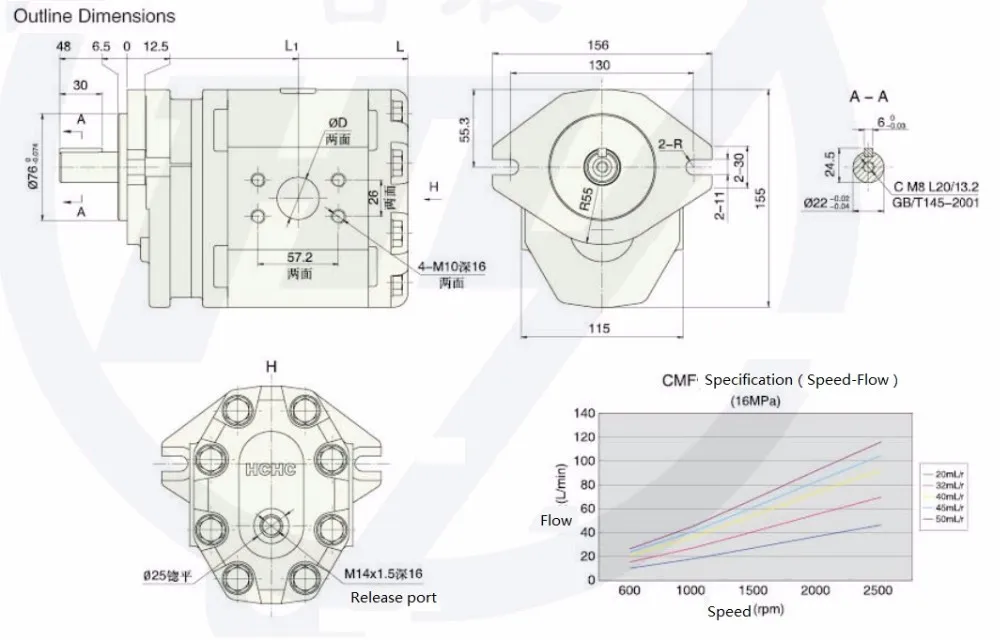

Outline Dimension

Production Process

Application

Our Company

Packing and Shipping

FAQ & Contacts
