Product Overview

Description

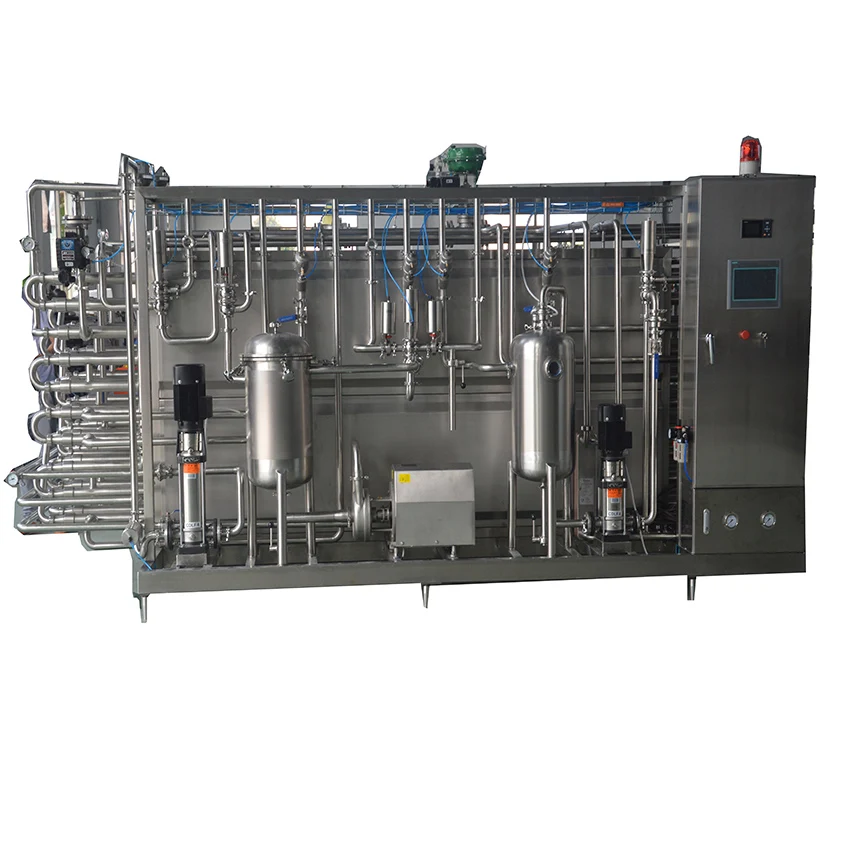

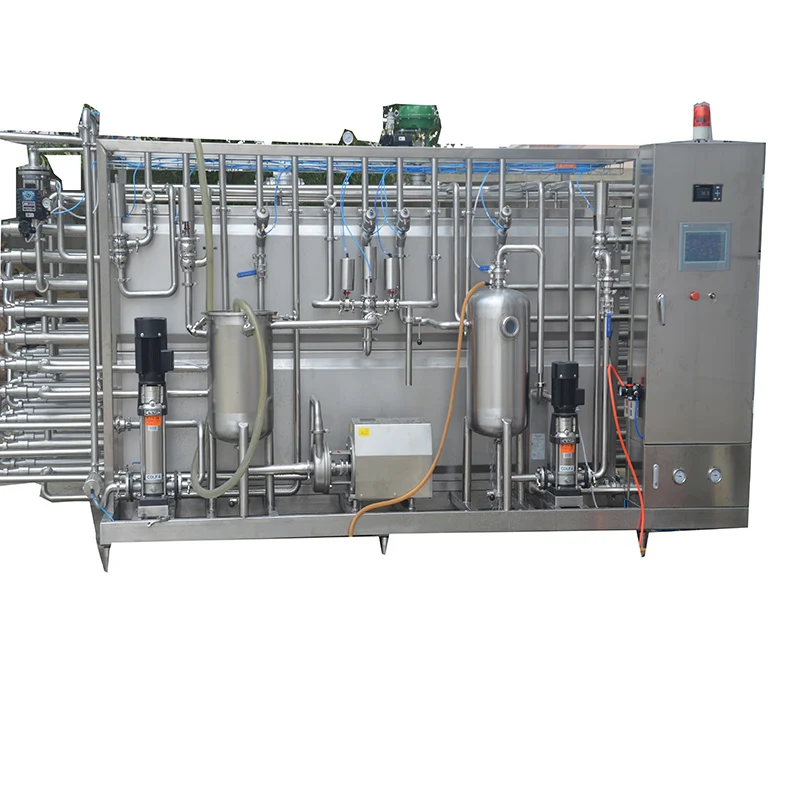

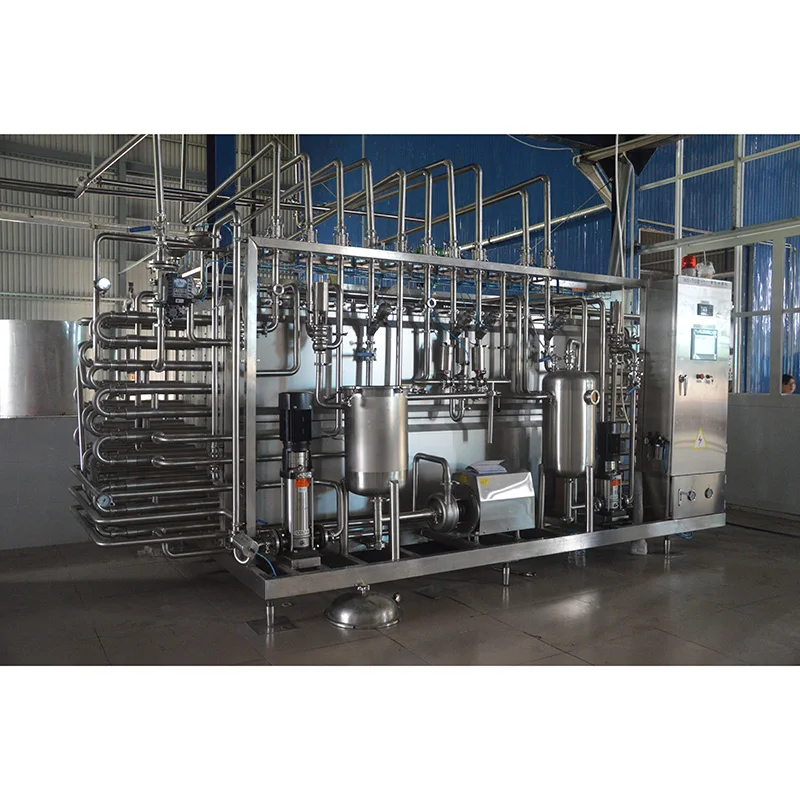

Manufacturer China Australian Uht Milk,Honey Pasteurizer



The tube(pipe) in tube pasteurizer can take hot process on the liquid foods and

beverage. Compared to the sterilizer of other model, it has the following characteristics:





NO.	Main List	Specifications	Qty	Manufacturer
1	Machine main body	TG-UHT-75	1	Our company
2	Balanced barrel	120L	1	Our company
3	Hot water barrel	100L	1	Our company
4	Centrifugal pump	10T/H	1	Groundfos
5	Hot water pump	3-170	1	Groundfos
6	Clean pump	L8-80	1	Groundfos
7	Butterfly valves	38	1	Spirax Sarco
8	Pneumatic butterfly valves	38	6	Spirax Sarco
9	Ball valve	38	7	APV
10	Steam flow control valve	LE33  EP5 DN38	1	Spirax Sarco
11	Steam Pressure reducing valve	25P  DN38	1	Spirax Sarco
12	Steam plunger-type valves	DN38	1	Spirax Sarco
13	Steam trap		1	Spirax Sarco
14	Pressure gauge	100	2	Denmark
15	Two-position four way pneumatic valve	25	1	Spirax Sarco
16	Two-position three way pneumatic valve	25	2	Spirax Sarco
17	Pneumatic Constant pressure valve	25	1	Spirax Sarco

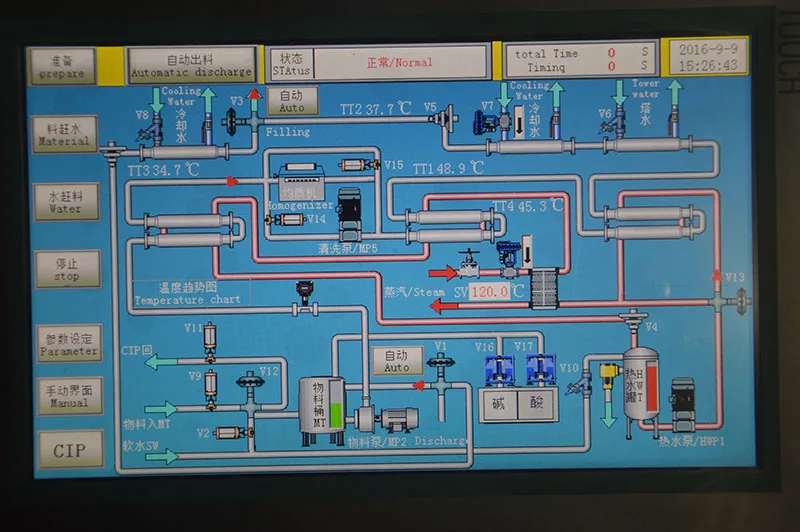

18	Touch screen panel	10.4”	1	Siemens
19	Programmable logic controller	S7-200	1	Siemens

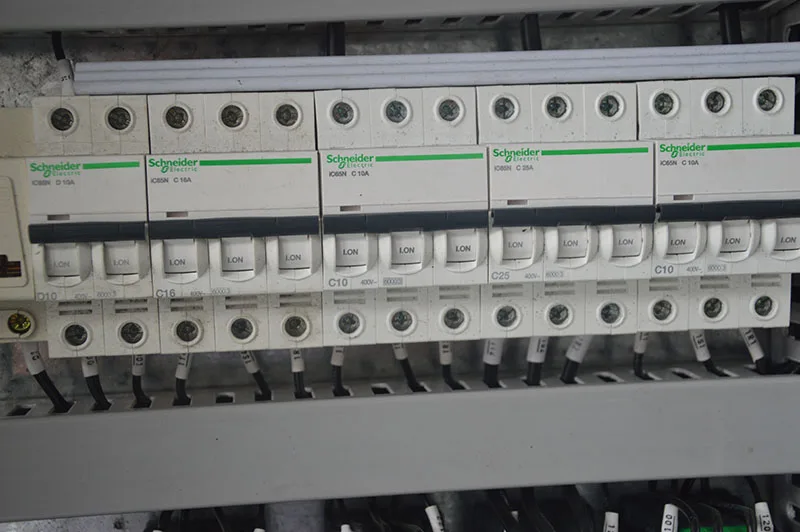

20	Electric component	Schneider	1	Schneider
21	Flow meter		1	JUMO
22	Temperature sensor	Pt100	4	Made in Japan
23	Liquid level gauge		1	JUMO
24	diaphragm pump		1	USA









SHANGHAI NANCHENG -UHT tube type high temperature sterilization machine M-UHT tube type sterilization is widely used for liquid food "aseptic" and "the sterile" heat treatment of automatic system, the viscosity of the products range is very big, and can adapt to the fibers and particles. The company's UHT sterilization machine series production capacity can be from 10L~ 20000L/h, typical of the sterilization temperature of 90 ~ 140 ℃, be able to connect any filling machine, aseptic or other types of), sterilization machine control system installed in the chassis, control without a all adopt the international famous brand products, including PLC program controller and engineering control screen, steam pressure reducing valve and regulator, the purge valve, valve, material pump, voltage hot water pump, valve and pipe by other items such as all the accessories selects high fluid quality and high reliability. The sterilization machine design for precision products/water temperature control. Products from balance pump into the pot, preheat to homogeneous temperature, and preheat to 90 ~ 95 ℃, the stability of the milk proteins, and then super high temperature sterilization, finally cooled to filling temperature, the system with hot water sterilization is the circuit, saving energy source section. The pipe diameter. Shape (straight or corrugated) and the choice of the products by bundle need to decide, each group of heat exchanger just six O form washer (only in the medium and each year just a second look, can choose hot filling, add 90 ℃. Economic processing means, can be used to receive the same unit semi-automatic the effect.
