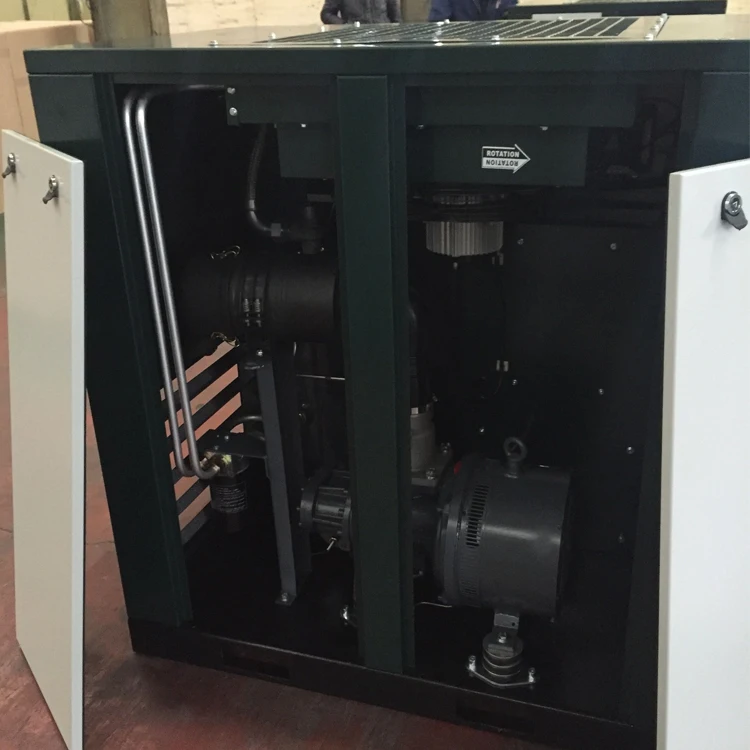

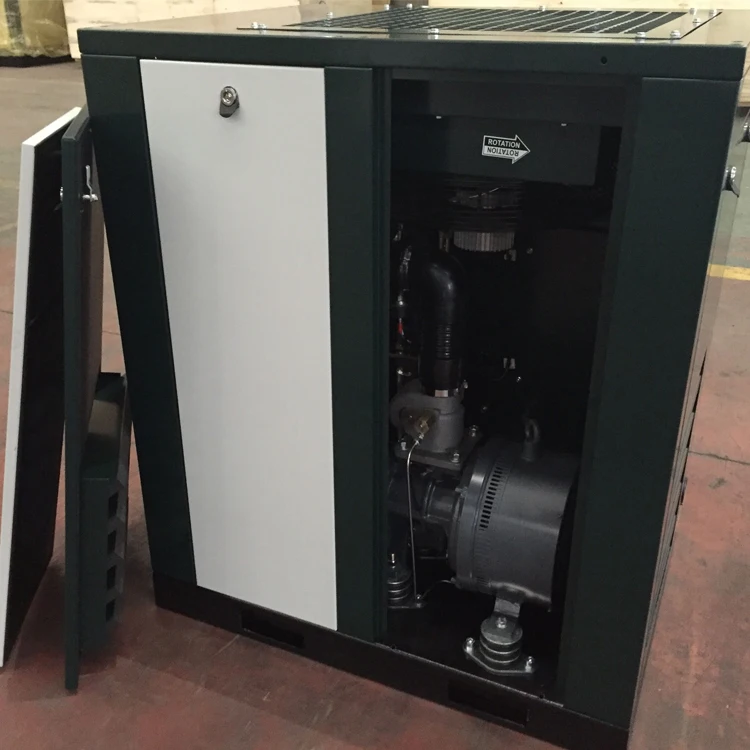

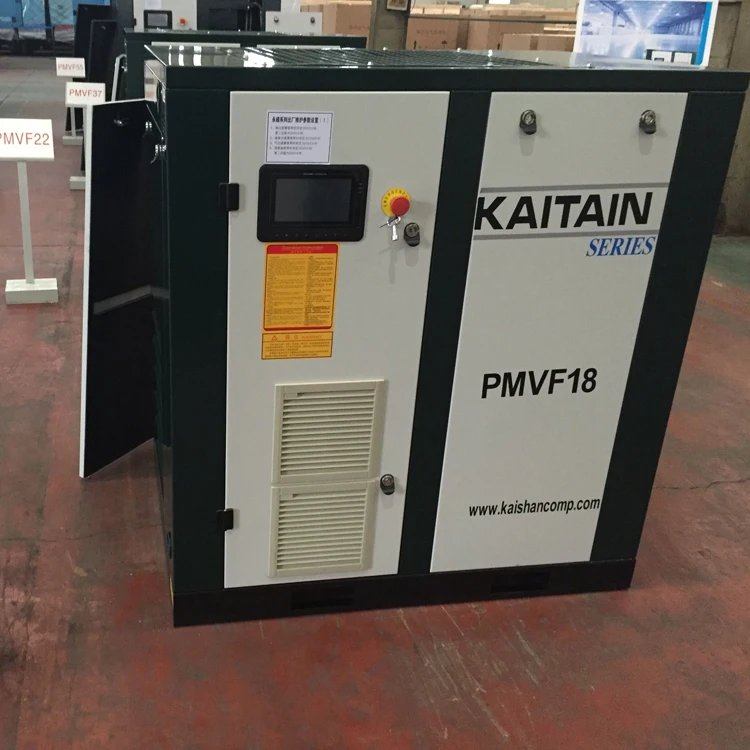

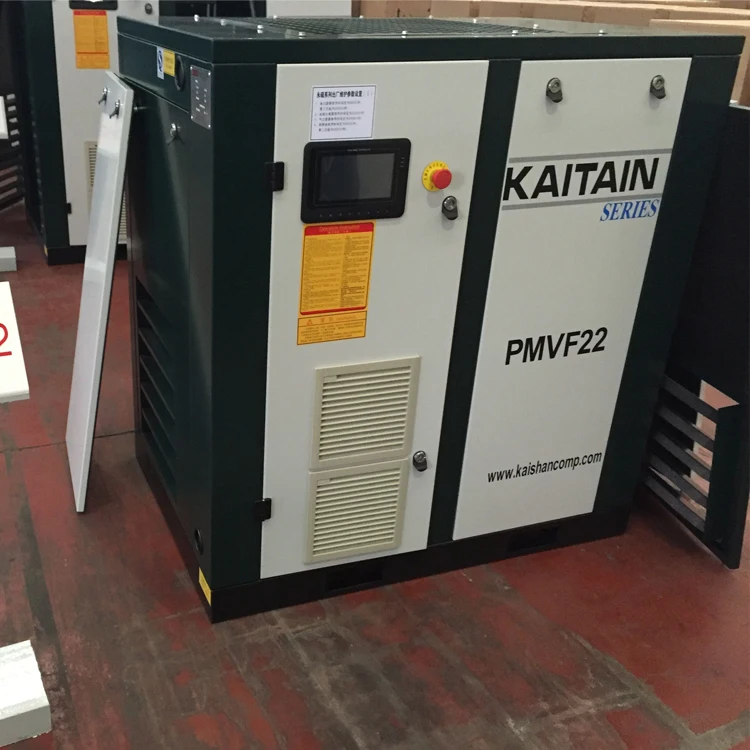

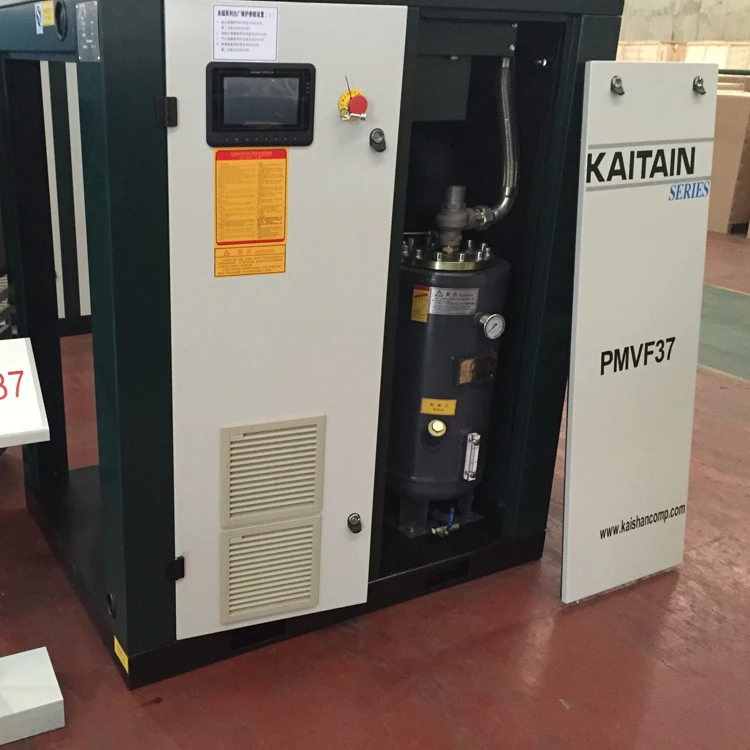

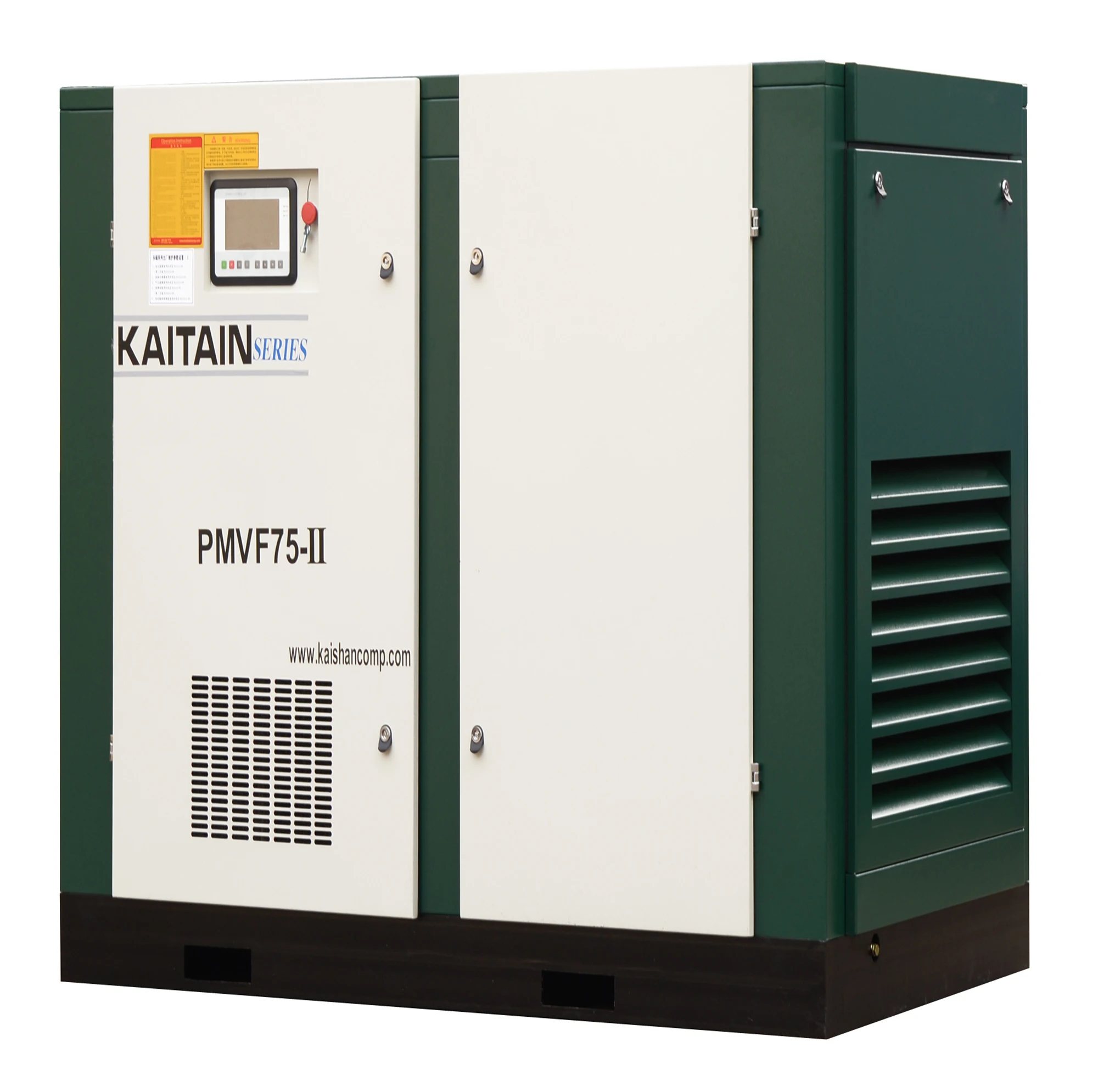

Kaishan permanent magnetism frequency conversion AC Power 75kW Stationary PMVF screw air compressor with Air cooled

Product Overview

Description



A high-effciency PM variable frequency screw air compressor has advantages in the following three areas:

The first is to have a highly effcient screw compression unit;

Secondly to have a high-effcient PM synchronous motor;

Thirdly to have first-clsaa PM variable control technology.

BOREAS PM variable frequency air compressor possessess significant technical advances in the following three areas.



Addition:

Compared to the ordinary PM variable frequency screw air compressor,BOREAS PM variable frequency screw air compressors have obvious technological advantages in the three aspects including screw compression unot efficiency,motor efficiency,dan control technology.



PMVF75KW air-cooled screw machine technical parameters:

Screw set	5: 6 toothed rotor
Compression method	Continuous, single stage
Compressed air outlet pressure	P2 = 0.65-0.9 MPa
cooling method	Air-cooled
Compressed air outlet temperature	Than the ambient temperature 10 ℃ ~ 15 ℃
The amount of oil	About 48 liters
Motor speed	N=2800-3300r/min
rated power	75kW
Displacement	V=12.1-14.3m3/min
Air temperature limit	45 ° C
Air temperature limit	0 ° C
Fuel consumption	Exhaust oil content is less than 3PPM
noise	82dB (A)
Overall dimensions (L × W × H) (mm)	2360×1220×1580



PMVF75KW air-cooled screw machine supporting parameters:

Host	SKK148MM-A
Motor	JPM225S30-75
Intake valve	HDKG85
Thermostatic valve	TVFT1M
Minimum pressure valve	MPVL50B
Anti-proportional valve	PRNE
The electromagnetic valve	EV310A
Axial Fan	800FZL-G7-3GL-P56LS6D55
Coupling	ROTEX65
air filter	56 020 300 440 T
Oil filter	66 135 302
Oil and gas separation core	55 300 355 305
Electric control	Contactor
	PLC controller
