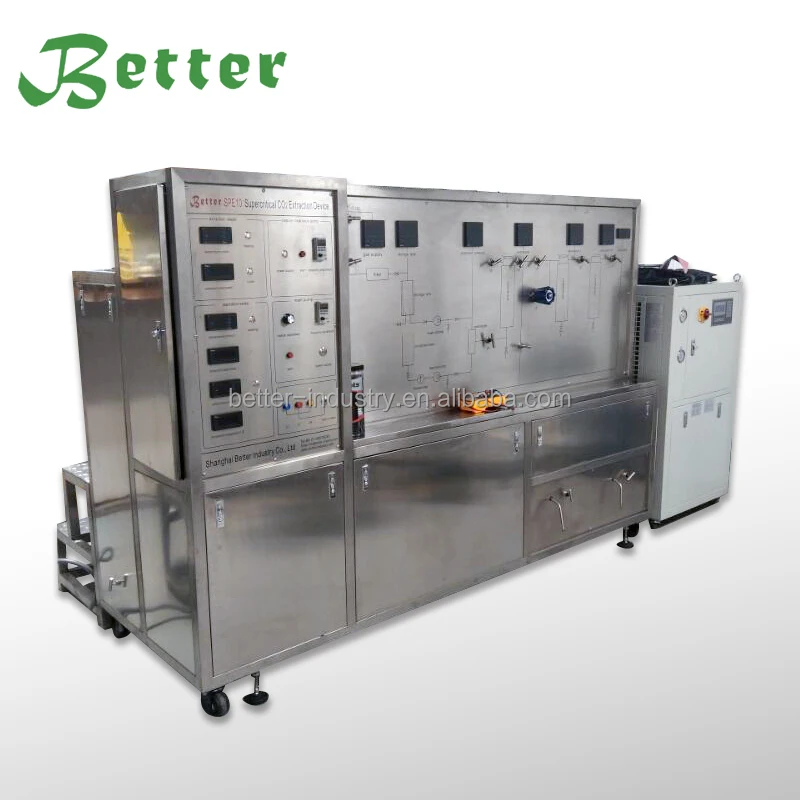

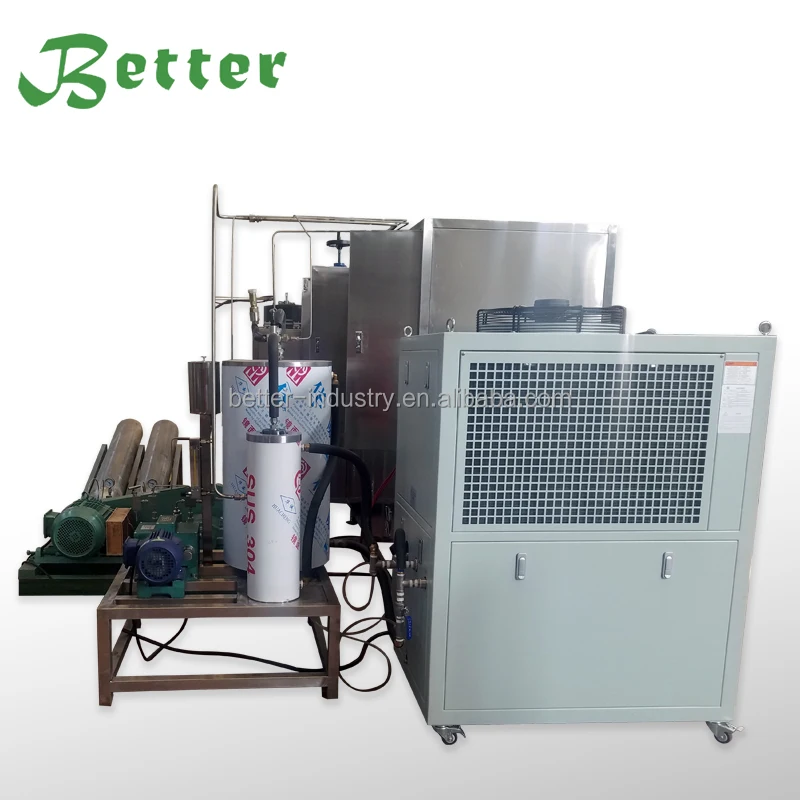

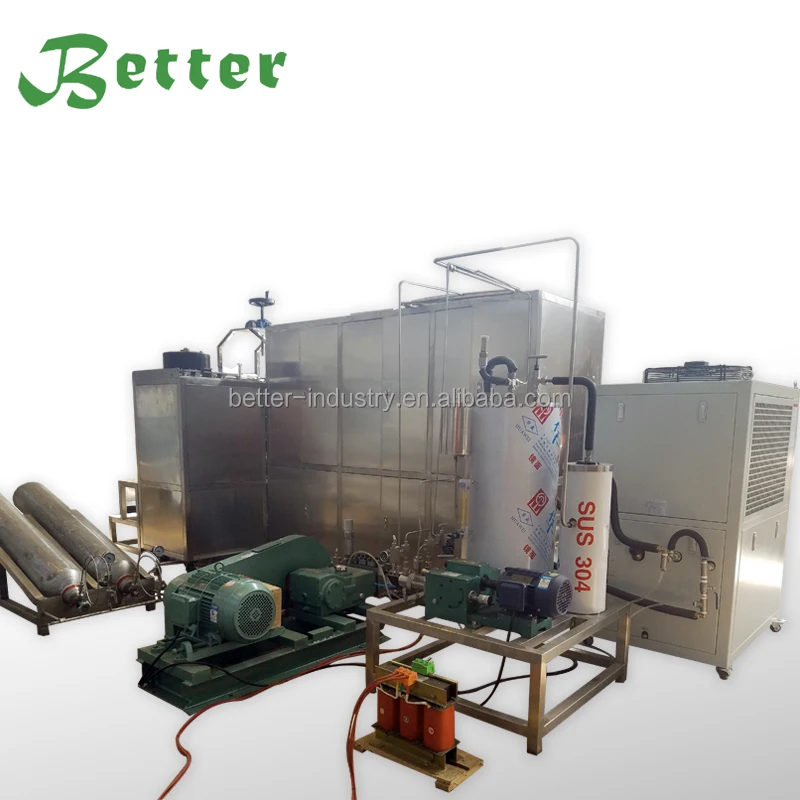

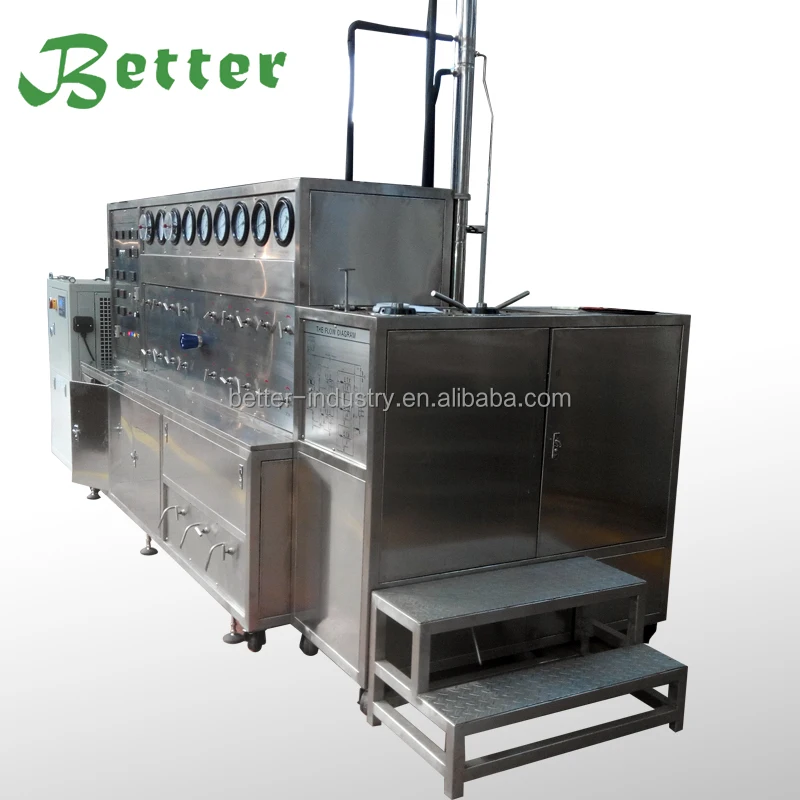

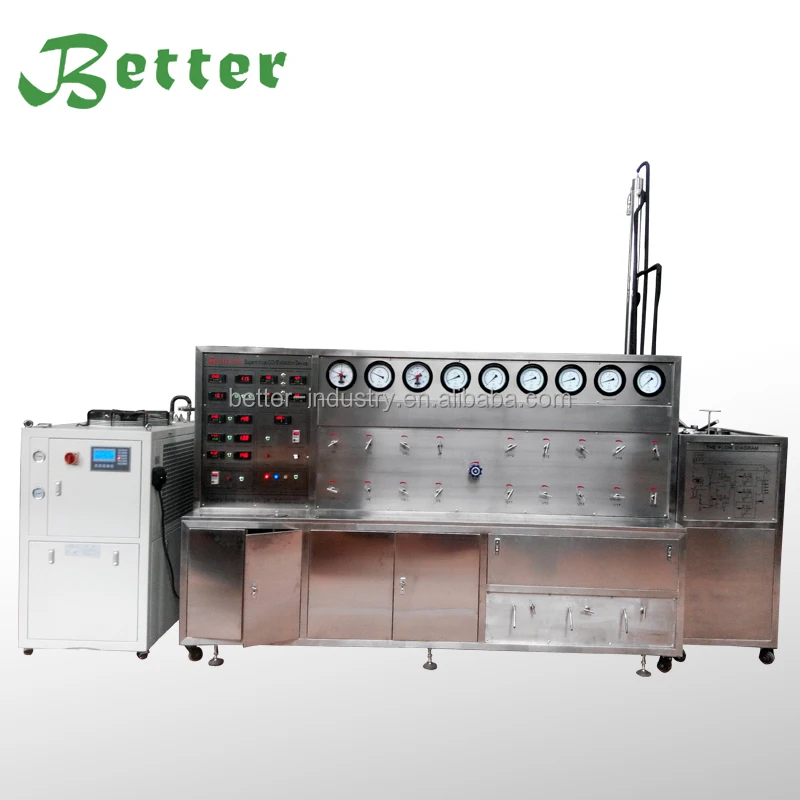

Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil
Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil

Supercritical CO2 Extraction Equipment for Active Ingredient Essential Oil

Share on (60719672071):


Price:$79,998.00

Quantity:


Product Overview

Description



Introduction




The supercritical fluid technology is a new-type separation technology in modern chemical separaton. The supercritical extraction takes CO2 as the solvent, as CO2 fluid under supercritical state has larger density and dielectric constant, larger dissolvability against substances, which can change abruptly when temperature and temperature change therefore it has not only the selection if dissolvability against some substances, the separation of the solvent with the extracted substances is also easily. The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat-sensitive substances with high boiling point.

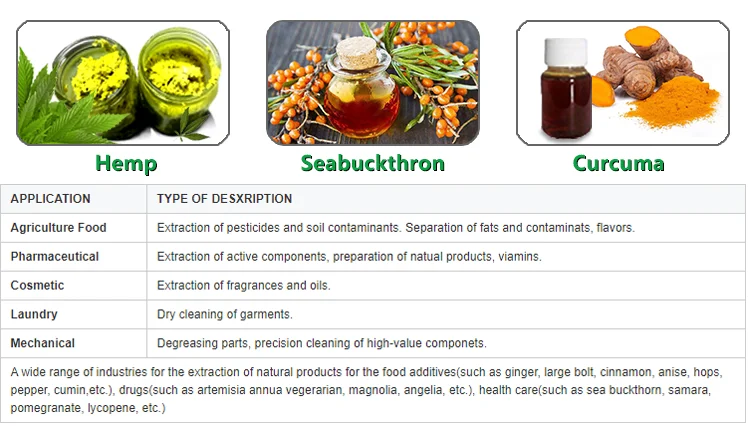

Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.





Specifications
































































































































Specifications for Supercritical CO2 Extraction Machine
Model Capacity  PressureTemp. PowerCO2 pump flow  Dimension(mm)
HSFE-0.5 0.5L*150Mpa  75℃10Kw50L/h   2400*2500*1600
HSFE-1 1L*1 10Kw2400*2500*1600
HSFE-55L*112Kw2500*2500*1600
HSFE-105L*2 or 10L*140Mpa 16Kw2500*2500*1600
HSFE-1515L*1 20Kw100L/h 3000*2500*1700
HSFE-2010L*2 or 20L*1 20Kw3000*3000*2400
HSFE-3015L*2 30Kw200L/h3500*3000*2500
HSFE-5025L*2 45Kw400L/h 5000*5000*4200
HSFE-10025L*4 58Kw600L/h 5800*5000*4200
HSFE-10050L*258Kw5000*5000*4500
HSFE-12030L*4 60Kw800L/h  6800*6000*4500
HSFE-15050L*3 70Kw1000L/h 7200*6000*4500
HSFE-20050L*490Kw7500*7000*4500
HSFE-30050L*6115Kw8500*9000*4500
HSFE-300150L*2  110Kw1200L/h  6000*5000*6000
HSFE-300150L*2-PLC110Kw1200L/h  6000*5000*6000
For capacity above 300L, will be custom made.
