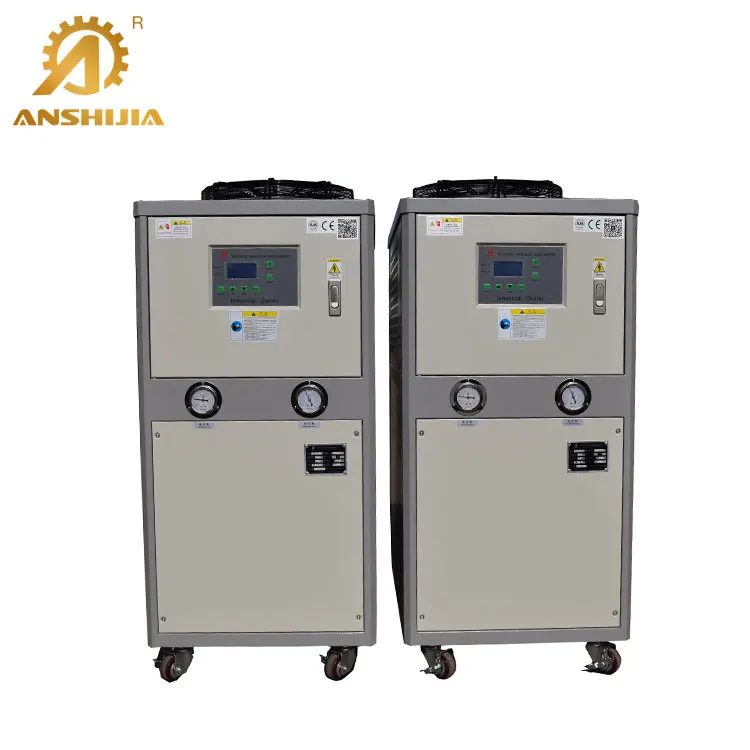

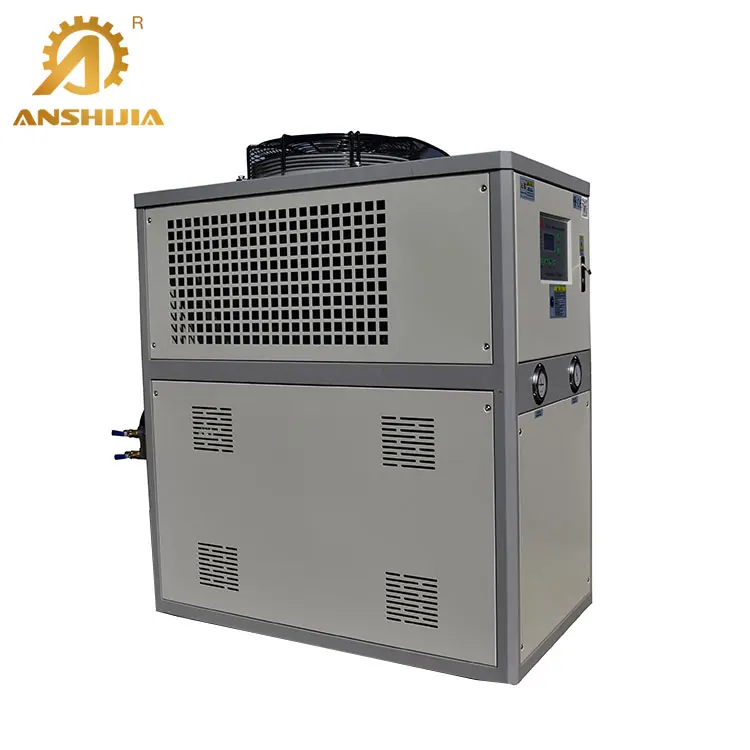

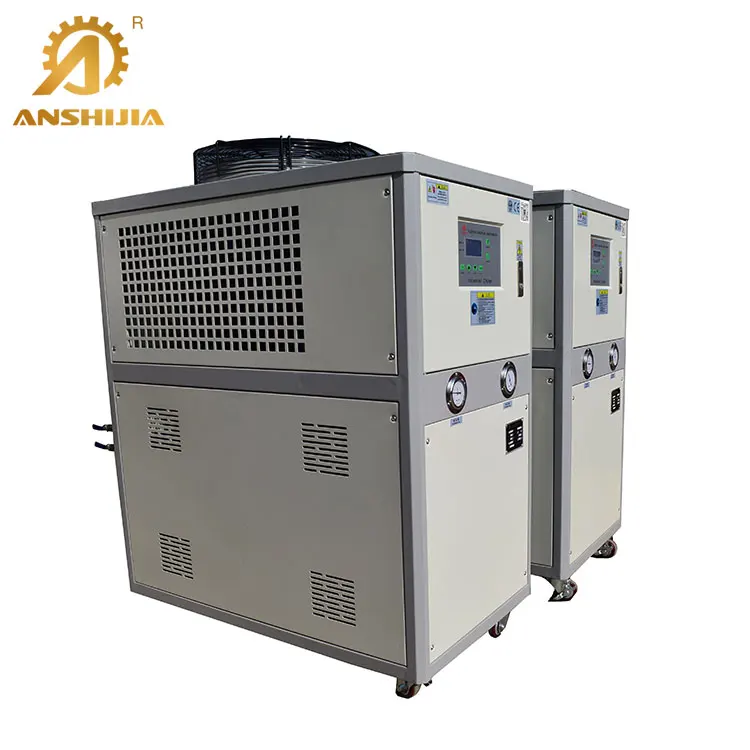

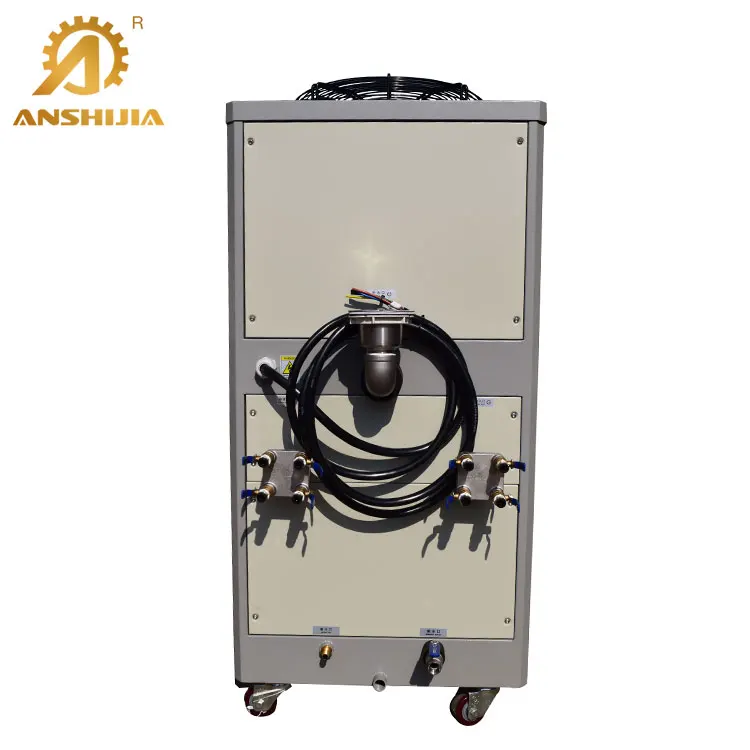

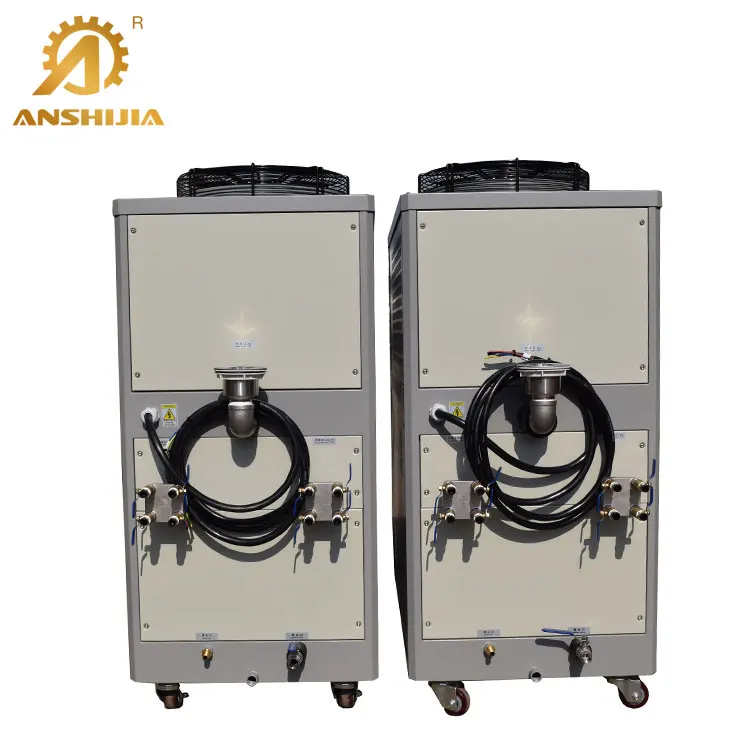

Air Type Cold and Hot Water Mold Temperature Controller For Injection Molding Machine
model parameter
LKH-10W-03W
LKH-10W-05W
LKH-20W-10WD
(A)
(A)
(AD)
Rangeoftemperaturecontrol
5℃~98℃
Refrigerating capacity
Kcal/h/kw
8251(7216)
13690(11990)
27370(24089)
9.59(8.39)
15.91(13.95)
28.01
PowerSupply
3N380V/415V50HZ
Compressor
Type
Totallyenclosedvortextypeorpistontype
Power(kw)
2.25
3.75
3.75*2
CoolingWater
Quanlityofwater(m3/h)
2.06(/)
3.42(/)
6.85(/)
Waterresistance(KPa)
28(/)
34(/)
34(/)
Diametersoftheinlettube
G3/4
G1
G1-1/2
andtheoutflowtube
Chilledwater
Quanlityofwater(m3/h)
1.65(1.44)
2.74(2.40)
5.47(4.82)
Waterresistance(KPa)
0.038(/)
0.065(/)
0.188(/)
Diametersoftheinlettube
G3/4
G1
G2
andtheoutflowtube
IcewaterPump
Power(kw)
0.375
0.75
1.5
Pressure(KPa)
200
200
205
HotwaterPump
Power(kw)
0.75
0.75
1.5
Pressure(KPa)
200
200
205
Heatingenergy(kw)
6
6
12
Size(L*W*H)(mm)
W:1200*580*1000
W:1200*580*1100
W:1350*910*1320
A:1250*580*1220
A:1425*635*1225
A:1680*720*1450
Weight(KG)
151
120
312
Features
Compressor head imported from Europe and USA
Oxygen-free welding for copper pipes
RS485 communicationfunction for automated management (optional)
Switchover of heating power
Stainless steel inte grated pipelines for less pipe blockage and rust
Imported quality parts for longer service lives
Brands SIEMENS ,WEIDMULLER and LG for electric appliances
Control mode:imported microcomputer or PLC (Optional)
Perfect safety protection ,faulty display,easy repair and maintenance even without professionals
High-efficiency evaporrator and condenser which can save energy by more than 30%
Two groups of compressor heads (used separately or jointly)for C-20
Rage of temperature control:+5℃-98℃ forincoming water
If you do not have the attributes you need, the company received customized, please contact us, tell me your request,Waiting for you!
Aboust us
Our Partner
Our Customers
Certifications
Packaging & Shipping
FAQ:
1. Q: Are you a factory or trading company,How is you factory refreigeration equipment on experience?
A: We are a factory. 20 years experience on refreigeration equipment.
2.Q: How long is your machine’s guarantee time?
A: 1 year, Main parts is imported compressor from Europe,US and Japan,throttle components from Danfoss(Denmark) and Alco(US) electrical devices supplied from OMRON,FUJI,TE,LG,MOELLER and SCHNEIDER.Any quality issue, we will deal with it immediately.
3. Q:If we have very special request for the production ,could you help me to do the design?
