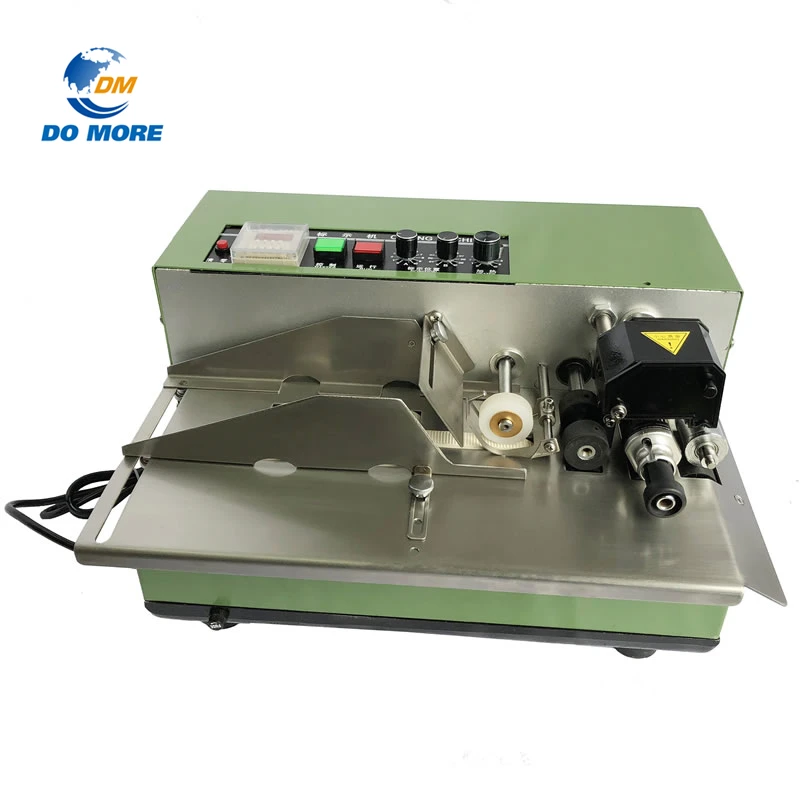

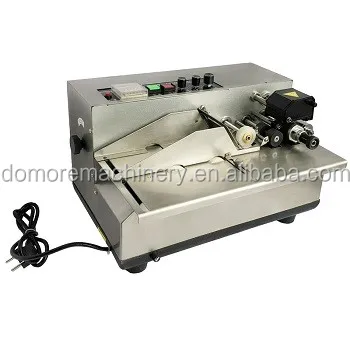

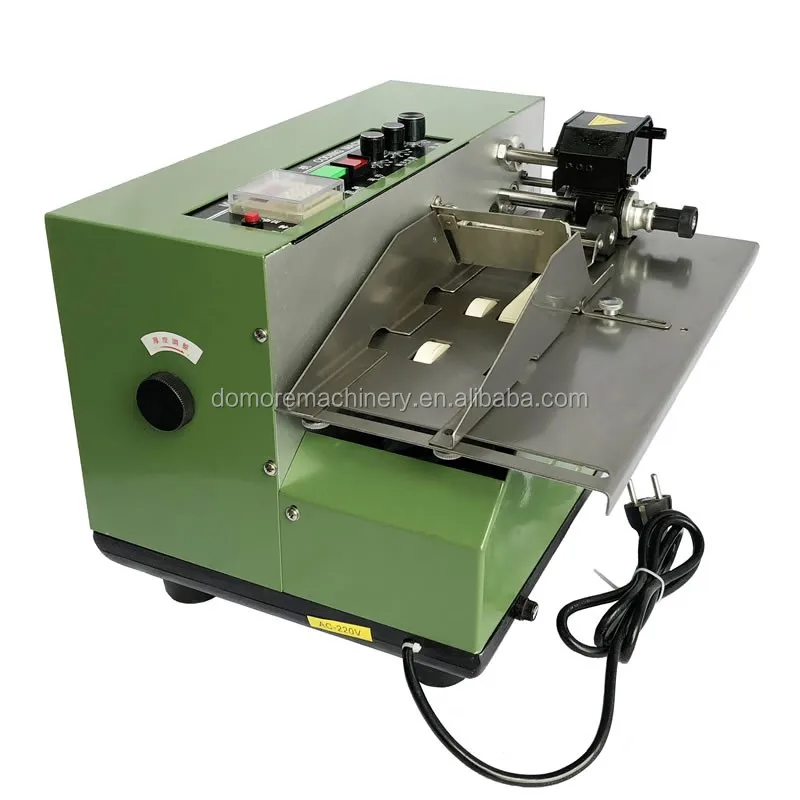

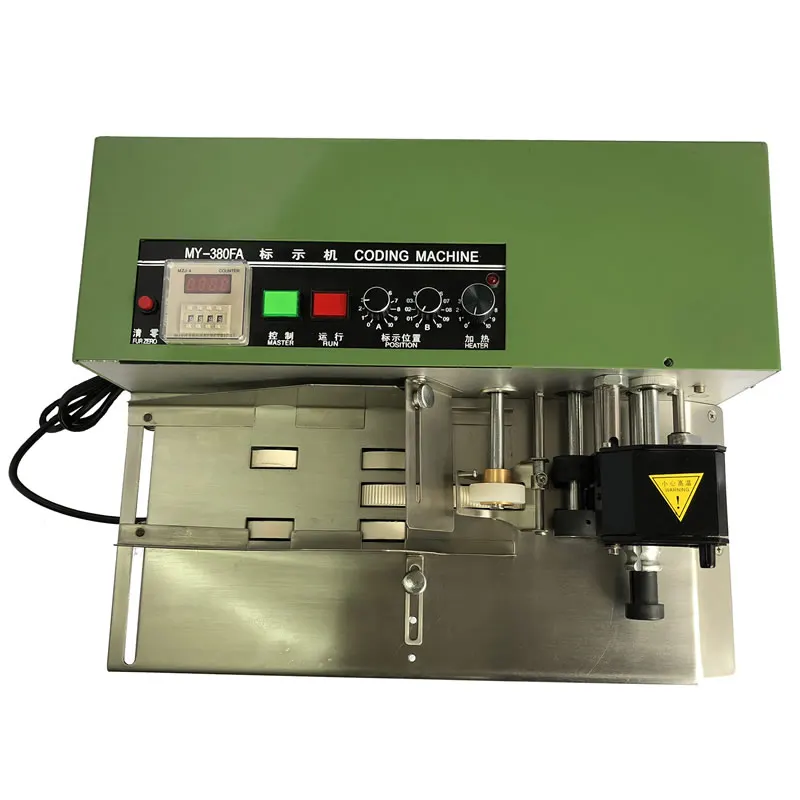

MY380 Solid Ink Roller Code Printer Coding Machine

Share on (60719777057):


Price:

Quantity:


Product Overview

Description


Product Description

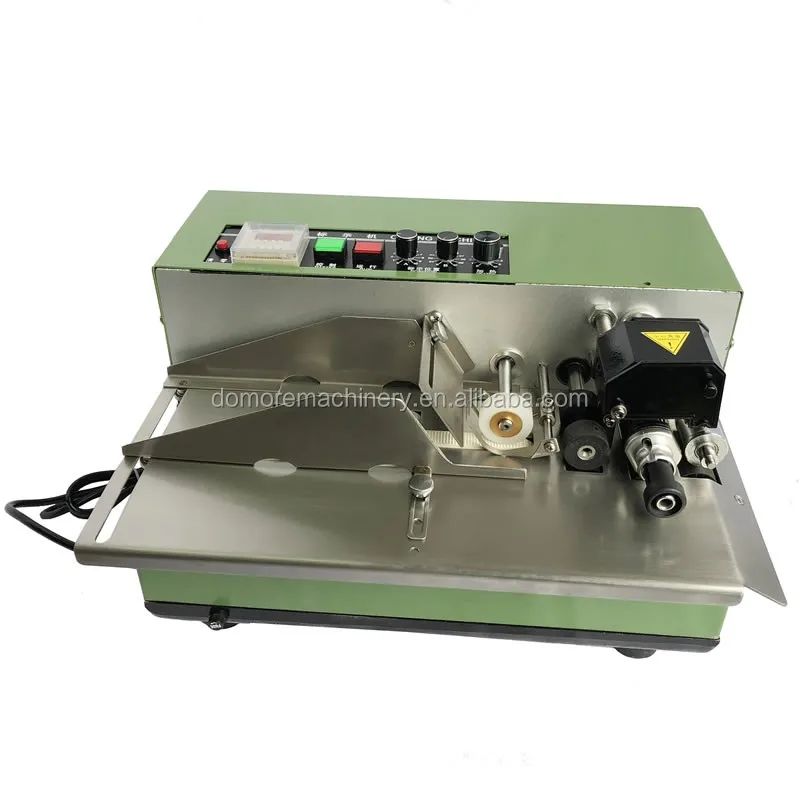

The position of the MY380 is controlled by electronic and can be adjusted freely. The imprinted action and counting are controlled by photoelectric switch, and can set up the number of coding. Special clutch, sensitive, precise, stable. The machine adopts advanced solid ink wheel, which has the excellent properties of instant printing and easy to erase. It is especially suitable for plastic film, metal foil and other non-absorbent materials and paper packaging. The printing wheel adopts special zinc alloy word, long life and easy to replace.

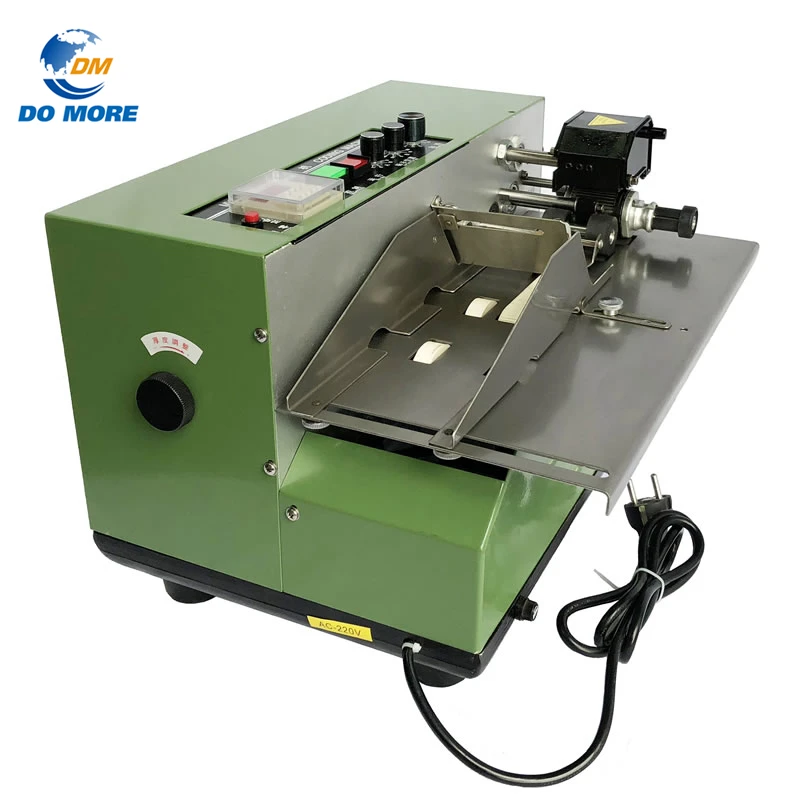

Machine shell with painted or stainless steel is optional, the workbench can be widened.

Detailed Images

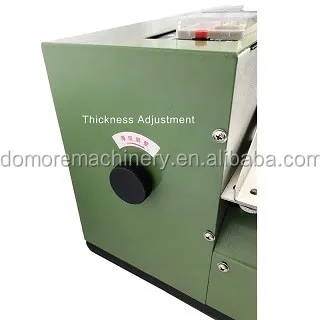

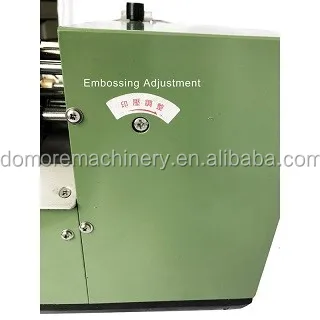

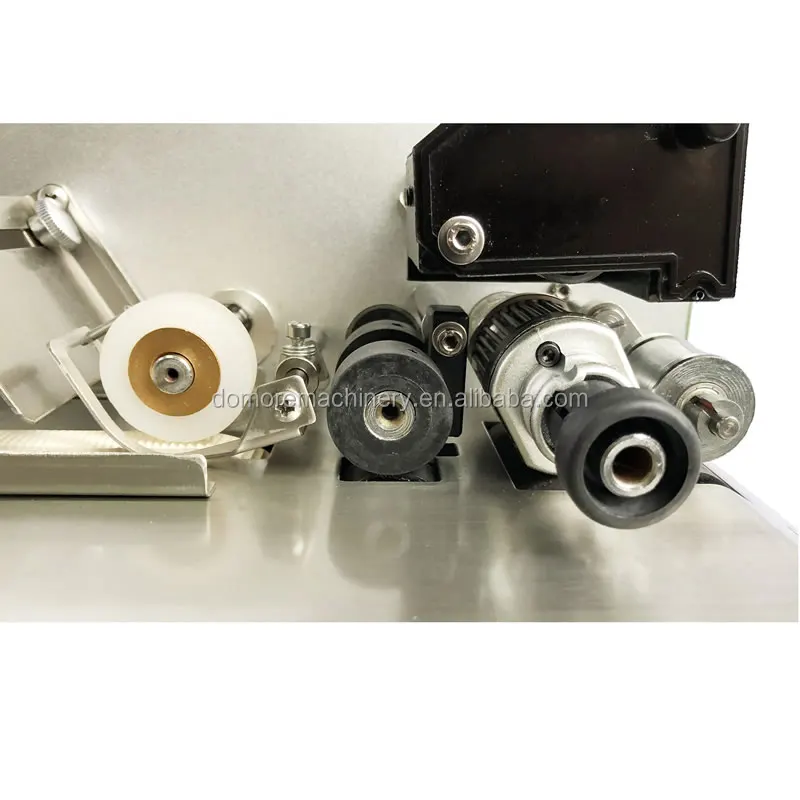

Code part

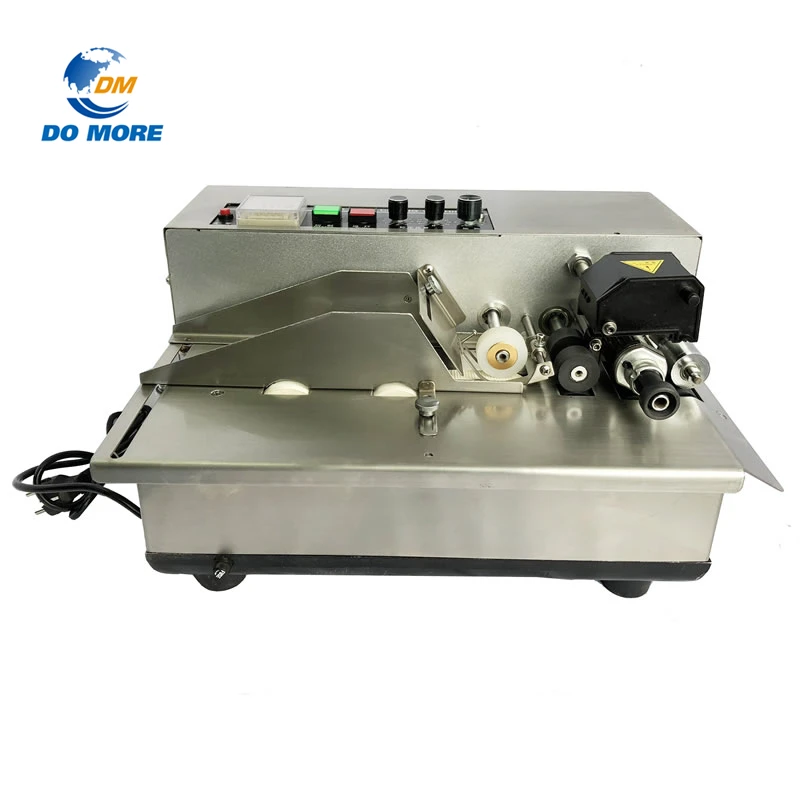

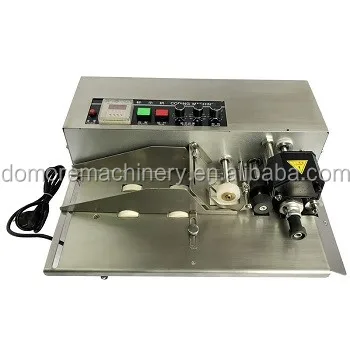

                                                                        Full stainsteel sheel type

Specification
\t
Model
\t
MY380
\t
Speed
\t
0~300pcs/min
\t
Solid ink roller size
\t
36*32mm
\t
Product size
\t
Length:55-550mm                Width:30-300mm
\t
Print location
\t
Single way width:60mm      Length:250mm       Adjustable
\t
Print row
\t
T-type max 5 rows                R-type max 5 rows
\t
Character size
\t
2.5x1.5(8PT)   2.5x2(9PT)   3x2(10.5PT)   5x2.5(18PT)   4 sizes optional
\t
Dimension
\t
440*345*260mm
\t
Weight
\t
23KGS
Machines

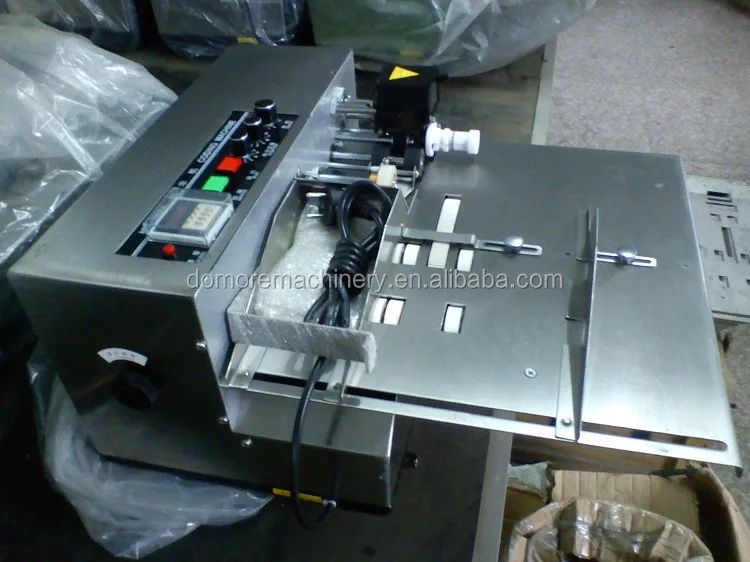

The workbench is widened to 390mm
