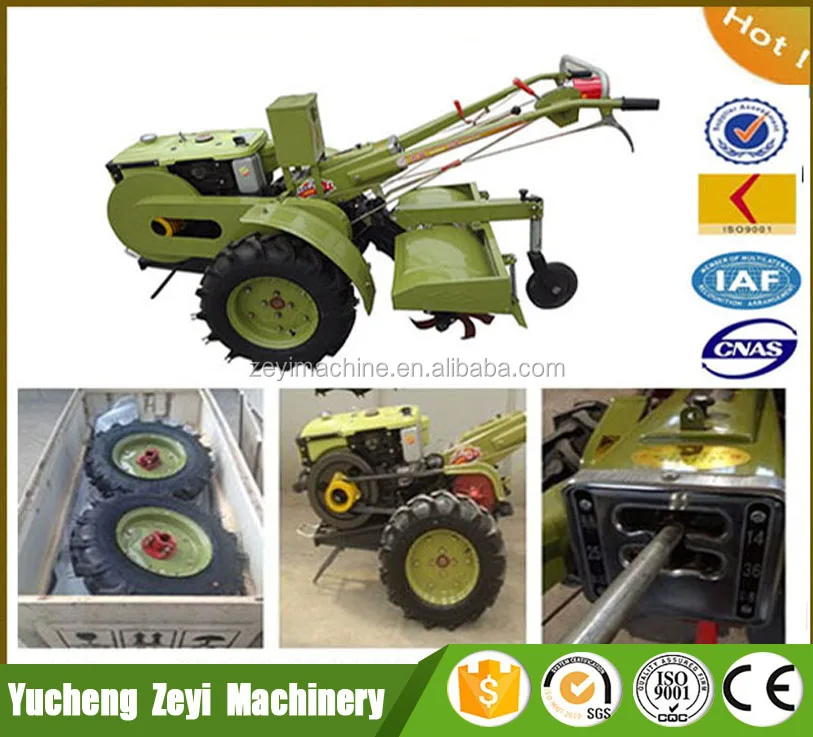

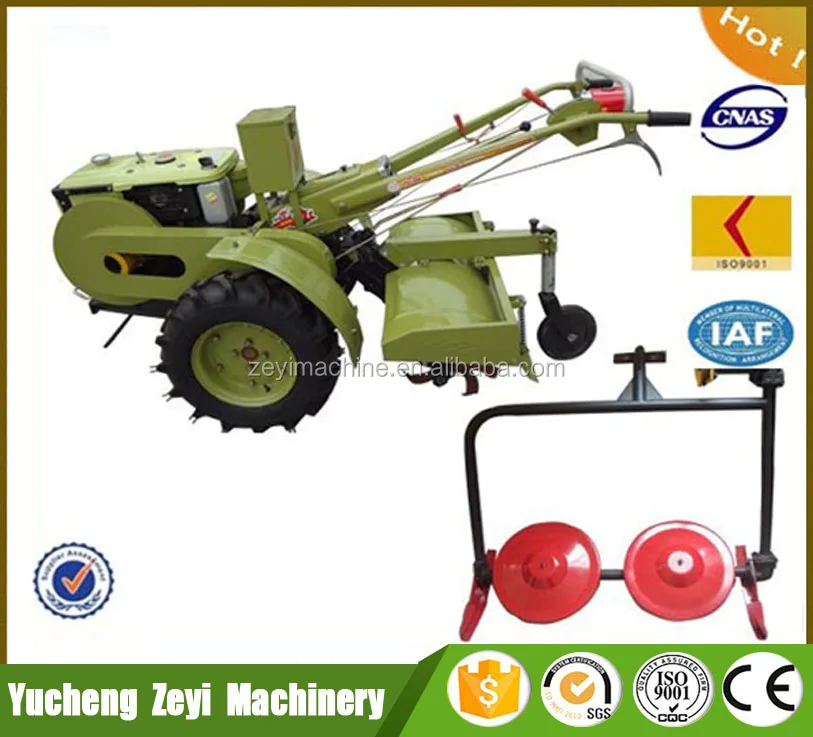

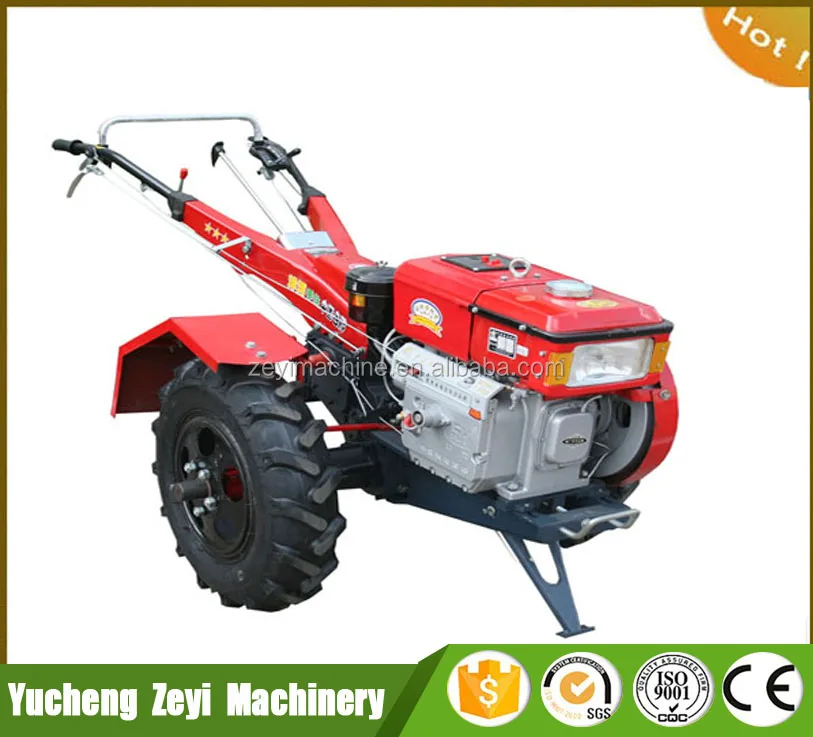

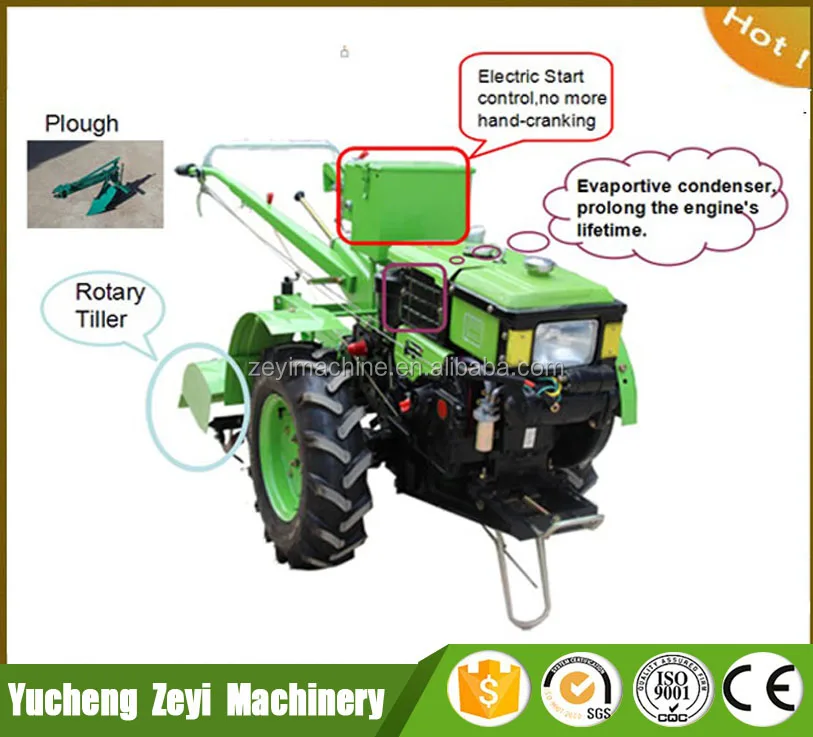

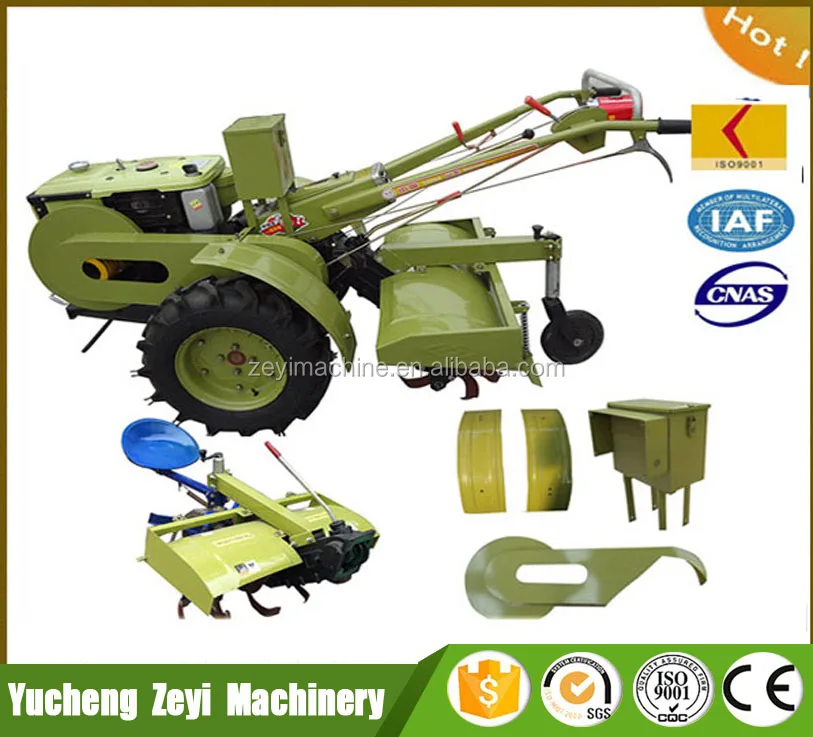

15 horsepower walking tractor/ diesel micro cultivator with a Ploughing machine
- Category: >>>
- Supplier: Yucheng Zeyi Machinery Co. Ltd.
Share on (60719790098):
Product Overview
Description
Product Description
| Model | LH101 (15HP) | |||||||
| Overall Dimension (mm) | 2120×840×1160 | |||||||
| Ground Clearance (mm) | 210 | |||||||
| Wheelbase(mm) | 680~740 | |||||||
| Weight (kg) | 260 | |||||||
| Semi-axis (cm) | 340 | |||||||
| Weight in use(with oil , water, tools) (kg) | 350 | |||||||
| Tyre Model | 6.00~12 | |||||||
| Tyre Pressure | Field Work | 100~120(1.0~1.2kgf/square centimeter) | ||||||
| Transportation Work | 180~200(1.8~2.0kgf/square centimeter) | |||||||
| Engine | Power | 15HP/11KW/2300rpm | ||||||
| Type | Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled | |||||||
| Gear | 1 | 2 | 3 | 4 | 5 | 6 | Reverse1 | Reverse2 |
| Speed(km/h) | 1.68 | 2.61 | 4.22 | 6.79 | 10.57 | 17.08 | 1.29 | 5.22 |
| Traction(N) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | _ | _ |
| Model | LH181 (18HP) | |||||||
| Overall Dimension (mm) | 2120×840×1160 | |||||||
| Ground Clearance (mm) | 210 | |||||||
| Wheelbase(mm) | 680~740 | |||||||
| Weight (kg) | 260 | |||||||
| Semi-axis (cm) | 340 | |||||||
| Weight in use(with oil , water, tools) (kg) | 350 | |||||||
| Tyre Model | 6.00~12 | |||||||
| Tyre Pressure | Field Work | 100~120(1.0~1.2kgf/square centimeter) | ||||||
| Transportation Work | 180~200(1.8~2.0kgf/square centimeter) | |||||||
| Engine | Power | 18HP/13.2KW/2000rpm | ||||||
| Type | Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled | |||||||
| Gear | 1 | 2 | 3 | 4 | 5 | 6 | Reverse1 | Reverse2 |
| Speed(km/h) | 1.68 | 2.61 | 4.22 | 6.79 | 10.57 | 17.08 | 1.29 | 5.22 |
| Traction(N) | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | _ | _ |
