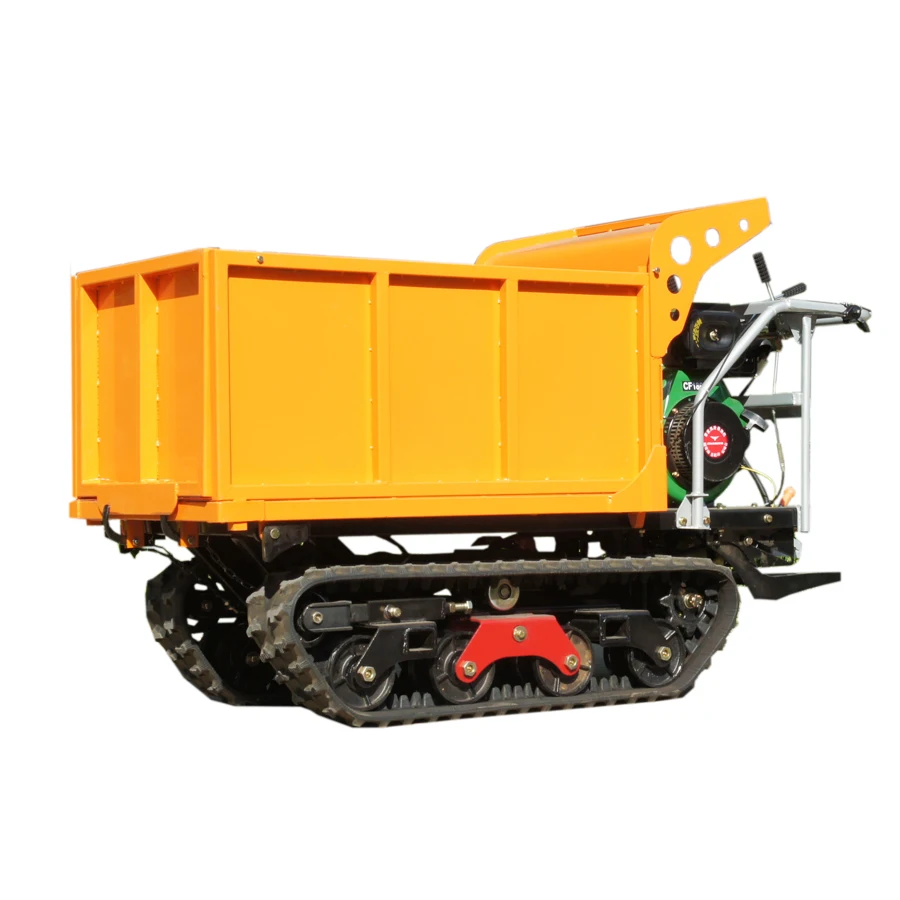

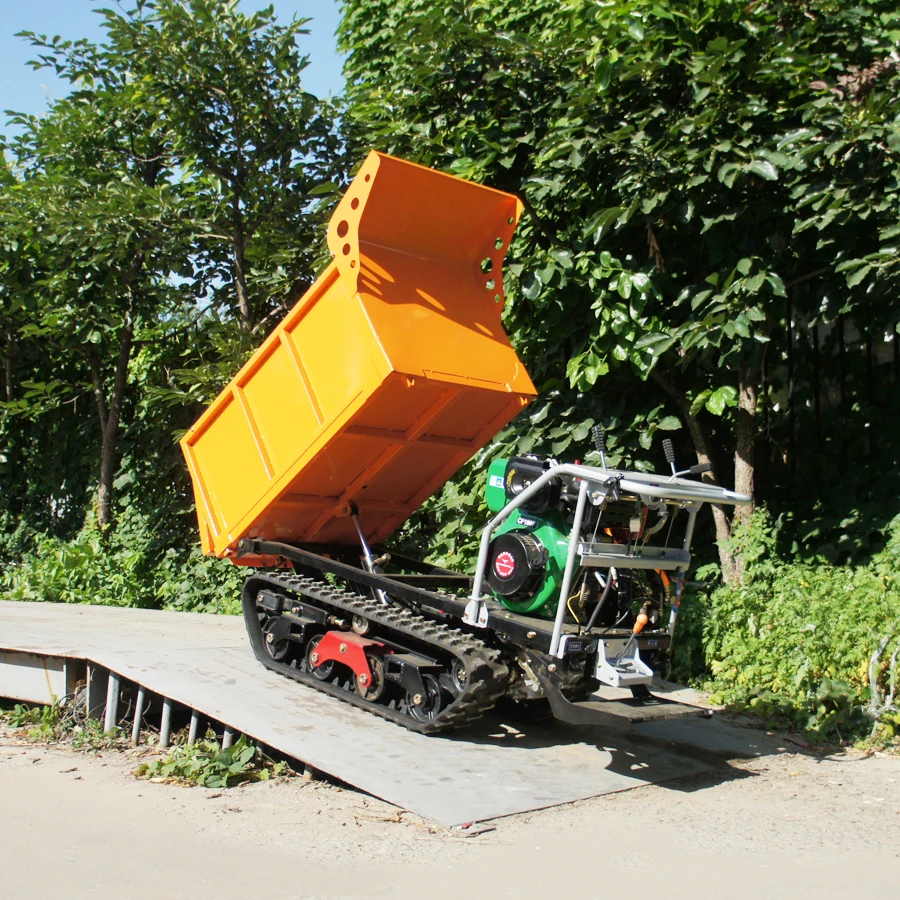

Mini crawler type truck dumper with diesel engine 10HP

Engine: Changfa diesel engine 10HP.
Loading weight: 500-600KG .

Dump type: Hydraulic dump.

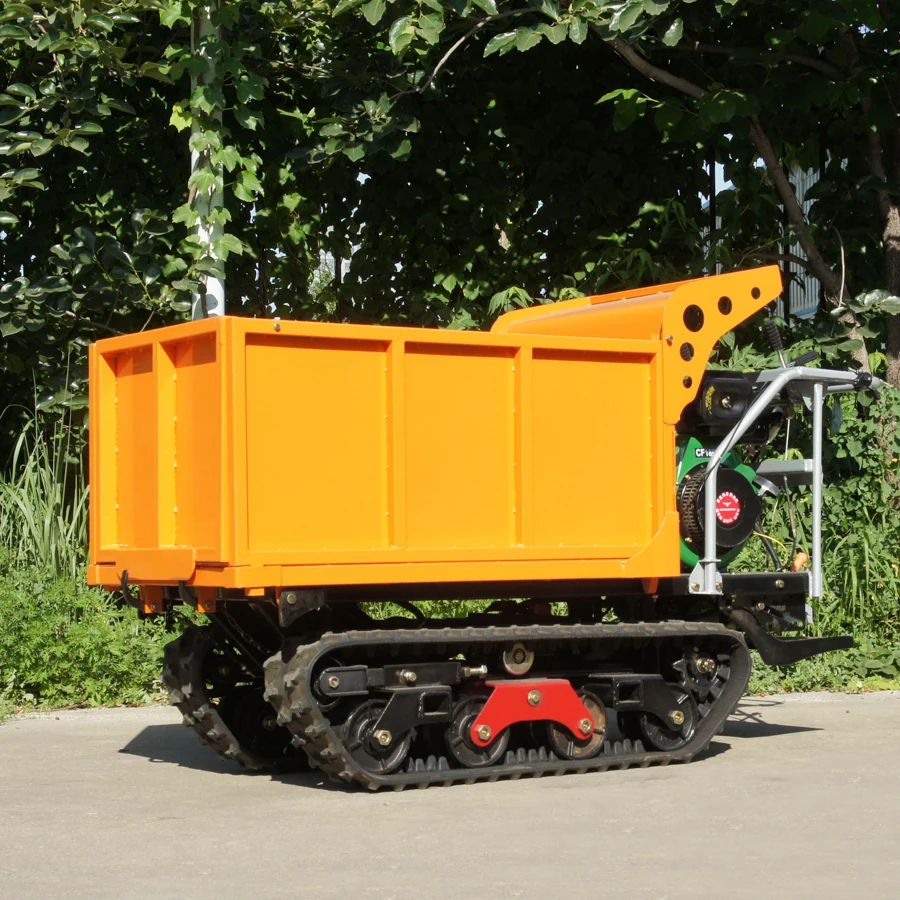

Left front side Main picture

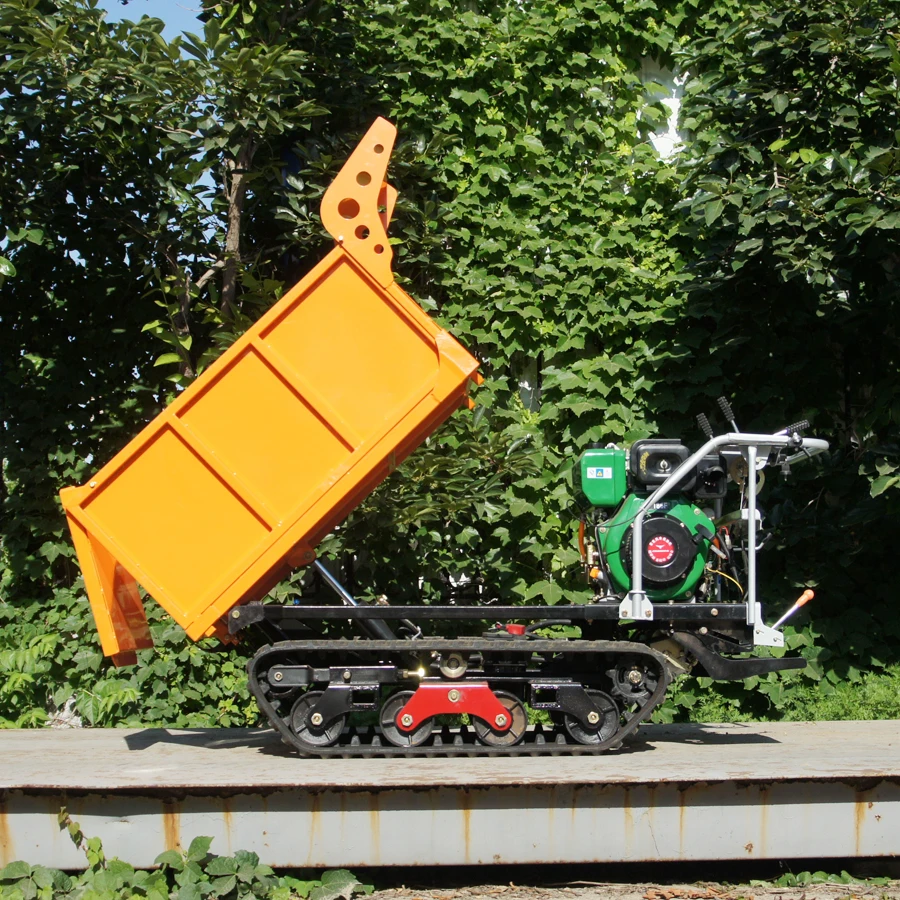

Left side Main picture

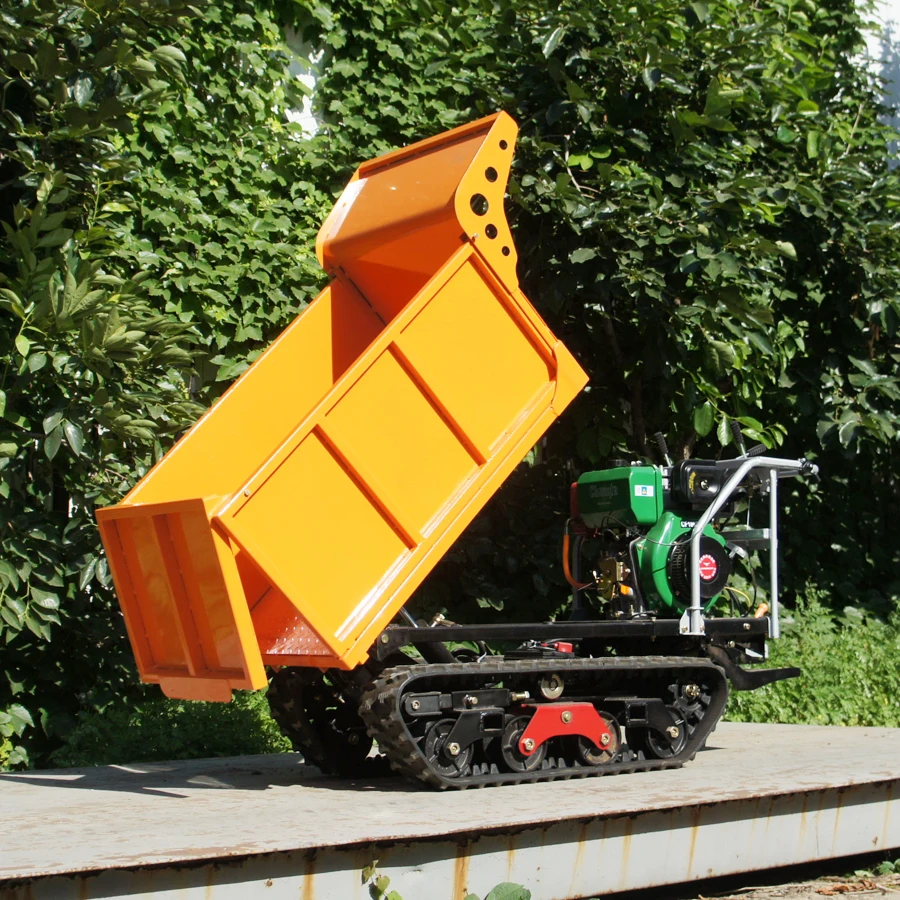

 Right front side Main picture

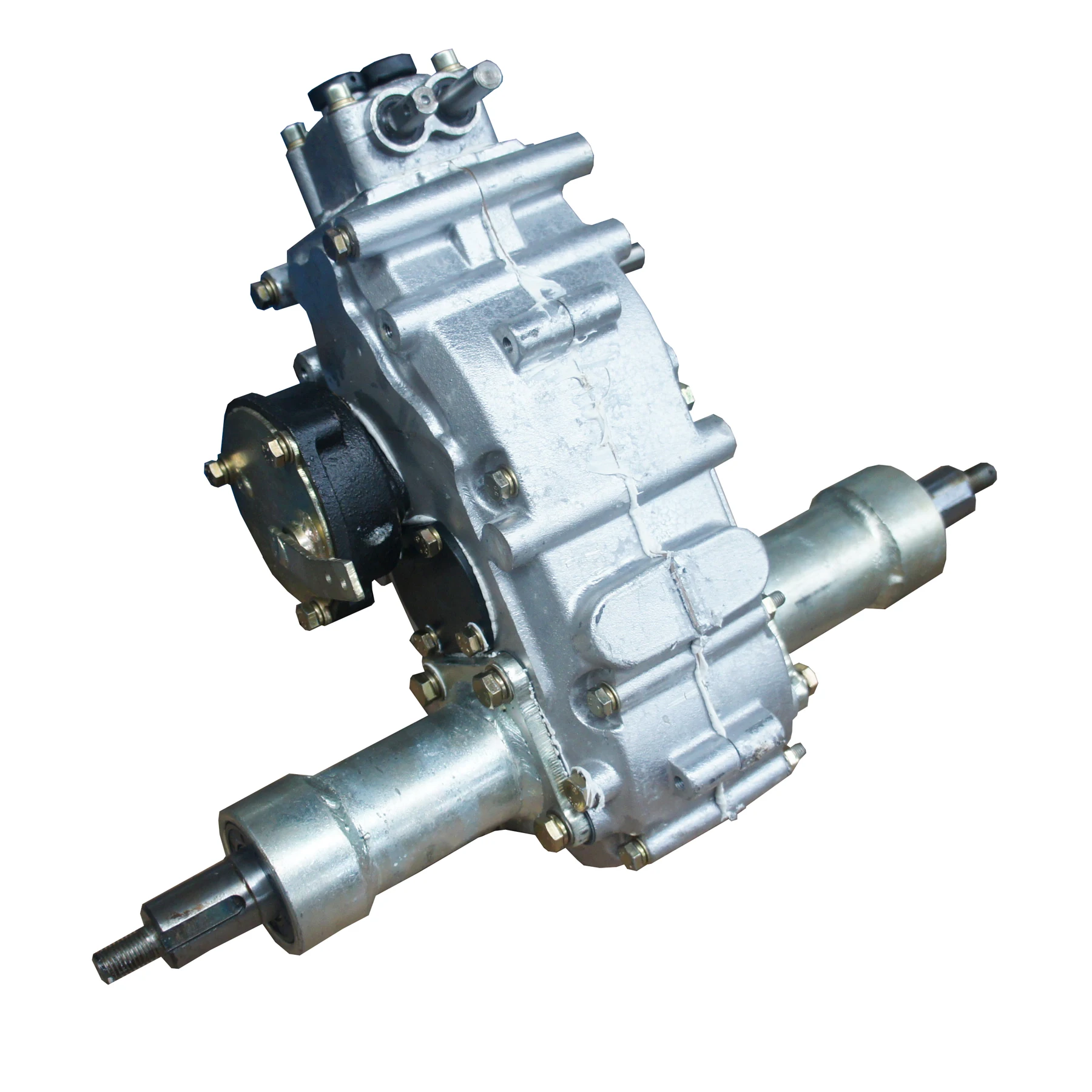

Gear Box Main Picture

 Gear box:(3+1)*2 configuration the high and low speed.

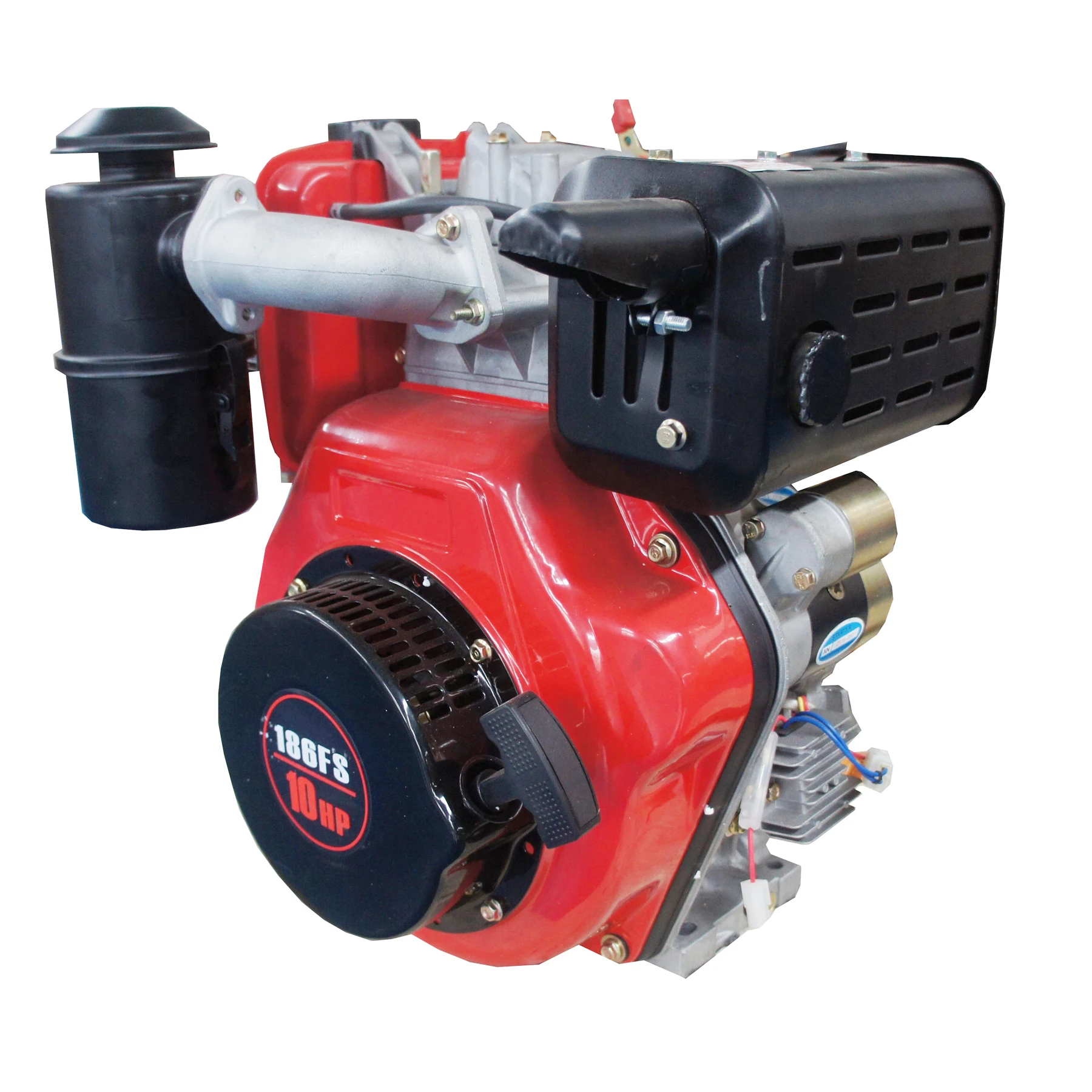

Engine Power System Changfa 186F diesel engine 10HP

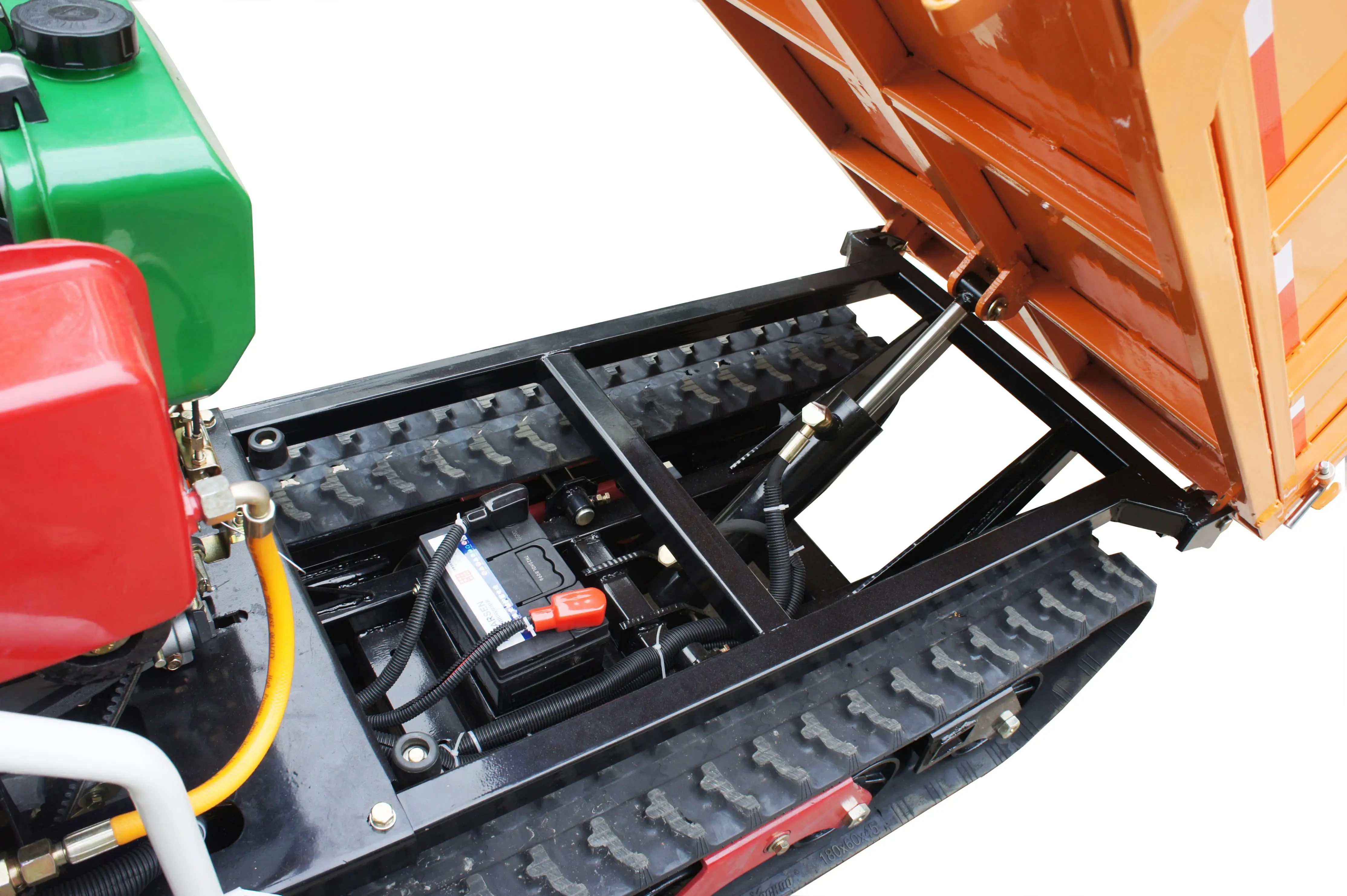

Hydraulic dumper system

the high quality hydraulic motor and hydraulic cylinder for  our machine, in order to satisfied the high intensity work request.

Rubber pedrail

Configuration the top quality rubber tracks and the addition of steel wire and steel sheets in the track increase the service life and wear resistance of the track.

Chassis walking system

chassis design from update the foreign technology, crawler middle supporting wheel, supporting wheel is very flexible, especially through the rugged different road.

Operating platform

 Operating platform included the Left turn, right turn, clutch, hydraulic dump, throttle control.

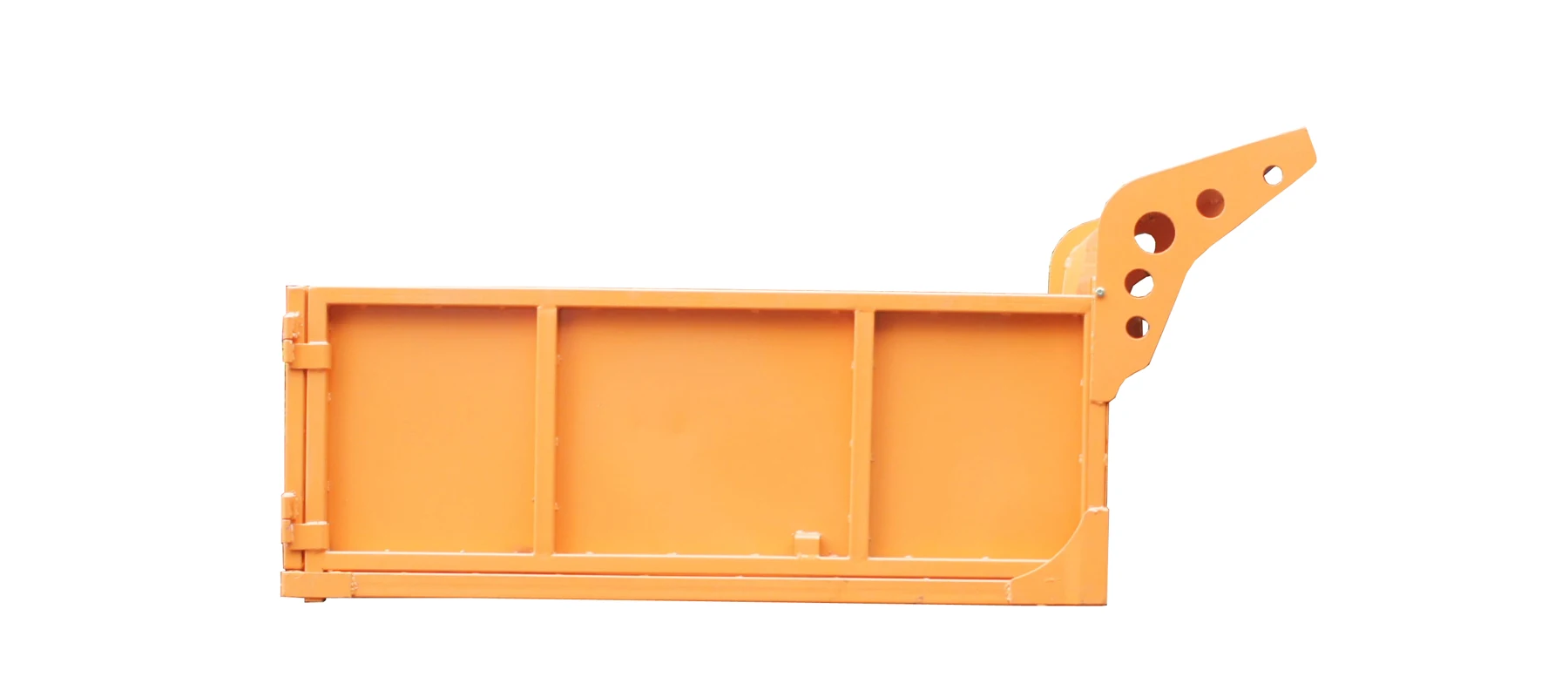

Container shape

we can according to client offer the design paper to produce, and we have more than 5 kinds of container for client choose.

Climbing angle 30 degrees with loading weight 500 kg
