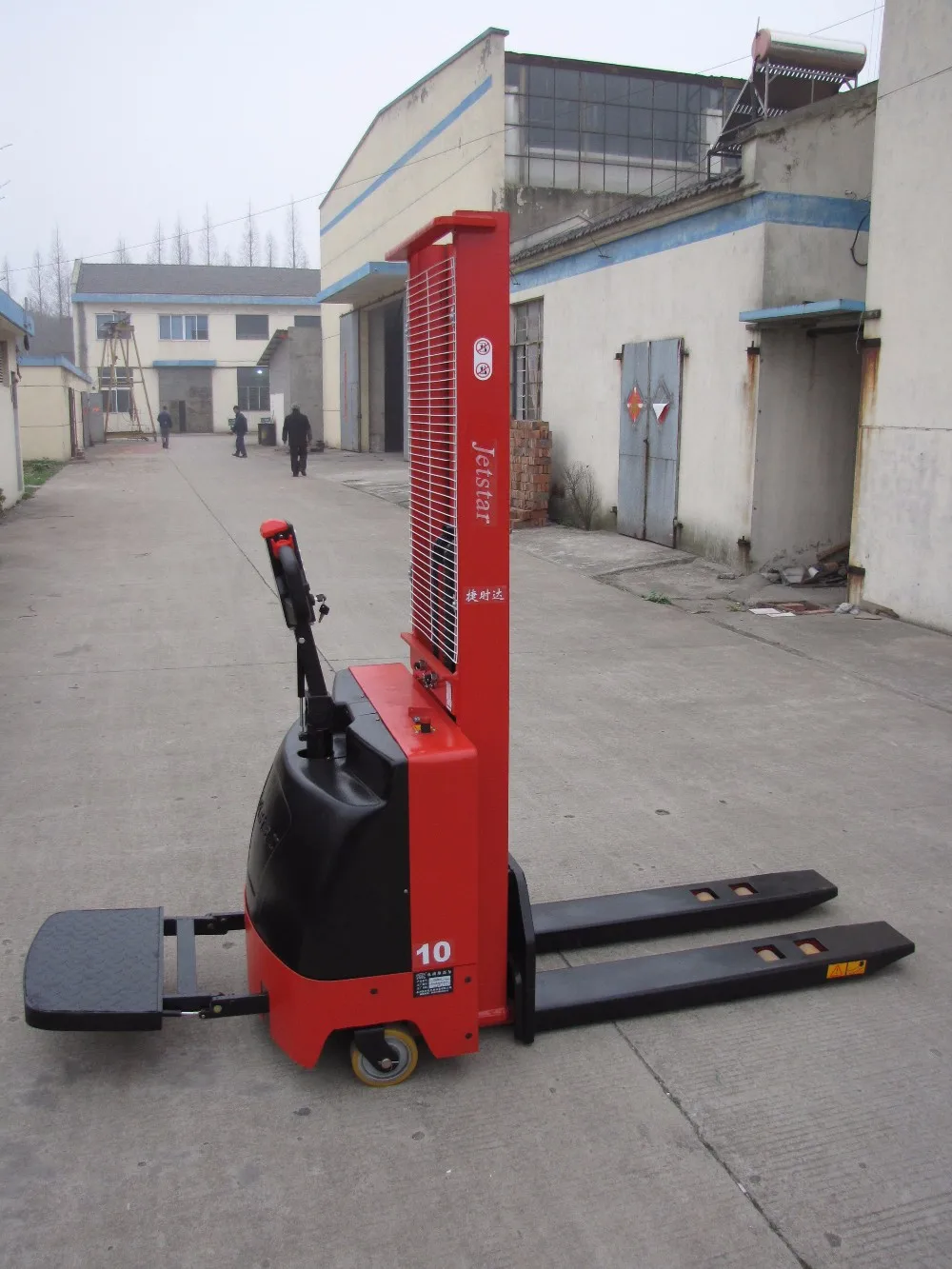

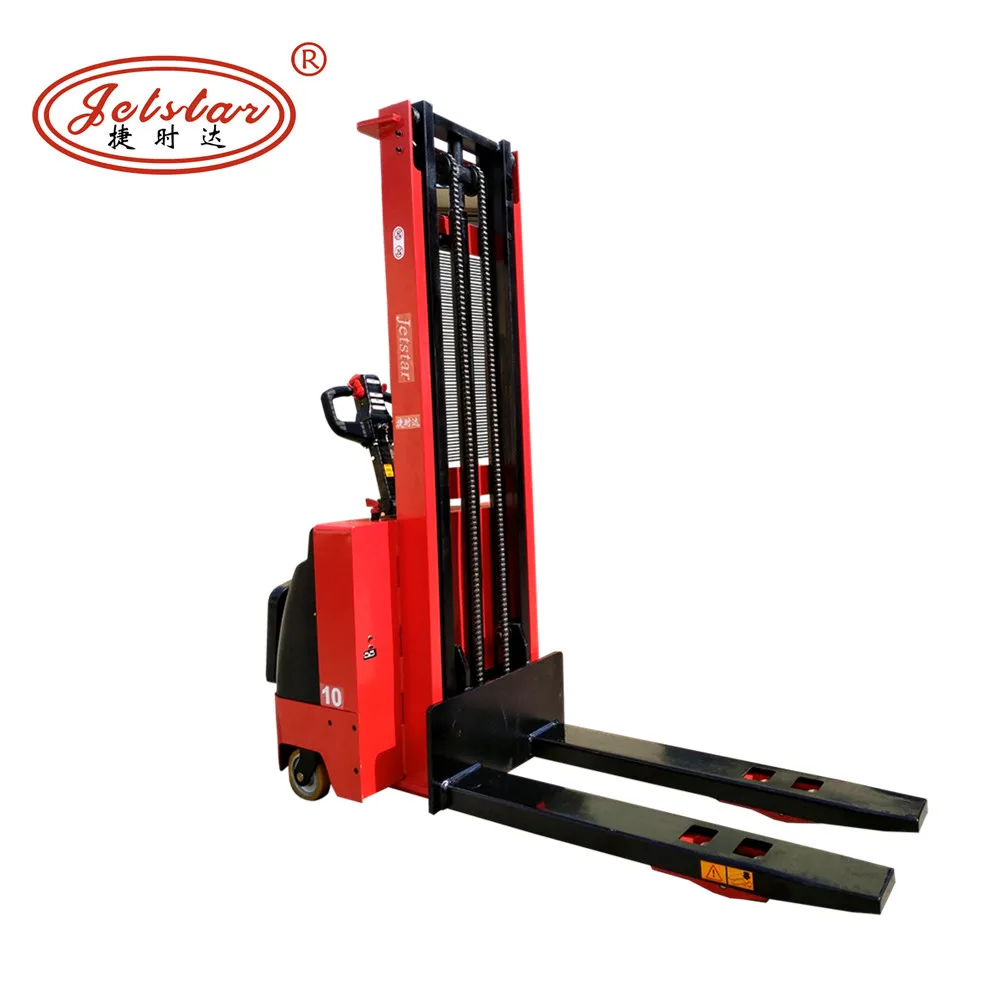

MINI RANGE 1 TON SMALL FORKLIFTS PALLET STACKER

Share on (60719873894):


Price:RUB 189,545.00 - RUB 246,408.50

Quantity:


Product Overview

Description

Company Profile

Taizhou Jetstar Machinery Equipment Co., Ltd. is a professional manufacturer engaged into designing and producing logistic and industrial equipments for more than 15 years. Our supply scope covers pallet truck, pallet stacker, electric forklift, drum lifter and scissor lift.

Our team are always ready to provide not only quality products but also perfect customer service.

Brief Introdution

Top quality electronic control system from Curtis;

Drive unit with electromagnetic brake;

Compact design for easy operation in narrow aisle;

Conforms to EN1726, EN60204 and EN ISO 12100;

Product Description

Electric Stakcer Application

Electric Stacker is mainly used in pallet stacking and short distance transportation at plants, warehouse and logistics systems etc. This machine is an electric forklift truck with steering bar drive and is perfect for storing and transporting loads on perfectly even surfaces. An identification plate can be found on the chassis indicating the lifting capacity that must never be exceeded both for the safety of the personnel and not to damage the vehicle. Please observe the safety, use and maintenance regulations to the letter. Any mounting of extra equipment on this machine must be authorized by the manufacturers.

SPECIFICATIONS OF MINI RANGE 1 TON SMALL FORKLIFTS PALLET STACKER
                                                                                                                                                                                                                               General
Manufacturer
Jetstar
Model
HL1030
Drive
Electric (Battery)
Operator Type
Pedestrian or Standing
Rated Capacity/ Rated Load
1000kg
Load Center Distance
600mm
                                                                                                                                                                                                                                                                                                   Characteristics
Max. Fork Height
3000mm
Lower Fork Height
90mm
Fork Length
1150mm
Fork Individual Width
160mm
Fork Height
70mm
Fork Overall Width
570mm
Motors Travelling
1.2kw/24v
Motors Lifting
2.2kw/24v
                                                                                                                 Performance
Travelling Speed with/without load
4/6 km/h
Lifting Speed with/without load
80/130 mm/s
Lowering Speed with/without load
110/90 mm/s
Gradient
5/8 %`
                                                                                                           Chassis
Overall Length
1915mm
Overall Width
850mm
Mast Extended Height
3475mm
Mast Lowered Height
2059mm
                                                        Wheel
Front Wheel
4*Φ80*70
Rear Wheel
2xΦ156*50
Driving Wheel
Φ250*100
Battery
Battery (Voltage/Capacity)
2x12 V/120Ah
Controller
Controller System
Curtis
Weight
Net Weight
760kg

Main Features

1) Top quality electronic control system from Curtis;
2) Drive unit with electromagnetic brake;
3) Compact design for easy operation in narrow aisle;
4) Conforms to EN1726, EN60204 and EN ISO 12100;

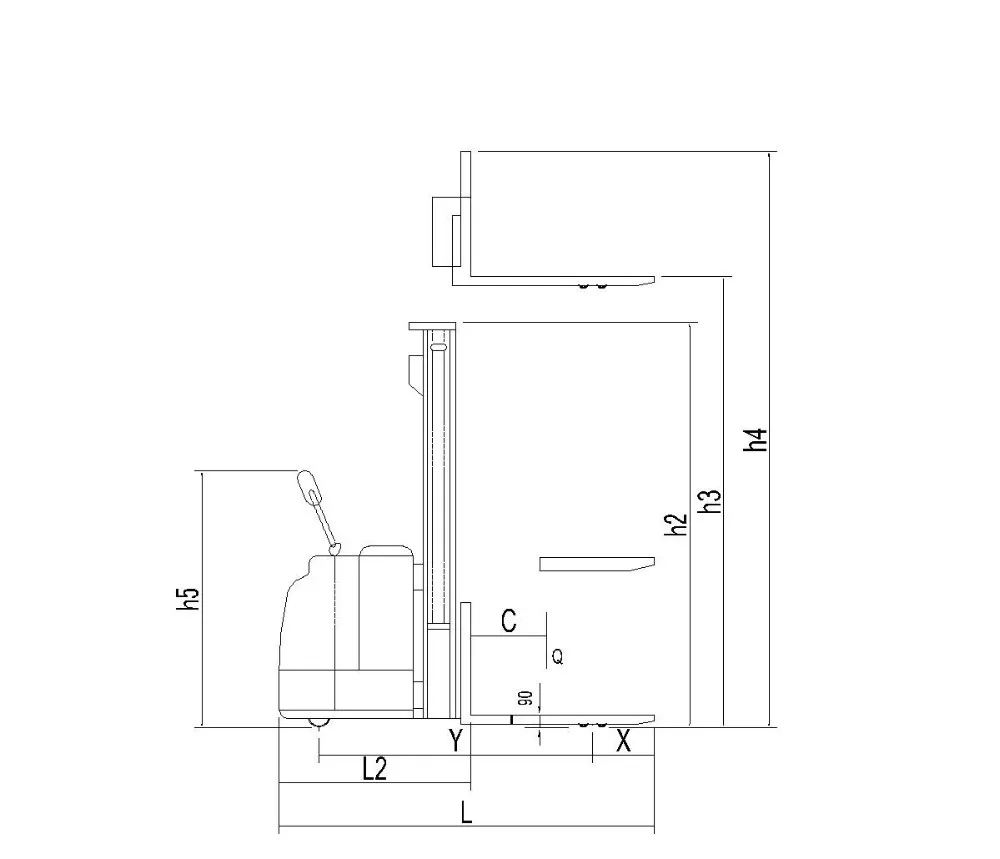

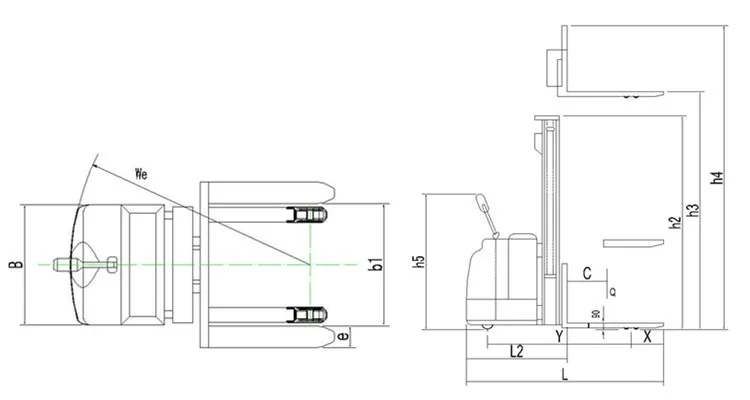

Equipment Layout
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Contact us

Justin Yu

TaiZhou Jetstar Machinery Equipment Co.,Ltd.
Address: No.48 Renjing Road, TaiZhou City,JiangSu Province, China
Tel: +86 18952617070
Fax: +86 523 86573337
Email: justin_jetstar(a)163.com
Whatsapp: 0086 18005263933
