10l/hr 10l/hour 10l industrial atomizer spray dryer machine price
- Category: Drying Equipments >>>
- Supplier: Xian Toption Instrument Co. Ltd.
Share on (60719880675):
Product Overview
Description
Product Description

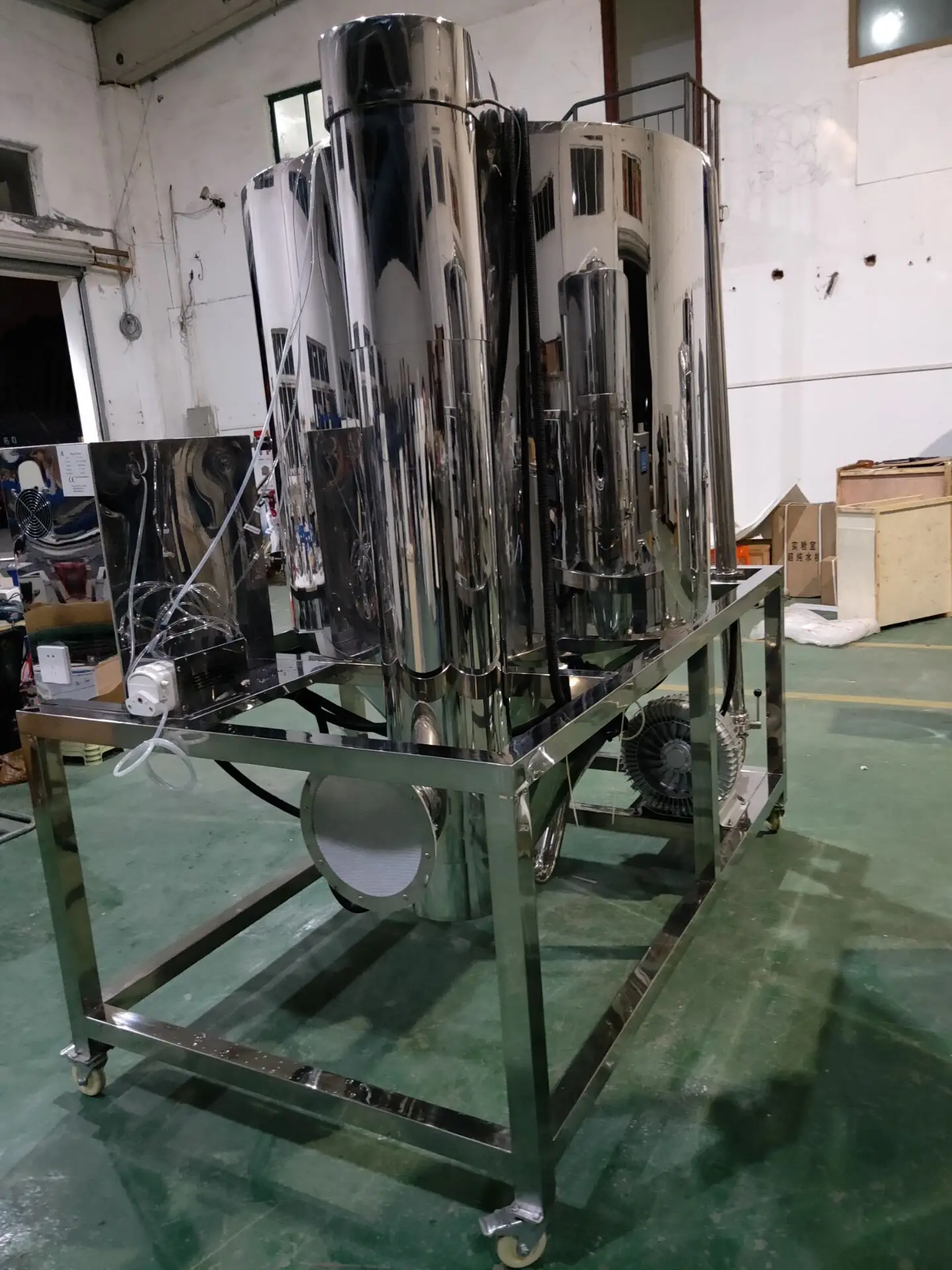

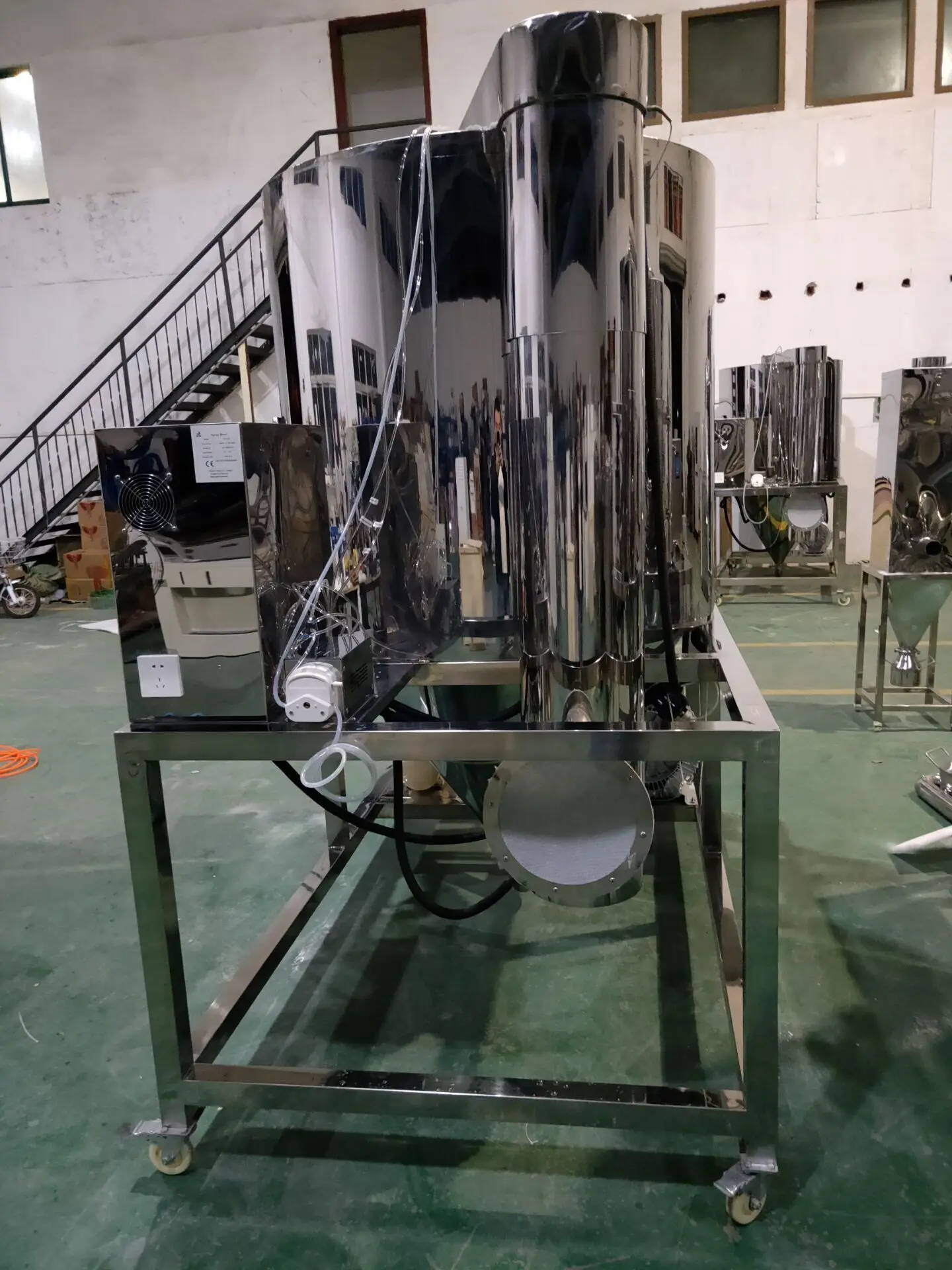

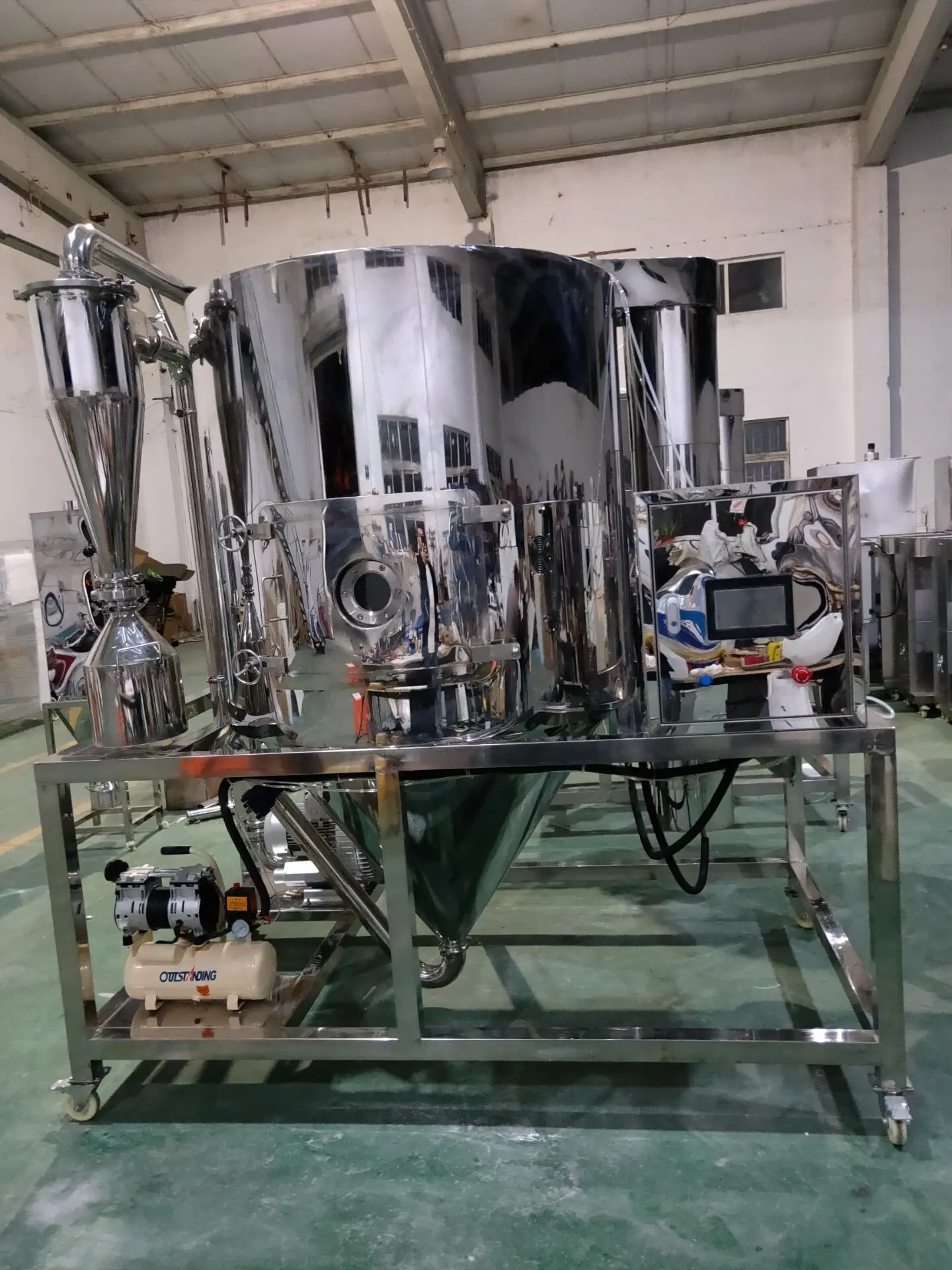

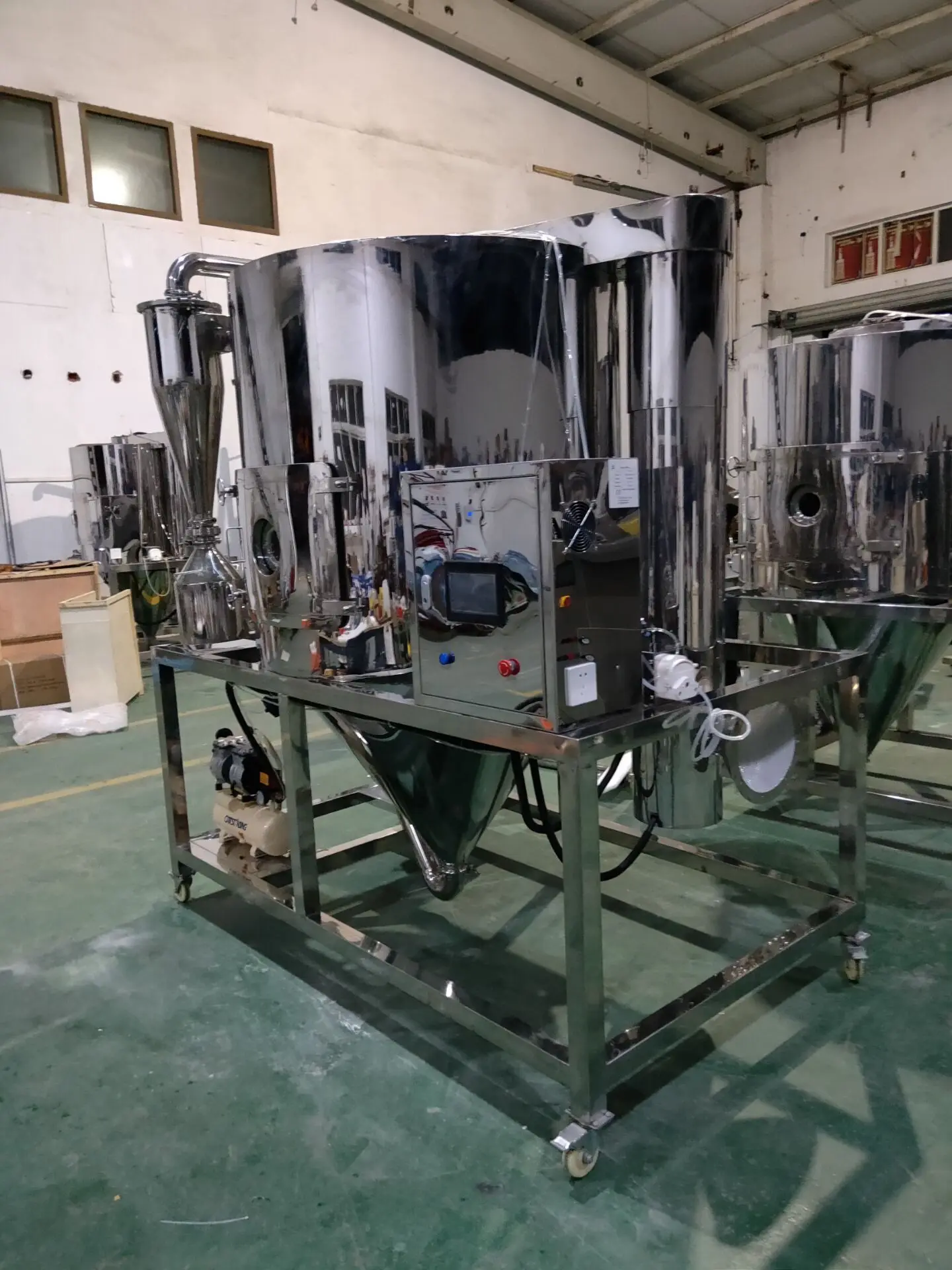

10l/hr 10l/hour 10l industrial atomizer spray dryer machine price

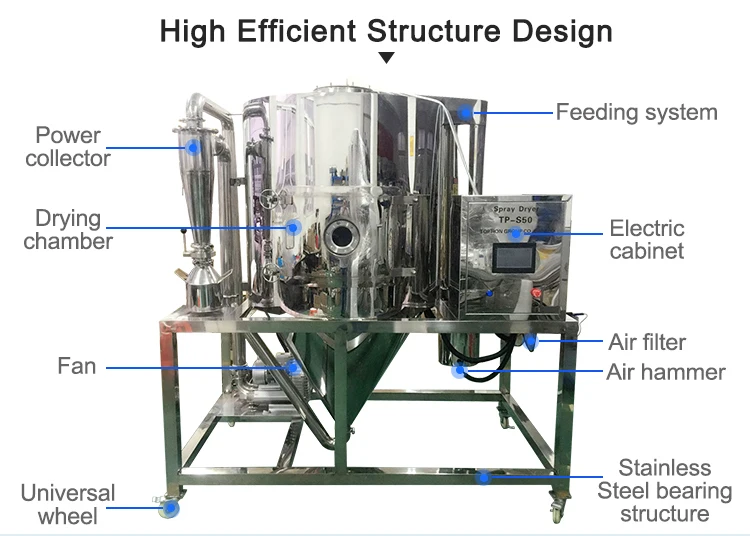

This 10L Lab spray dryer has Stainless steel shell and arc corner design.Equip with imported Schneider electrical components,PLC control system,self-priming peristaltic pump and oil-free air compressor,is suitable for producing solid powder or particle products from liquid materials drying,such as emulsion, suspending liquid, liquor and so on.
It is widely used in drying Beverages, Flavours and Colouring, Milk and Egg Products, Plant and Vegetable Extracts, Pharmaceuticals, Heat sensitive Materials, Plastics, Polymers and Resins, Perfumes, Ceramics and Advanced Materials, Soaps and Detergents, Blood, dyestuffs, Food Stuffs, Adhesives, Oxides, Textiles, Bones, Teeth and Tooth Amalgan and many others.
Model | TP-S100 |
Max capacity | 1000ml/l |
Temperature range of inlet air | 50~300℃ |
Temperature range of outlet air | 80~90℃ |
Spray system | centrifugal nozzle |
Precision of temp | ±1℃ |
Dry time | 1.0~1.5S |
Speed of squirt pump | 10000ml/h |
Spray direction | Downwards co-current |
Heat power | 12000w |
Total power | 22000w 380v |
Heat source | electric |
Air compressor | built-in oil-free air compressor |
Dried powder restoring rate | ≥92（Maltodextrin＞92） |
Dimension | 2500*1600*2800mm |
Max moisture evaporation | 10kg/h |
Details Images
Features
1. High efficient jet imported.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
4. With jet cleaner (stylet), its frequency can be automatically adjusted.
5. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
6. Use PID controller, the accuracy of heating temperature is around±1°C.
7. A filter has been equipped to the inlet unit to prevent the sample from contamination.
8. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
9. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
10. Innovative tower wall purging device, improves the material recycling rate.
2. LCD touch screen displays temperature, airflow, air pressure, pump speed and jet cleaner frequency.
3. Manual controlling is available, be able to adjust technical parameters during the process of experiment.
4. With jet cleaner (stylet), its frequency can be automatically adjusted.
5. Build in oil-free air compressor. The sound is low than 60db, and following the GMP standards.
6. Use PID controller, the accuracy of heating temperature is around±1°C.
7. A filter has been equipped to the inlet unit to prevent the sample from contamination.
8. Narrow size distribution, more than 95% of the dry powders are in the same range of particles.
9. Automatic jet cleaner (stylet) prevents the jet from becoming blocked and variably controlled.
10. Innovative tower wall purging device, improves the material recycling rate.
Function
Other volume
Click the following pictures to know more details of other capacity spray dryer.
2L/H
3L/H
5L/H
15L/H
Application
Packing & Delivery
Certificate and exhibition
ISO | CE | SGS | BV manufacturer certification
1. Professional customize based on more than 15 years manufacturing experience.
2. ISO | CE | SGS | BA certification reliable quality guarantee.
3. Factory directly sale for competitive price, help you save cost.
4. Fast delivery within 7days of hotsale types.
5. Professional service team, provice 24h 7days online service.
1. Professional customize based on more than 15 years manufacturing experience.
2. ISO | CE | SGS | BA certification reliable quality guarantee.
3. Factory directly sale for competitive price, help you save cost.
4. Fast delivery within 7days of hotsale types.
5. Professional service team, provice 24h 7days online service.
