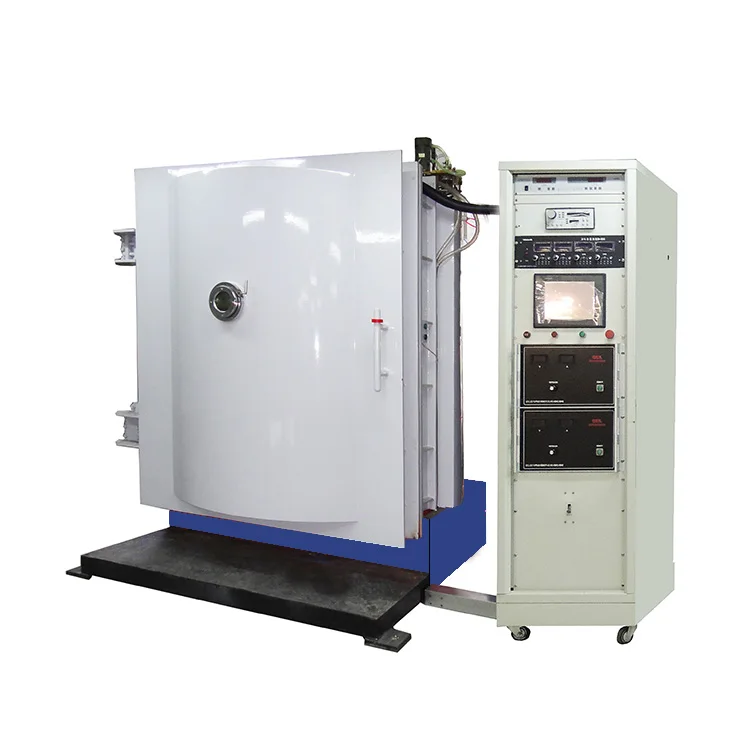

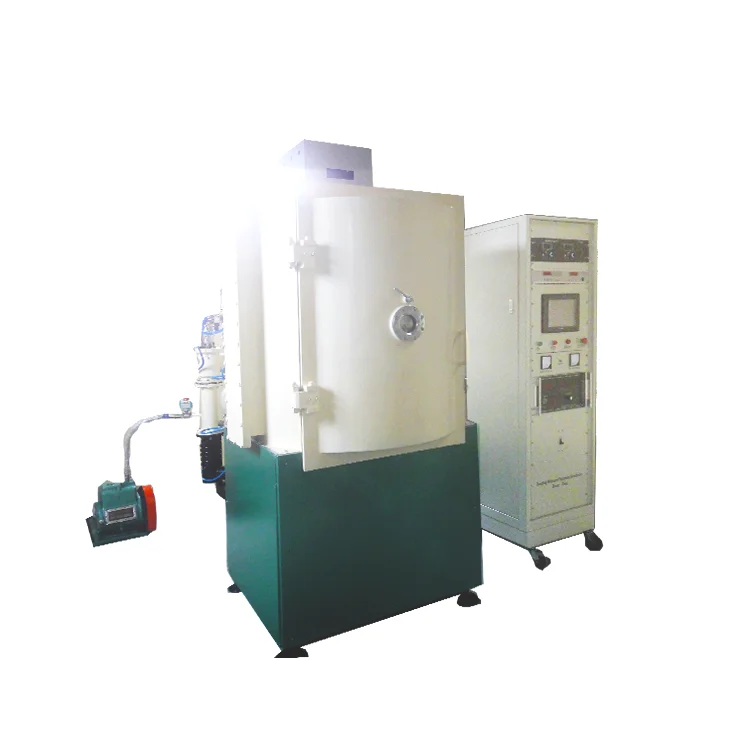

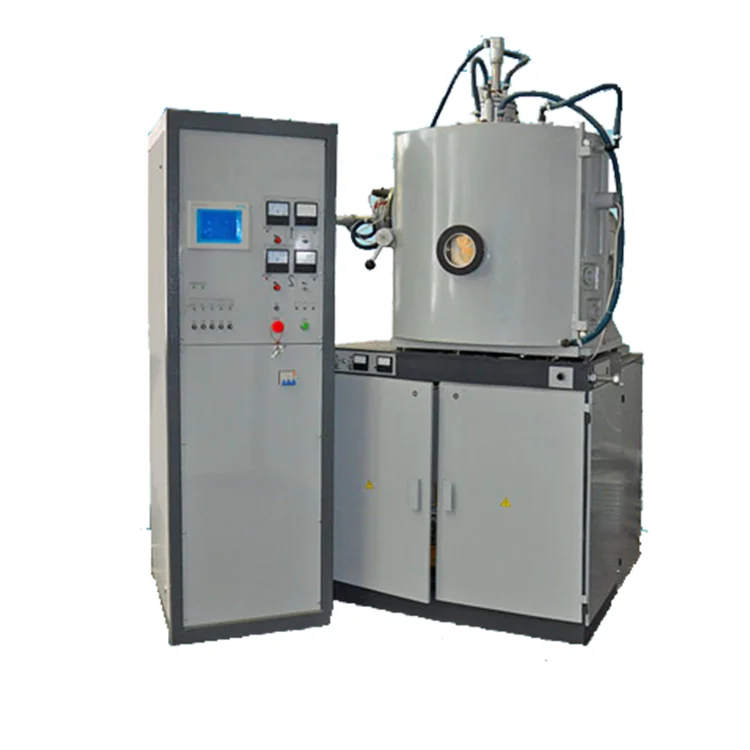

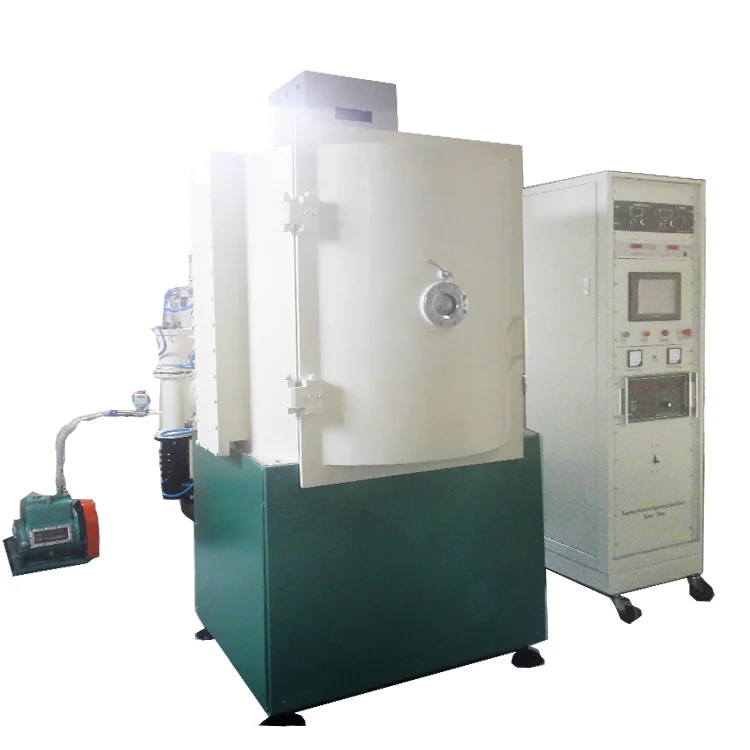

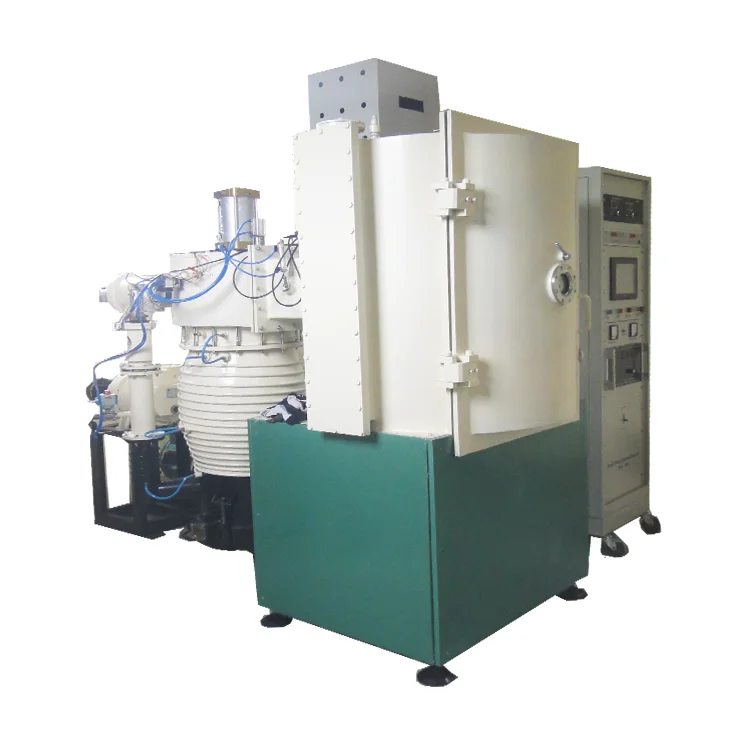

Silicon Dioxide DC Magnetron Sputtering Vacuum PVD Coating Machine
- Category: >>>
- Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Share on (60719884785):
Product Overview
Description
Silicon Dioxide DC Magnetron Sputtering Vacuum PVD Coating Machine
This machine can apply different metal coatings on plastic, metal, glass, ceramic, etc.
DC Sputtering
DC magnetron sputtering coating machine is usually used for direct sputtering coating for different substrates, such as kinds of plastic, glass, metal, ceramic, etc.
We have dedicated more than 10 years to manufacturing and designing magnetrons that can be rectangular, cylindrical, circular, and of various sizes. They have developed a plethora of targets that can be directly cooled or bonded, and can be manufactured in such a way that can fit most magnetron sizes.
Magnetic fields can essentially define the behaviour and the properties of the ion charged particles that are used for sputtering. The development and commercialisation of software that can enable the distinct modelling of magnetron sputtering is bound to enhance its productivity, applicability, and reproducibility.
| Technical Spcifications |
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
| Dimension of vacuum chamber | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| (diameter*height) | ||||
| Material of vacuum chamber | Carbon steel, SUS304 or SUS316L | |||
| Quantity of sputtering cathodes | ≥1 sets, DC sputtering system, cylindrical or rectangle sputtering cathodes | |||
| Pumping system | Turbo molecular pumps or diffusion pump+mechanical pump | |||
| Pumping Time | From atmosphere to 5.0*10-2Pa less than 8 minutes | |||
| Gas distribution System with Mass Flow Controllers | ≥2 sets | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Working temperature | Room temperature | |||
| Working mode | Automatic or Manual mode, by 10.4(or 15) inches PLC touches screen | |||
| Total Power | 40-100kW | 70-1000kW | ||
| These units you can custom made | 1. Size of vacuum chamber | |||
| 2. Quantity of sputtering cathodes | ||||
| 3. Configurations of pumps | ||||
| 4. Gas distribution system | ||||
| Optional instruments | 1. Coatings thickness monitor | |||
| 2. Leakage detector | ||||
| 3. Arc ion deposition system(not for continuous model) | ||||
| 4. Evaporation system(not for continuous model) | ||||
PS: All the specifications can be customized according to your requests.
Company Information
Packaging & Shipping
1. The inner packing is protective plastic film to protect the PVD machine from moisture and rain.
2. The out packing is plywood plate with steel to keep the PVD machine in good condition during the long distance transportation.
After the customer tested the PVD coating machine and make sure the machine is no problem, we will take the machine apart. The solid packing can make sure you will receive a machine without any destroy.
