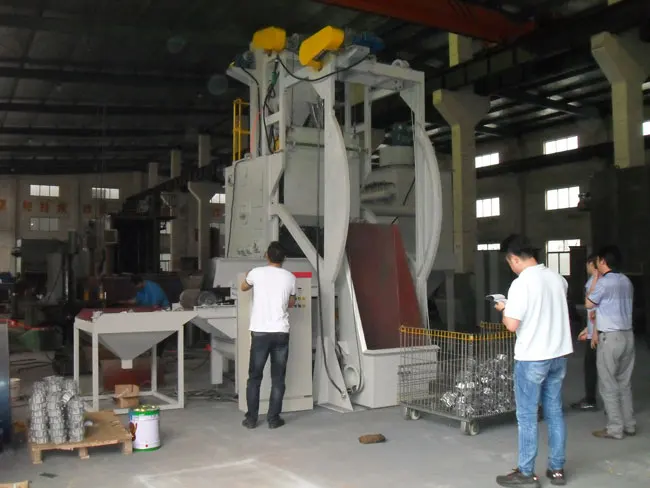

rubber belt tumble type shot blasting machine with automatic loading unloading system for for Sewing machine parts surface clean
- Category: >>>
- Supplier: Yancheng Ding Tai Machinery Co. Ltd.
Share on (60719902680):
Product Overview
Description
Product Description
Product Application
This series is used for surface cleaning,rust romoving,and surface intensification of each kind of middle and small scale casting, forging and job. It is suitable for different production scale, can be stand lone use and many units can also be used in conjunction with the continuous conveyor components, composing the production of clean-up lines.
Q32 series tumble belt type shot blasting machine has the advantages of advanced design, reasonable structure small energy consumption and high efficiency.
Style | Q324 | Q326 | Q328 | Q3210 | Q3210 Automatic |
Productivity (t/h) | 0.3-0.6 | 0.6-1.2 | 1.2-2.0 | 2.0-2.8 | 2.0-2.8 |
Max workpiece weight (kg) | 5 | 10 | 15 | 25 | 25 |
End plate diameter (mm) | 400 | 600 | 800 | 1000 | 1000 |
Effective volume (m3) | 0.05 | 0.15 | 0.2 | 0.3 | 0.3 |
Blast quantity (kg/min) | 40 | 150 | 220 | 250 | 250 |
Air quantity (m3/h) | 2000 | 2200 | 2600 | 3500 | 3500 |
Total power (kw) | 6 | 13 | 19 | 21 | 26 |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Efficient separator of shot from sand, high separating quality and productivity, long impeller lifetime.
3) Abrasion resistant rubber tumble belt, reducing noise and collision of work pieces.
4) Running in a high automatization and intellectualization,no pollution
5)Automatic discharging of materials after cleaning of work pieces, low labor cost.
Detailed Images

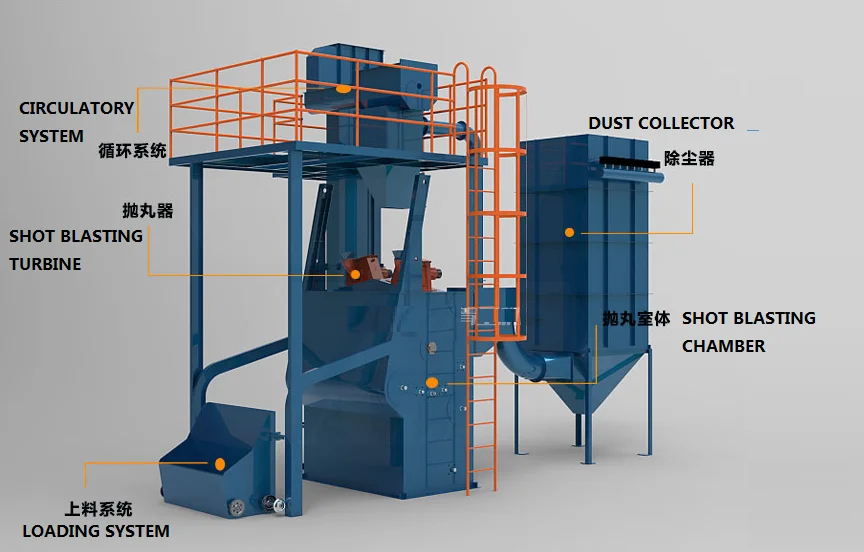

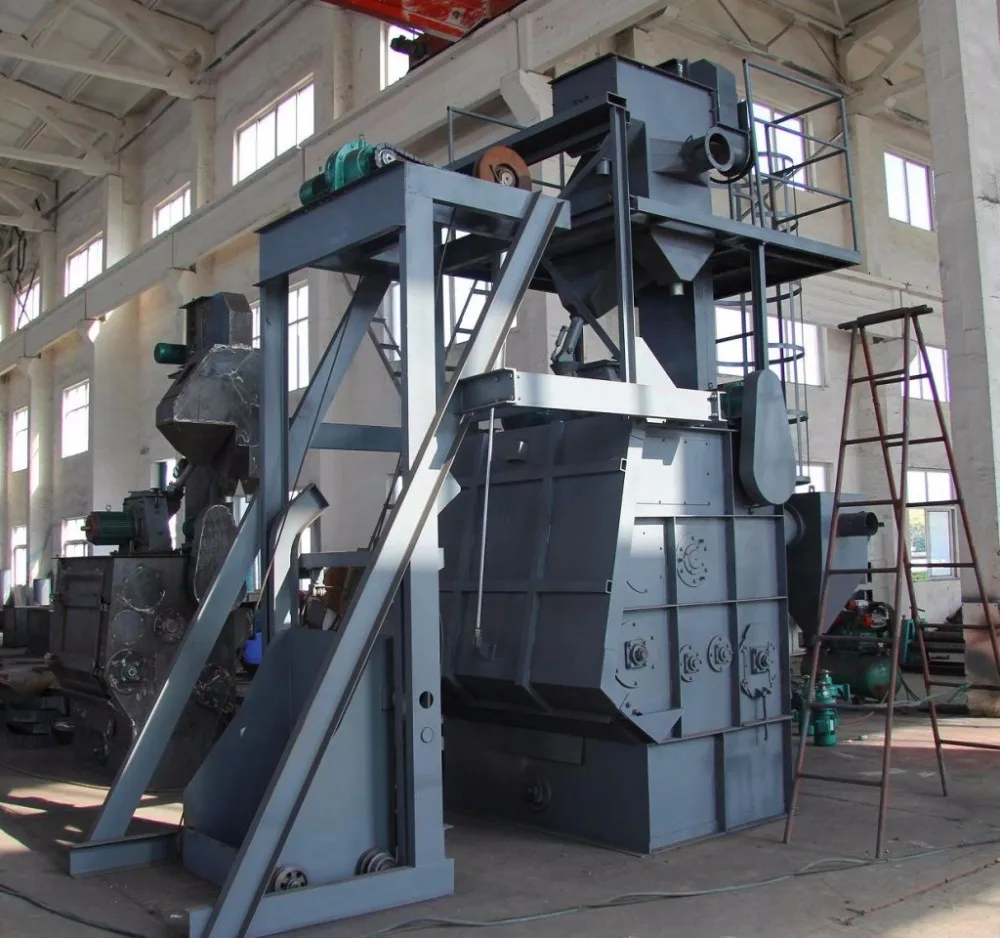

Machine
Name: Caterpillar type shot blasting machine
Brand: DingTai
Original: China

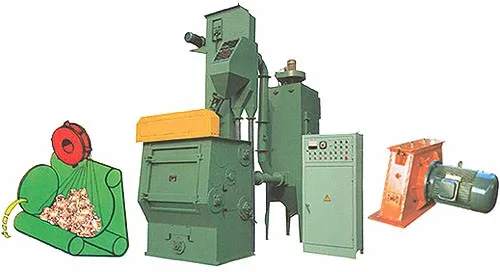

This machine adopted the double plate impeller head, characterized as brief structure, easy to change impeller and high shot blast efficiency.
Efficient separator of shot from sand, high separating quality and productivity, long impeller lifetime.
Name: Caterpillar type shot blasting machine
Brand: DingTai
Original: China
The bag dust filter can greatly reduce air pollution and improve the work environment, complying with state emission standard.
Abrasion resistant rubber tumble belt, reducing noise and collision of work pieces

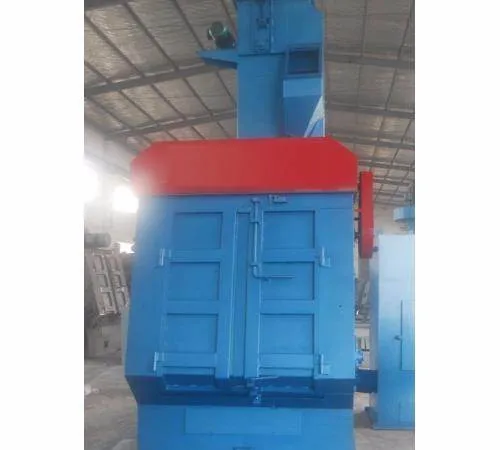

Machine
Name: Caterpillar type shot blasting machine
Brand: DingTai
Original: China

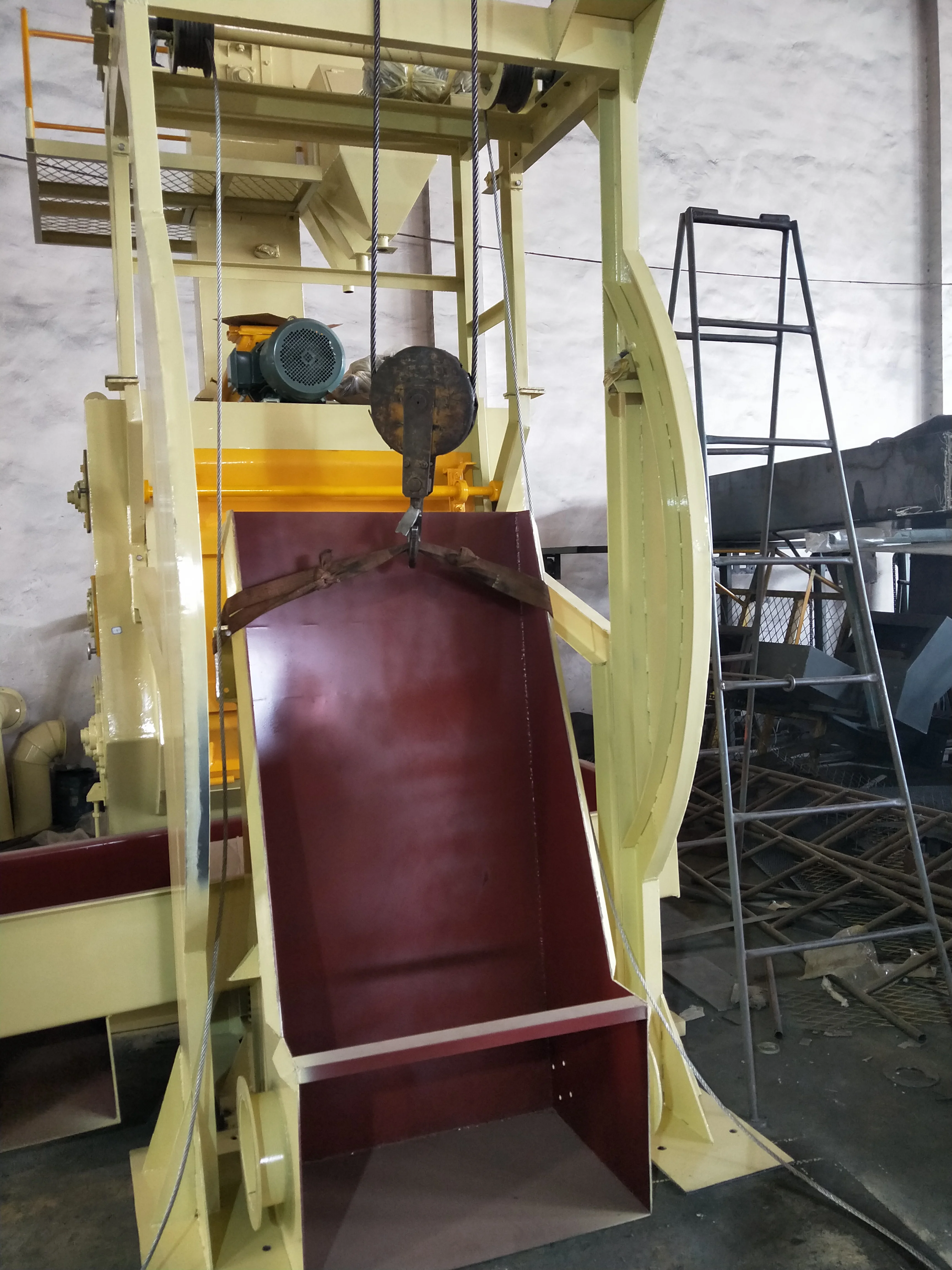

Automatic discharging of materials after cleaning of work pieces, low labor cost.

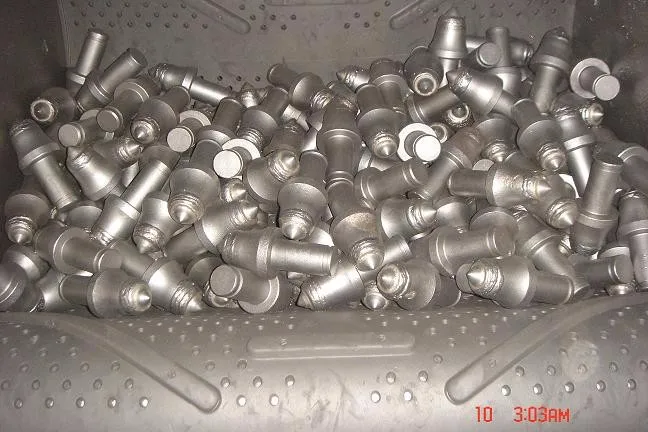

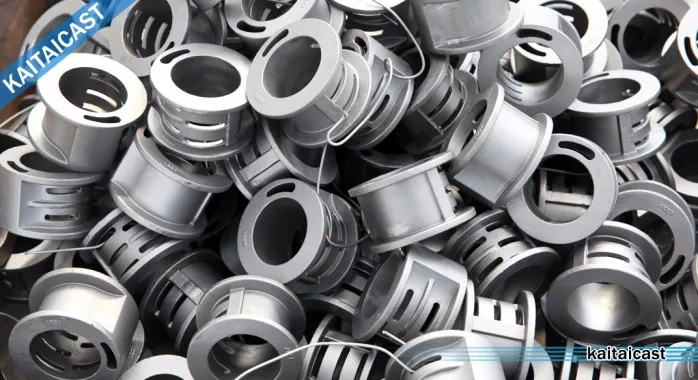

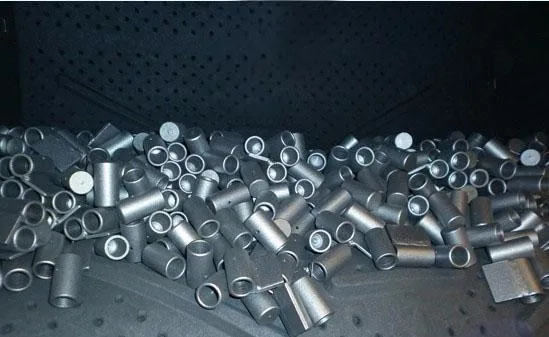

After rust removal
Name: Caterpillar type shot blasting machine
Brand: DingTai
Original: China
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
