SS automatic Center filled Jelly candy processing line Gummy Candy line

This processing line is an advanced and continuous plant for making different sizes

of gelatin or pectin based soft candies(QQ candies).it is an ideal equipment which

can produce out good quality products with the saving of both manpower and the s

-pace occupied.

The depositor also can be used to produce the deposited toffees via change-over t

-he moulds.The Whole line consists of batch-wise jelly cooking system,FCA(Flavor,

color,and acid)dosing and mixing system,multi-purpose candy depositor,cooling tun

-nel,sugar coating machine or oil coater.

Character:

1.Sanitary construction

2.Available for producing"one color","two color"and "center-filled"jelly candi

-es-some parts shall be changed-over for extra charges.

3.In-line injection,dosing and pre-mixing techniques for the proportional addi

-tion of liquid of colors,flavors,and acids.

4.Available for making different kinds of shapes of candies based on changin

-g of different moulds.

5.Deposited hard candies,toffee ca be prodcued on the same line by convenien

-tly changing the moulds.

6.PLC/Computer process control available.

7.An LED Touch panel for easy operating

8.The production capacity is 240KGS/h(based on 4.0g mono candy)

9.The contacting food parts are made of hygienic stainless steel SUS304

10.Optional flowing controlled by Frequency inverters

11.One set of extra jam paste injection system for making fruit jam-center filled candies

12.Use automatic steam control system instead of the manual steam valve which control

a stable steam pressure supplying to the cooking

13.Moulds can be made according to the candies samples provided by the customer.

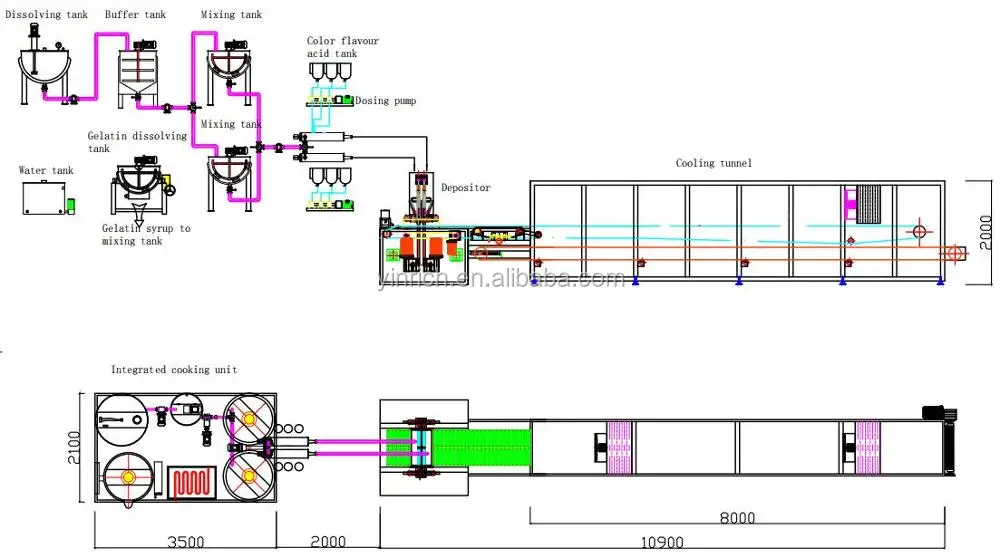

The layout:

Candy sample:
