Product Overview

Description

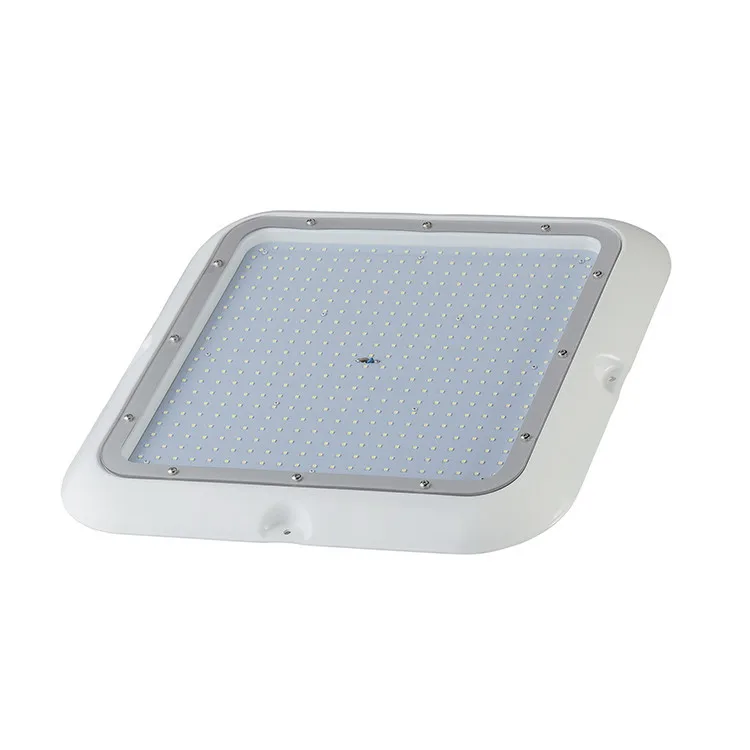

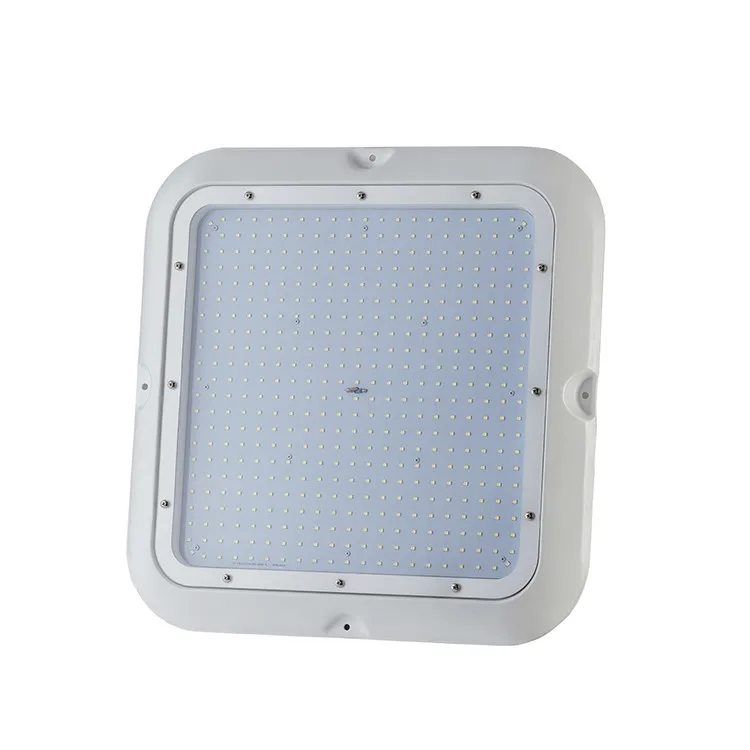

IP65 200lm/w 60w 90w 120w petrol station led canopy light led gas station light

1. Specification of Led canopy light



Specification
Model	ST-GS-40W/B	ST-GS-60W/B	ST-GS-90W/B	ST-GS-120W/B	ST-GS-150W/B
Luminous Flux	5200 lm	7959 lm	11242lm-19615lm	16118lm-22134lm	20250lm
Total Input Power	40W	60W	90W	120W	150W
Light Source	Particular & Ultra bright LEDs
Luminous Efficiency	135LM/W
Rated Voltage	AC100~240V, DC12V, 50/60HZ
Light Color	Warm White(3000k ~ 3500k), Pure White (5300~5800k), Cool White(>7000k)
LED Beam Angle	120°, 90°, 60°, 45°
Driver	MeanWell driver (THD:≤15%)
Power Factor	>0.95
Lifetime	50,000+ hours
Working Temperature	-35℃~60℃
CRI	>70Ra
Size	L450*W450*H30mm
Certificate	CE ROHS
Application	gas station, toll station, railway station etc.



Features of Led canopy light



(1)Patent technology

Adopting our own  patented encapsulation technology, the LED luminous efficiency 200~260lm/w and the lamp efficiency is 190~200lm/w;The light decay is so little.



(2)High Brightness

The light is very bright and the lumious efficiency is as high as 190~200lm/w,which is 20-60LM/W higher than other suppliers.
(3)Superior Quality
The lamp is equipped with Meanwell Driver and Epistar TOP grade chip with Sinoco's own patented encapsulation technology.Thousands of lamps have been sold and so far there is no complaint.
(4) Low Light Decay & Long Life Span
At 20,000hrs lumens depreciation is 3.5%. At 150,000hrs,lumens depreciation is <30%.
(5) Various Beam Angle for Option.
The beam angle of 120°/90°/60°/45°are for option.What's more,the beam angle can also be customized according to customers' need.

(6)High Energy-saving and Help to Save Electricity





2. Technical Parameter of Led canopy light



Advantage:

* Simple appearance, ultra-low weight light body structure, easy for installation.

* Aluminium alloy material, excellent heat dissipation, high efficiency transparent mask material.

* Ultra bright, super energy saving, output luminous efficiency above 200Lm/W.

* Save more than 90% power compared with traditonal HPS lamp.

* The version with motion sensor available

* Wide application in gas station and parking lot, etc



3. Optional of Led canopy light

1. Other are available: 40w, 60w, 90w, 120w, 150w

2. light color: warm white: 3000k to 3500k  pure white: 5300K~5800K cool white: >7000k

3. PSE, CE, RoHS, FCC

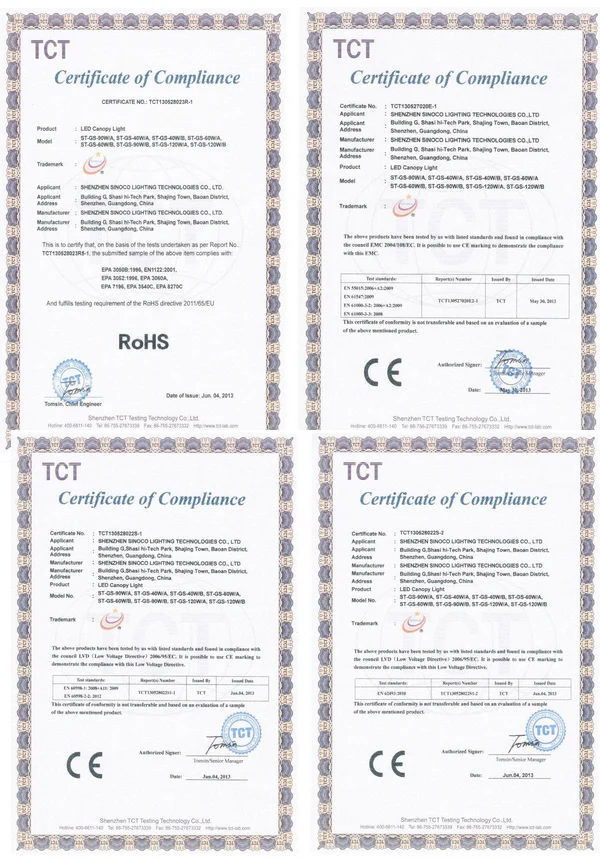

4. Certification of Led canopy light



5. Package of Led canopy light

Packing details: Lamp+inside bubble pad+export carton + PVC tie up

6. Aging Test of Led canopy light

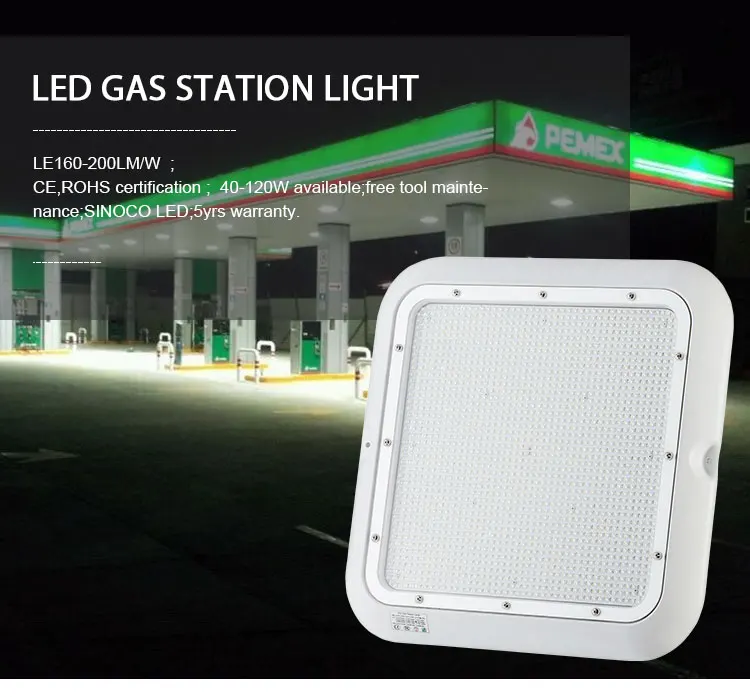

7. Application and Cases show of Led canopy light





8. More picture ( embeded model and U-shaped bracket model)



1)  Sinoco Gas Station LED Canopy Light Series V1:



2)  Sinoco Gas Station LED Canopy Light Series V2:

3)  Sinoco Gas Station LED Canopy Light Series V3 ( Motion Detection & Dimmable)



9. Our Service

♥ Your inquiry related to our products or prices will be replied in 12 hours.
♥ Well-trained and experienced staffs to answer all your enquires in fluent English.
♥ OEM&ODM, any your customized lightings we can help you to design and put into product.
♥ Distributionership is offered for your unique design .

♥ Protection of your sales market area, ideas of design and all your private information.



10. About us

Shenzhen Sinoco Lighting Technologies Co.,Ltd is located in Shenzhen ,China.Our main products are LED street light, LED high bay light, LED flood/tunnel light, LED garden light, LED tube, LED bulb etc, with CUL, PSE, CE, RoHs certificate, for both indoor and outdoor use.
