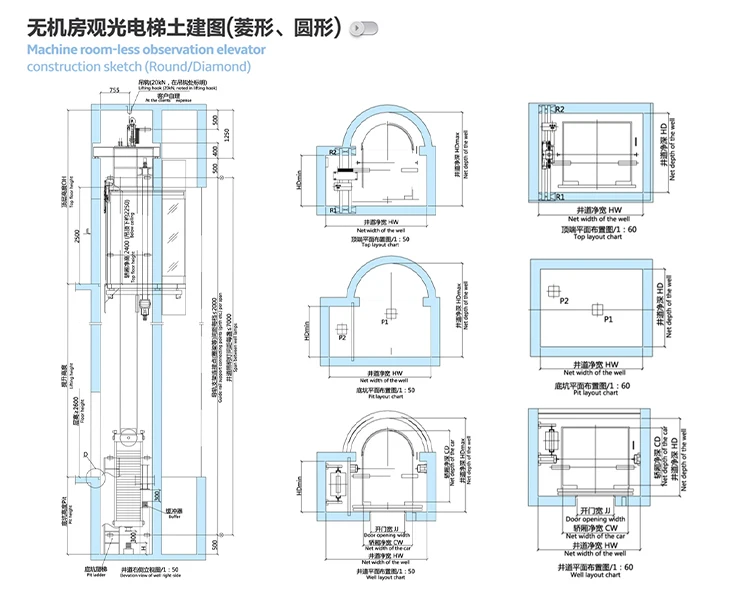

Machine room-less observation elevator construction sketch (Round/Diamond)
Model
Load
KG
Passenger
NO.
Speed
m/s
(MM)
Car specification
CW * CD
(MM)
Door opening size
JJ*OPH
(MM)
Well Size
HW*HDmin-HDmax
(MM)
Pit Depth
Pit
(MM)
Top floor height
OH
Power
Acting force (N)
R1
R2
P1
P2
TKJ450/1.0
450
6
1
1000*1400
700*2100
2400*1050-2000
1800
4500
3.1
16500
21000
44000
35000
TKJ450/1.5
1.5
1900
4600
4.7
TKJ630/1.0
630
8
1
1100*1600
800*2100
2500*1200-2200
1800
4500
4.2
19800
26400
58000
45600
TKJ630/1.5
1.5
1900
4600
6.4
TKJ630/1.75
1.75
1900
4600
7.4
TKJ800/1.0
800
10
1
1200*1800
800*2100
2600*1300-2400
1800
4500
5.4
25700
27100
72800
56000
TKJ800/1.5
1.5
1900
4600
8.1
TKJ800/1.75
1.75
1900
4600
9.4
TKJ1000/1.0
1000
13
1
1300*1900
900*2100
2700*1350-2500
1800
4500
6.8
27400
39600
88000
68000
TKJ1000/1.5
1.5
1900
4600
10
TKJ1000/1.75
1.75
1900
4600
11.7
TKJ1600/1.0
1600
21
1
1700*2200
1100*2100
3100*1500-2800
1800
4500
11
39600
56500
128000
96000
TKJ1600/1.5
1.5
1900
4600
16.6
TKJ1600/1.75
1.75
1900
4700
19.4
(Remark: We can customized for you, just need offer parameter to us.)
