MCX 75 Ohm Right Angle PCB Mount Jack
- Category: >>>
- Supplier: GOLDEN LOCH INDUSTRIAL CO. LTD. [Taiwan China]GOLDEN
Share on (60720006861):
Product Overview
Description

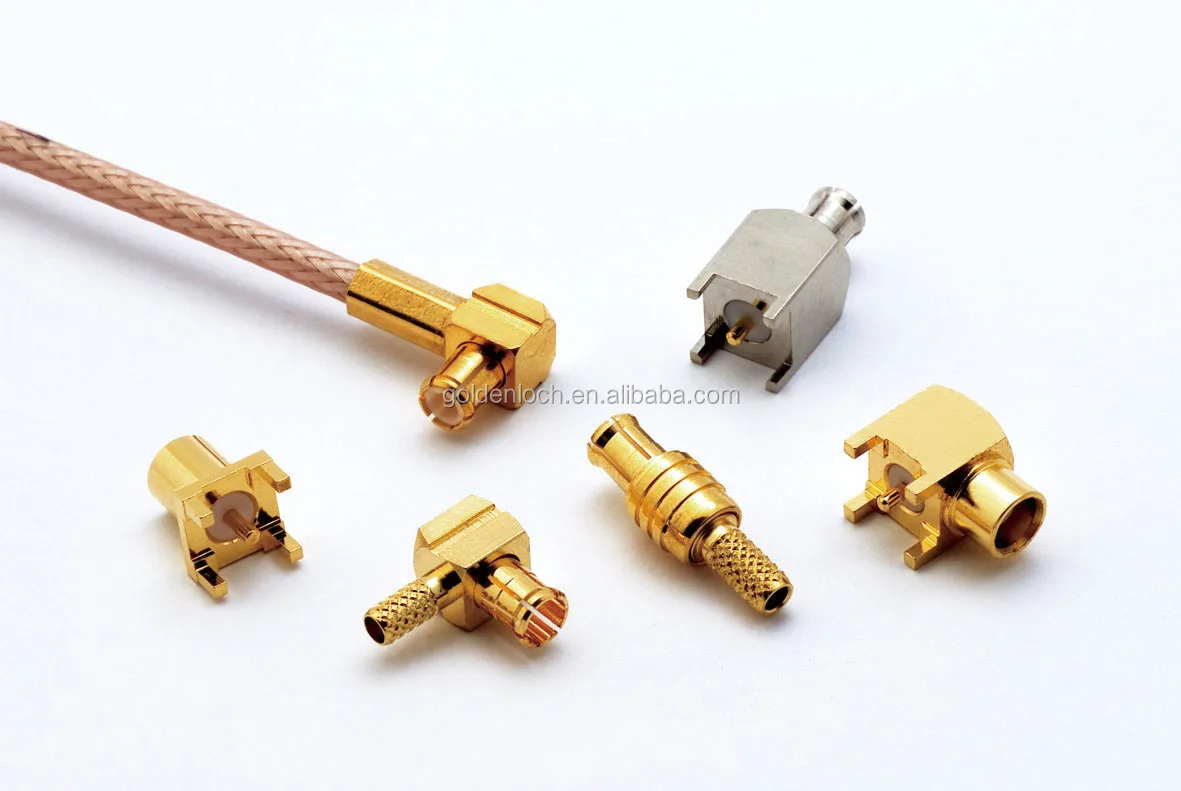

MCX 75 Ohm Right Angle PCB Mount Jack
1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant
3. Made in Taiwan
MCX connectors, provided with a snap-on mechanism and are available with 50 Ω and 75 Ω. They offer broadband capability from DC to 6 GHz. This type of connector is used on the fixed and wireless communication systems. MCX and the smaller MMCX connector are frequently used to connect external antennas to GPS receivers. They are also common on USB DVB-T tuners for computers and laptops, to connect an external antenna to the tuner.
Features:
- Push-on/pull-off mating
- Weight and space saving
- Available for both 50Ω and 75Ω
Applications:
- Base Stations
- GPS
- Instrumentation
- Radios
- Wireless Network Antennas
Electronical Specifications
| Impedance | 50Ω and 75Ω |
| Frequency Range | 0-6 GHz |
| Working Voltage | 335 VRMS max. at sea level |
| Dielectric Withstanding Voltage | 1000 VRMS min. at sea level |
| VSWR | Straight: 1.3 max. 6 GHz, R/A: 1.5 max. 6 GHz |
| Contact Resistance | Center Contact: 5 milliohm Max. |
| Outer Contact: 2.5 milliohm Max. | |
| Insulator Resistance | 1000 megaohms min. |
Material Specifications
| Parts Name | Material | Finish | |
| Center Contact | Male | Brass | 3u" Gold |
| Female | BeCu | 3u" Gold | |
| Outer Contact of Male | BeCu | 3u" Gold | |
| Body, Metal Parts | Brass | Nickel or Gold per requirement | |
| Insulators | PTFE | None | |
| Crimp Ferrule | Annealed Copper | Nickel or Gold per requirement | |
Note: Other Material/Finish is available on request
