Product Overview

Description

DLC magnetic ul dlc 2x2 2x4 led ceiling troffer retrofit kit Linear retrofit kits







18W 36W led troffer Linear retrofit kits description:



Easy-to-Install

This Retrofit kit installs in 3 or 4 minutes, with only your bare hands. Just pop off the ballast cover, disconnect power from the ballast, connect power to the LED driver, and plug the driver into the LEDs.

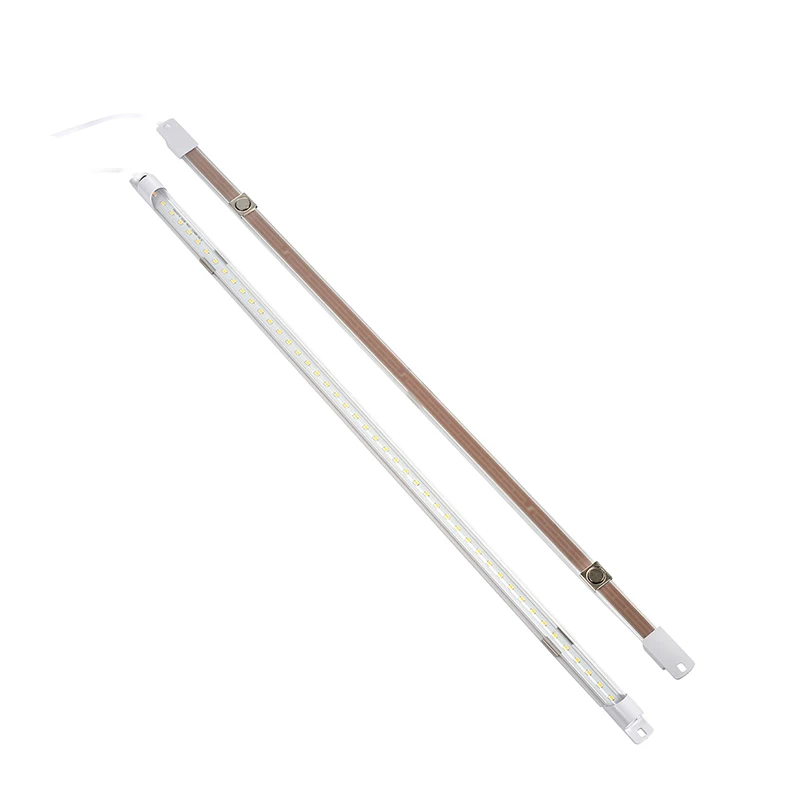

The LEDs and the driver are magnetic backed, so they literally attach themselves to the troffer body in seconds.



Incredibly Efficient

The special thermally conductive magnet attaches the kit both physically and thermally to the troffer or strip light, thus becoming an actual component of the fixture, truly making it an LED fixture, as opposed to many other solutions that simply hang some sort of LED light component inside the troffer box. The entire body of the troffer becomes the heat sink for the LEDs, making them operate extremely cool, which dramatically extends their lifespan.



Product Specifications
3000K, 4000K, 5000K standard, other colors available

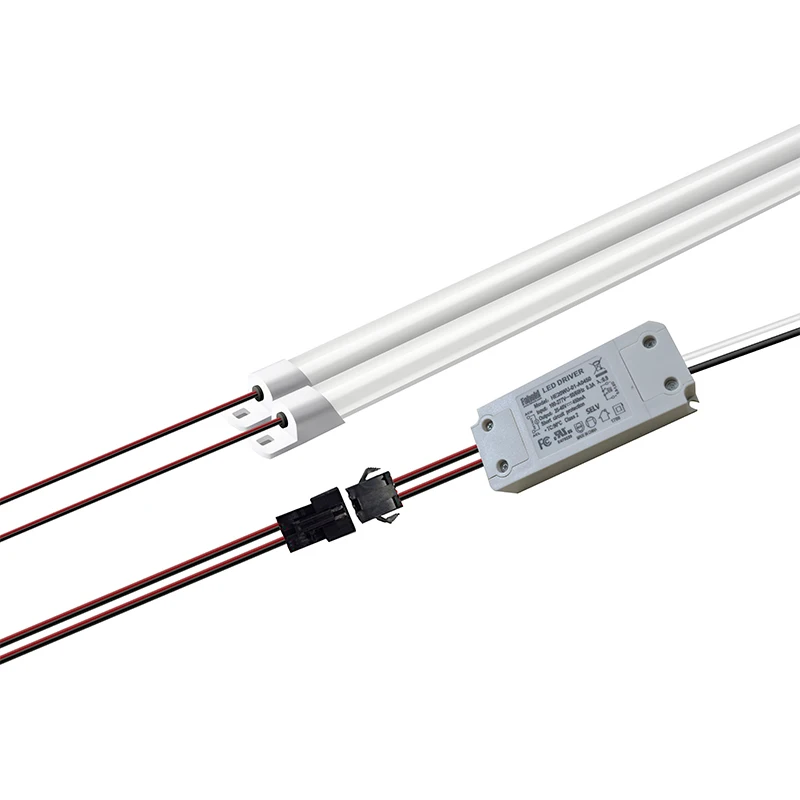

Magnetic LEDs and driver make installation a snap
No holes to drill
No screws to turn

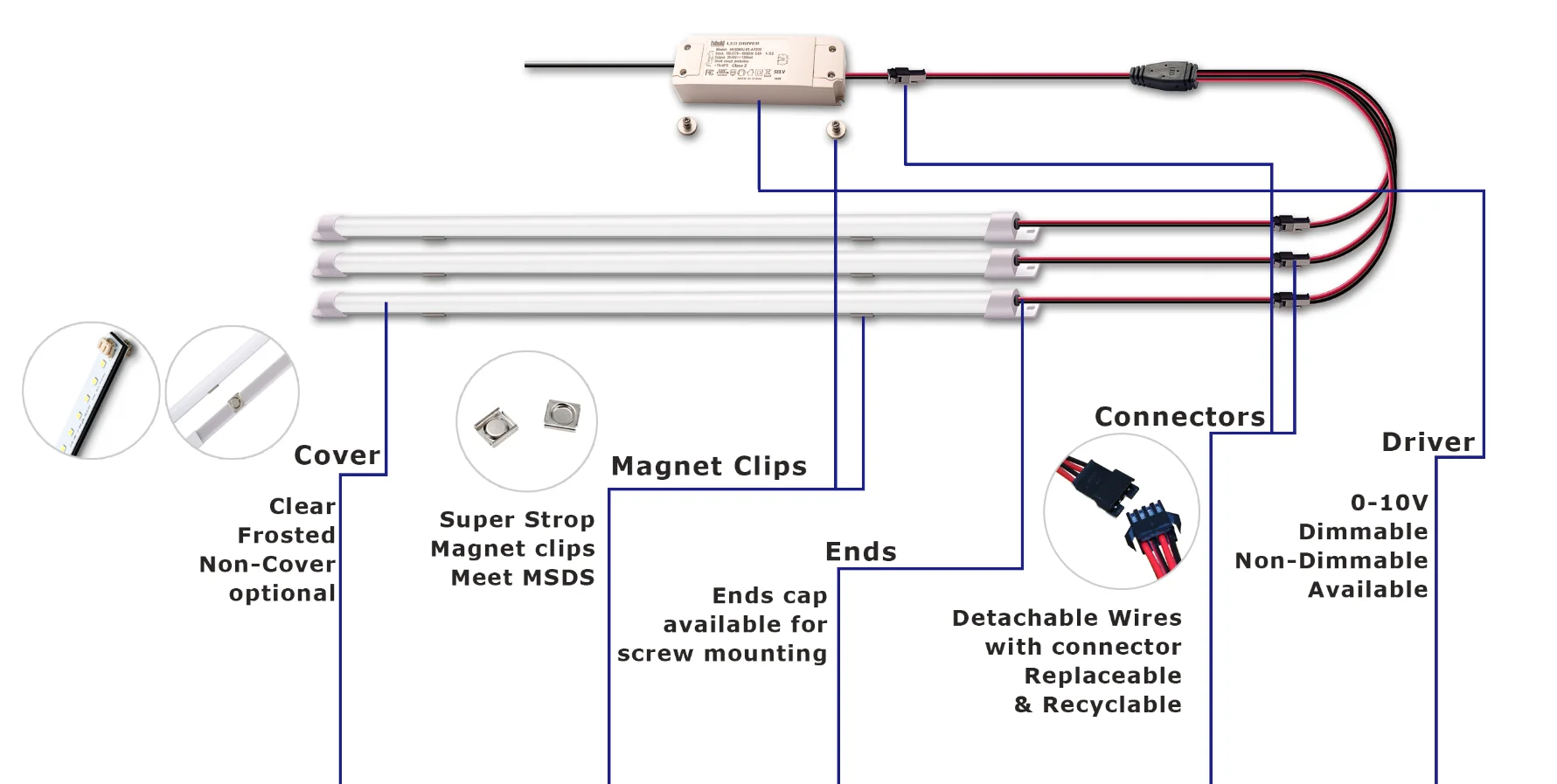

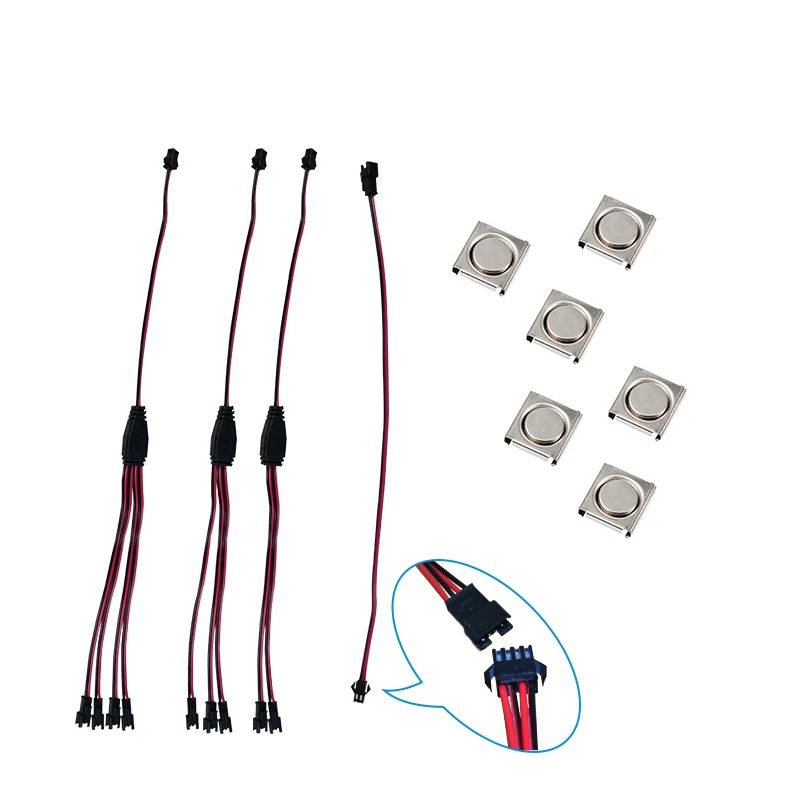

Pre-installed quick-connects on both LEDs and driver
Universal voltage drivers accept input voltage of 90-277v AC
CRI >82
5 year warranty
Operating temperature -40 F to 140 F

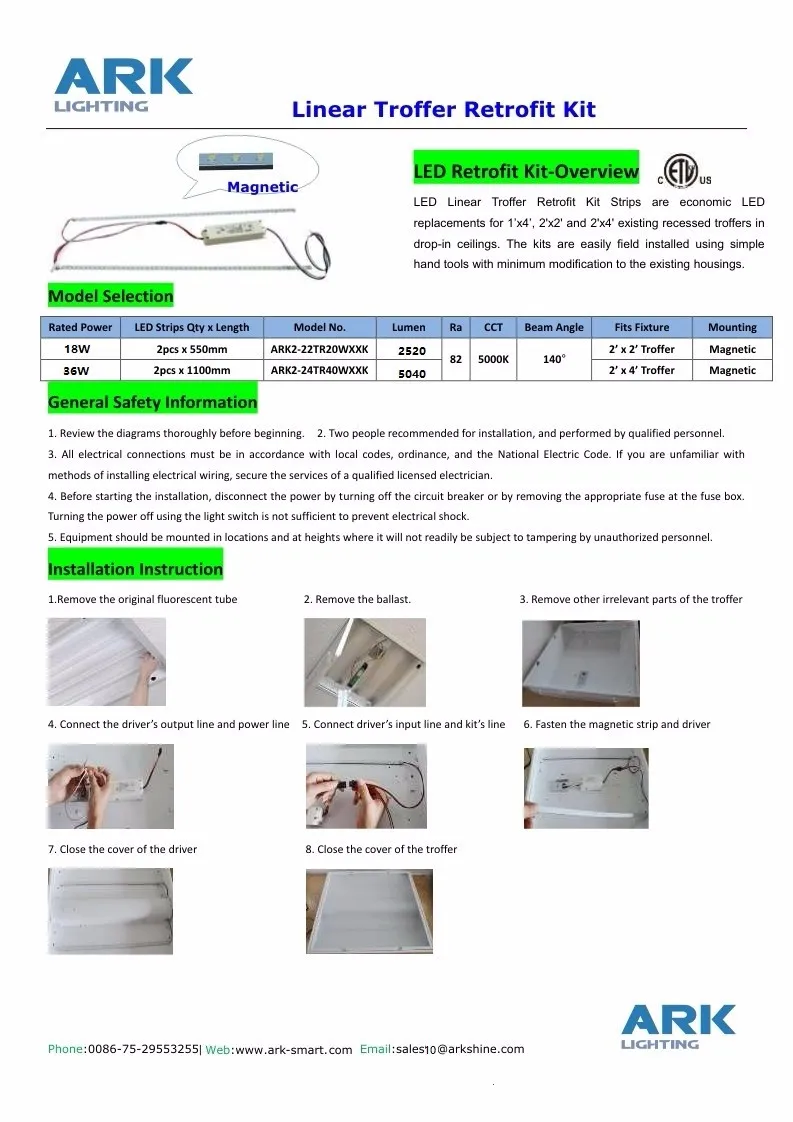

Options

1. Dimmable with 0-10v dimmer
2. Color temps: 3000, 3500, 4000, 5000K
3. Lamps and ballast cover removed
4. Driver and LEDs installed
5. Ballast cover reinstalled
6. Functional LED troffer
