50w 250w IP66 waterproof 130lm/W LED tunnel lamp with CB approved
- Category: Tunnel Lights >>>
- Supplier: Shenzhen Lepower Opto Electronics Corp. Ltd.
Share on (60720036202):
Product Overview
Description
50w-250w IP66 waterproof 130lm/W LED tunnel lamp with UL approved
About light source
Product Details
* Use Lepower exclusive zero air gap lens technology, achieves zero light loss. It’s 8%
higher efficiency than other similar products, and 8%, light transmission rate reaches
98%.
* Use cooling duct design, product overall weight reduction and thermal performance,
reduce light decline, and prolong lamp’s lifetime. With popular CHEM modular design,
can effectively reduce the maintenance costs later use.
*Low-energy, use high efficiency constant current driver, 60% energy-saving ; With
overcurrent, overvoltage, lightning, high temperature protection to fully guarantee the
lifespan and stable performance.
*Durable, long lifetime up to 50,000 hours; No need frequent lamps replacement and
regular maintenance.
*Green product, no UV or IR radiation, no mercury pollution.
*Dust-free shape design, IP66.
*Fast response, no strobe; wide operating voltage range.
*Multi-chips encapsulation, high luminous efficiency, stable performance, low-light
failure, no dead lights.

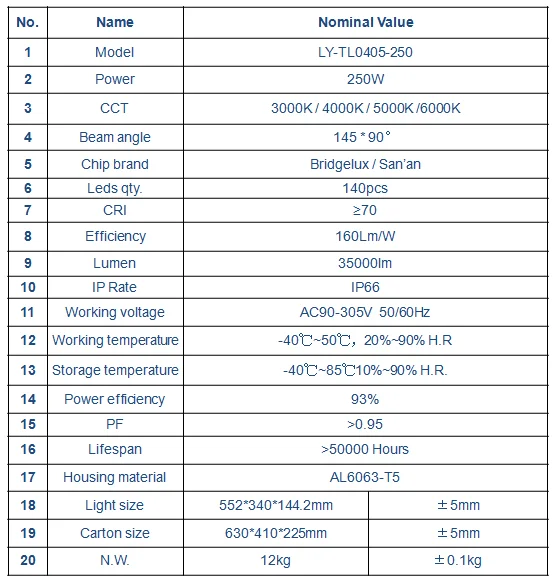

Technical Parameters

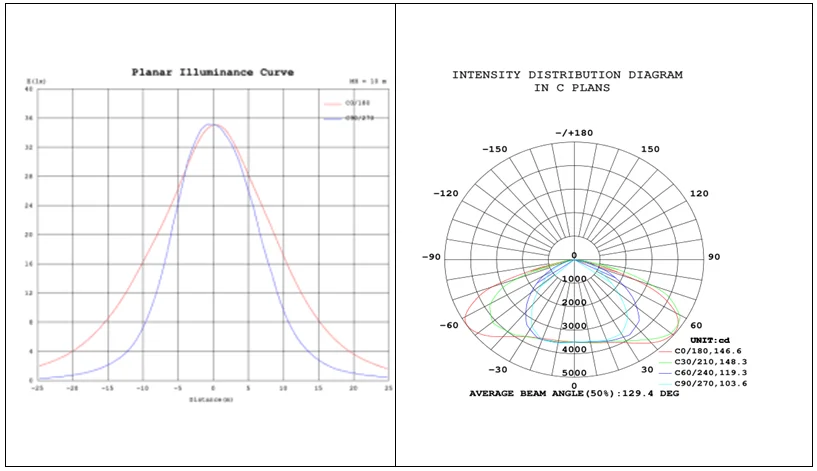

Plane illuminance& Light distribution curve

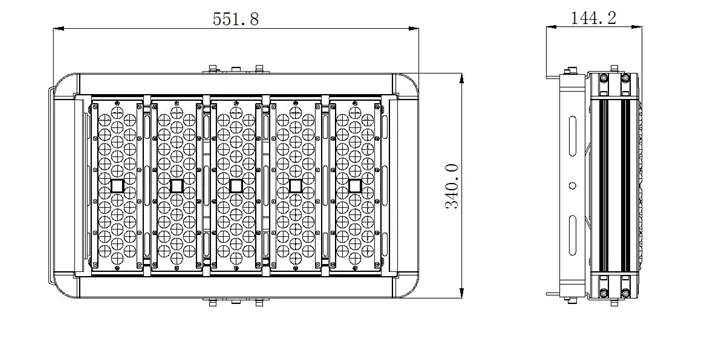

Dimension (Unit:mm)

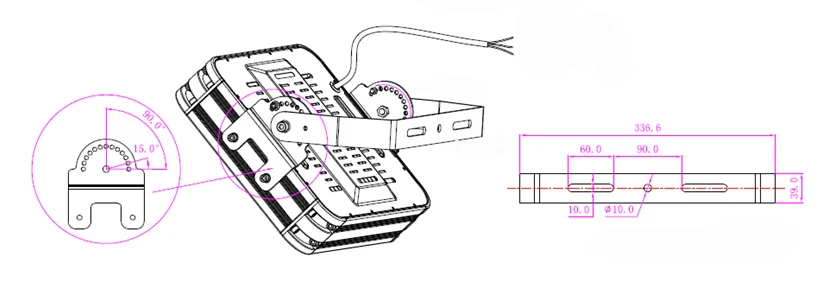

Installation:
1, Cut off power, use M10 stainless steel set bolt and lock the light handle to the poles;
2, Connect light power wire and engineer wire according to above picture, blue to N, brown to L, yellow&green to E;
3, Adjust on both sides of the adjusting screws to get the direction and angle that customers need;
4, Stuffed inside the wire pole.
Maintenance:
1, Cut off power .
2, Remove male and female connectors or power supply wires that need to be
replaced, remove the screws.
3, Replacing with new components.
4, Re-tighten Replacement, connect the male and female connectors and wires
of power supply.
5, Lock up the screws.
6, Repairs completed.

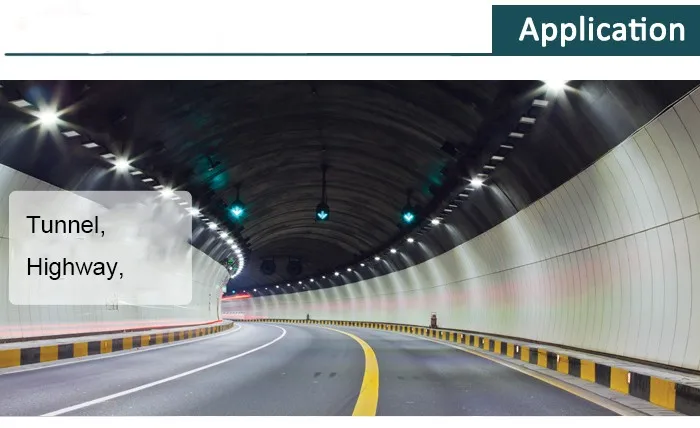

Applications

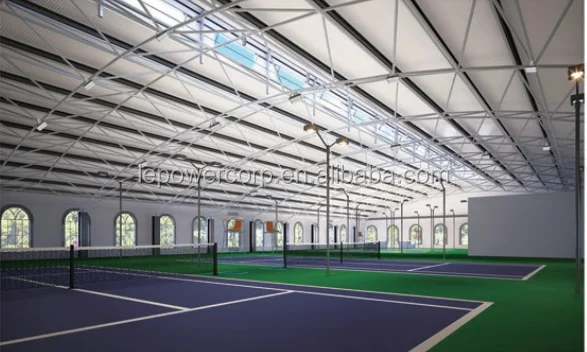

Applies to tunnel, bridge, large warehouses, stadiums and kinds of manufacturing, engineering construction and other places of large area flood lighting.
How to place an order
About Lepower
Quality Control
1. Before the order to be confirmed, we will check the
material & colour temperature by sample which should be strictly.
2. We will be tracing the different phase of production from the
beginning.
3. Every LED lights quality checked & cleaned before packing.
4. Before delivery clients could send one QC or point the third party
to check the quality.
5. We will try our best to help clients when problem occurred.
Packing and Shipping
Trading Conditions
1. Payment term: 30% deposit by T/T or Western union;
70% before delivery.
2. Delivery time: 10-15 days for 50pcs; 15-25 days for 500pcs.
3. Samples time: 5 days.
4. Shipping terms: FOB Shenzhen.
5. Discounts will be determined by quantity.
6. Welcome distributors to cooperate together.
Warranty terms
1. 3/5 years warranty.
2. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, Weixiang will provide free/rework new products based on the proof-documents
3. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, Weixiang will provide paid maintance within warranty period.
4. SAA/CE/RoHS/TUV/UL
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by
sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
After sales service
Terrific after-sales service: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
For problematic items, We are ready to exchange them or replace them with an equivalent upon our receipt of previous.
For all your inquiries, please contact us immediately, We will reply you as soon as possible.
Contact details
Summer
Email: export09 at lepowerled dot com
Mobile: +86-188 2522 6943
Wechat/whatsapp: +86-188 2522 6943
Website: www.lepowerled.com
Thanks for your time, if you need more details
please feel free to let me know.
Never late to cooperate, when you need I am here!
