Hengxin Automatic Facial Tissue Packaging Box Carton Paper Making Machine price

Product Overview

Description

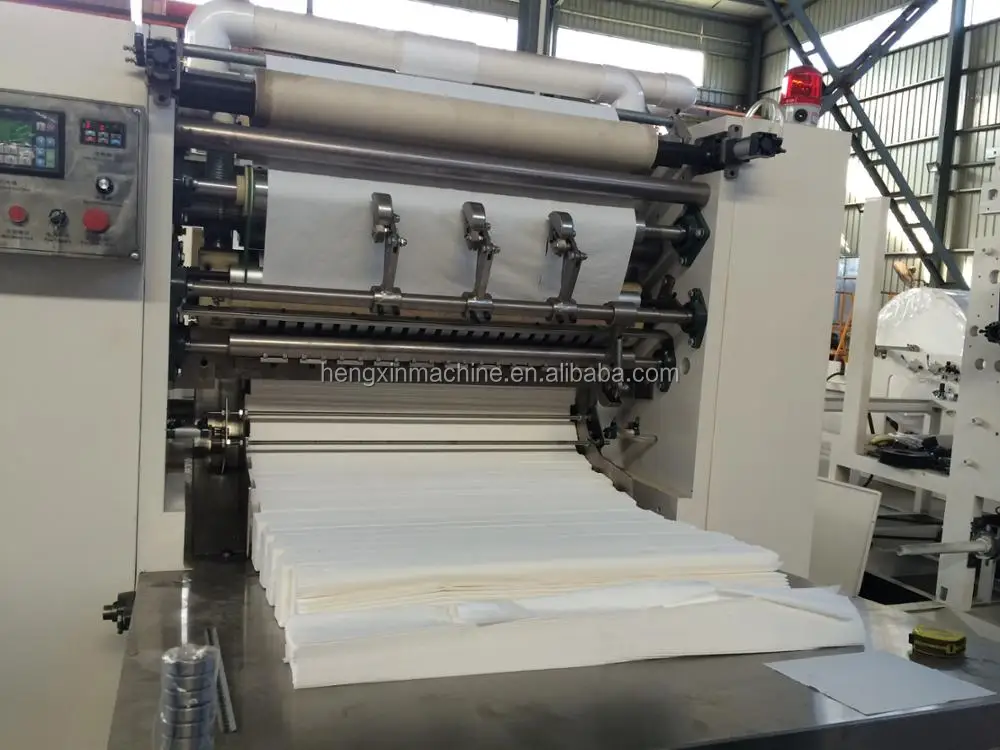

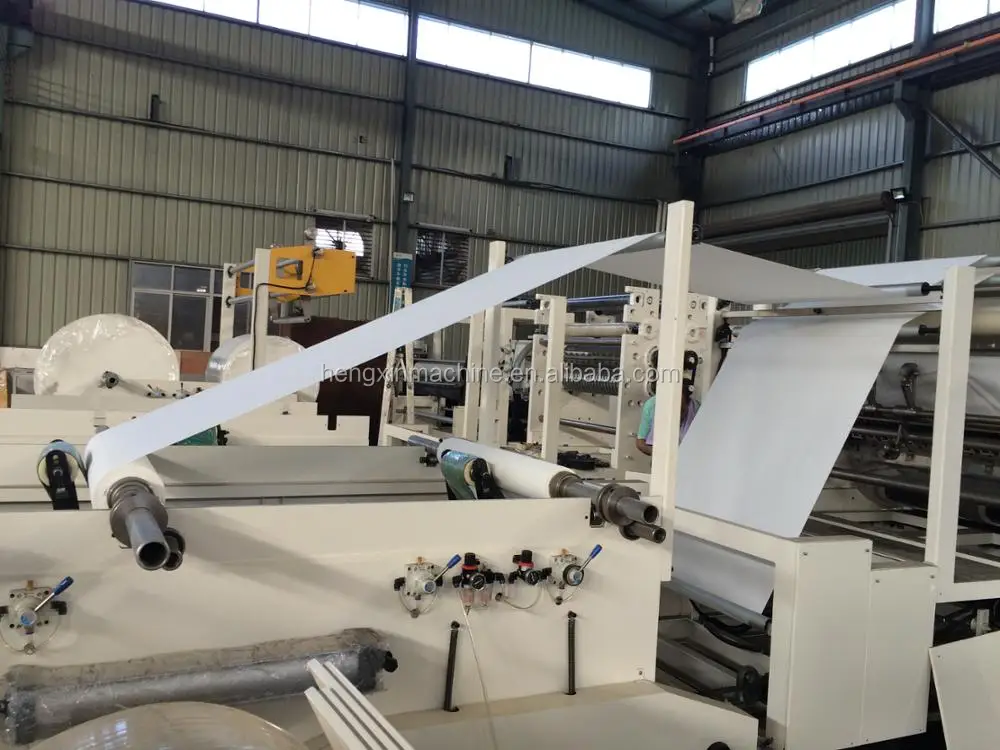

 Box drawing type facial tissue machine use tissue jumbo roll to   Process folded into "V" type paper processing equipment.The machine adopts the vacuum adsorption principle and auxiliary manipulator folding.

 1.Function and characteristics

 2.Automatic counting points a whole row output

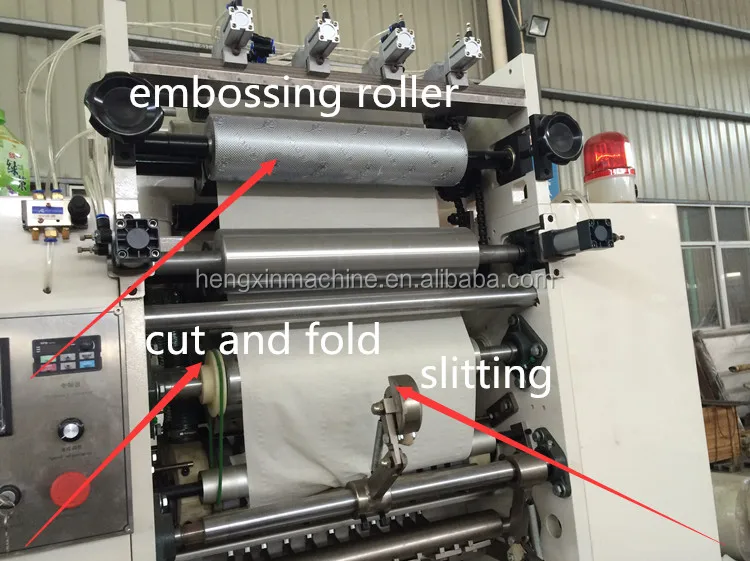

 3.Helical blade shear, vacuum adsorption folding

 4.Stepless speed regulation unwind and can adapt to rewind high-low tension paper material

     Adopt PLC computer programming control, pneumatic paper and easy to operate;

 5. Frequency conversion control, saves energy.

 6.  The product width is adjustable, to meet different market requirement.

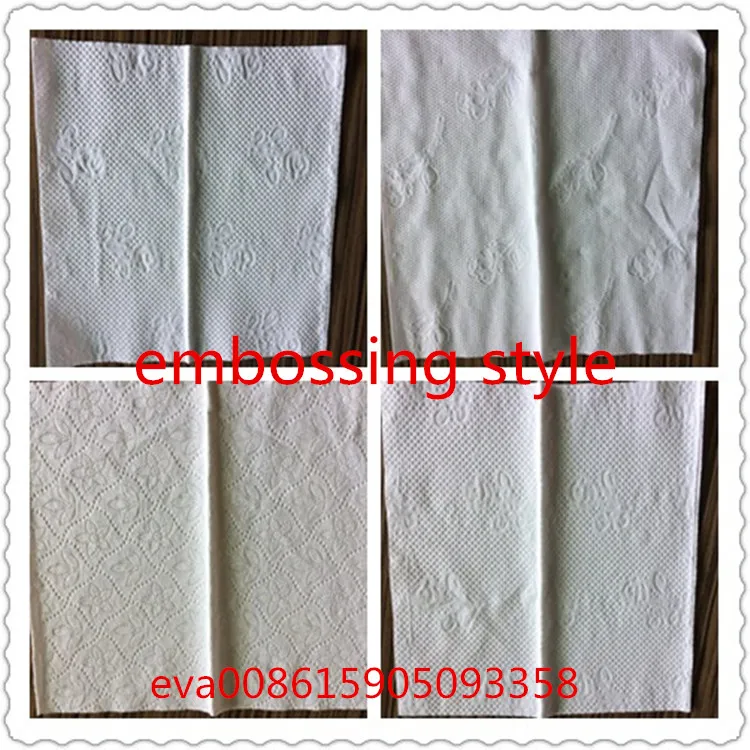

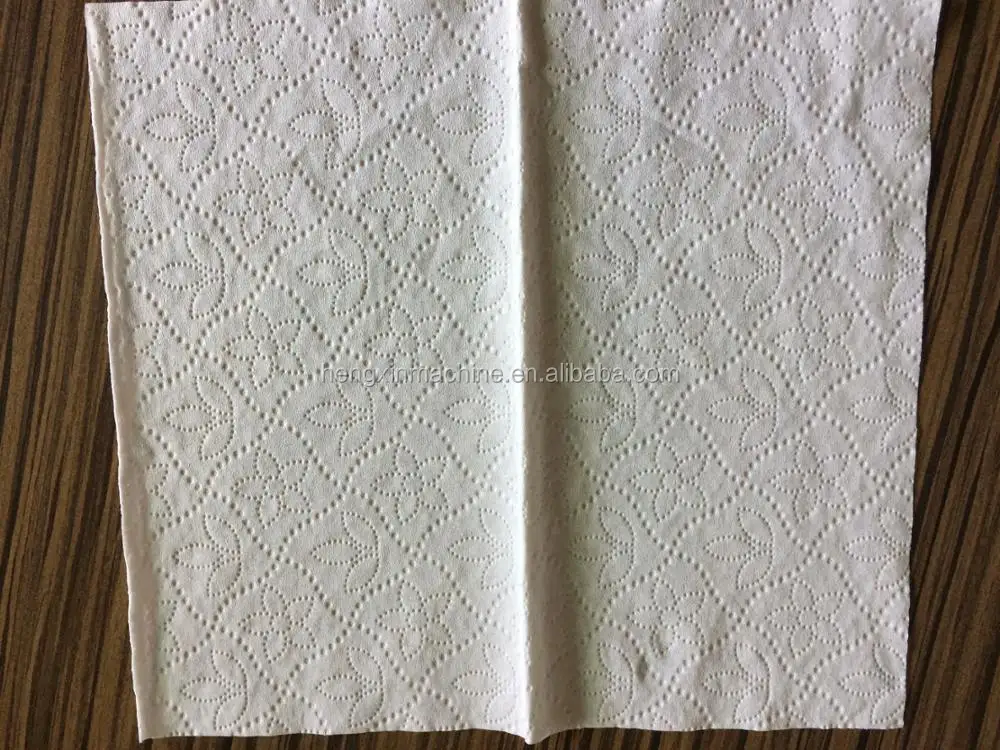

 7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (patterns    By       guests choose )

 8.  It can make “V”type single layer towel and two layers glue lamination .(Optional)



The main technological parameters



Production speed	(60-100)m/min
Product unfold size (mm)	180 (length) x(130-210) (wide adjustable)
	190 (length) x(130-210) (wide adjustable)
	200 (length) x(130-210) (wide adjustable)
Folding products size (mm)	90 (length) x(130-210) (wide adjustable)
	95(length) x(130-210) (wide adjustable)
	100 (length) x(130-210) (wide adjustable)
Maximum cutting base paper size	2L:420mm	3L:680mm	4L:840mm	5L:1050mm	6L:1260mm
Equipment electric power	2L:3.0KW	3L:3.0KW	4L:4.0KW	5L:5.5KW	6L:5.5KW
Vacuum blower	2L:7.5KW	3L:11KW	4L:15KW	5L:15KW	6L:22KW
Machine dimension (m)	Depends on Machine Model
Equipment weight(kg)	Depend on the size and configure
