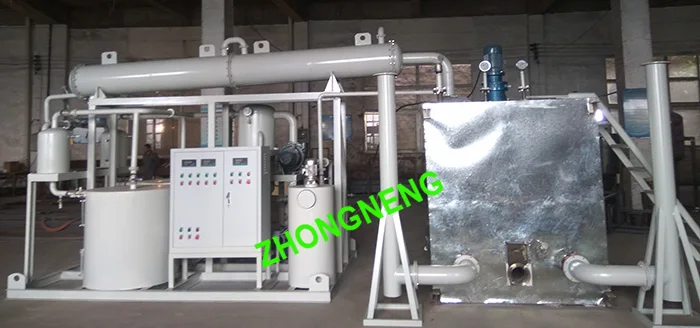

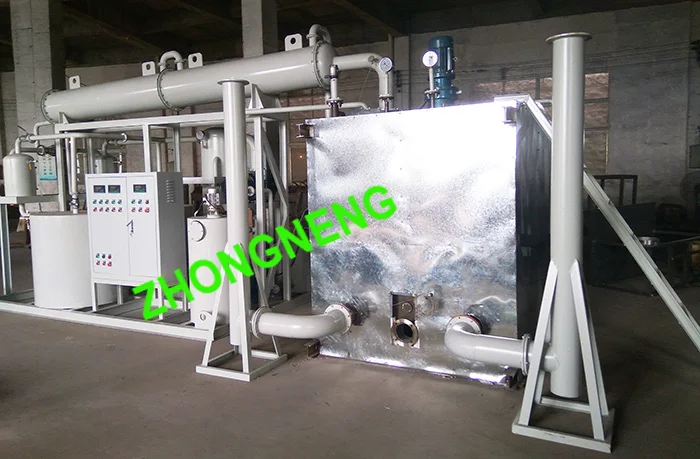

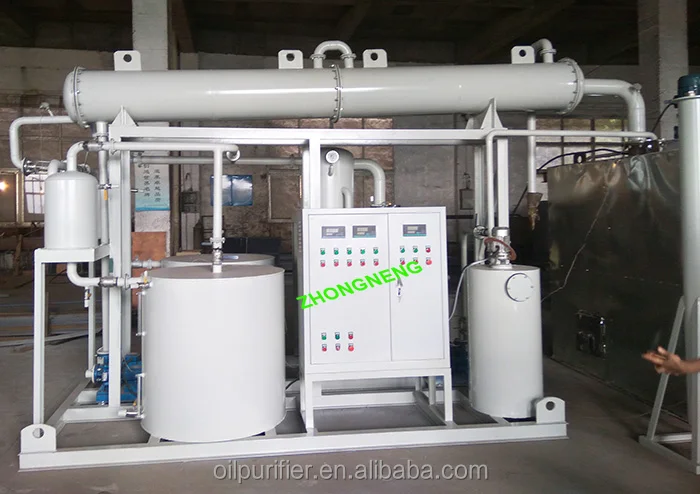

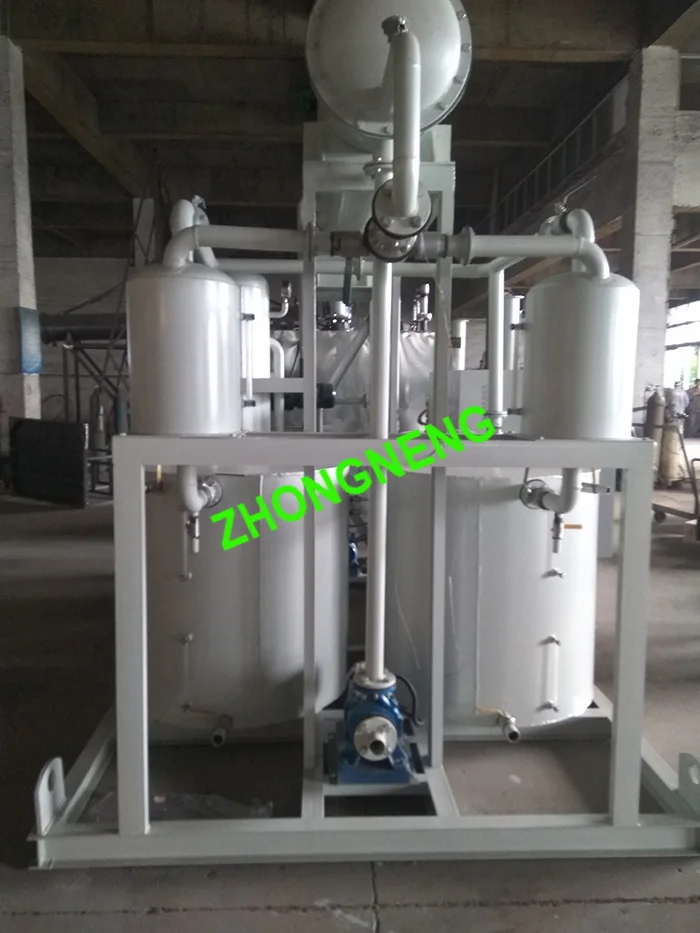

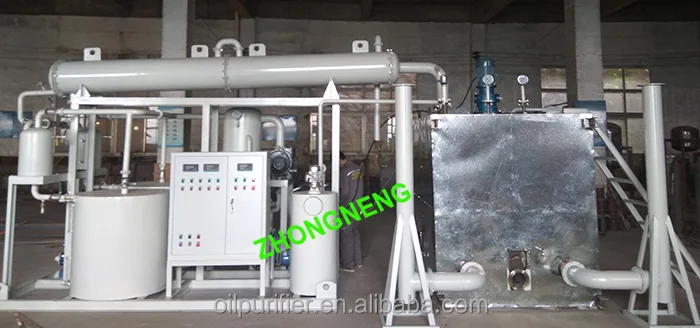

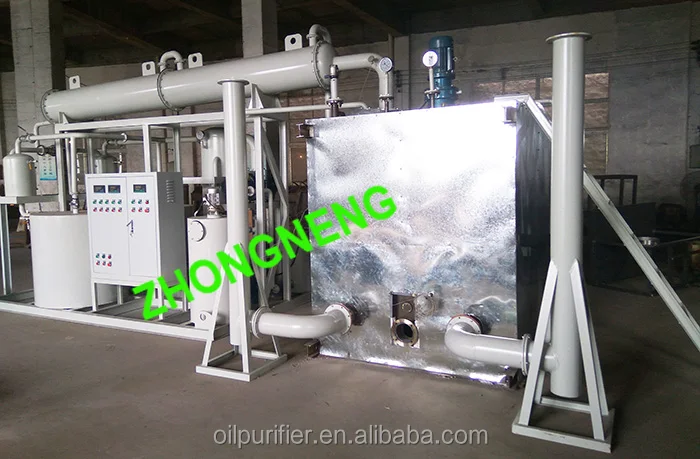

3 Tons Per Day Motor Oil Recycling Machine, Commercial Black Engine Oil Refining Machine

Product Overview

Description

3 Tons Per Day Motor Oil Recycling Machine, Commercial Black Engine Oil Refining Machine



Application



Series BOD 3 Tons Per Day Motor Oil Recycling Machine, Commercial Black Engine Oil Refining Machine can produce the base oil from black dirty engine oil, waste lube oil, crude oil, car oil, motor oil, waste plastic oil, and waste rubber oil after through catalytic distillation. it convert the waste oil into new base oil with high output rate, no eviromental pollution and high efficiency.









Features

1. Easy to operate, 1 ~ 2 workers can easily operate themachine.

2. Environmentally friendly in the whole operation, no smoke, no odor, without secondary pollution,the whole process is all sealed, won’t release any gas harmful to human and environment,

3. Series BOD System can recycle & distill various dirty black oils including waste engine oil, lube oil,gasoline oil, diesel oil, rubber oil, plastic oil, and other lubricant oil, and convert them to diesel oil andgasoline oil.

4. High quality and quantity of refined oil obtained through output, no any discoloration caused by oxidation,no any bad smelling/ odor.

5. Low operation cost only contains followings:

1) catalyst chemical, cost less than USD 30 to refine one ton of waste oil.

2) Heat energy consumption: 105 kcal per ton of waste oil

3) Power consumption: 40 KW to recycle 1 ton of waste oil

6. With High degree of automation in the whole operation, advanced designing and fabrication technology.

7. Adopt the water circulation method on atmospheric and vacuum distillation unit, very safe. And after

decompression on the whole system, refined oil’s production quantity and quality are increased

obviously.

8. The whole process is performed without acid and clay .

9. High effective heating system: many heating sources can be used such as natural gas, furnace oil, coal,



Advantage:

1.It’s easy to produce waste residue and bad smelling by traditional vitriol distilling, which will bring potential secondary pollution, moreover, it’s easy to change the color to black and produce the odor due to the recycled oil react with the oxygen.

2.But after we use the alkaline complex catalyst refines the oil, the recycled oil havn’t change the color and havn’t create the odor.

3.What’s more important, you can use the resid to be as the fuel to heating the oil, without any pollution.

4.And the machine is easy to operate, only 1-2 workers can control the machine.

5.Heating by gas, diesel oil and other waste oil, can be more cost-effective

6.Adopt 14mm stainless steel to ensure sound performance and high efficiency of distillation kettle.

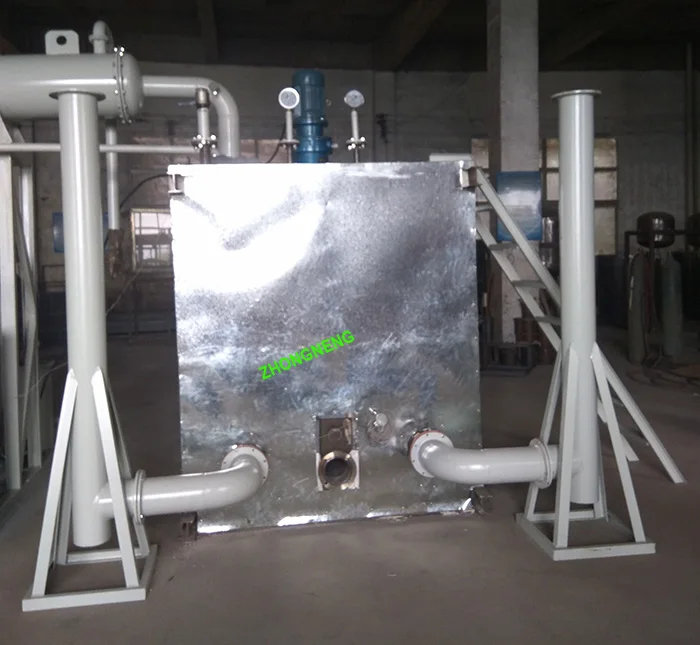

                                   Distillation kettle



Technical data

Item	Model          Unit	BOD-3	BOD-5	BOD-10	BOD-15		BOD-30
Capacity	Tons / day	3	5	10	15		30
Recovery Rate	%	85 ~95
Working Pressure	MPa	≤0.4
Temperature Range	℃	80 ~280
Working noise	dB(A)	≤85
Power supply		380V/ 3 Phase/ 50Hz (or as per your needed)
Electrical Power	kW	18	20	24	28	30
Cooling Method	Water Circulation Cooling
Heating Energy Source	By Natural gas, finance oil, coal, etc…
Weight	Tons	6	8.5	16	29	37
Manufacture Time	Days	25	30	35	35	45

All the specs will be changed with changing of actual requirements.

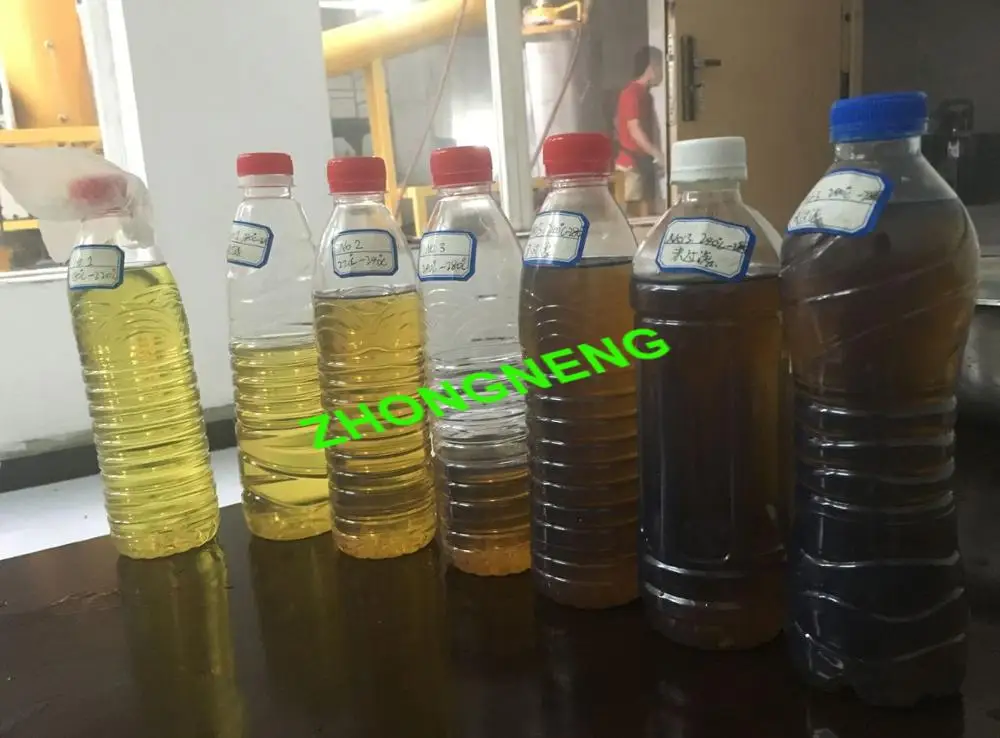

 Oil Comparison
