New technique permanent magnetism high pressure single stage china kaishan air compressor screw type BMVF45G

Product Overview

Description



A high-effciency PM variable frequency screw air compressor has advantages in the following three areas:

The first is to have a highly effcient screw compression unit;

Secondly to have a high-effcient PM synchronous motor;

Thirdly to have first-clsaa PM variable control technology.

BOREAS PM variable frequency air compressor possessess significant technical advances in the following three areas.



Addition:

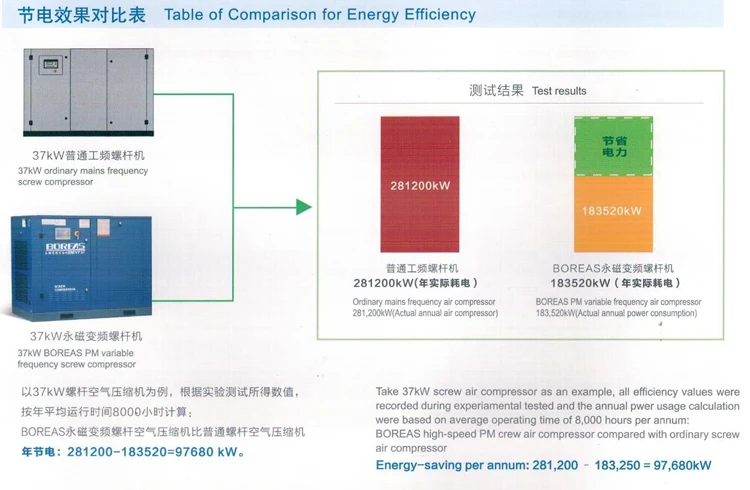

Compared to the ordinary PM variable frequency screw air compressor,BOREAS PM variable frequency screw air compressors have obvious technological advantages in the three aspects including screw compression unot efficiency,motor efficiency,dan control technology.



BMVF45G air-cooled screw machine technical parameters:

Screw set	5: 6 toothed rotor
Compression method	Continuous, single stage
Compressed air outlet pressure	P2 = 0.65-0.9 MPa
cooling method	Air-cooled
Compressed air outlet temperature	Than the ambient temperature 10 ℃ ~ 15 ℃
The amount of oil	About 20 liters
rated power	45kW
Displacement	V=6.45-8.2 m3/min
Air temperature limit	45 ° C
Air temperature limit	0 ° C
Fuel consumption	Exhaust oil content is less than 3PPM
noise	78dB (A)
Overall dimensions (L × W × H) (mm)	1700×1050×1255

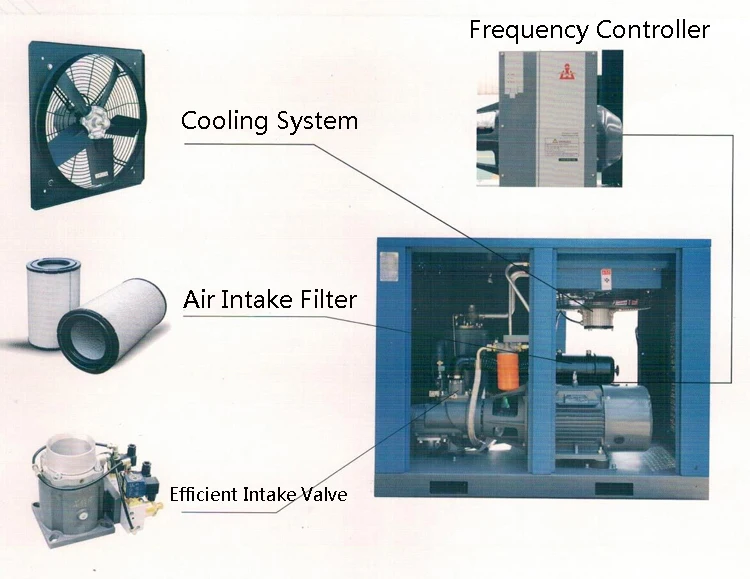

BMVF45G air-cooled screw machine supporting parameters:

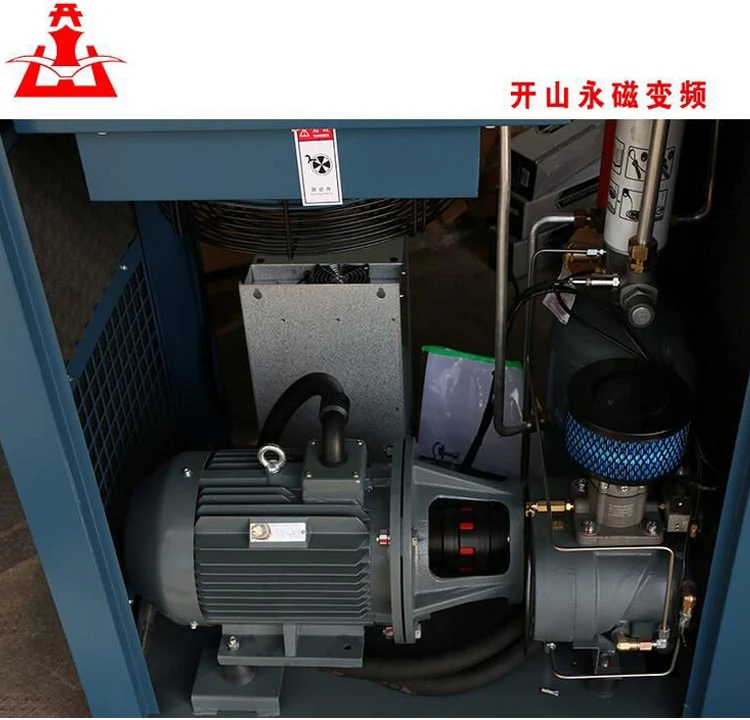

Host	SKK99ELM
Motor	PMF-180L-8
Intake valve	KVPB08500
Safety valve	DN20(0.88Mpa open)
Axial Fan	700FZL-C6P35LS6D9
Minimum pressure valve	MPV-32K
The electromagnetic valve	5578FV-Z+BDA08223DS
Coupling	PSEC3-55-48-50
air filter	56006165338T
Oil filter	66 094 172
Oil and gas separation core	55 220 273 305
Electric control	Contactor
	PLC controller
