Product Overview

Description


Product Description
1, This machine is a semi closed CNC lathe, with a centralized automatic lubricating device, six station or four position electric tool holder.
2,  This machine tool uses a single CNC control system. It controls 2 axis movement at the same time. It has many functions such as location, straight line and circular arc interpolation, thread cutting, various cutting cycles, coordinate system setting, tool tip R and tool offset compensation, feed and feed separately.
3, The program is programmed by the international ISO standard. The input of the program can be manually input through the key on the system panel, and the input and output operation (selection item) can be done through the RS232 interface with the external device.
4, The main drive of the machine tool adopts YBP system frequency conversion and speed regulation three phase asynchronous motor for non pole speed regulation.

Feature:
1, High precision rolling bearing bearing spindle and high rotary precision.
2, Fully enclosed housing, safe and reliable.
3, Beautiful shape design.
4, Full function, high processing efficiency and easy operation

This machine tool is suitable for small and medium sized parts with complex shapes and high precision parts processing for large batch precision. It is an ideal machine tool for present mechanized machining.
Parameters
\t
Model
\t
CK6163*1000
\t
CK6163*1500
\t
CK6163*2000
\t
CK6163*3000
\t
Max. swing over bed (mm)
\t
630
\t
630
\t
630
\t
630
\t
Max. swing dia. over cross slide(mm)
\t
350
\t
350
\t
350
\t
350
\t
Max.processing length(mm)
\t
1000
\t
1500
\t
2000
\t
3000
\t
Form
\t
Three gears No grade to change frequency
\t
Three gears No grade to change frequency
\t
Three gears No grade to change frequency
\t
Three gears No grade to change frequency
\t
Number of spindle speed
\t
No grade
\t
 No grade
\t
 No grade
\t
 No grade
\t
Range of spindle speed(r/min)
\t
25-850 rpm
\t
25-850 rpm
\t
25-850 rpm
\t
25-850 rpm
\t
The spindle terminal structure
\t
C11
\t
C11
\t
C11
\t
C11
\t
Spindle bore (mm)
\t
105
\t
105
\t
105
\t
105
\t
The taper of spindle front-end
\t
(Metric)120  1:20
\t
(Metric)120  1:20
\t
(Metric)120  1:20
\t
(Metric)120  1:20
\t
Power of main motor (KW)
\t
11KW
\t
11KW
\t
11KW
\t
11KW
\t
Max.travel of  tool post (mm)
\t
X:530   Z:1200
\t
X:530   Z:1700
\t
X:530   Z:2300
\t
X:530   Z:3300
\t
Fast moving feed speed  (mm/min)
\t
X:4000  Z:5000
\t
X:4000  Z:5000
\t
X:4000  Z:5000
\t
X:4000  Z:5000
\t
Resetting accuracy(mm)
\t
X:0.012  Z:0.016
\t
X:0.012  Z:0.016
\t
X:0.012  Z:0.016
\t
X:0.012  Z:0.016
\t
Processing accuracy(mm)
\t
IT6-IT7
\t
IT6-IT7
\t
IT6-IT7
\t
IT6-IT7
\t
Surface roughness
\t
Ra1.6
\t
Ra1.6
\t
Ra1.6
\t
Ra1.6
\t
Sleeve diameter of tailstock (mm)
\t
100
\t
100
\t
100
\t
100
\t
Sleeve travel of tailstock (mm)
\t
250
\t
250
\t
250
\t
250
\t
Cone hole taper of tailstock’s sleeve
\t
MT6
\t
MT6
\t
MT6
\t
MT6
\t
Standard configuration
\t
Four-station vertical electrical tool holder
\t
Four-station vertical electrical tool holder
\t
Four-station vertical electrical tool holder
\t
Four-station vertical electrical tool holder
\t
Alternative configuration
\t
Horizontal Six-station electrical tool holder
\t
Horizontal Six-station electrical tool holder
\t
Horizontal Six-station electrical tool holder
\t
Horizontal Six-station electrical tool holder
\t
Restting accuracy (mm)
\t
0.01
\t
0.01
\t
0.01
\t
0.01
\t
Length of section of tool holder (mm)
\t
30*30
\t
30*30
\t
30*30
\t
30*30
\t
Length*width*height
\t
3200*1820*1710
\t
3700*1820*1710
\t
4200*1820*1710
\t
5200*1820*1710
\t
Net weight (Kg)
\t
3900
\t
4300
\t
4800
\t
5200

Standard configuration:

1. GSK 980TDC
2. Manual 3 jaw chuck

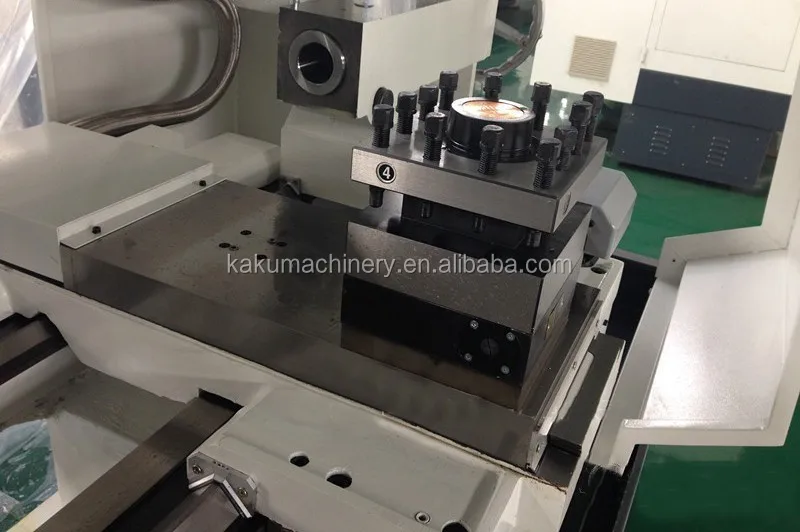

3. 4 station tools carrier
4. Auto lubrication system
5. Lighting system
6. Cooling system
7. 380V 3 phase(if your local have special request pls let us know)

Option configuration:

1. 6 /8 station electrice tool holder
2. Auto feeder system

3. Pneumatic chuck

4. Hydrualic chuck
5. Chip conveyor

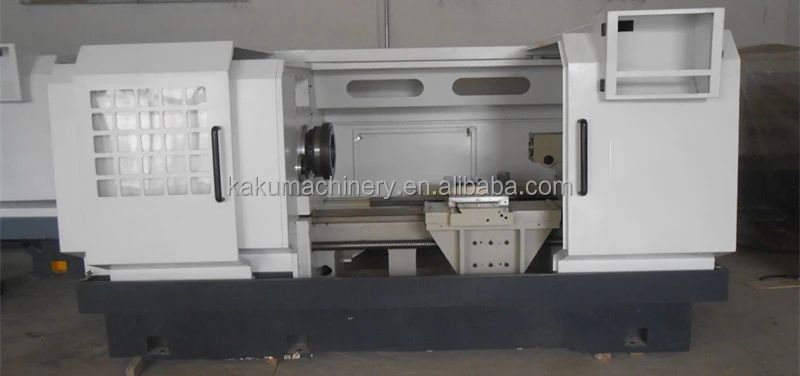

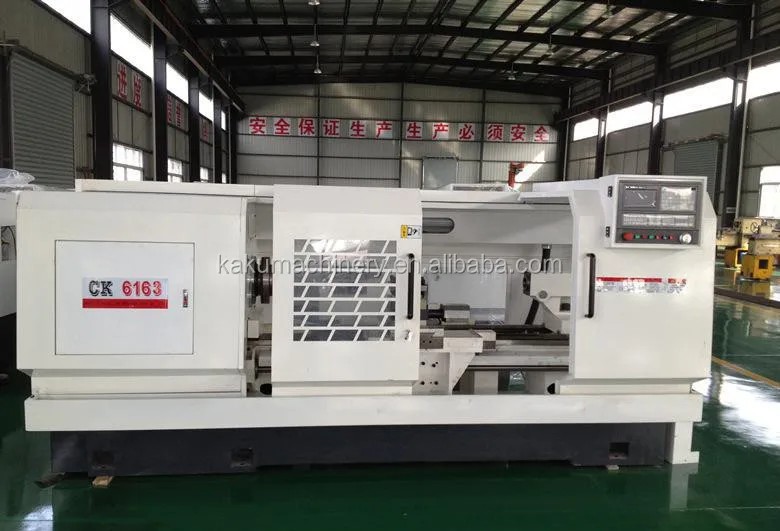

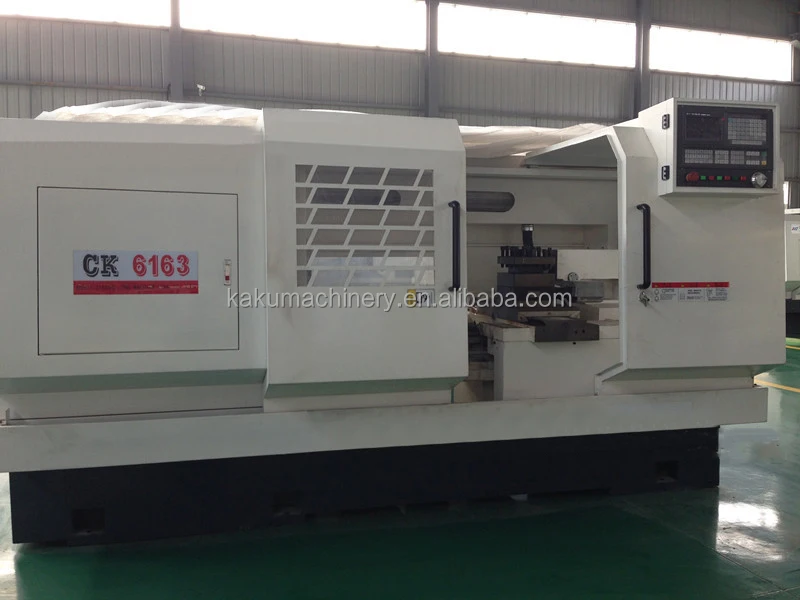

Detailed Images

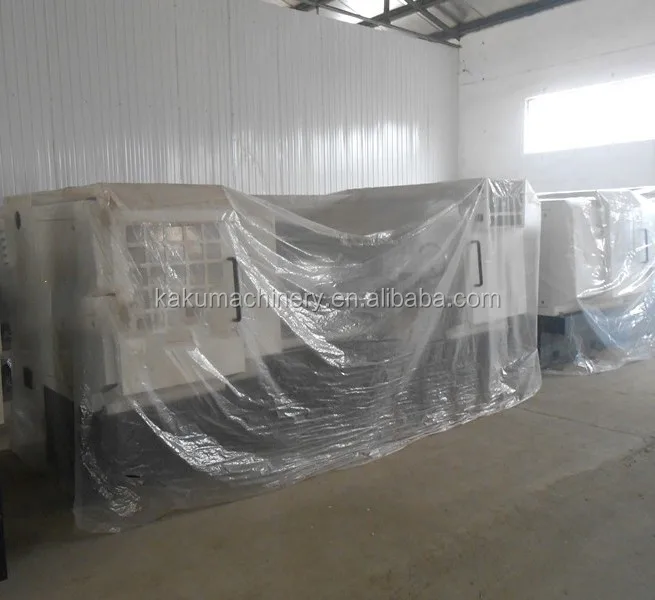

Packing & Delivery

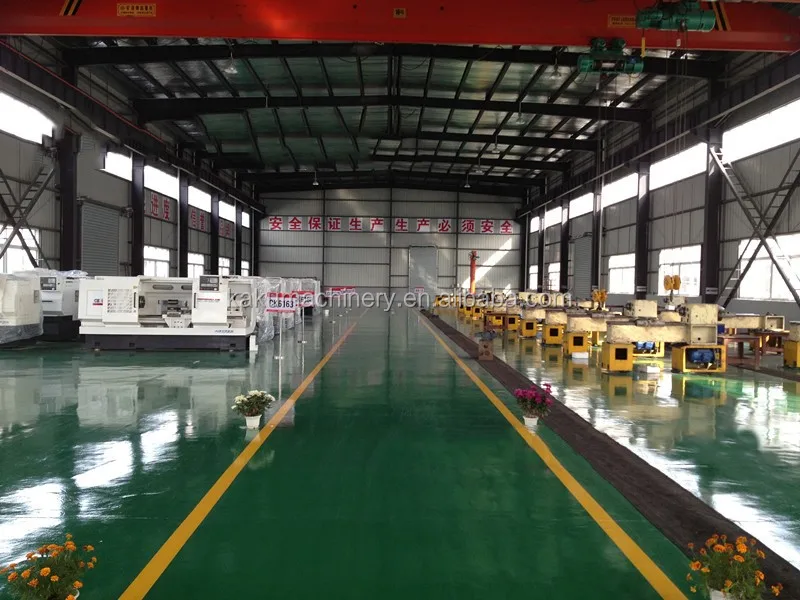

Our Company

Our company is located in the largest industrial city – Chongqing, China.

We provide decent machine tools from China to all over the world. Our main products as bench lathes, CNC lathes, milling machines, drilling & milling machines, drilling machines, grinders, band saws with a various of specifications, secure and reliable quality and convenient and efficient services.

We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the Global.

Our company has 48 experienced technicians of lathes export team. High quality and high cost-effective has been our company's reputation. The company has advanced testing equipment and strict product.

Our Service

1. We will add all item picture in the PI for avoiding any mistake of your order.

2. We will update every step for you once we start your order,

3. We will booking the vessel for you when it is going to be finished.

4. We will inform you that detail ship date once we get the information.

5. We will update the vessel information(ETA&ETD) for you.




If you are interested in our company's product, welcome to contact us and place an order. Thank you!
