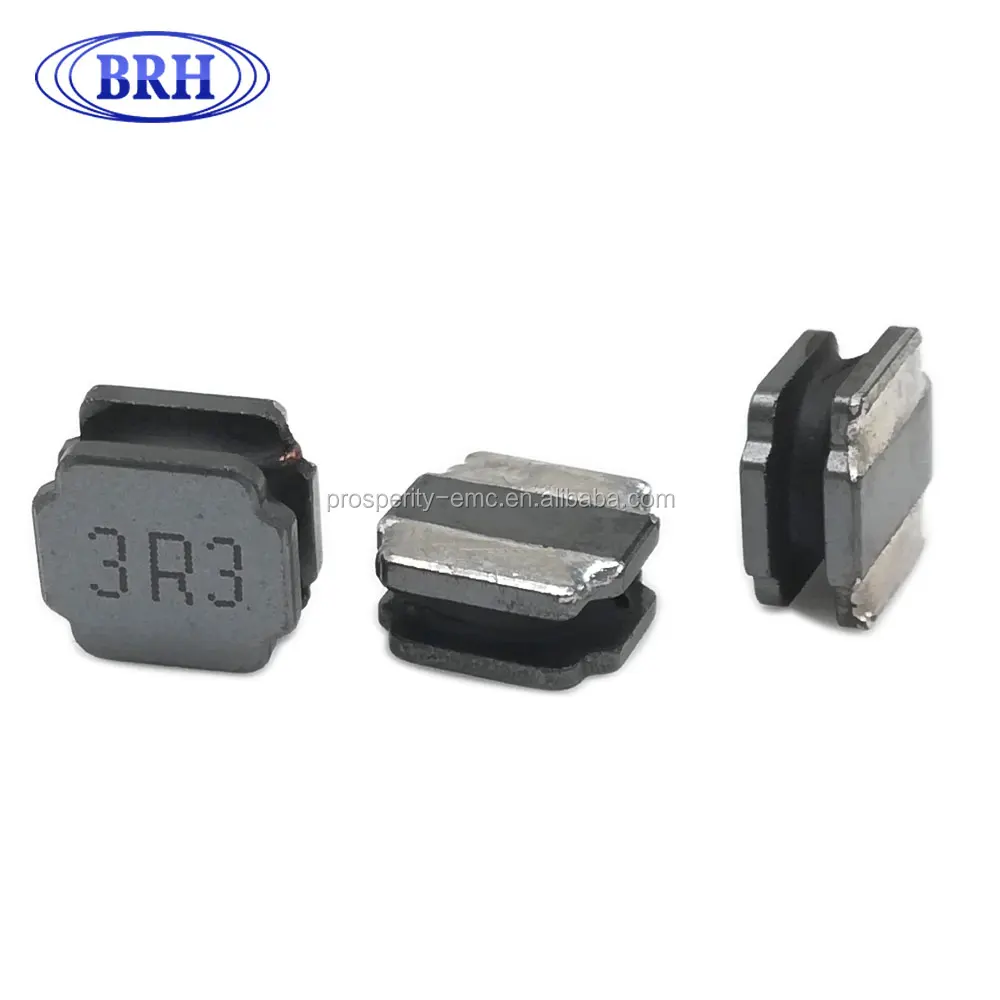

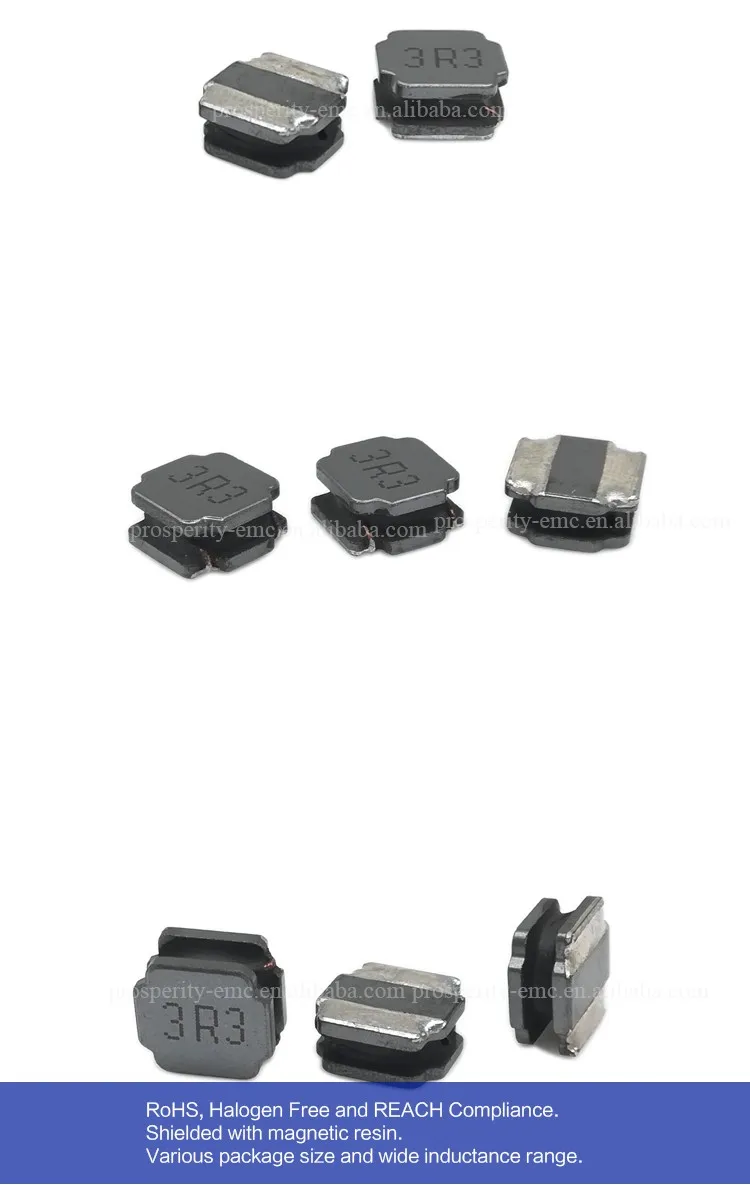

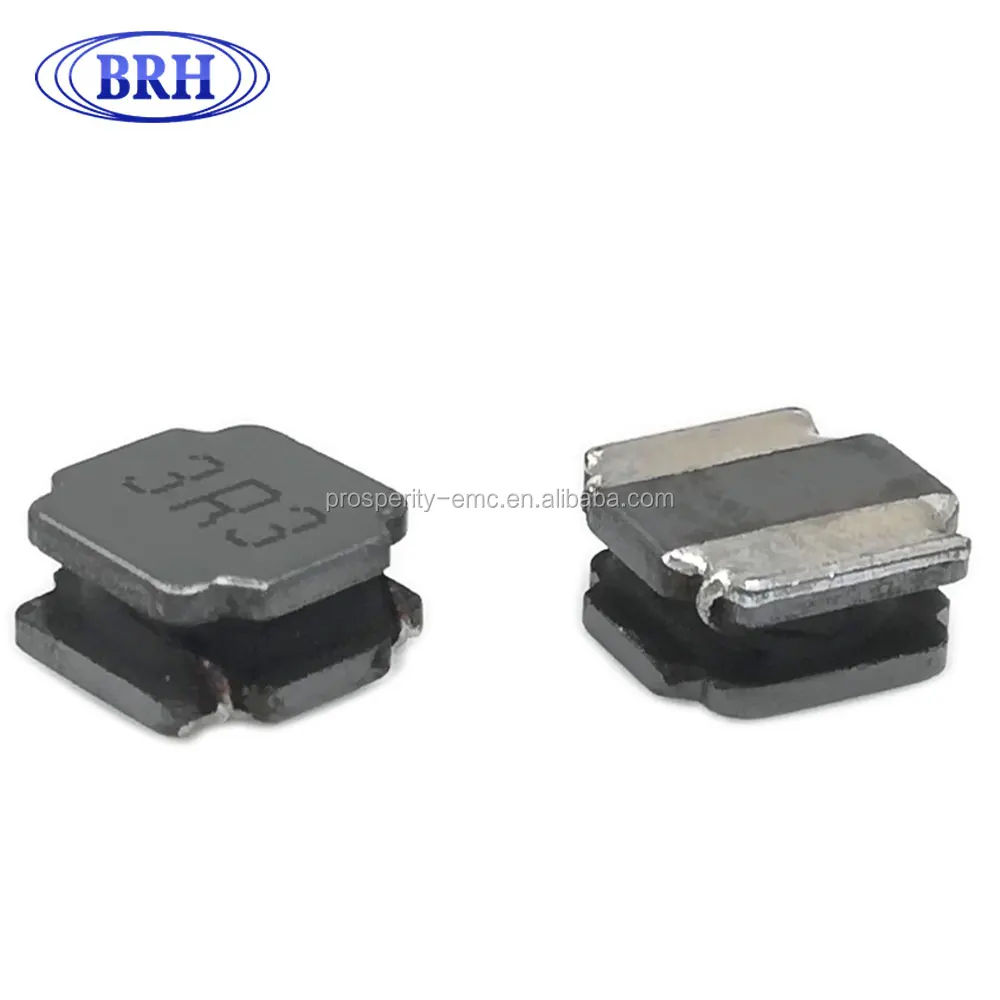

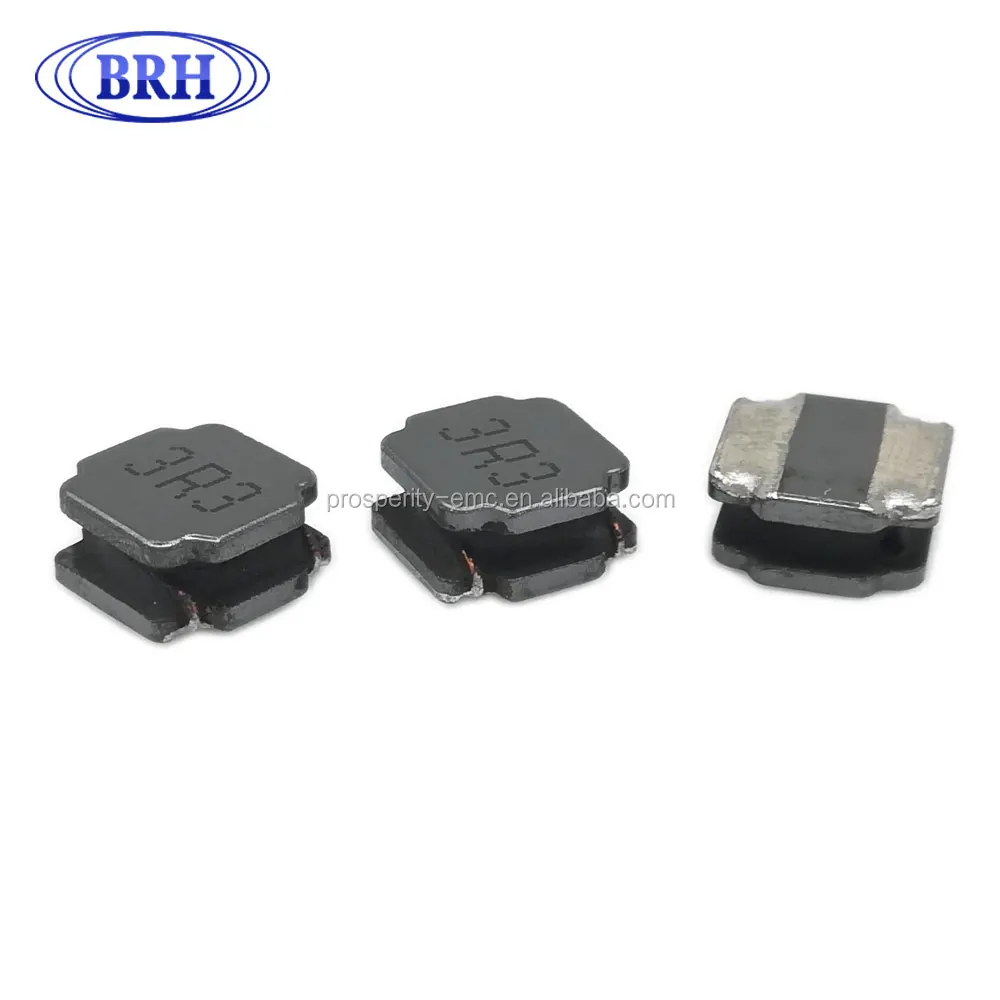

808040 size 6.5A high current sealed power inductor coil 3r3
- Category: >>>
- Supplier: Shenzhen Yan Bai Technology Co. Ltd.
Share on (60720212174):
Product Overview
Description
Description
MODEL | PRODUCT DIMENSIONS | ||||||
A | B | C | D | ||||
505040 | 5±0.2 | 5±0.2 | 4±0.35 | 1.25±0.3 | |||
606045 | 6±0.3 | 6±0.3 | 4.5±0.35 | 1.6±0.35 | |||
808040 | 8±0.3 | 8±0.3 | 4±0.35 | 2.1±0.35 | |||
SIZE CODE (inch) | RECOMMENDED PATTERN (mm) | ||||
A typ. | B typ. | C typ. | |||
505040 | 4.0 | 1.5 | 2.2 | ||
606045 | 5.7 | 1.6 | 2.9 | ||
808040 | 7.5 | 2.4 | 3.5 | ||
Parameter
Detailed specifications and parameters are introduced | ||||||||||
ORDERING CORE | Inductance(µH) at 100KHz 1v | MHz SRF min | RDC(Ω) ±30% | Irms (A) | Isat (A) | |||||
GL808040-3R3 | 3.3 | 32 | 0.017 | 4.40 | 6.50 | |||||
GL808040-470 | 47 | 6.4 | 0.136 | 1.55 | 1.75 | |||||
GL808040-101 | 100 | 4.2 | 0.290 | 1.00 | 1.15 | |||||
GL808040-331 | 330 | 2.8 | 0.889 | 0.64 | 0.68 | |||||
Tolerance:±20%,±30% | ||||||||||
Test Data For Pre Production Samples | ||||||||||||||
MEAS. Item | L (µH) | RDC (Ω) | DROP 30% TYP | A m/m | B m/m | C m/m | △T=40℃ | |||||||
Suggest | 3.3±20% | 0.022MAX | Isat=6.5A | 8.0±0.3 | 8.0±0.3 | 4.2MAX | Irms=4.4A | |||||||
1 | 3.29 | 0.0174 | 2.37 | 8.01 | 8.01 | 4.01 | 32.80 | |||||||
2 | 3.53 | 0.0163 | 2.44 | 7.98 | 8.03 | 4.02 | 35.10 | |||||||
3 | 3.18 | 0.0181 | 2.35 | 8.01 | 7.98 | 4.03 | 33.50 | |||||||
4 | 3.32 | 0.0169 | 2.48 | 8.02 | 7.96 | 4.01 | 35.80 | |||||||
5 | 3.28 | 0.0173 | 2.58 | 8.01 | 7.98 | 4.01 | 32.00 | |||||||
X-bar | 3.32 | 0.02 | 2.44 | 8.01 | 7.99 | 4.02 | 33.84 | |||||||
R | 0.35 | 0.0018 | 0.23 | 0.04 | 0.07 | 0.02 | 3.80 | |||||||
The above test data for reference,Actual results may differ due to different production batches | ||||||||||||||
