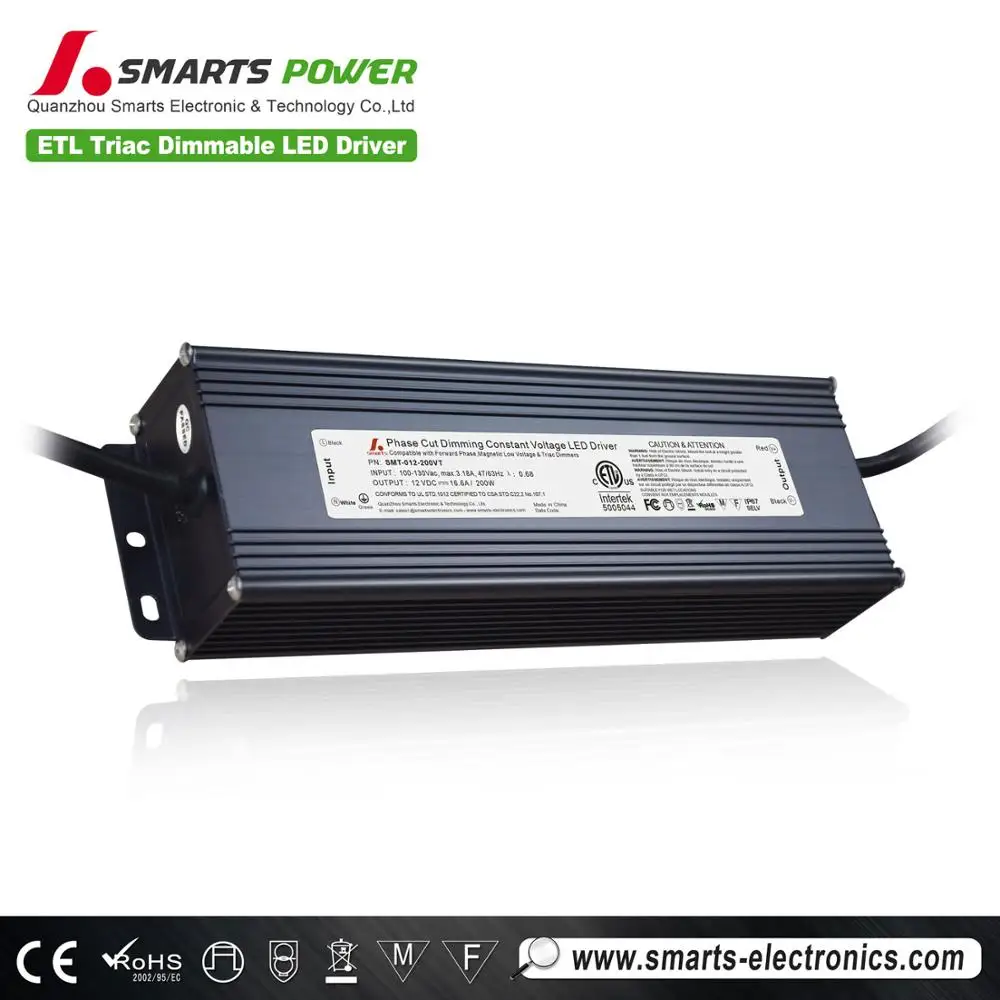

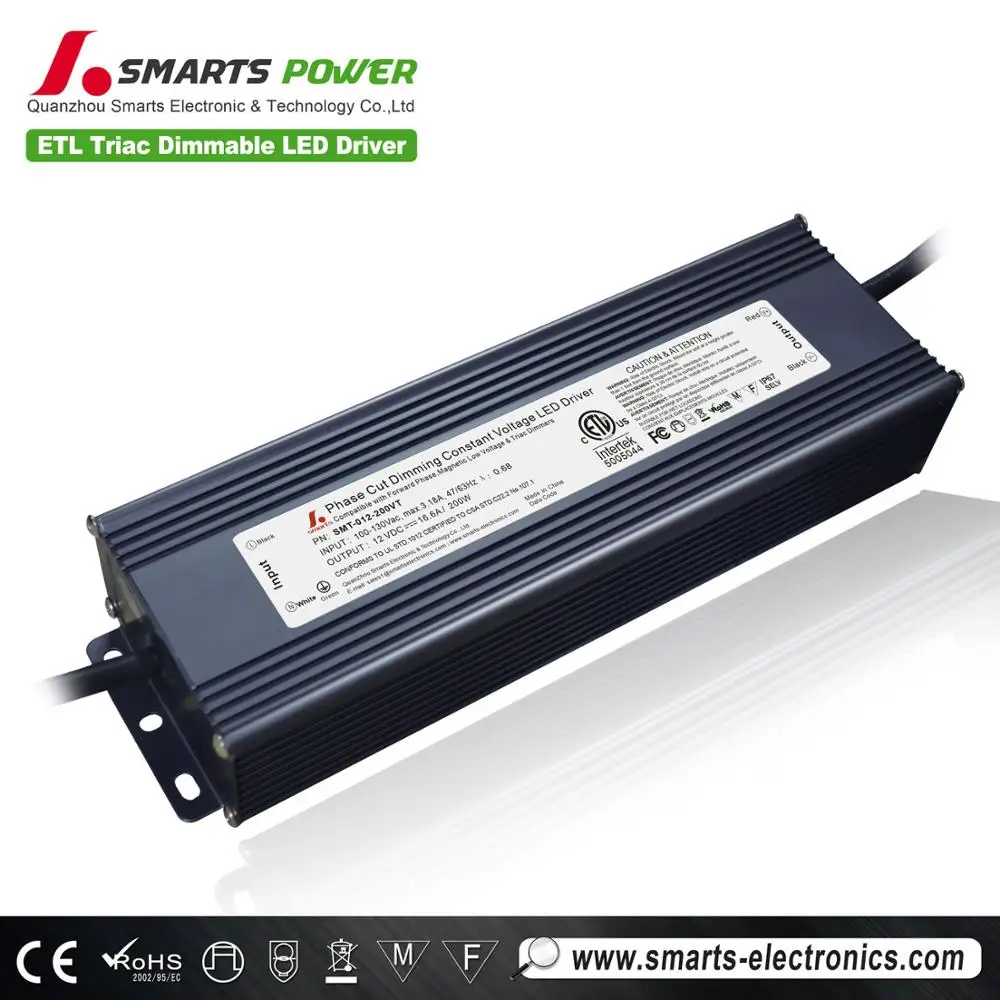

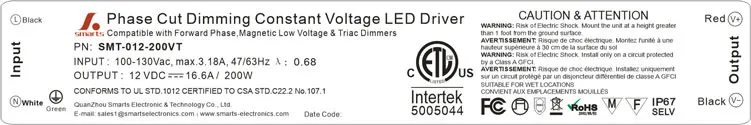

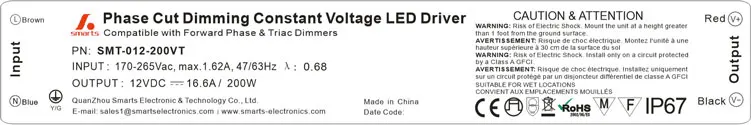

ETL phase cut dimming 110V ac pwm led driver 12v dimmable work with leading edge dimmer 200w power supply

Model		SMT-012-200VT	SMT-024-200VT	SMT-036-200VT	SMT-048-200VT
Output	DC Voltage	12V	24V	36V	48V
	Voltage Tolerance	±0.5V
	Rated current	16.67A	8.33A	5.56A	4.16A
	Rated power	200W
Input	Voltage Range	180~265VAC
	Frequency Range	50~60HZ
	Power Factor ( Typ.)	> 0.7/180VAC,  >0.8/220VAC
	Full Load  Efficiency(Typ.)	>83%	>83%	>83%	>83%
	AC Current(Typ.)	1.78A	1.76A	1.76A .A	1.74A
	Leakage current	<0.70mA/180VAC,  <0.65mA/220VAC
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over load	≤120%
	Over Current	≤1.4*I out
Environment	Working TEMP.	-40~+60℃
	Working Humidity	20~90%RH,non-condensing
	Storage TEM.,Humidity	-40~+80℃,10~95%RH
	TEMP.coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz 2G 10min./1 cycle,period for 60min.each along X, Y,Z axes
Safety&EMC	Safety standards	EN61347-1 EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25℃/70%RH
	EMC EMISSION	Compliance to EN55015,EN61000-3-2 (≥50%load)
	EMC IMMUNITY	EN61000-4-2,3,4,5,6,11(Surge 4KV)
Others	Weight	1.8Kg
	Size	256*78*47mm(L*W*H)
	packaging	440*295*145mm / 8 pieces in one carton
Notes	1. All parameters NOT specially mentioned are measured at 110V & 220VAC input , rated load and 25℃of ambient temperature.    2..Tolerance:includes set us tolerance,line regulation and load regulation.
100-277VAC\\CE\\FCC\\IP67
100-130Vac\\ETL\\FCC\\IP67
180-265Vac\\SAA\\C-TICK\\IP67

 Feature

• Output constant voltage
• Universal AC input/ : 90~135VAC/ 170-265VAC
• High efficiency : >85%
• Power Factor > 0.7
• Protections:short circuit/over loading/over current
• Full protection aluminum housing/ IP67
• Easy installation
• Cooling by free air convection.
• Work with leading edge and trailing edge triac dim.
• Strong compatibility, flicker-free dimming
• Suitable for LED lighting and moving sign applications
• Compliance to worldwide safety regulations for LEDs

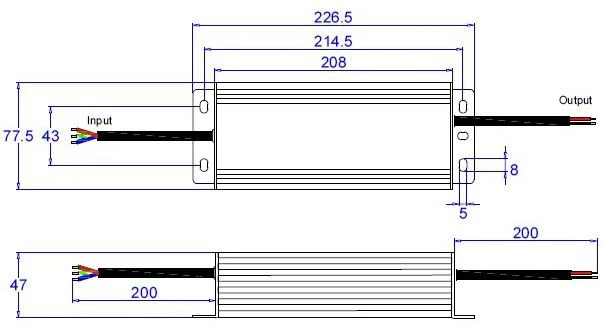

 Mechanical Specification

• Input Brown with AC (L),Blue with AC (N)
• Output Red is(DIM+),Black is(DIM-)
• Note: Any other requests we can customized.

 Dimming Operation

• Output power level can be adjusted through input terminal of the AC phase line(L) by connecting a triac dimmer.
• Compatible with Leading edge or tailing edge triac dimmers.
• please try to use the small power dimmer in order to access to a wider dimming range because high-power dimmer is difficult to achieve the output current to zero

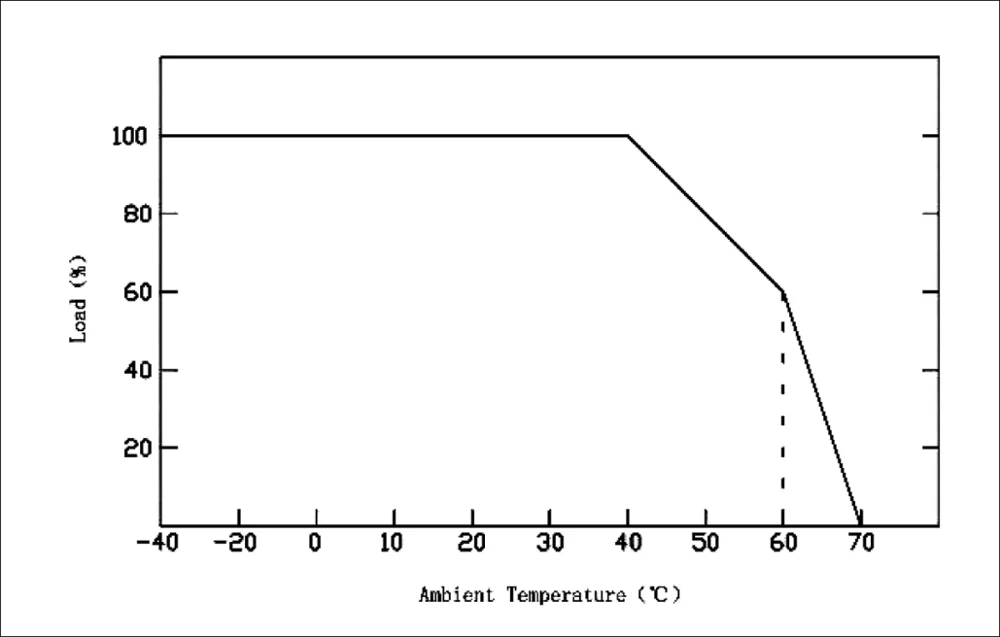

 Derating Curve

To extend their life, please refer to the Derating Curve and derate according to the temperature.

 Connecting Diagram

click for more information
