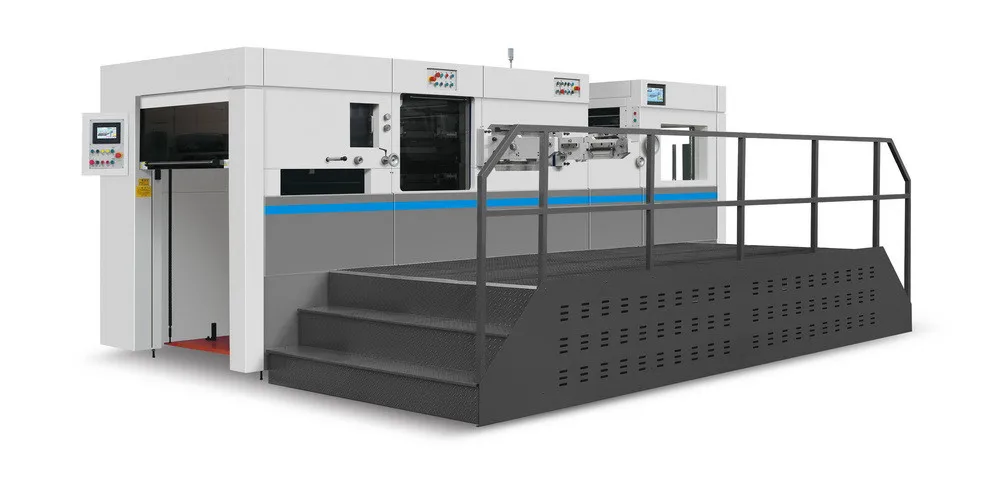

[JT MHK1050CE] Automatic die cutting and stripping machine
- Category: >>>
- Supplier: Yiwu Jeta International Trading Co . Ltd.
Share on (60720236057):
Product Overview
Description
Product Description
stripping machine
Purpose: die cutting and creasing machine
The MHK series die cutting and stripping machine can efficiently complete the die cutting and embossing of products,as well as maintaining the highest precision and product quality.The MHK series die cutting and creasing machine are well equipped and almost can adapt to all die cutting requirements of products.The machine is characterized by compact structure, fine workmanship, high precision and easy operation, etc.
Specifications:
| Model | MHK-1050 | MHK-1050CE |
| Max. sheet size | 1050*750mm | 1050*750mm |
| Min. sheet size | 400*360mm | 400*360mm |
| Max. die cutting size | 1040*720mm | 1040*720mm |
| Gripper margin | 9-17mm | 9-17mm |
| Inner chase size | 1080*745mm | 1080*745mm |
| Stock range | 80-600g/m²(cardboard) | 80-600g/m²(cardboard) |
| ≤4mm(corrugated) | ≤4mm(corrugated) | |
| Die cutting accuracy | ≤±0.1mm | ≤±0.1mm |
| Max. die cutting force | 300T | 300t |
| Max. die cutting speed | 7500s/h Die cutting | 7500s/h Die cutting |
| Max. feeder pile height | 1600mm(wooden pallet included) | 1600mm(wooden pallet included) |
| Max. delivery pile height | 1400mm(wooden pallet included) | 1400mm(wooden pallet included) |
| Main motor wattage | 11kw | 11kw |
| Overall dimension | 6300mm*4600mm*2400mm | 7700mm*4600mm*2400mm |
| (L:paper prepared track included) | (L:paper prepared track included) | |
| Net weight approx | 16T | 17T |
| Full load wattage | 16kw | 16.9kw |
Features:
1) Adopt nodular cast iron-QT500-7, the mainframe wallboard casting by special technology process, thus featuring by high strength, never deformation and ensure the safety of the mainframe wallboard.
2) Adopt Taiwan-imported intermittent mechanism to ensure that the machine operates accurately. Also, the main engine is equipped with overload protection device and torque limit clutch,to ensure that when they being impacted by external force can stops immediately to reduce the damage to the machine body and teeth precision and reduce the occurrence of failure rate.
3) The whole machine all uses SKF\\NSK imported original bearing.
4) The whole machine uses original parts imported from France Schneider,Japanese OMRON, and Japanese Mitsubishi etc.
5) Key parts of teeth row are imported from Japan.
6) Die cutting and creasing machine accuracy reach to ±0.1mm, and the highest speed of machine reaches 7500 sheets/hours.
7) The craft shaft is adopts Germany Ni-Cr-Mo metal steel, with high precision and will never deforms.

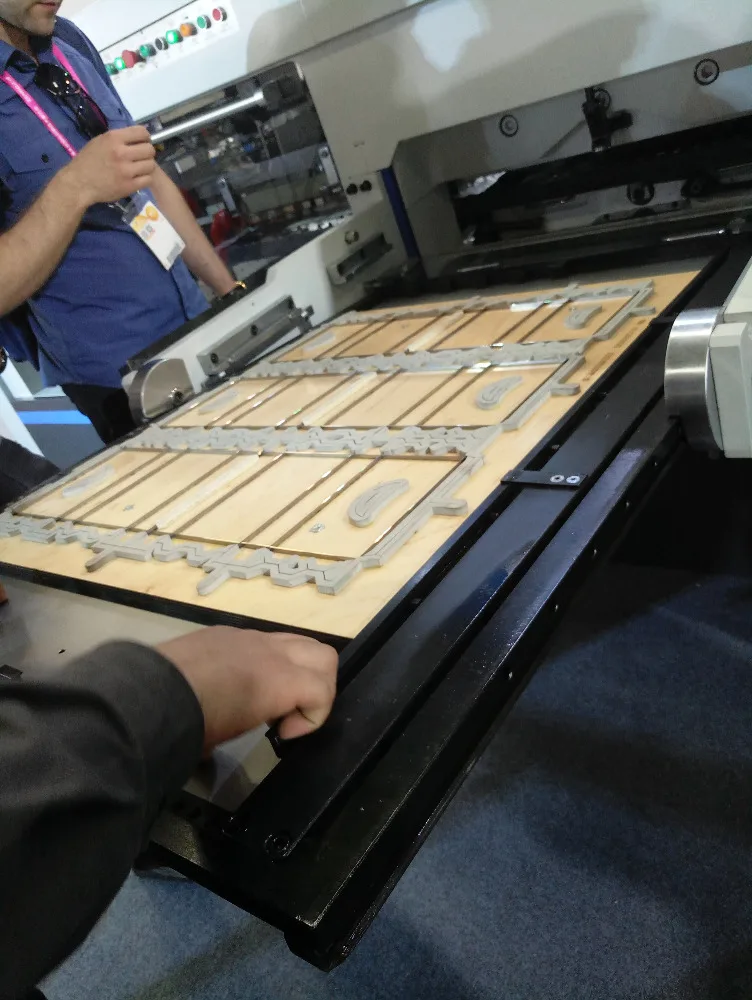

8) Use the centerline positioning system to realize fast plate changing of worksheet.
9) Equiped with Dayuan first-developed pressure servo control device, ensure fast and smooth when they adjusting of die cutting pressure. High quality automatic die cutting and creasing machine
10) Equip with touch-screen operation interface in both Chinese and English.

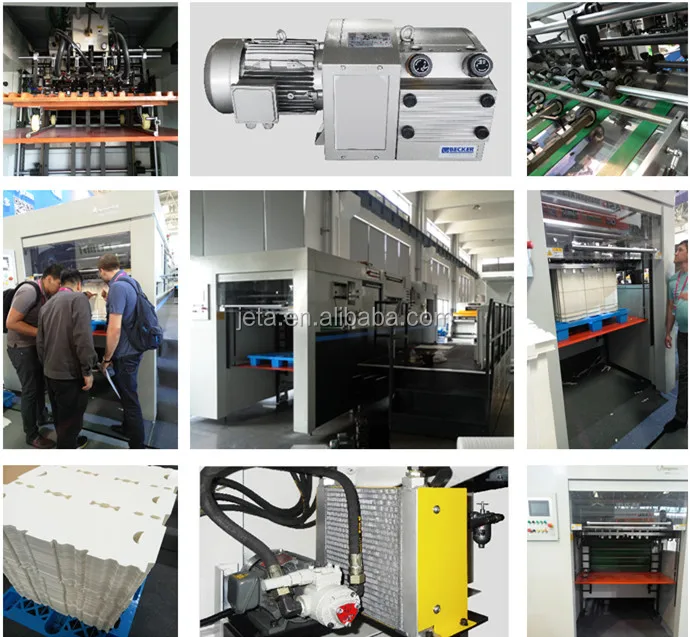

Detailed Images
Produce samples:

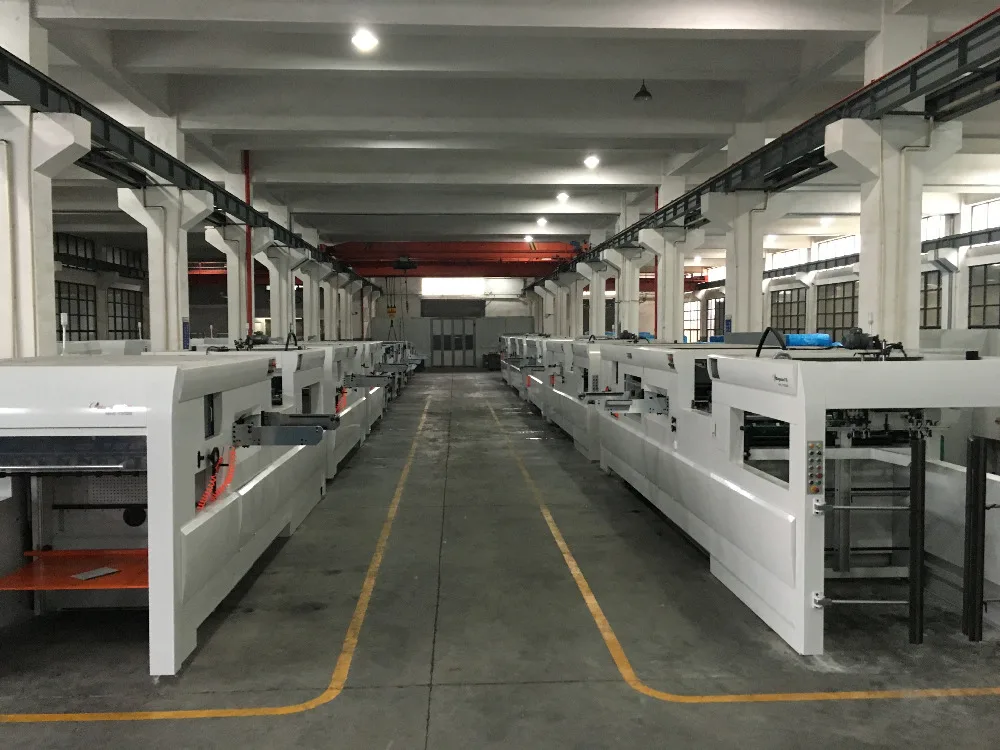

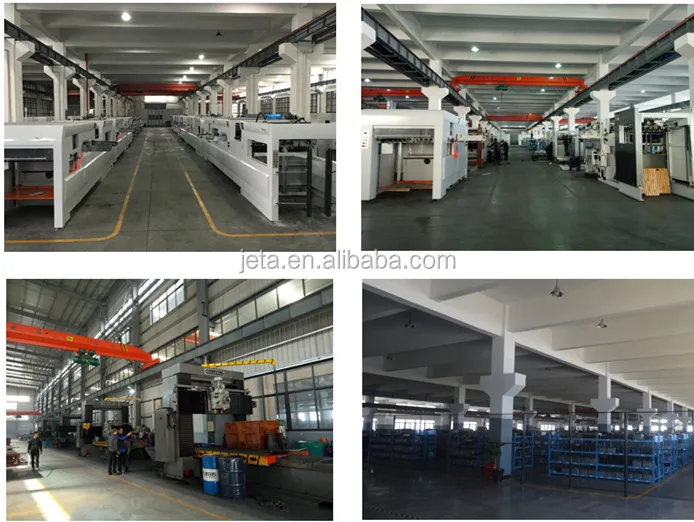

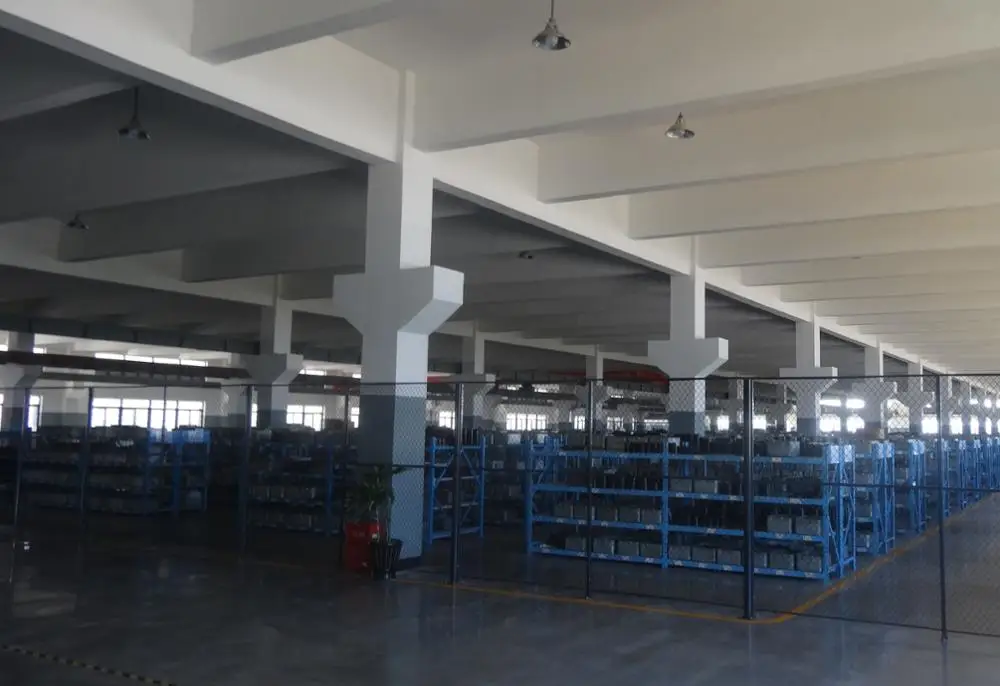

Company Information
We are specializing in manufacturing printing & packaging machinery like die cutting and striping machine , Paper cutting machine, Paper folding machine, Flexo printing machine and most of relevant machine.
Quality is our culture, our product has widely sold to Europe, South America, Southeast Asia, Middle East countries because of our good quality.

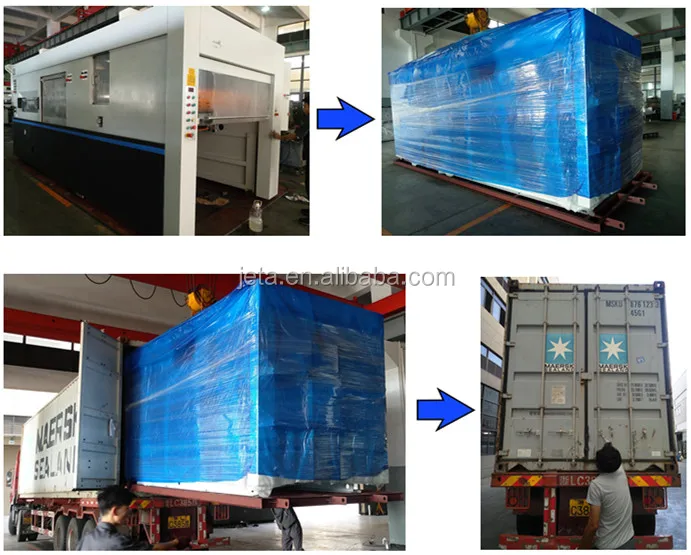

Packaging & Shipping
Certifications
Contact us
With us, your money is safe, and your business is safe !
