RH-AUDIO Multi Zone Audio Amplifier with USB FM for Whole Building Project
Product Description
The RH-AUDIO Series of 6-zoned MP3/FM Tuner 2U Rack-mount Amplifiers are designed for background music/paging and public address system installations,these units are exceptional values,and are easy to install in a variety of system designs.
The mixer amplifiers have features of built-in MP3 player with SD & USB slot for connecting external audio source,and built-in FM receiver with frequency range 87.5 MHz~108 MHz.
And features three unbalanced mic. inputs and two line inputs,60/120/240/350/500 watts of amplifier power are available with either 70/100-volt or 4 to 16 ohms(Ω) loads.
Also included a balanced line level output for adding additional power amplifiers.
The unit also features muting function that MIC1 overrides MIC2,MIC3 AUX1,AUX2 with 0~30dB attenuation.
And features complete protection is provided for output short circuit,overload,high temperature, peak current limiters.
Widely used for any kind of public areas such as shops,supermarks,shcools,churches,stations,hotels etc.
1) Built-in SD/USB MP3 player and FM radio with frequency range 87.5 MHz~108 MHz.
2) Power rates: 60W/120W/240W/350W/500W available.
3) 6-zoned 100V speaker outputs with separate switch ON/OFF and LED indicator.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12) MIC1 has priority over other inputs.
13) Protections of short circuit,overload,high temperature.
2) Power rates: 60W/120W/240W/350W/500W available.
3) 6-zoned 100V speaker outputs with separate switch ON/OFF and LED indicator.
4) TOSHIBA amplifier transistors.
5) 100% pure copper toroidal transformers.
6) 70V/100V and 4~16Ω loads.
7) Standard 19" 2U height.
8) 3 MIC inputs,2 LINE inputs,1 LINE output.
9) Individual volume controller for MIC & AUX inputs.
10) MASTER volume controller.
11) BASS and TREBLE tone controller.
12) MIC1 has priority over other inputs.
13) Protections of short circuit,overload,high temperature.
Specification
| Model | RH8070MF | RH8130MF | RH8260MF | RH8360MF | RH8500MF |
| Rated Power | 60W | 120W | 240W | 350W | 500W |
| Output Mode | 4-16 ohms;70V/100V line voltage | ||||
| 6 zoned Ouput | 100V line voltage | ||||
| MIC Input | MIC1/ MIC2/MIC3:600 ohms 5-8 mV , Unbalanced | ||||
| AUX Input | AUX1/ AUX2:10k ohms 150-470 mV , Unbalanced | ||||
| FM Frequency Range | 87.5 MHz~108 MHz | ||||
| External Audio Input | SD slot,USB slot,RCA connector | ||||
| Frequency Response | 60Hz~15kHz(±3dB) | ||||
| THD | <0.5% at 1kHz,1/3 rated power | ||||
| S/N | Line:85 dB,MIC:>72 dB | ||||
| Tone | BASS:100 Hz(±10dB),TREBLE:12kHz(±10dB) | ||||
| Muting Function | MIC1 overrides MIC2,MIC3,AUX1,AUX2 with 0~30dB dB attenuation | ||||
| Cooling | DC 12V FAN | ||||
| Protection | AC fuse, short circuit,overload,high temperature | ||||
| LED Indicators | POWER,SIGNAL, CLIP,PROTECT | ||||
| Power supply | Optional | ||||
| Power Consumption | 95W | 175W | 350W | 485W | 640W |
| Dimensions | 89(H)x483(W)x366(D)mm | ||||
| Packing Size | 185(H)x520(W)x435(D)mm | ||||
| Net Weight | 11.2Kg | 12.7Kg | 15.1Kg | 16.1Kg | 18.6Kg |
| Gross Weight | 11.8Kg | 13.6Kg | 16Kg | 17Kg | 19.8Kg |
Product Details

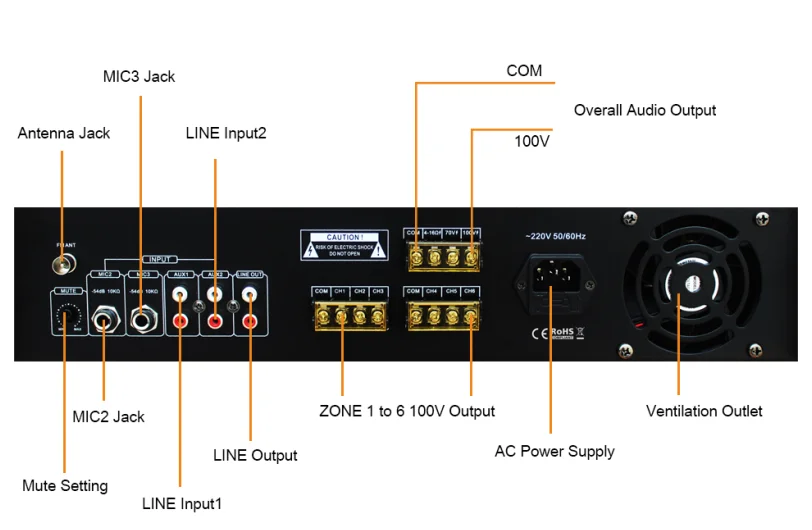

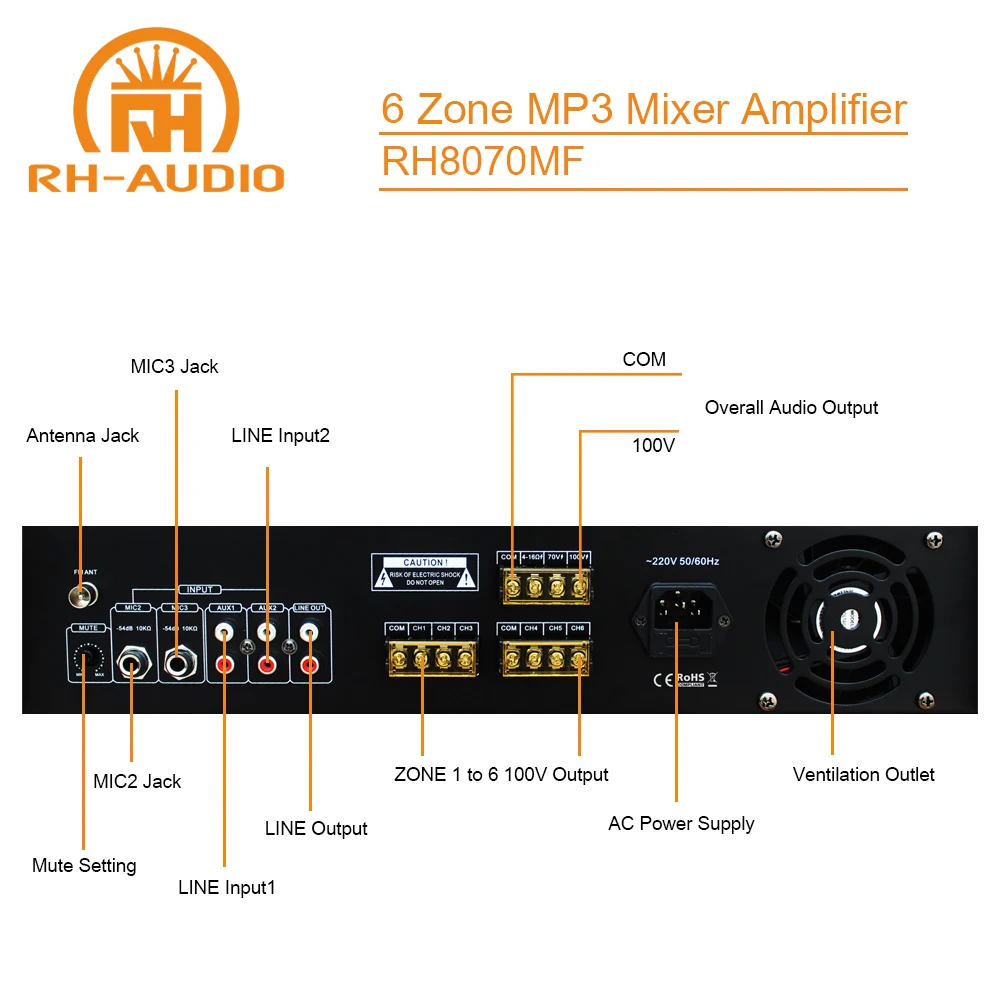

Connection Diagram
