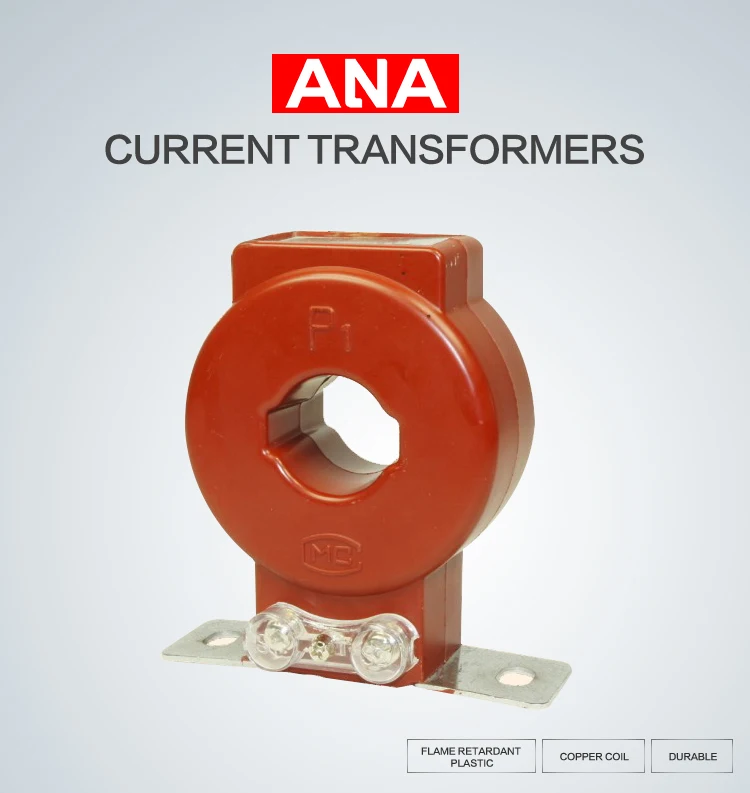

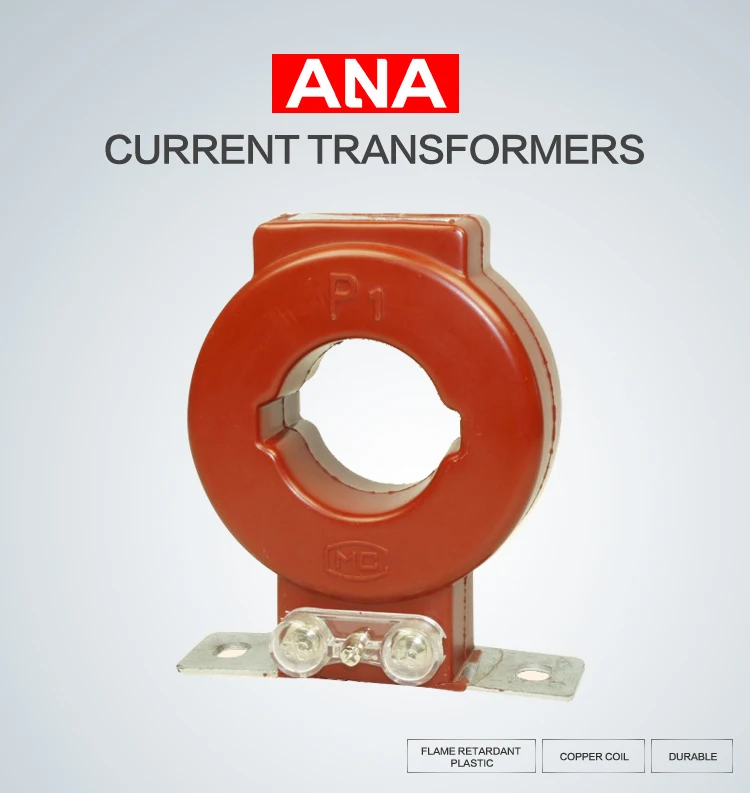

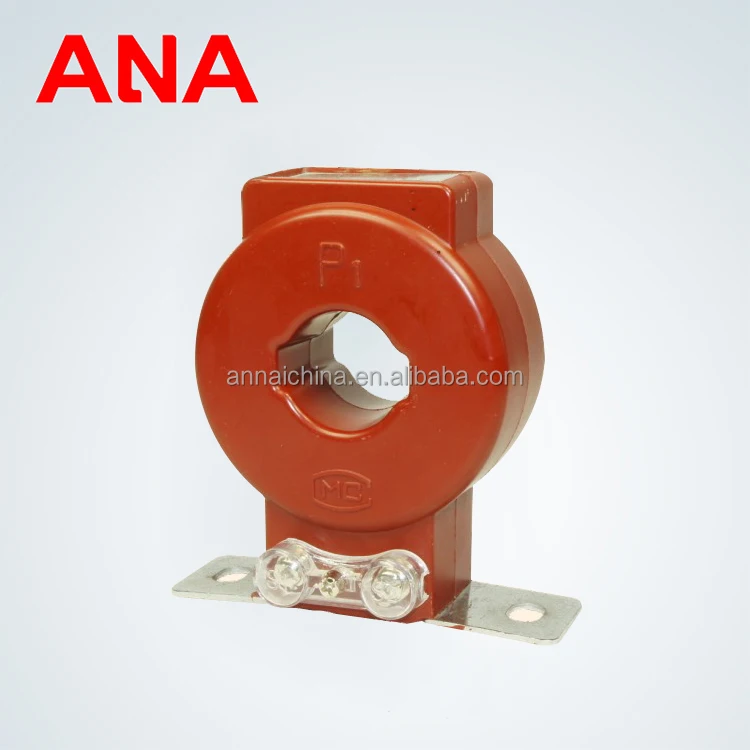

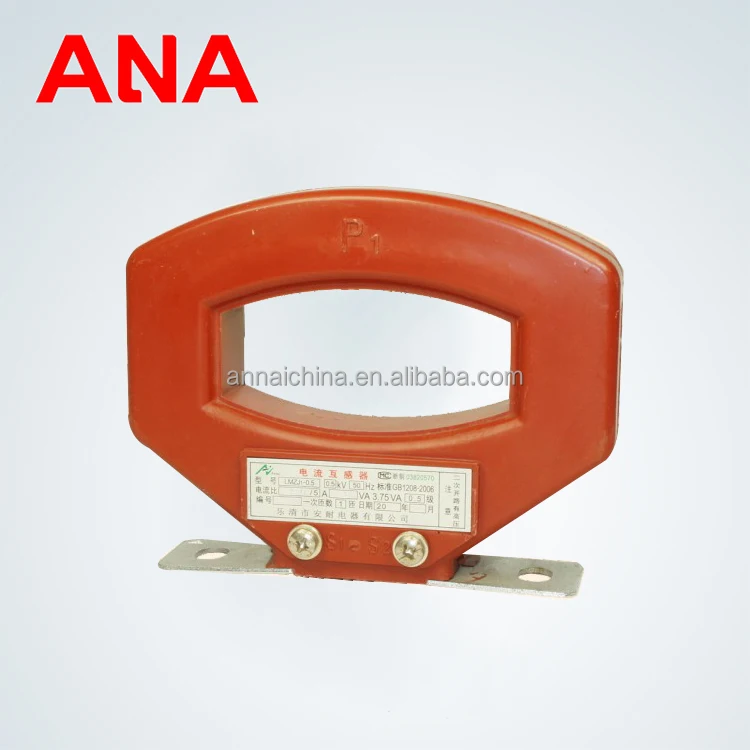

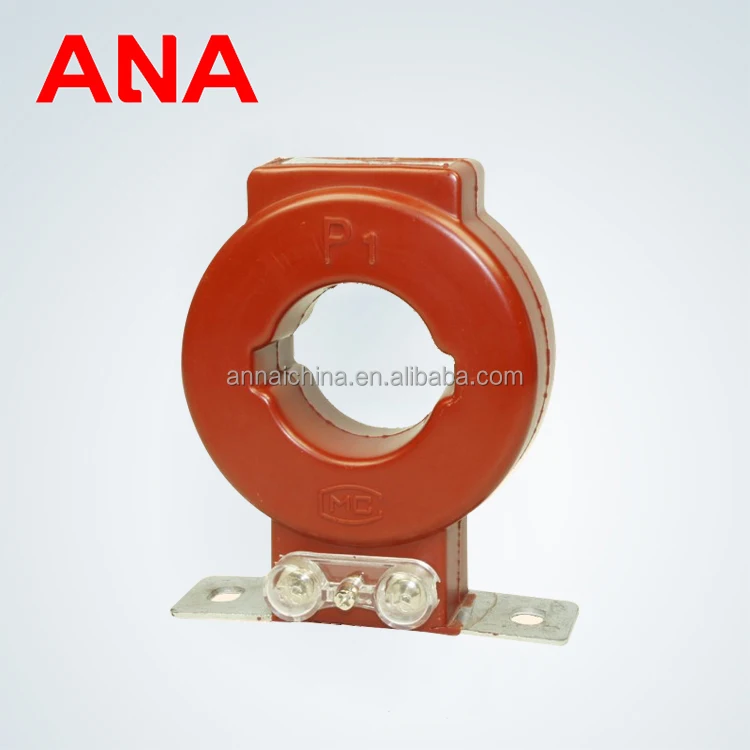

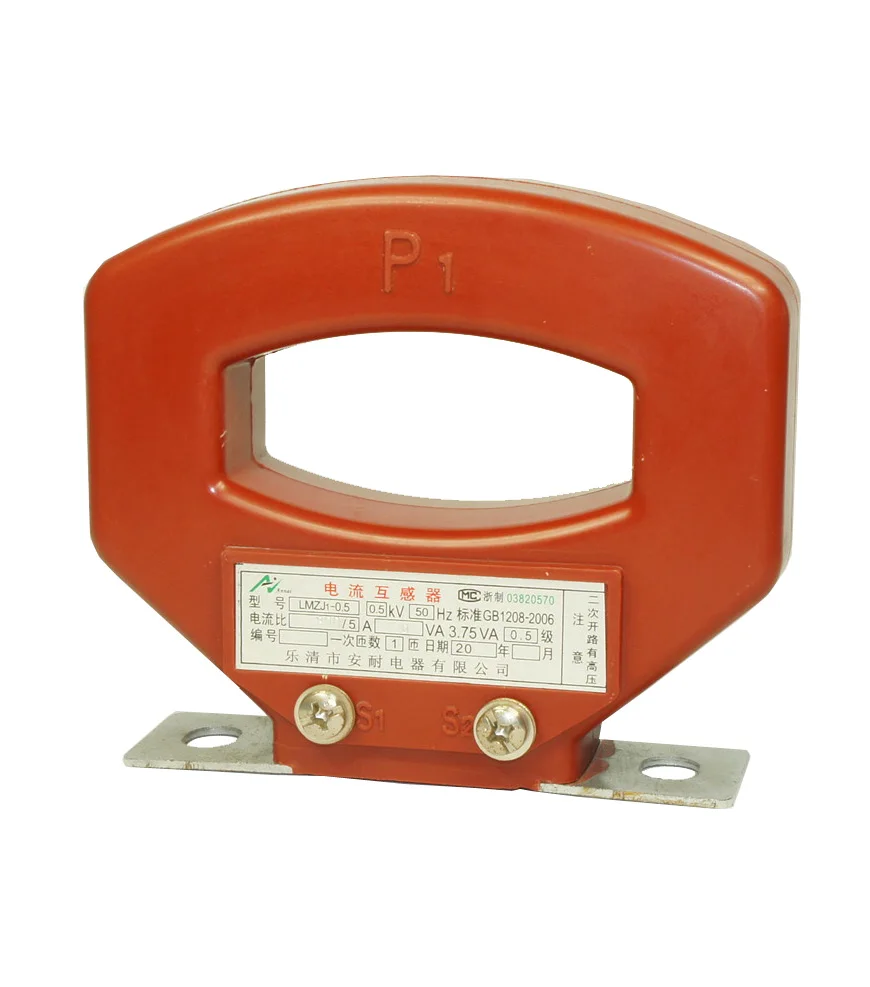

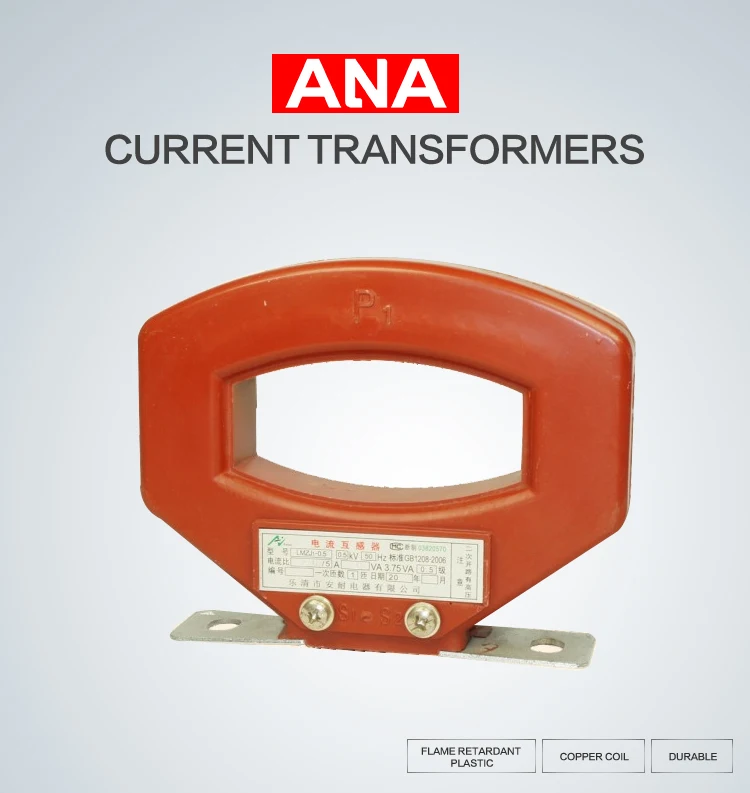

High Quality LMZJ1 0.5 Current Transformers
- Category: >>>
- Supplier: Yueqing Annai Electrical Co. Ltd.
Share on (60720280698):
Product Overview
Description
| Type | Ratio(A) | Rated power(VA) | ||
| 0.5 | 0.5S | 0.2S | ||
| LMZJ1-0.5 | 30/5 | 3.75(5T) | 5(5T) | 5(5T) |
| LMZJ1-0.5 | 40/5 | 5(5T) | 5(5T) | 5(5T) |
| LMZJ1-0.5 | 50/5 | 3.75(3T) | 5(3T) | 5(3T) |
| LMZJ1-0.5 | 60/5 | 5(3T) | 5(3T) | 5(3T) |
| LMZJ1-0.5 | 75/5 | 3.75(2T) | 5(2T) | 5(2T) |
| LMZJ1-0.5 | 100/5 | 5(2T) | 5(2T) | 5(2T) |
| LMZJ1-0.5 | 150/5 | 3.75 | 5 | 5 |
| LMZJ1-0.5 | 200/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 250/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 300/5 | 5 | 5 | 5 |
| Type | Ratio(A) | Rated power(VA) | ||
| 0.5 | 0.5S | 0.2S | ||
| LMZJ1-0.5 | 400/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 500/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 600/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 750/5 | 5 | 5 | 5 |
| LMZJ1-0.5 | 800/5 | 10 | 10 | 10 |
| LMZJ1-0.5 | 1000/5 | 10 | 10 | 10 |
| LMZJ1-0.5 | 1200/5 | 10 | 10 | 10 |
| LMZJ1-0.5 | 1500/5 | 15 | 15 | 15 |
| Type | Ratio(A) | Rated power(VA) | ||
| 0.5 | 0.5S | 0.2S | ||
| LMZJ1-0.5 | 2000/5 | 20 | 20 | 20 |
| LMZJ1-0.5 | 2500/5 | 20 | 20 | 20 |
| LMZJ1-0.5 | 3000/5 | 20 | 20 | 20 |
| LMZJ1-0.5 | 4000/5 | 20 | 20 | 20 |
| LMZJ1-0.5 | 5000/5 | 20 | 20 | 20 |
Features
-The epoxy cover of CT is used for insulation between the secondary coil and primary insertion (Bar).
-Large size conductor-window allows cable or bar insertion easily.
-The terminal Block has a PC plastic terminal cover or terminal box made with aluminum and sealing screw.
-The epoxy cover of CT is used for insulation between the secondary coil and primary insertion (Bar).
-Large size conductor-window allows cable or bar insertion easily.
-The terminal Block has a PC plastic terminal cover or terminal box made with aluminum and sealing screw.
Specification
| Rated Voltage | 600V (N1=0.6) |
| Rated frequency | 50Hz |
| Accurancy Class | 0.5 & 1.0 |
| Insulation Test | 3KV/Min |
| Impulse Voltage Test (1.2/0.5μs) | 6KV |
| Limit of Temperature test | 60℃ |
| Ambient Relative Humidity | 95% |
Standard
IEC60044-1 GB1208-2006
