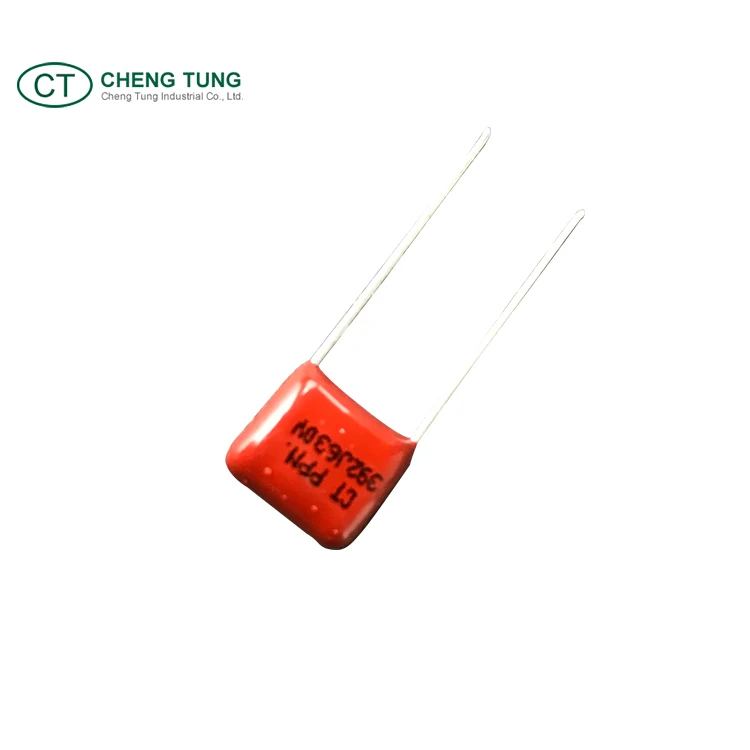

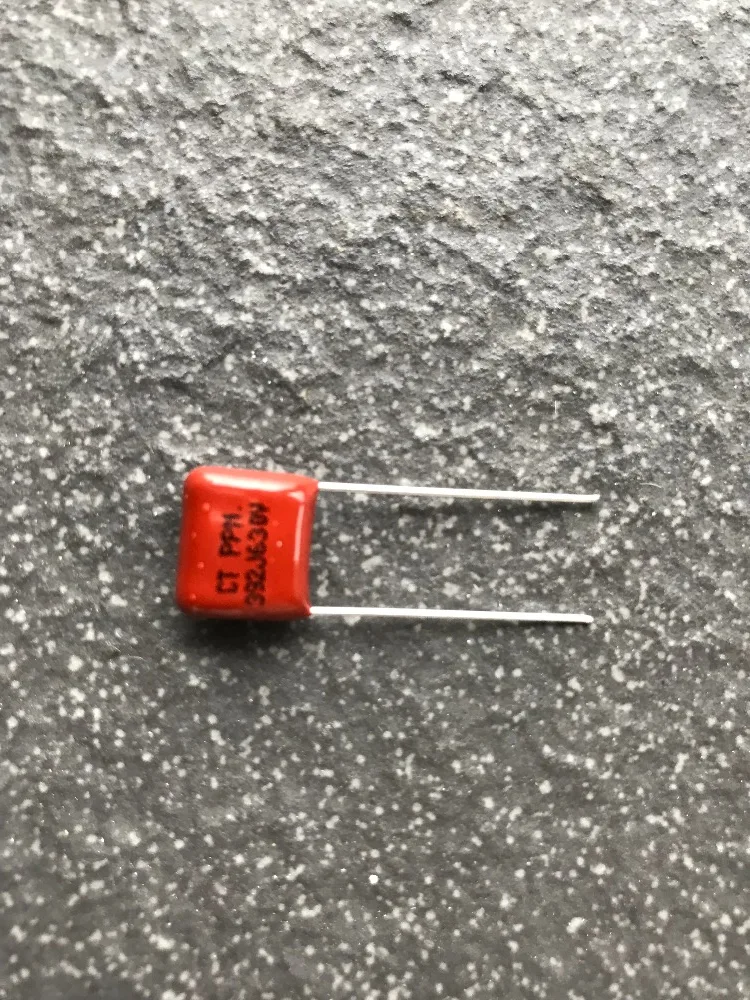

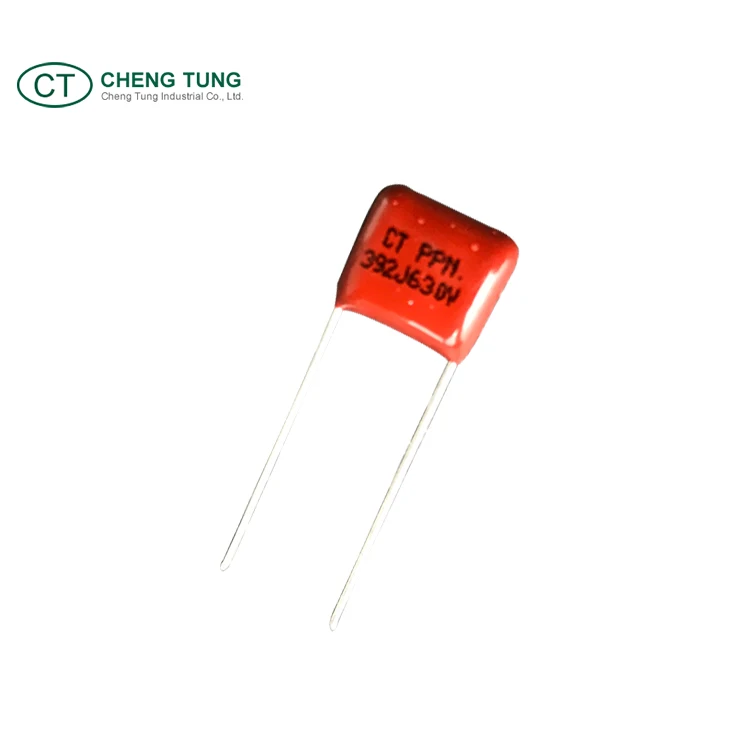

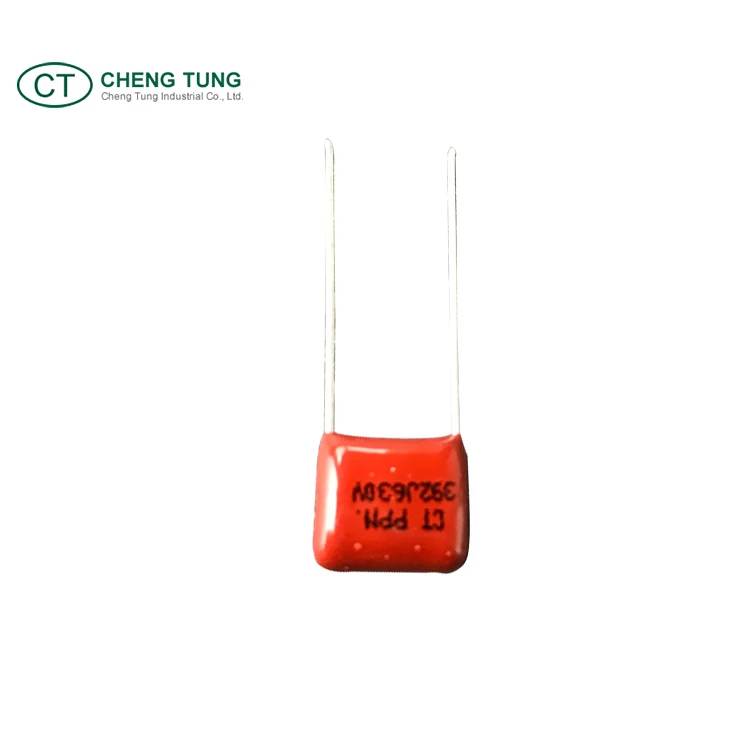

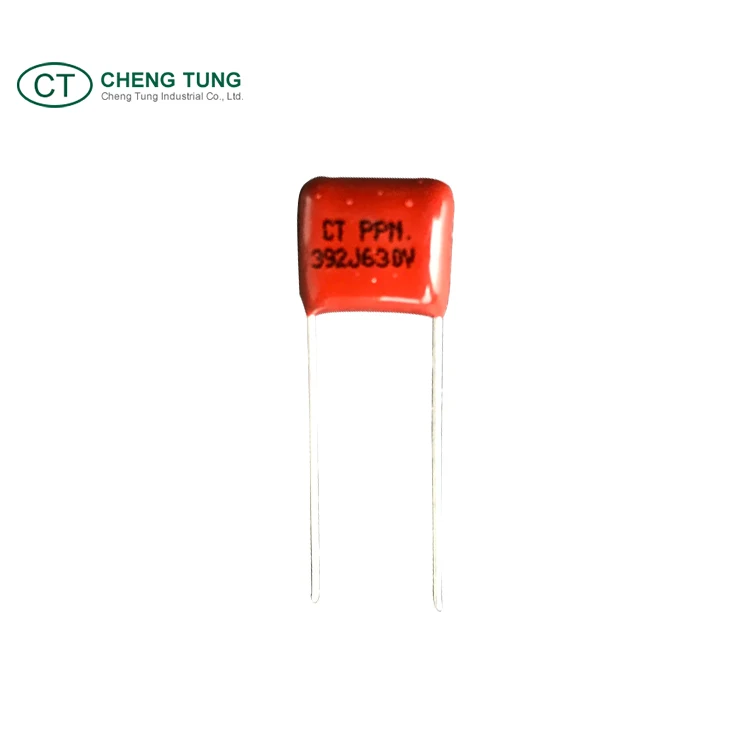

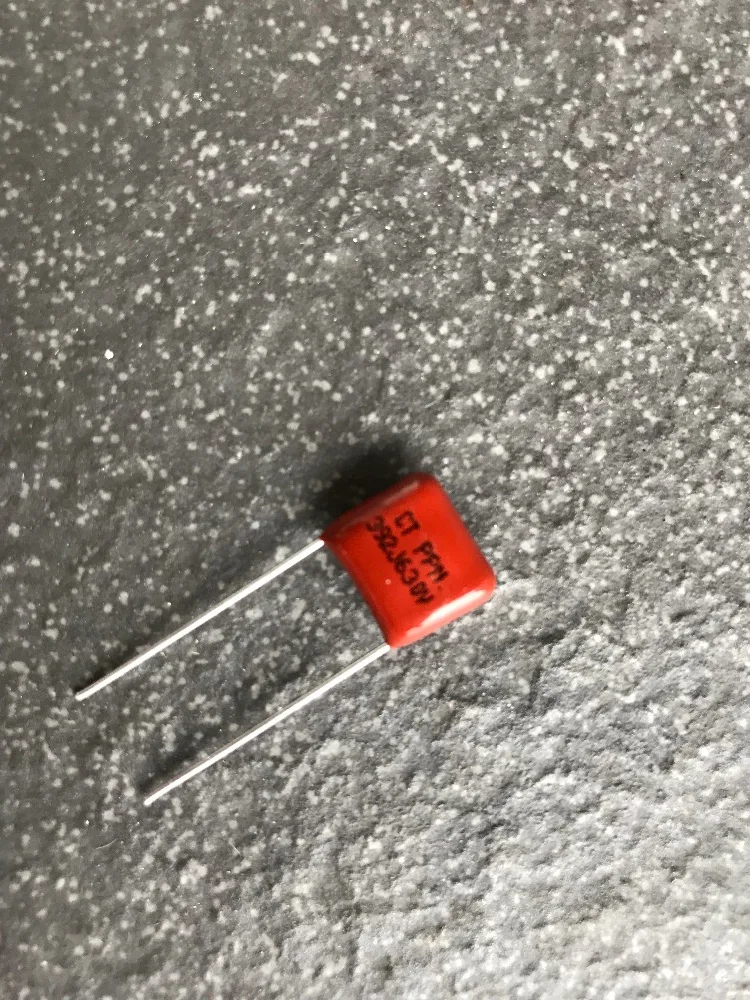

Coating PPN polypropylene film capacitor 0.001uF ~0. 47uF 100/250V, 400V, 630V, 1000V.DC

TYPE: PPN

FEATURES

 APPLICATIONS

• High stability of capacitance and DF versus temperature and frequency.
• High IR.
• Non-inductive construction.
• High pulse rise rate (dv/dt) and suitable for large current circuit.

• Most suitable for high frequency, large current cireuit and S-shaping correction in TV set.
• Widely used in high frequency, high current DC and pulse circuits.
• Filter and noise suppression circuit.

SPECIFICATIONS

  Dielectric

  Polypropylene film

  Electrodes

  Aluminum foil

  Coating

  Epoxy resin coating

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 105 / 21

  Capacitance versus Rated Voltage  (U_R)

100/250V.DC  0.001uF~0.47uF;400V.DC  0.001uF-0.47uF

630V.DC  0.001uF ~ 0.22uF;1000V.DC  0.001uF ~ 0.22uF

  Capacitance Tolerance

  J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

Max  0.1%  (at 1KHz, 25℃)

  Voltage Proof

  1.75×U_R  (2 Sec.)

  Insulation Resistance

CR<=0.33uF  IR>=30,000MΩ     U_R<=100V

CR>0.33uF  IR>=10,000MΩ / uF  U_R<=100V
