Small Flow Yogurt Fruit High Pressure Milk Homogenizer On Sale

Product Overview

Description

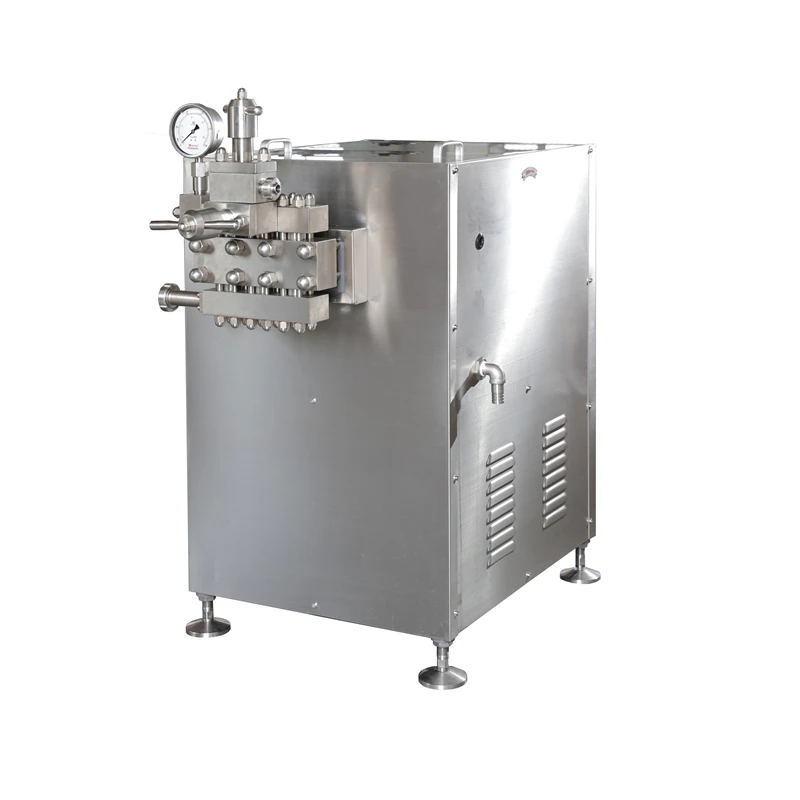

             Small Flow Yogurt Fruit High Pressure Milk Homogenizer On Sale

1.



  Pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.



Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development

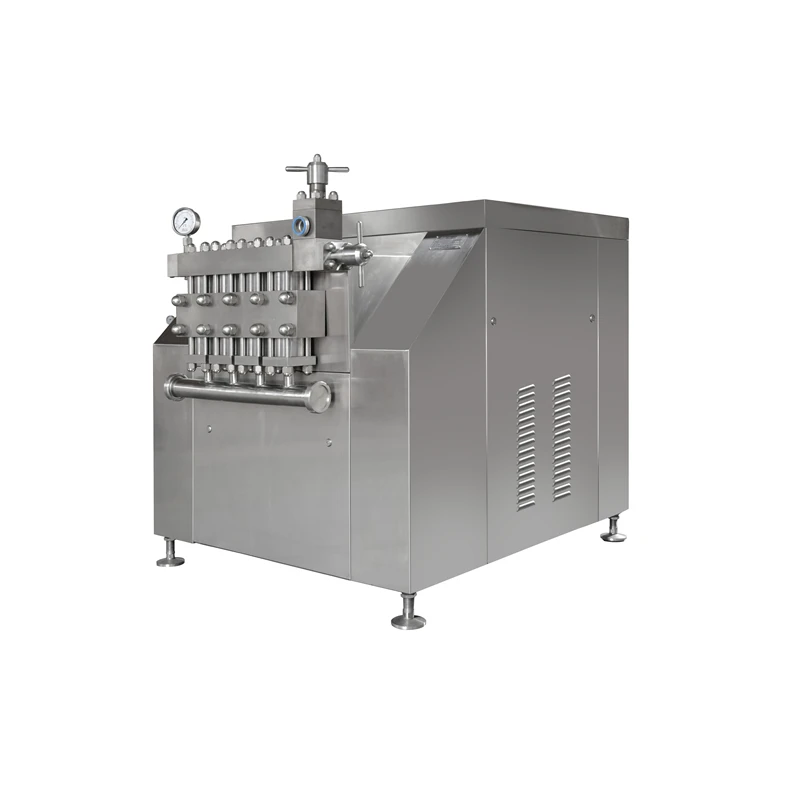

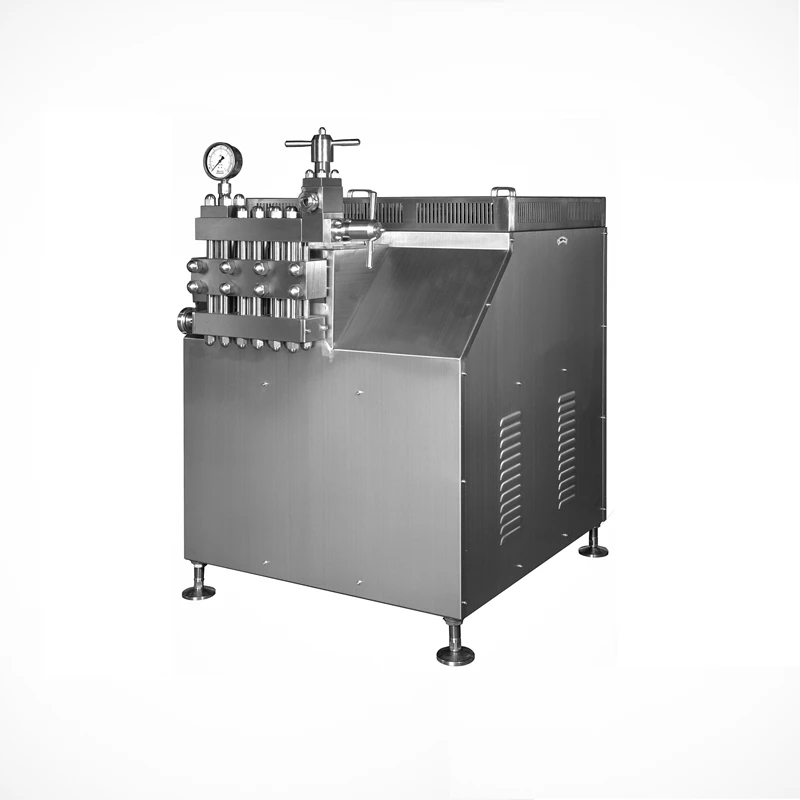

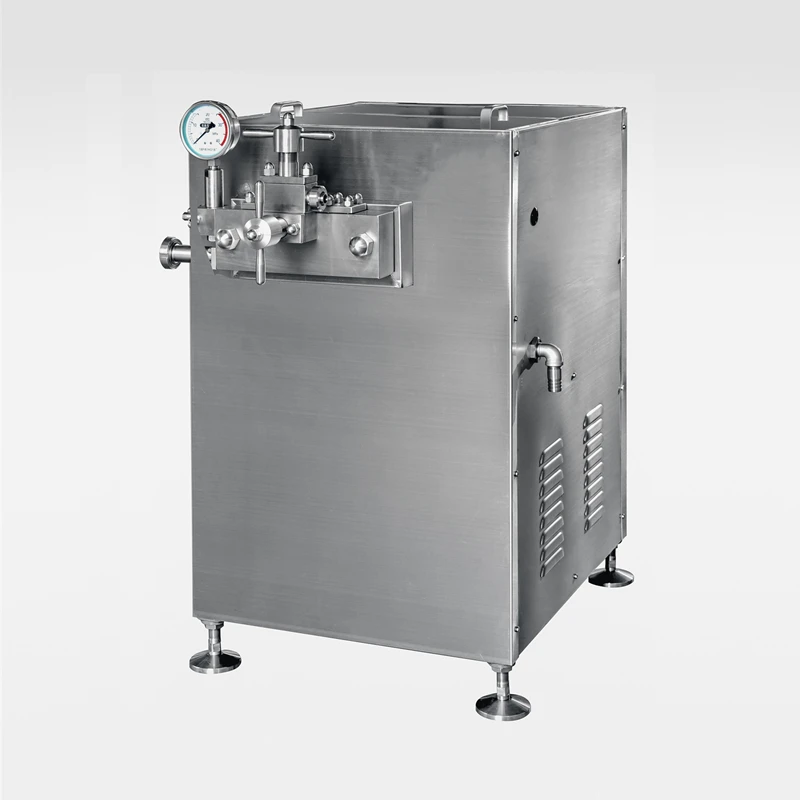

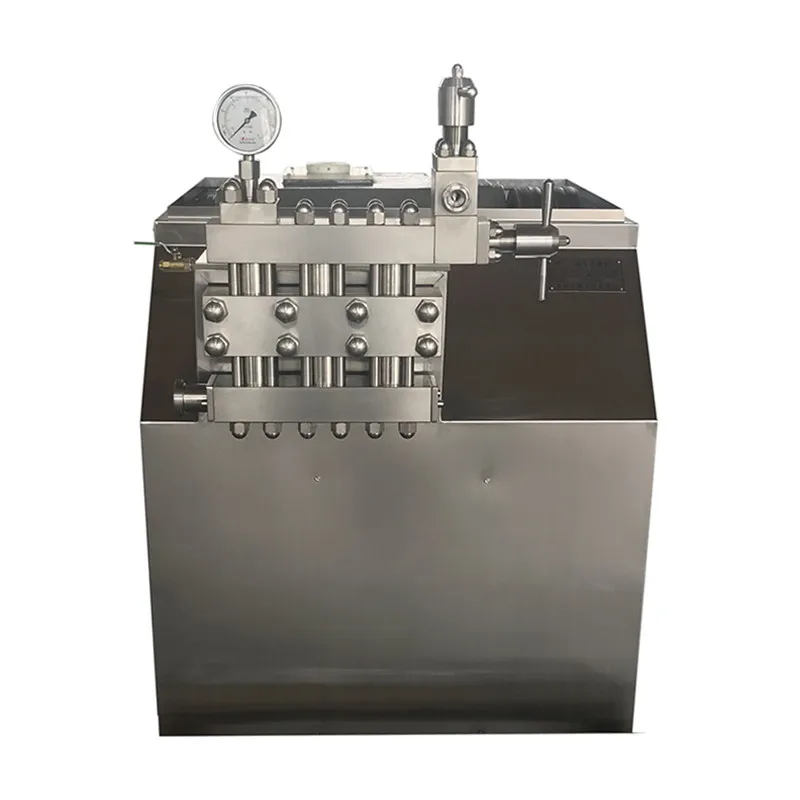

Small Flow Yogurt Fruit High Pressure Milk Homogenizer On Sale





Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2Mpa.
Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤ 1 micron.
Sealing material can work under less than 150oC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later.

Industry Small Homogenizer For Drinks On Sale

The higher the pressure the finer the material the more uniform particle size, 30Mpa the following models, mainly for liquid - liquid emulsification. Pressure of 30Mpa above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60Mpa reach 2μ M particle size less than when the material reaches 80Mpa more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μ M. As to 100Mpa above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μ M can be prepared the following no-grain materials.



2.

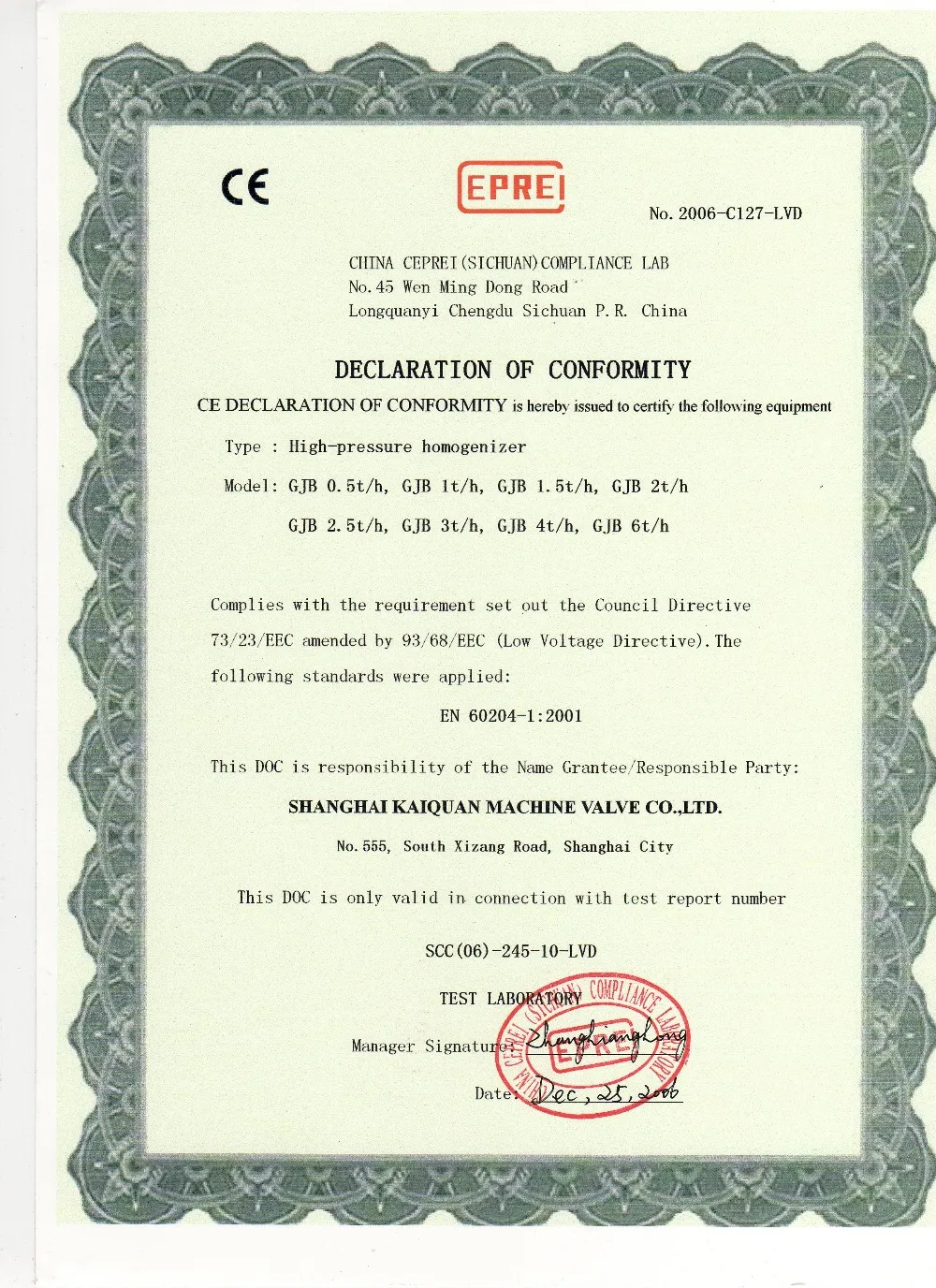

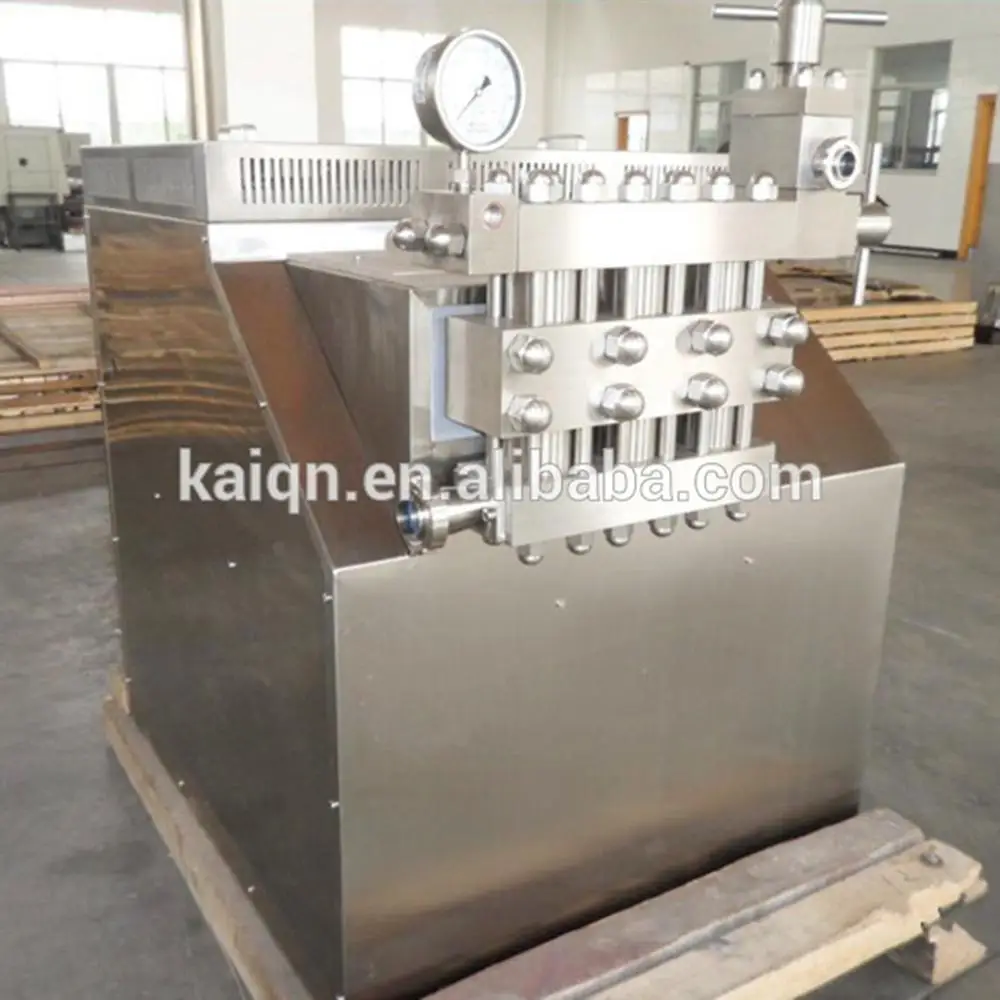

  Our High Pressure Homogenizer was certificated by CE .So Europe Market is our main markets .







Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow(Liters/H)	500	1000	1500	2000	2500	3000	5000
Medium temperature(℃)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	380V,50HZ,3PH	380V,50HZ,3PH	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7
Unit price FOB Shanghai(USD)
Unit price CNF





3.





4.

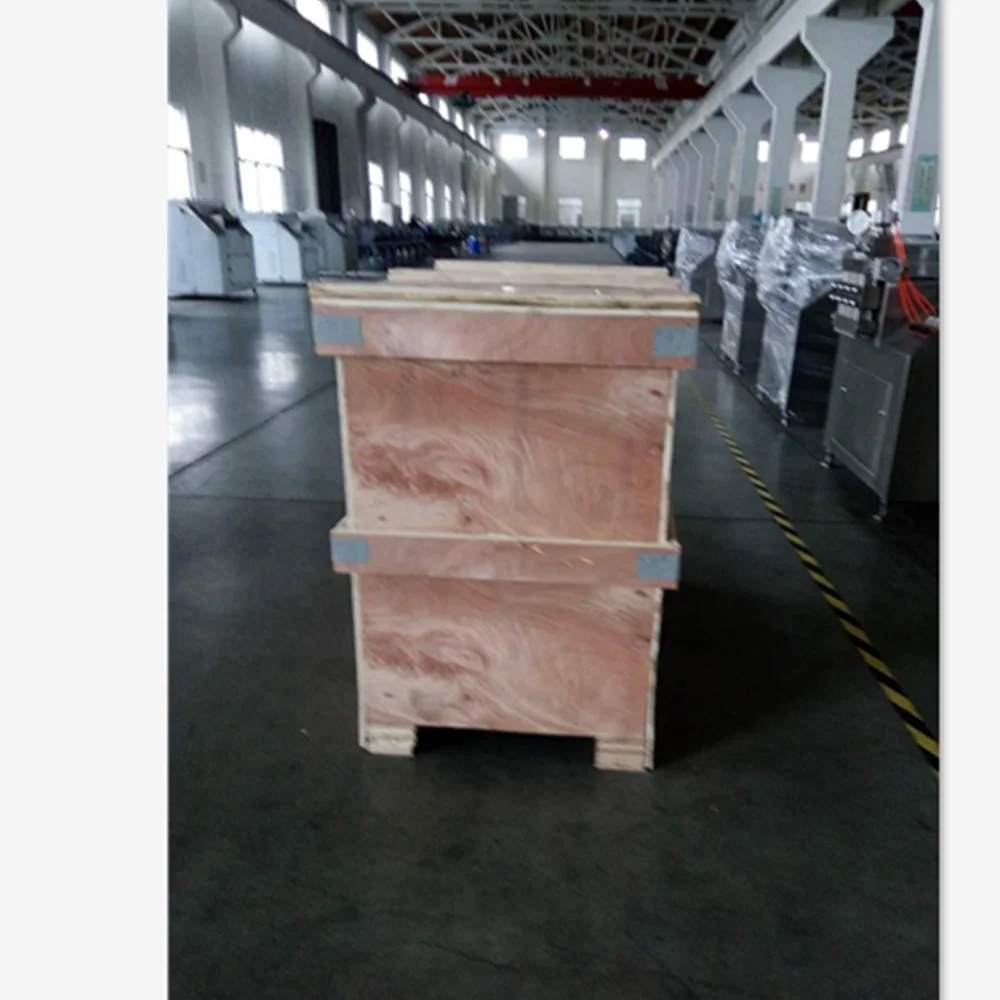

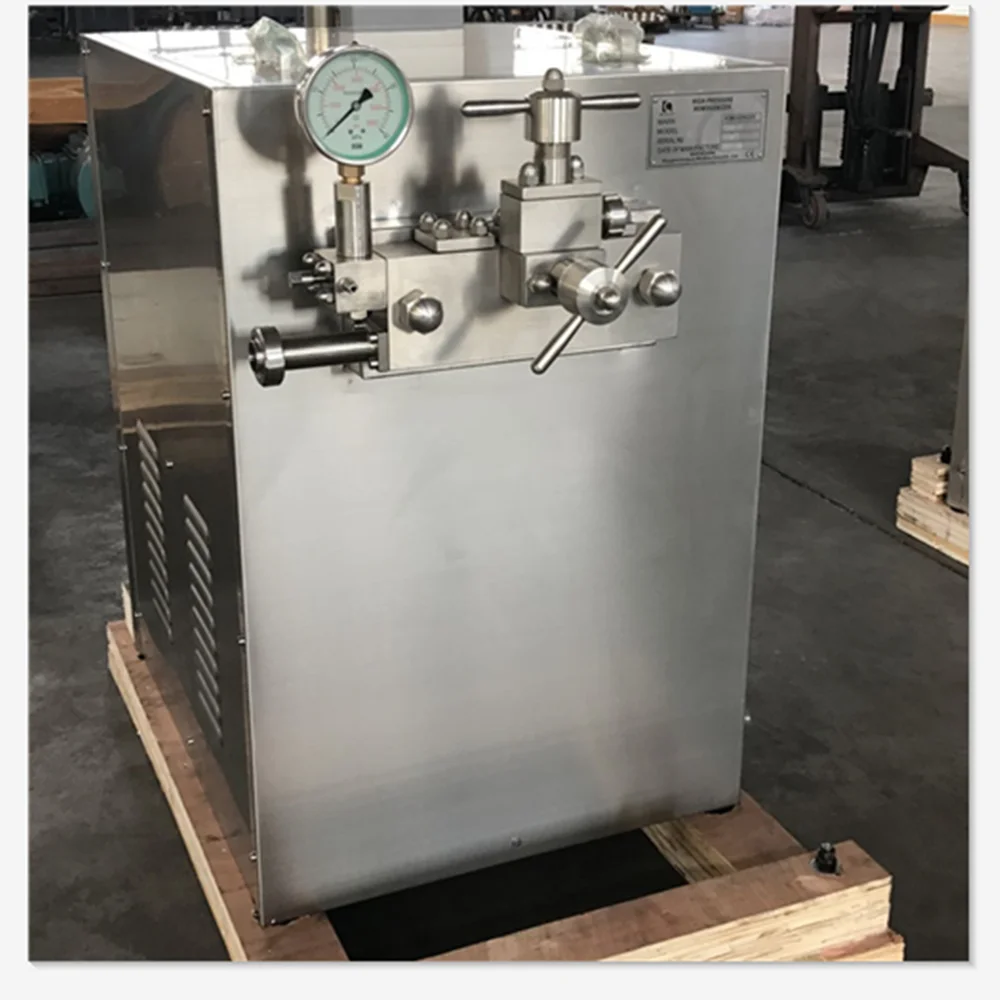

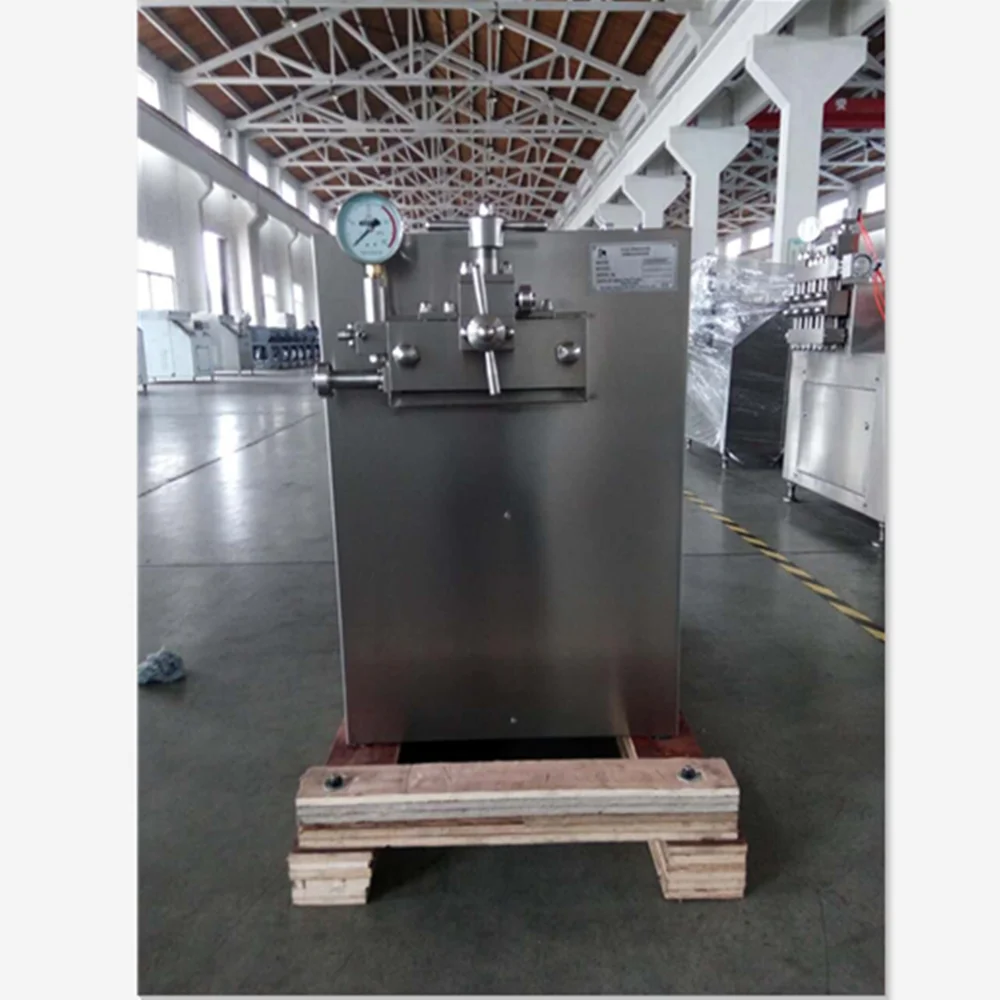

 Wraped with pvc paper before put on the wooden pallet ,then put into the wooden box then tied with steel belts .Pls refer to the picture below :



5.



Company Information



 Shanghai Kaiquan Machine Valve Co.,Ltd. is a professional manufacturer dedicated to research, development, manufacture and sale of all kinds of beverage and foodstuff machinery.



Having the rich experience of more than 20 years in foodstuff & beverage machinery field, we can help customers design, manufacture, install and operate the turn-key project for mineral water, pure water, carbonated drink, fruit juice, milk, yogurt, cheese and ice cream production lines etc.



Our main products include water treatment systems, bottle blowing machine, RO systems,3-in-1 mono block filling machine, coil, plate, tubular UHT sterilizers, homogenizer, ink jet printer, liquid packing machine, shrink labeling machine, all kinds of tanks, ice cream machine, foodstuff machine, etc.



With the good reputation and fame among the loyal customer, our products have been sold and distributed to over thirty provinces and cities in China, exported to more than 85 countries and areas throughout the world. Upholding the idea of providing customer with "Innovative solution, Reliable Quality and Responsible Service", we aim to offer more reliable and flexible machines that are easily adaptable to market developments and future technology.



Our company has rich experience to help customers to establish the different production lines for different use, for example. we can arrange technical staff to help customer set up whole production line for mineral water, pure water, coca-cola, milk, juice and vinegar oil, we are profession for making it. If anyone who is interested in such field wants to buy  the whole equipments and machines, pls contact us freely.
