Product Overview

Description

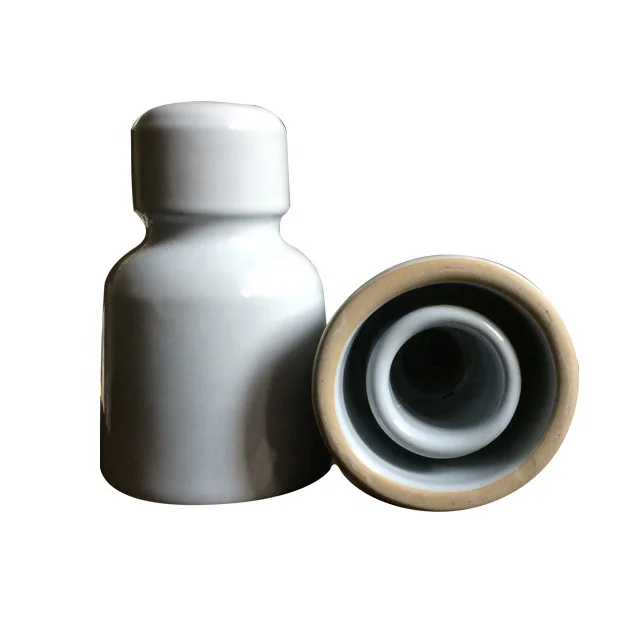

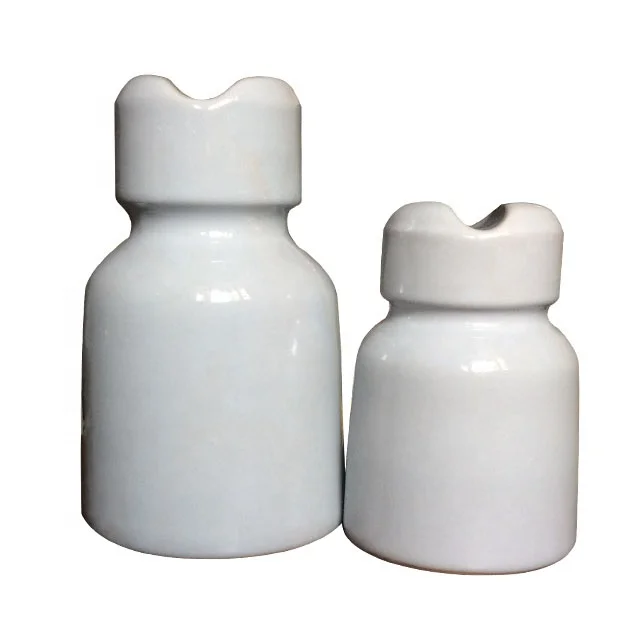

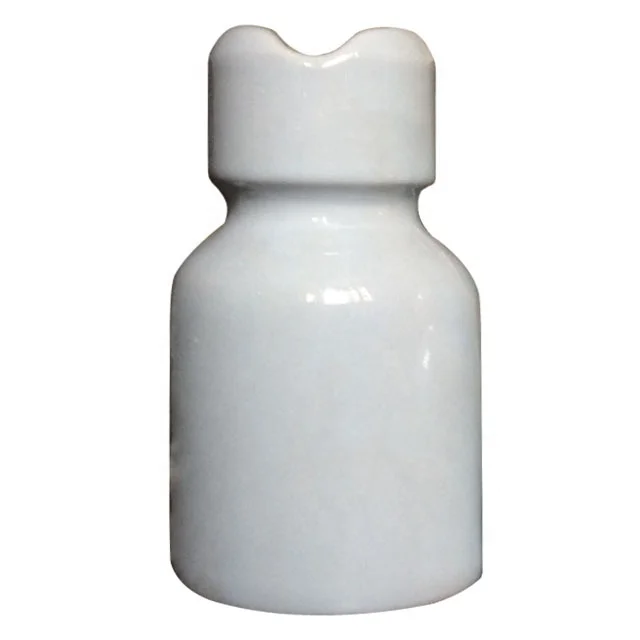

                                  RM-2 Type Pin Insulators Telegraph Insulator























































































VDE Class



RM-1




RM-2




RM-3

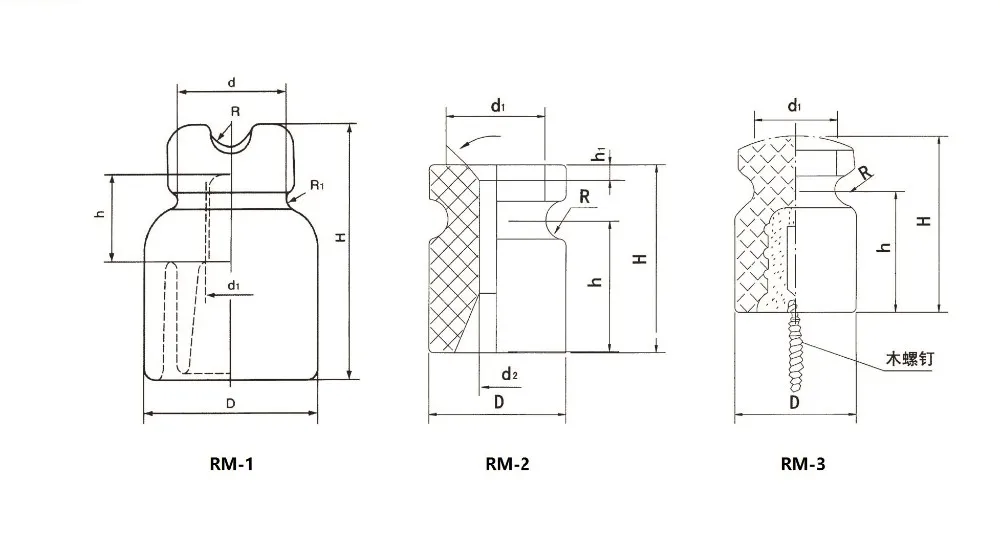

Main dimension,mm



D




86




70




60




H




140




100




80




d




52




44




35




d1




22.5




18.5




16




h




50




32




30




R




12




8.5




7




R1




4




3.5




3



Leakage distance,mm



280




175




-



Insulation Resistance,MΩ



50000




40000




20000



Approx.weight,kg



1.1




0.5




0.3
