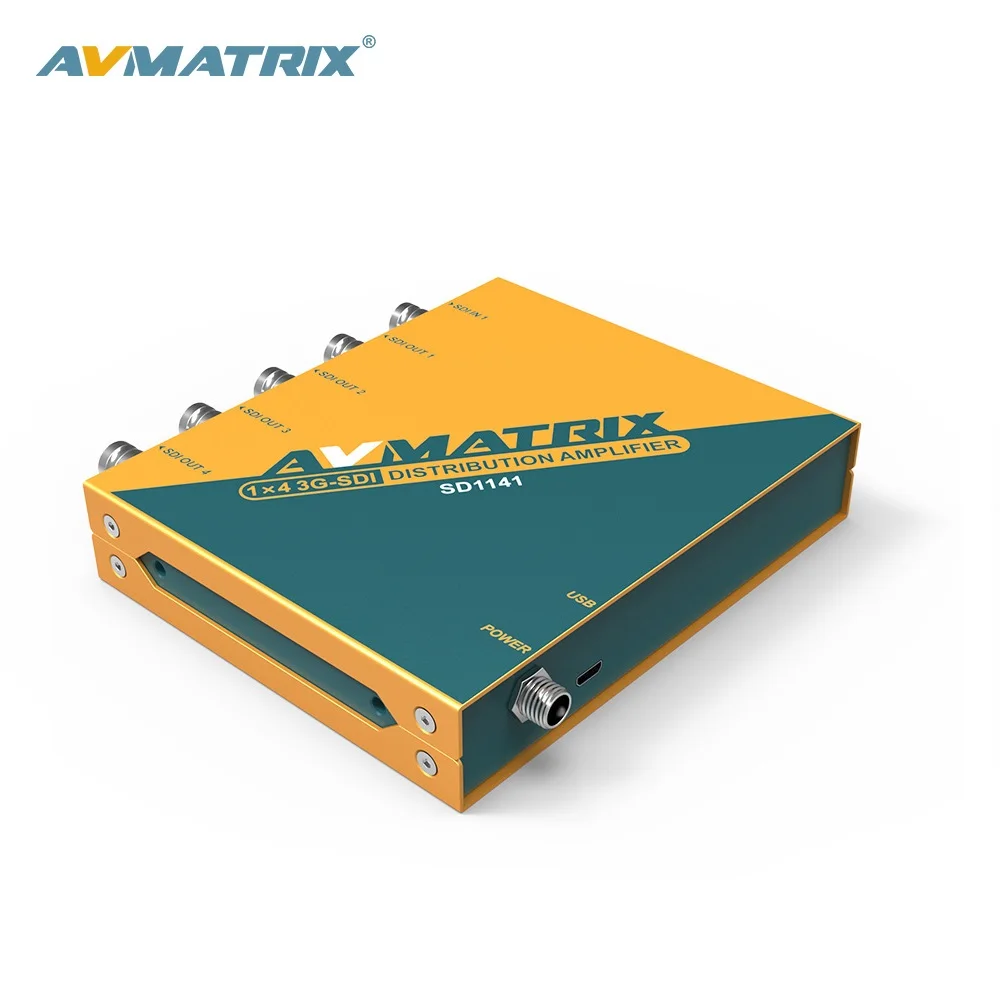

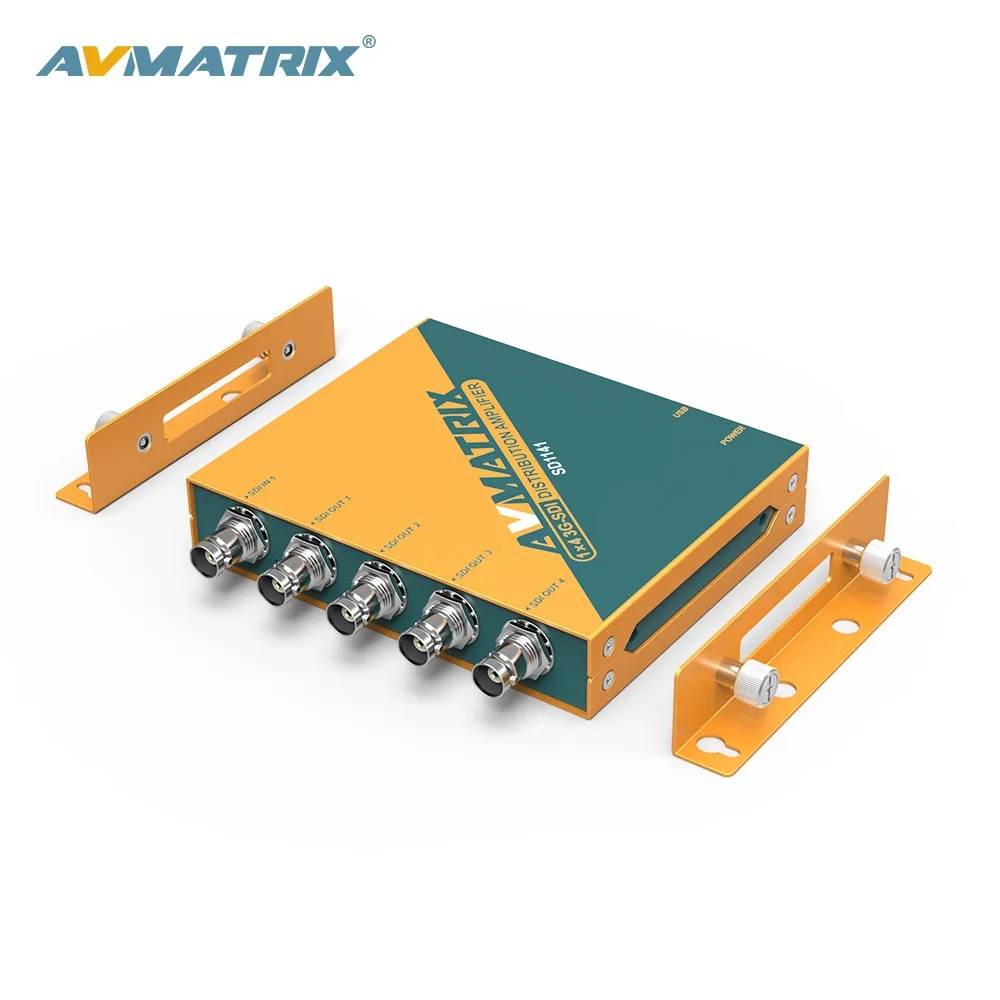

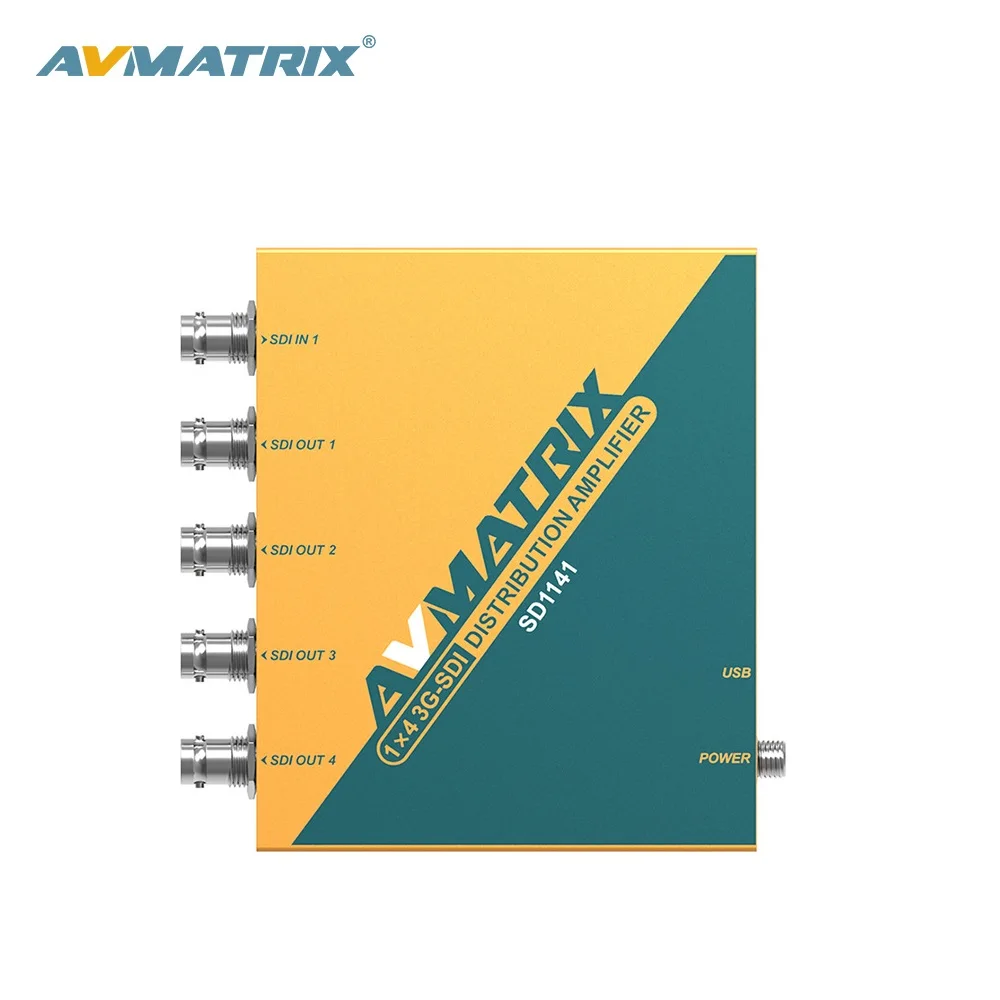

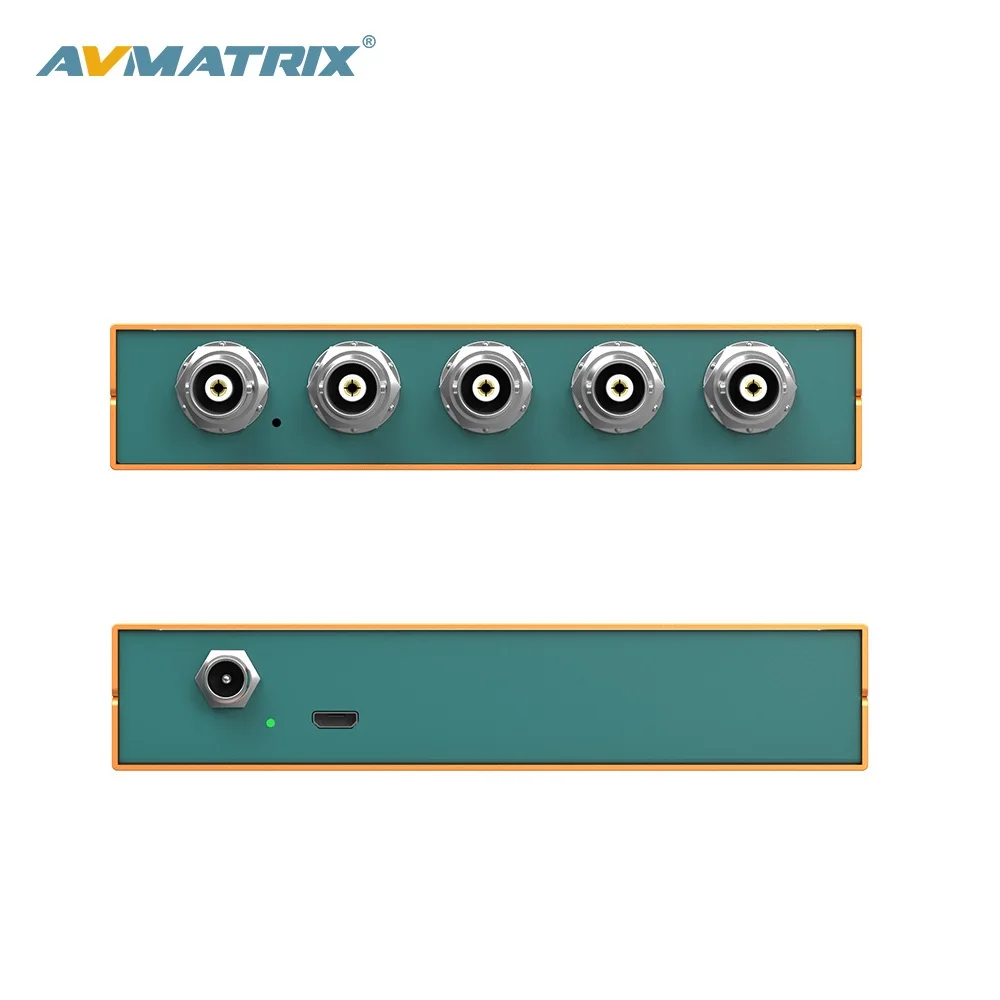

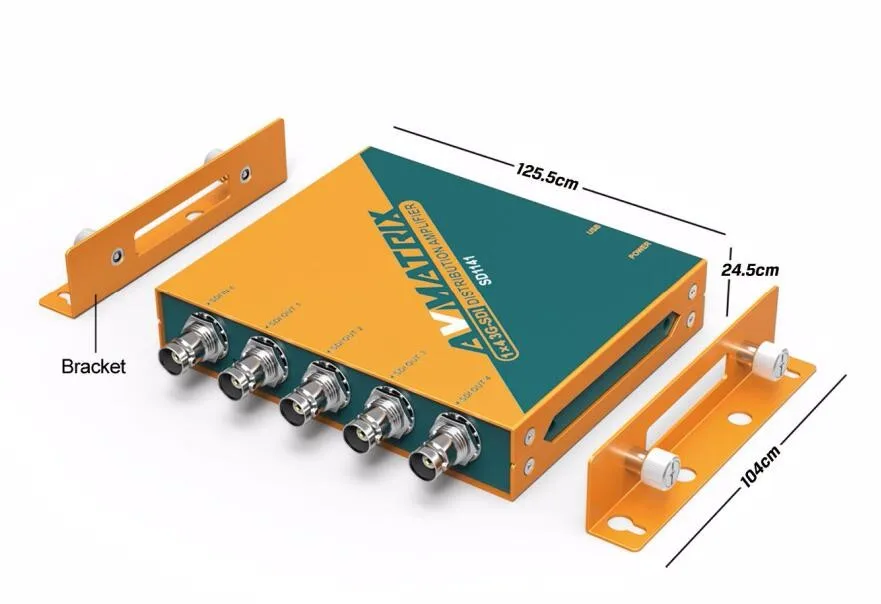

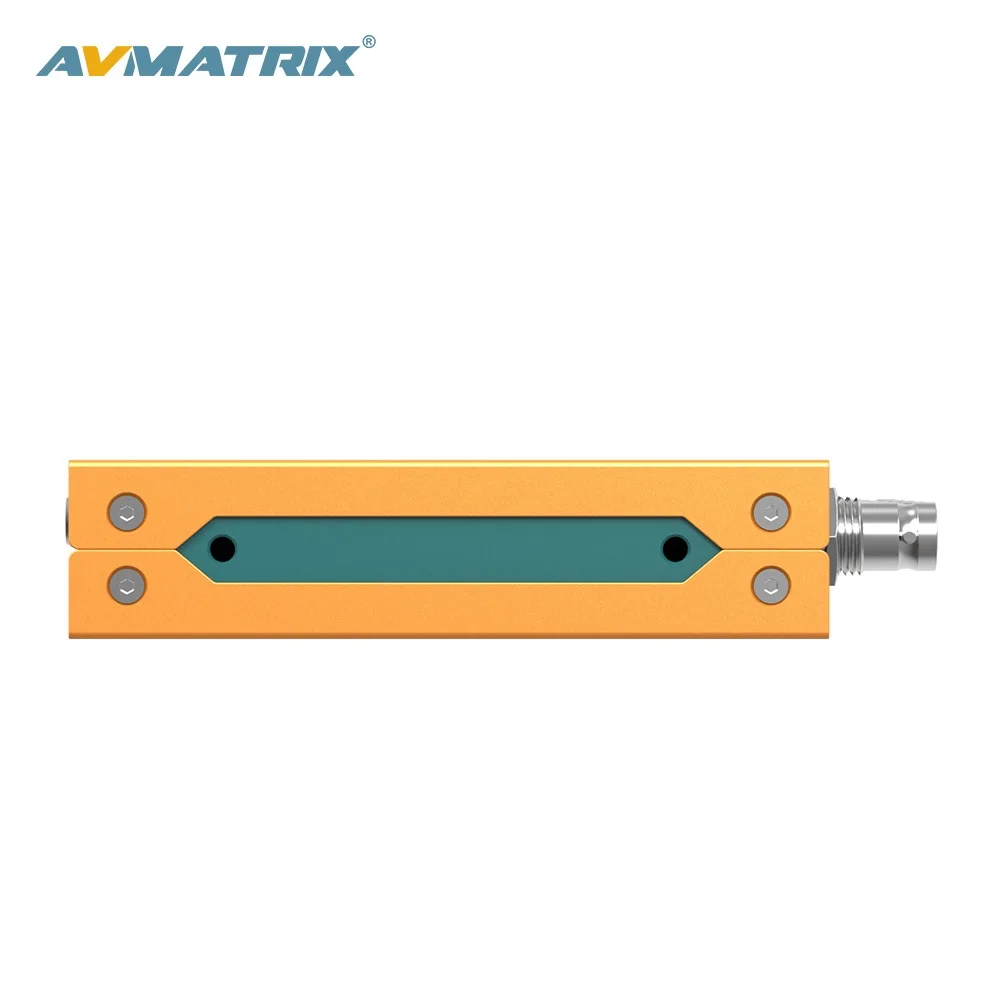

AVMATRIX 1x4 3G SDI Distribution Amplifier with Reclocking

SD1141

1×4 SDI Reclocking Distribution Amplifier

The SD1141 is a miniature, low-cost 1x4 3G HD-SDI/HD-SDI/SDI re-clocking distribution amplifier. Featuring four separately buffered SDI outputs, the SD1141 provides automatic input detection, re-clocking and cable equalization.

Main Features

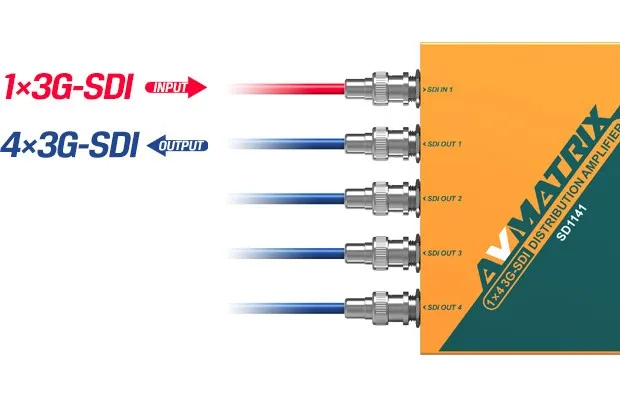

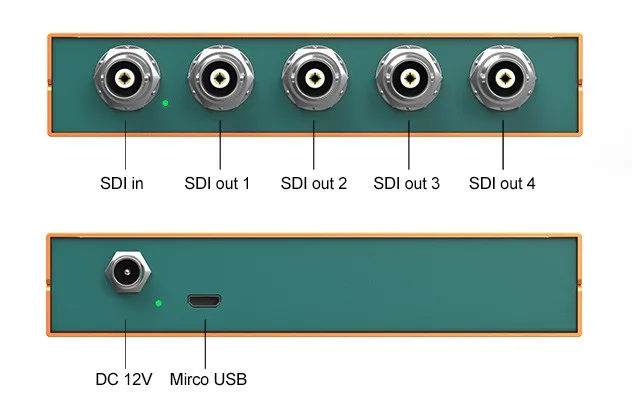

1×4 Distribution

SD1141 is a compact, one input, four output distribution amplifier for SDI and multi-rate SDI video signals up to 1080P 60hz(2.97 Gbps). Output 2 & output 4 support DVB-ASI signal.

120m
SDI Re-clocking

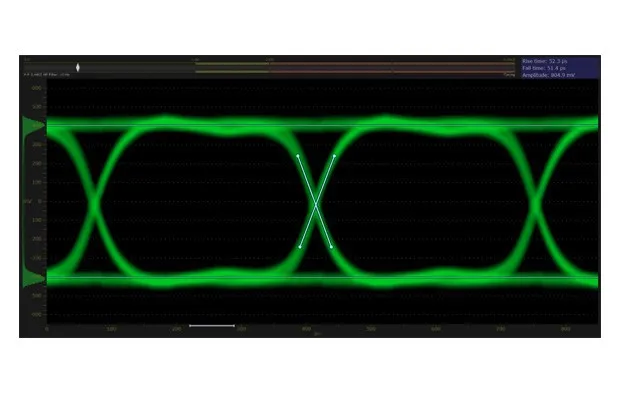

SD1141 include built-in SDI re-clocking and equalization. They will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing.

This allows longer cable lengths(3G: 120m, HD: 200m, SD: 400m).

Widespread Application

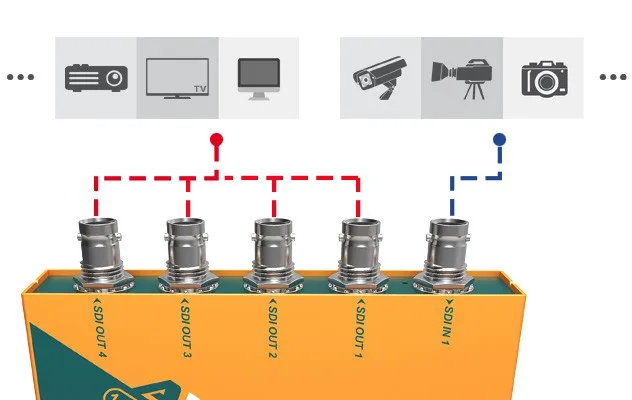

SD1141 is ideal for use in broadcast and video production facilities, command and control centers, medical imaging facilities., rental and staging, and other applications.

After-Sales Service

AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.

About AVMATRIX

AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
