12/24vdc tubular motor CE approval electric linear actuator for electric sofa

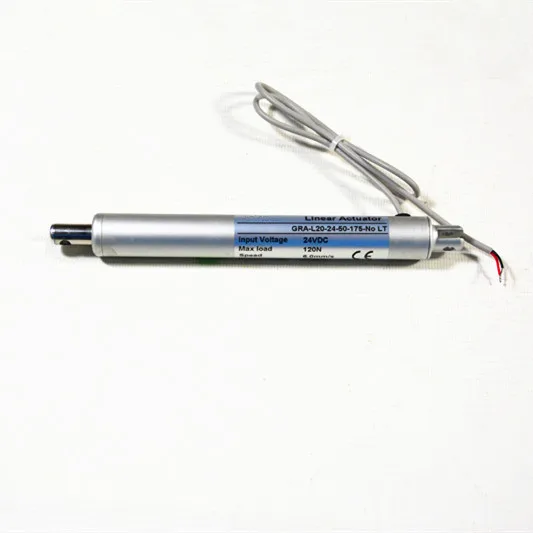

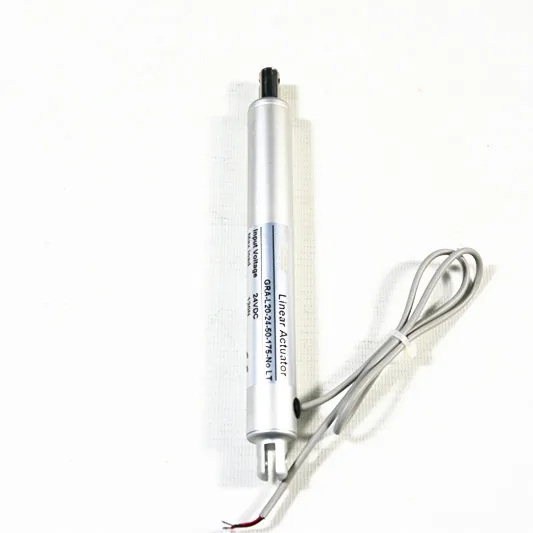

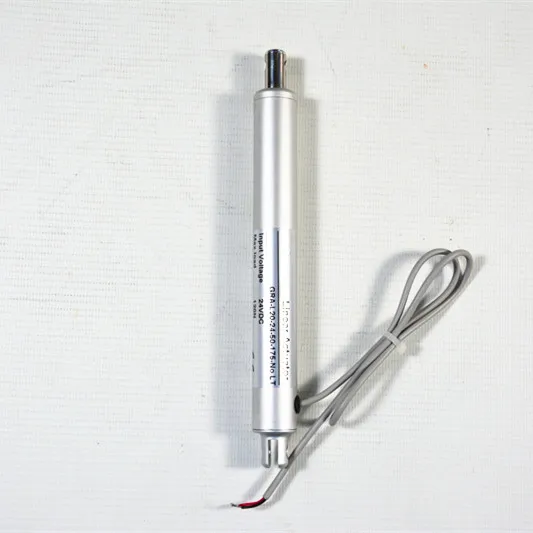

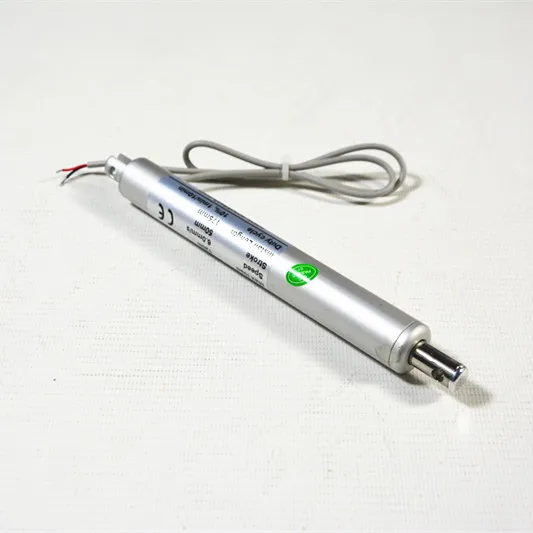

Pen Linear Actuator

Diameter 20mm
12 or 24VDC 0.05-0.1A
25 to 150mm stroke

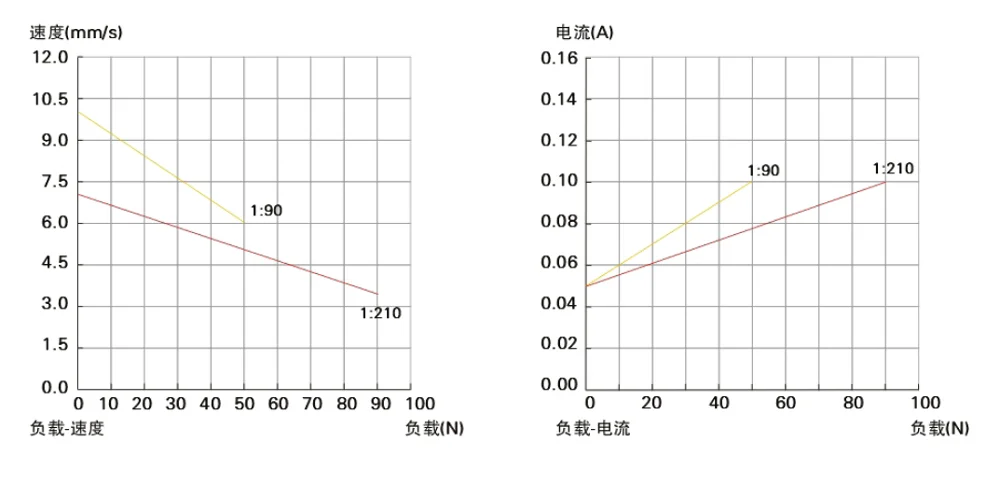

3.5-6.0 mm/sec
Max pull force 120N
Waterproof grade IP56

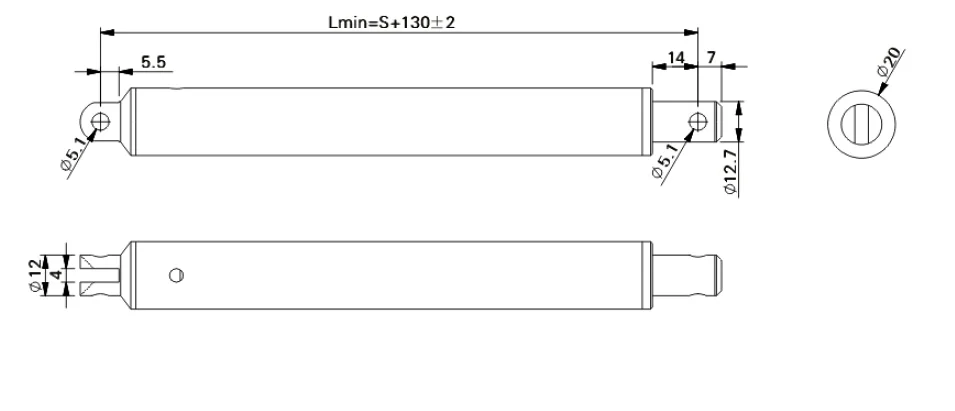

Mini install length, S+125mm (upgraded version 2)

User need to consider to limit the working length of the pen linear actuator

About the shipping methods ,  for samples or small batch , air shipping  is recommended .

For mass production or big batch, ocean shipping is recommended .
