90 degree curve belt conveyor flat belt conveyor

Product Overview

Description

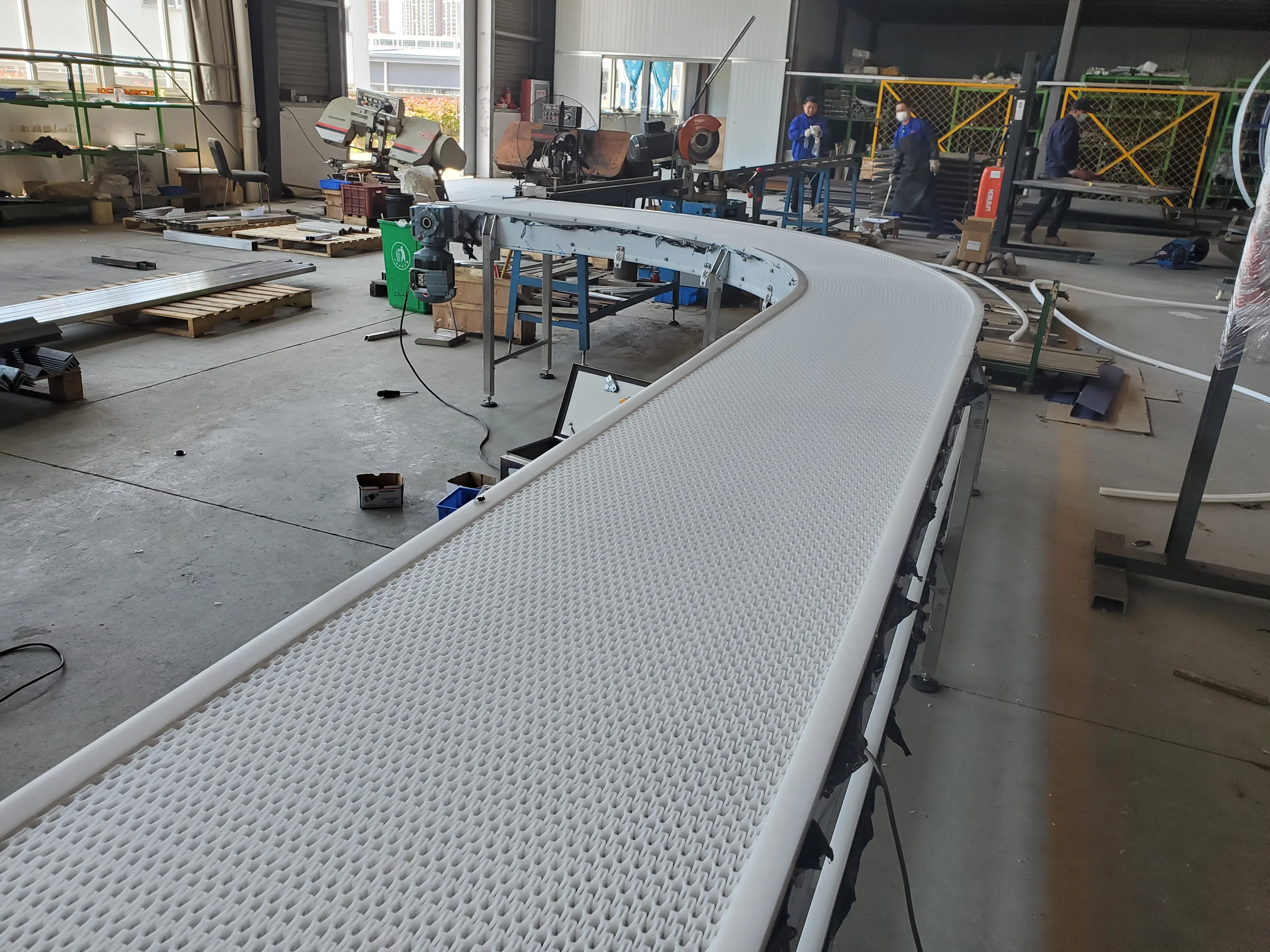

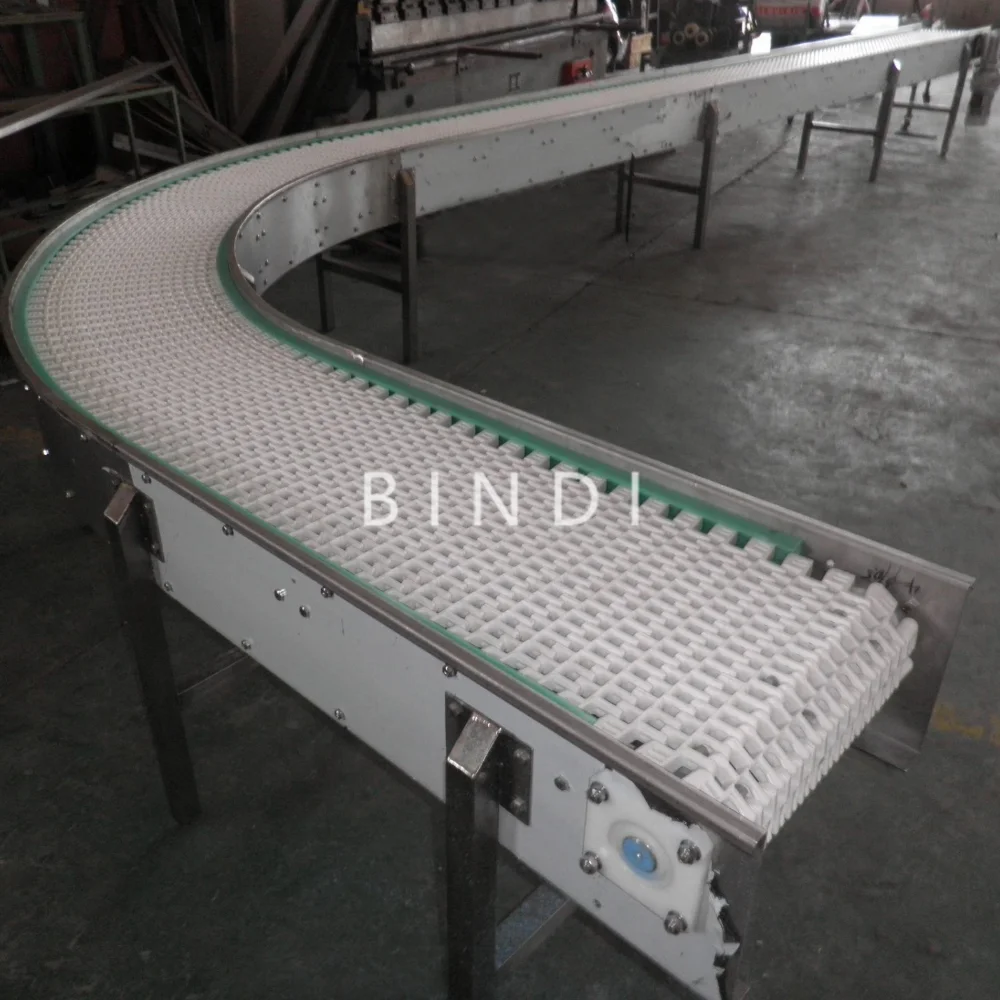

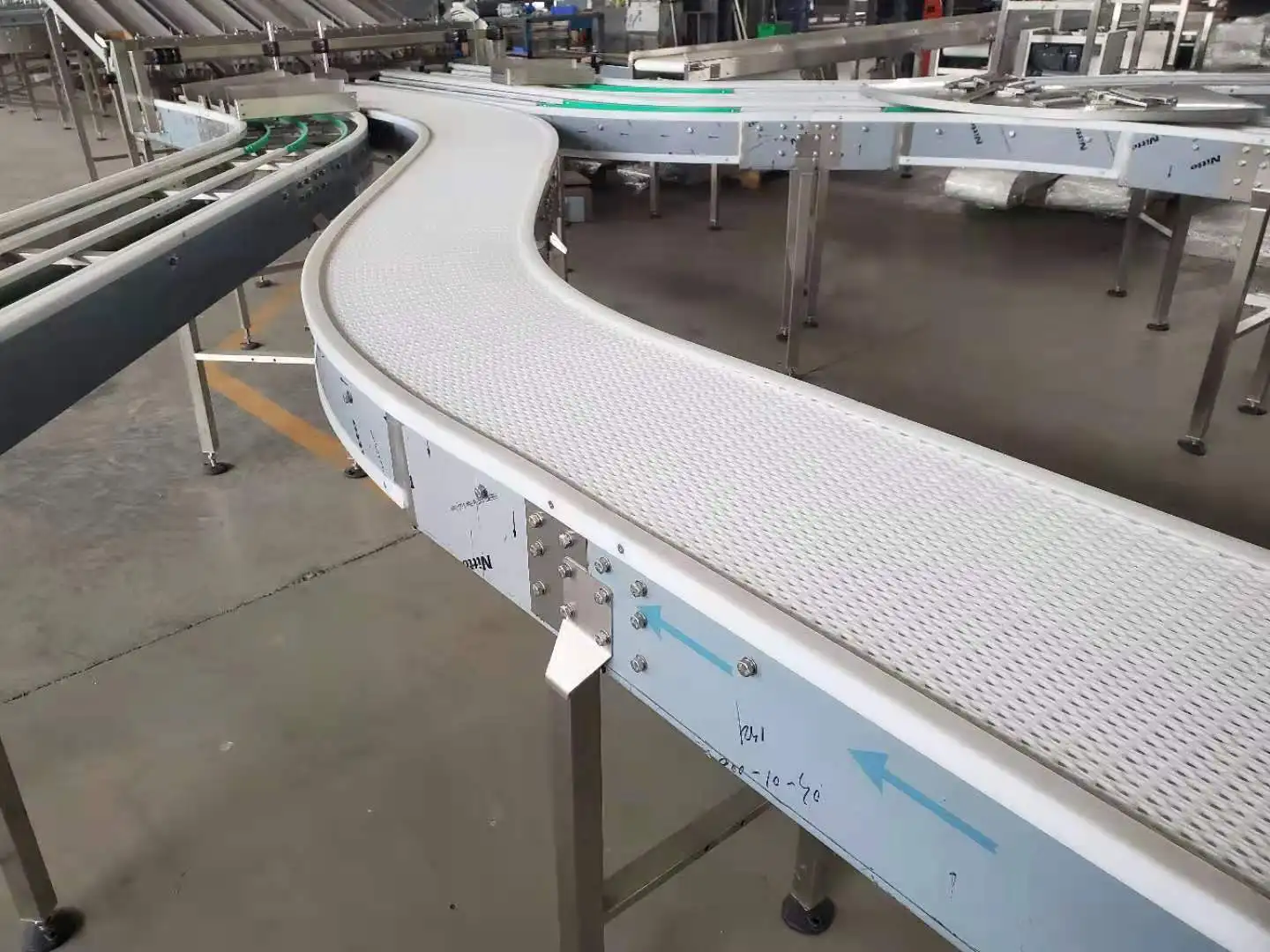

90 degree curve belt conveyor flat belt conveyor



Specifications for modular belt conveyor

Product name	90 degree curve belt conveyor flat belt conveyor
Frame structure material	304 stainless steel
Modular belt material	POM/PP
Voltage(V)	110/220/380
Power(Kw)	0.37-1.5
Speed	adjustable(0-60m/min)
Angle	90 degree or 180 degree
Application	widely used in food,beverage,packaging industry.
Installation advice	Radius is the 2.5-3 times of the belt  width



1 The base frame

1.1 The base frame uses 2mm 304 stainless steel through the bending forming

1.2 The carrying idler uses 50mm in diameter stainless steel free roll

1.3 The fence uses fence holder with aluminum rail and plastic sheath

1.4 The landing leg uses 40*40mm square tubes with both 1.5mm and 2mm in thickness

1.5 The driving shaft and driven shaft uses 40*40mm stainless square shaft

1.6 The drive sprocket uses 16-tooth 40*40mm square hole



2 The conveying belt

2.1 The conveying belt uses BD-625 flexible modular belt made by Bindi. The color is blue or white.

2.2 The pitch is 25.4mm.

2.3 The material is POM



3 Power system

3.1 Powered by Taiwan brand gear reducer motor. The power is 0.37-2.2KW.

3.2 Converter governor is also Taiwan brand. The power is 0.37-2.2KW.

3.3 The conveying speed is adjustable from 5 to 15 meter per minute.

















Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5 days for spare parts, it will take 2 weeks for customized conveyor machine.
Q: Can you design according to our requirement?
A: Of course, we can design automation solution according to your technical drawing and requirement. Please tell us your requirement and production process.

Q: How to visit your factory?
A: Welcome to visit our factory and we can pick you up from Airport.
Q: When can I get your reply after inquiry?
A: Within 24 hours.
Q: Which seaport is near to you?
A: Shanghai port,China.

If you have any other questions, please don't hesitate to contact us. We will reply you as soon as we can.
