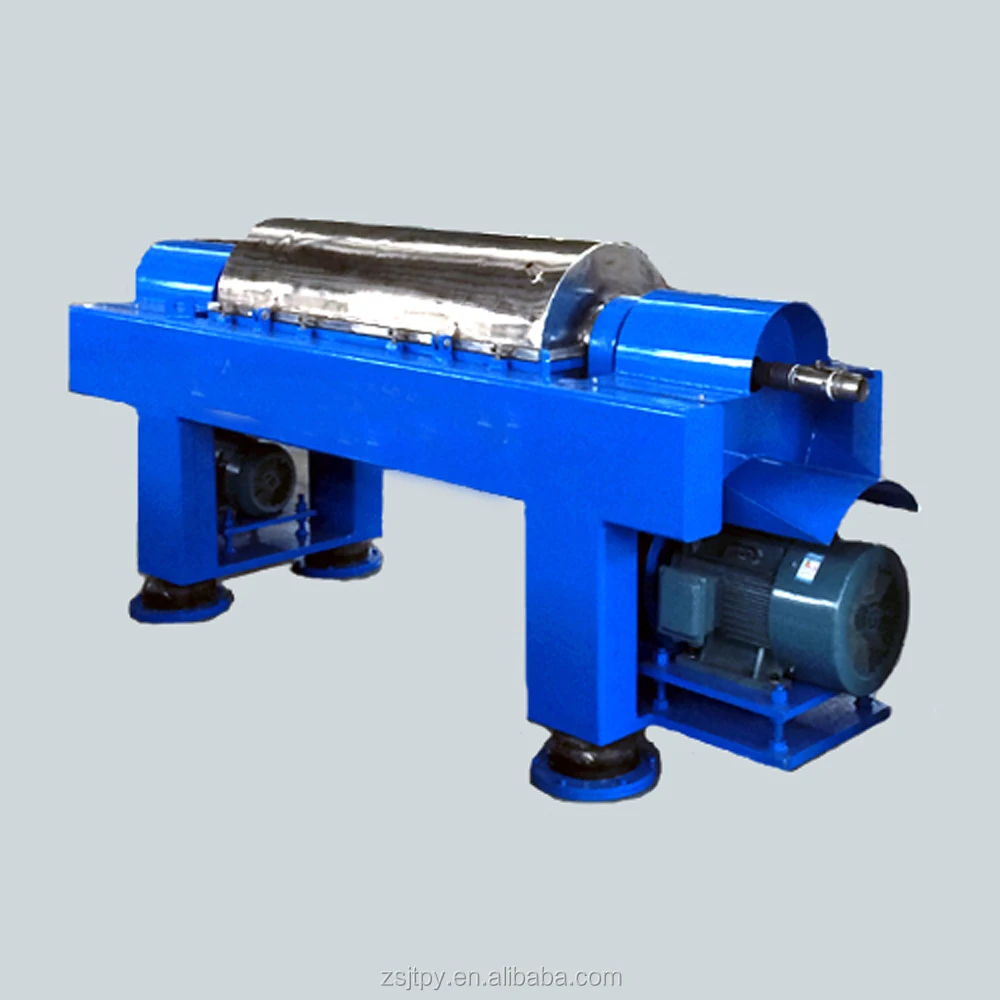

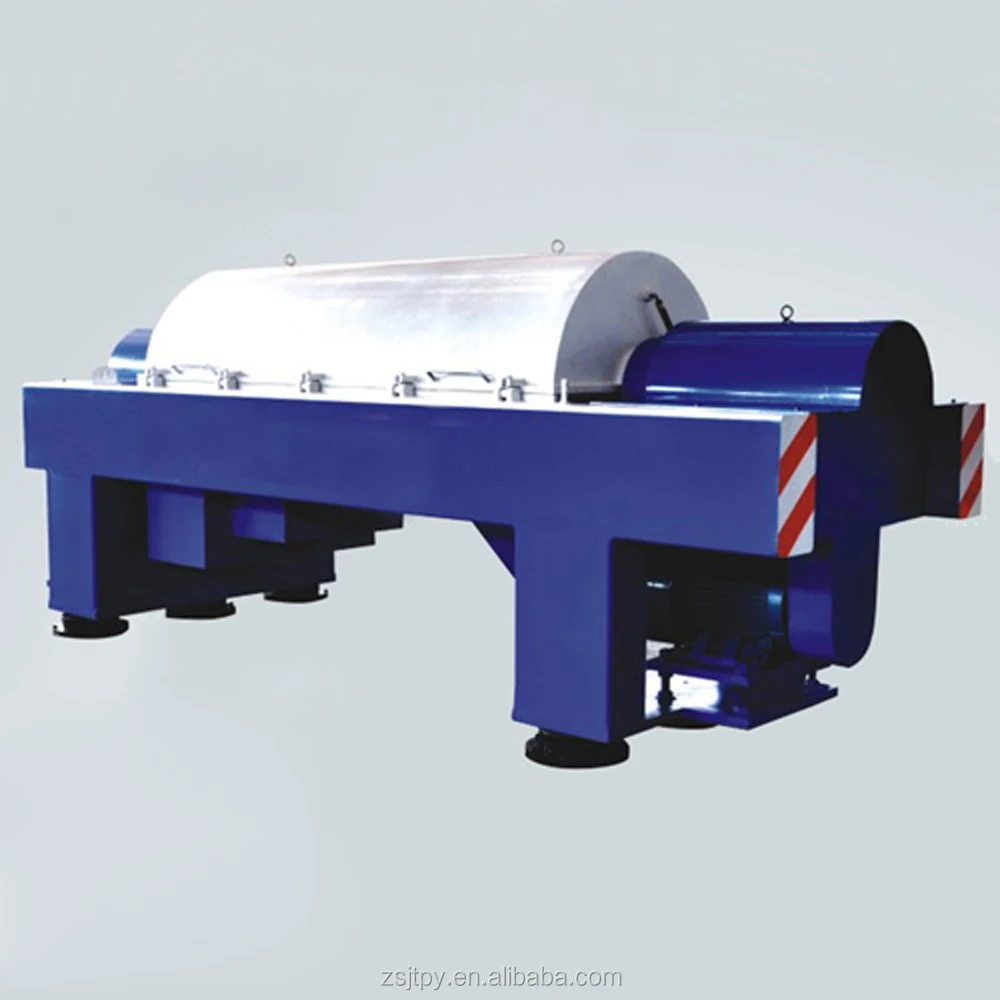

The horizontal spiral sedimention centrifuge has advantages in wide adaptability great throughput,continuous and simple operation,easy installation, and small floor area, and is mainly used in petroleum,environmental protection industry,chemical, food, paper-making, brewing and amylum.industry etc.
The decanter separates suspension based on the pinciple of centrifugal settlement.A suspension is supplied to the rotatng bowl through an accelerator centrifugal force and transported towards the right shaft of the bowl by the conveyor and then discharged though solids discharge ports.while lighter liquid phase flows to liquid discharge ports at the left shaft of the bowl.
Main technical parmeter
1 Diameter of Revolving Drum:355mm;
2 Length of Revolving Drum:1257mm;
3 The max rotation speed:3400rpm;
4 Separation Factor:G =2296
5 The main motor power:YB200L-4 30kw 380v
6 Secondary motor power:YB160M-6 7.5kw 380v
7 Overall dimension:L×W×H=2850×1570×1700mm;
8 Total weight:about 2600kg;
