Android Rooted 7 inch IPS display Tablet pc with Arduino and GPIO for data communication
- Category: >>>
- Supplier: Shenzhen Sibo Industrial & Development Co. Ltd.
Share on (60720441622):
Product Overview
Description

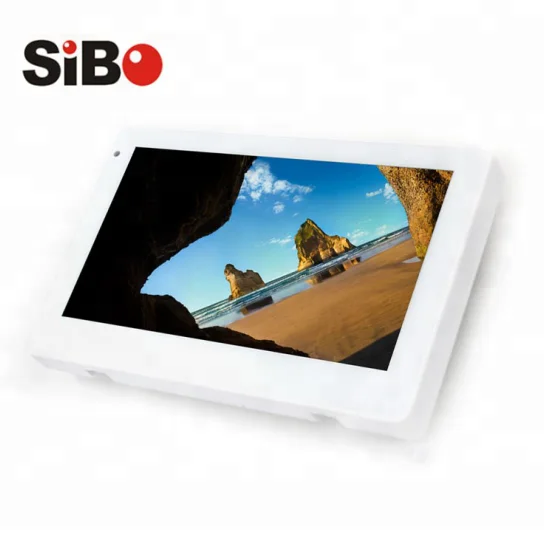

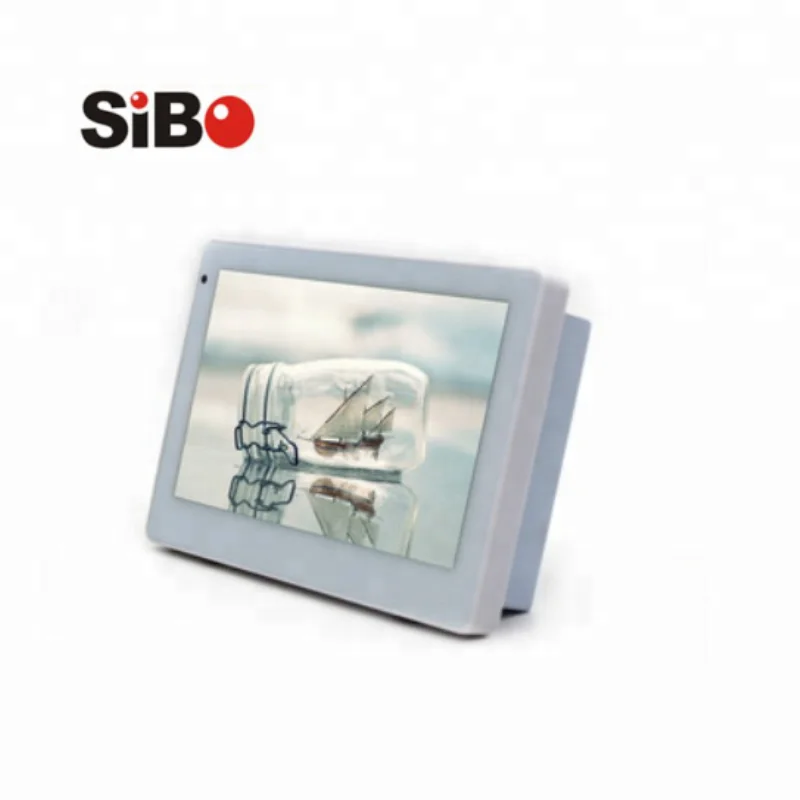

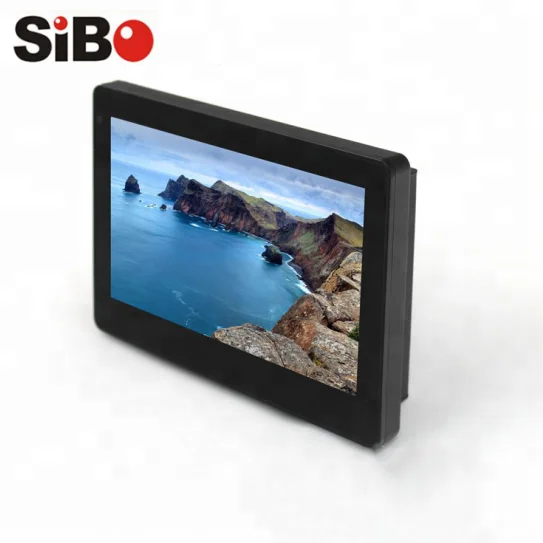

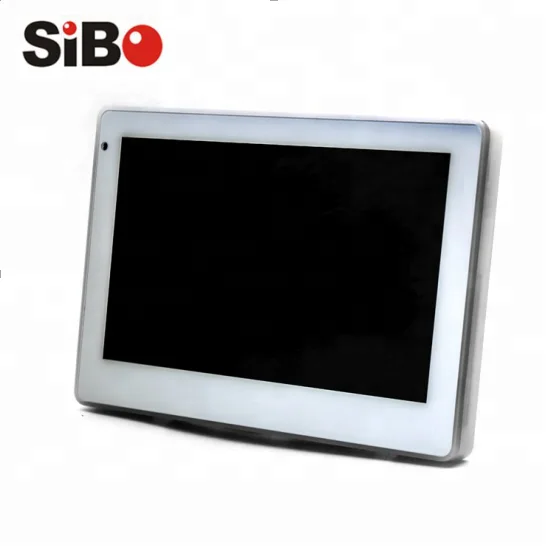

Android Rooted 7 inch IPS display Tablet pc with Arduino nano PCB and GPIO for data communication
This Android panel PC is a wall-mountable or Desk Mountable design with no external buttons. The unit supports RJ45 (Ethernet LAN interface) with a DC In 9V-36V. The unit also supports built-in POE (fully complaint with 802.3 af) support.
Various mounting options exist including in-wall flush, on-wall and desktop mounting ability. The unit is available in white or black colors.
Powered by the powerful 1.2GHz ARM Cortex Octa Core processor, this tablet is designed to give you high performance with long shelf life and is designed to operate on a 24x7 basis.
The tablet has 2GB RAM and 8 GB ROM extensible upto 32 GB of storage with 3G dongle.
The tablet can be used for a variety of applications including:
- Home and building automation
- Industrial control and monitoring
- HVAC Monitoring/control
- Employee Time Data entry
- Conference & meeting room schedulingEnergy Management
Basic specifcations:
- CPU: ARM Cortex A7 Dual-Core, 1.2Ghz
- OS: Android 6.0.1
- RAM: 2GB
- RAM: 8GB
- Display: 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 nit
- RJ45 Ethernet LAN
- SIP Stack for Intercomm and VOIP Communications
Key features :
- POE 802.3 af (48V)
- Wall mountable design with various brackets
- Fancy look with full glass front panel
- Auto boot up when power supplies
- Front reading internal NFC reader
- RGB LED light bar
- RS232/RS485/GPIO/Arduino nano pcb
- Demo app and source code for reader and sensors
- Disable status bar and make your app works as system app and default launcher as kiosk mode
- Customized boot logo and animation
- Accept small order quantity
| Model Number | Q896S | |||
| Hardware Specs | Processor | Allwinner A83T processor | ||
| CPU | 8-Core ARM Cortex A7 CPU, 1.2Ghz | |||
| Display | 7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2 | |||
| RAM | 2GB | |||
| Nand Flash | 8GB | |||
| Dimensions | Width:182mm Height: 121mm Depth:25mm | |||
| Software Feature | System | Google Android 6.0 | ||
| Video | H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols | |||
| Audio | Two Speakers 2 X 1 Watt (Integrated 3W Amplifier For External Speakers) | |||
| Language | Support multi-languages | |||

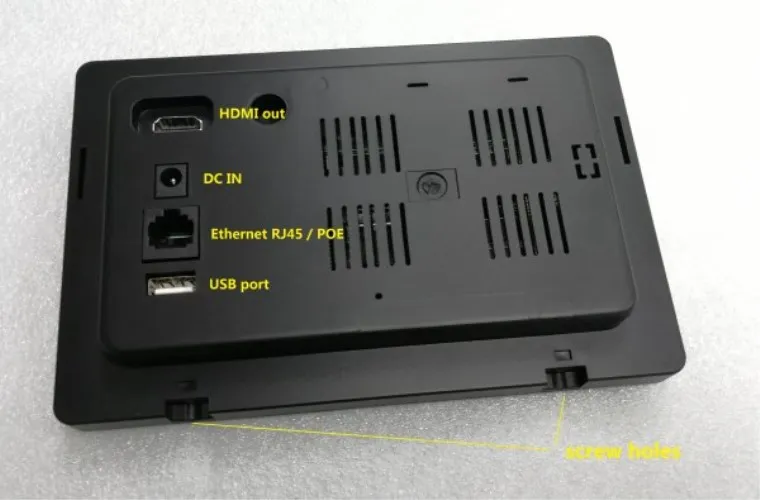

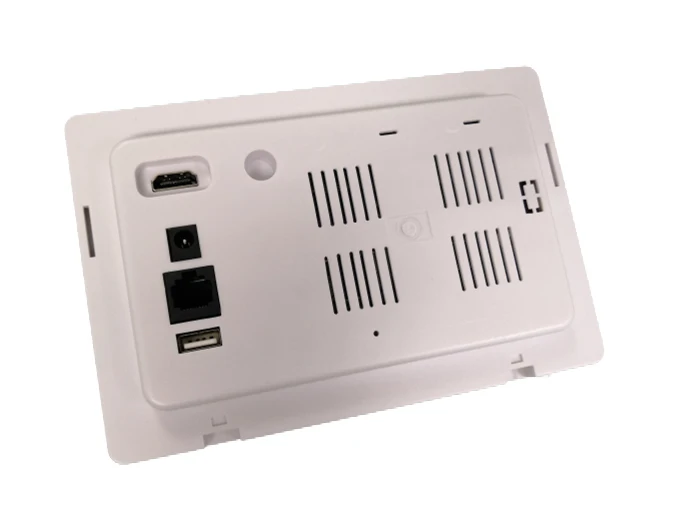

| Interfaces | Back | HD-MI Out | ||
| DC IN Power Terminal (9V-36V) | ||||
| Ethernet Interface(RJ45) | ||||
| USB Socket HOST Mode By Default, Optional: Jumper Cap For Device Mode | ||||
| Optional:RS232,RS485 | ||||
| Network | WIFI+BLUETOOTH | WIFI (802.11b/g/n), Bluetooth V2.1+EDR/BT v3.0/BT v3.0+HS/BT v4.0 | ||
| LAN Port | Ethernet RJ45 | |||
| Power Supply | DC IN | DC 9V - 36V | ||
| Boot Up | Auto Boot | Auto Boot Up When Power Supplies | ||

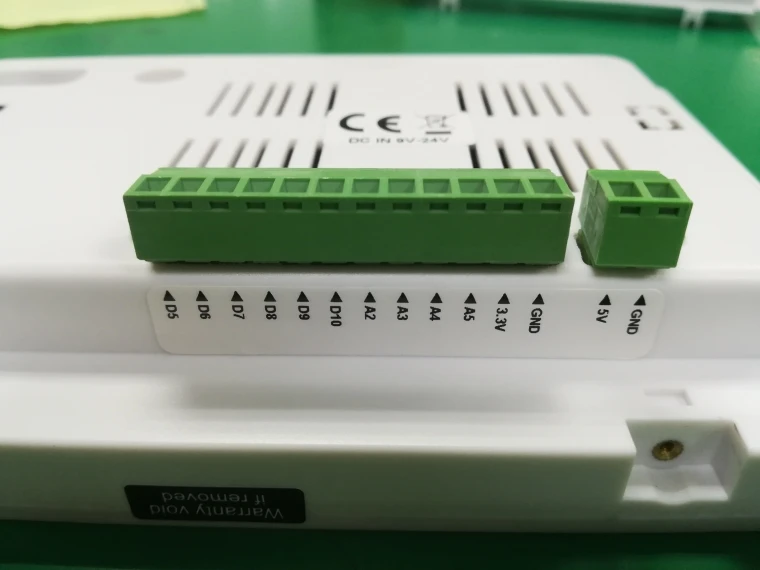

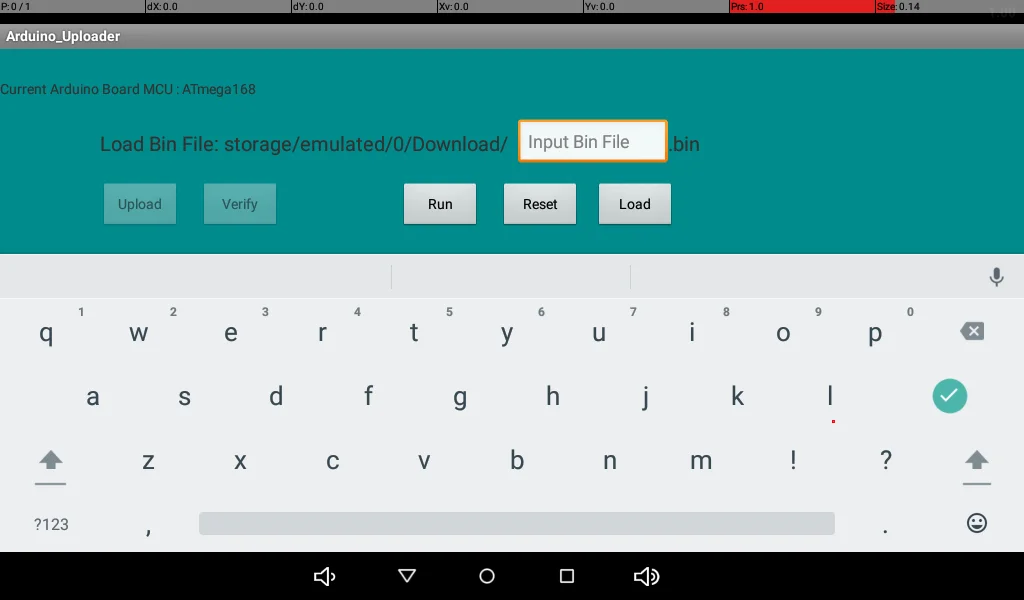

For Arduino :
( Will provide you with the demo app and source code for your reference and develop )

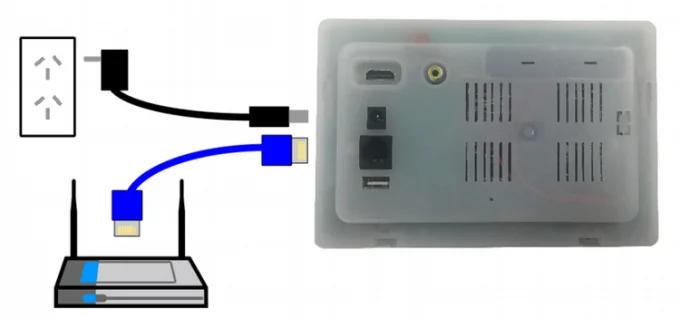

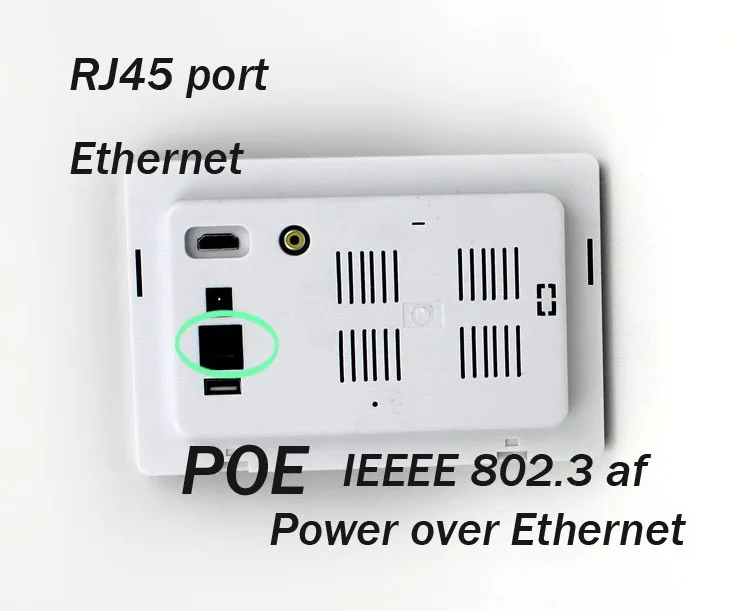

For POE :Power Over Ethernet refers to the existing Ethernet Cat.5 cabling infrastructure without any changes in the circumstances, for some IP-based terminals (such as IP phones, wireless LAN access points AP, network cameras Etc.) to transmit data signals at the same time, but also for such equipment to provide DC power supply technology.
POE two power supply methods :
- Mid -Span ( Using a stand-alone PoE powered device, spanning between the switch and the PoE-enabled terminal device, typically uses an unused idle pair of Ethernet cables to carry direct current )
- End-Span ( It is the power supply equipment integrated in the switch signal exit, such an integrated connection generally provides Idle line and data line pairs "dual" power supply.)

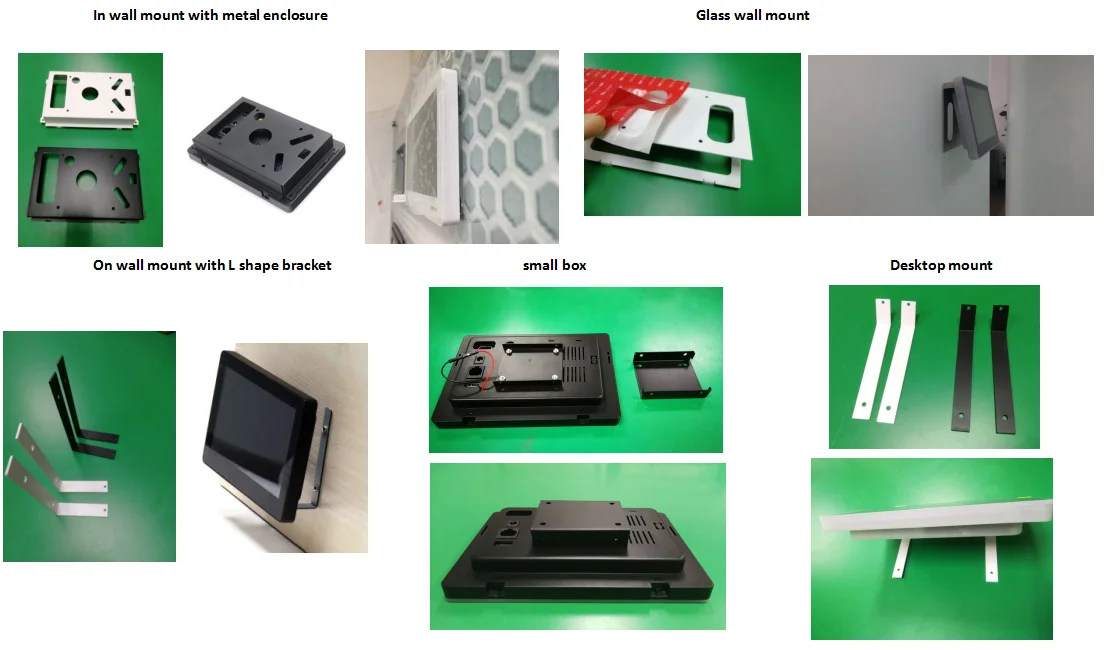

Multi mount brackets
Our service :
- 17 Years Experiences in Tablet PC for Automation
- Competitive Price Directly From Manufacturer( Our Own Factory)
- Excellent Support for Software and Hardware Modification
- Services for Customized Logo and package
- Quick Response for after-sale Services
- On-time Delivery
- 1 Year quality Guarantee
FAQ:
Questions: What is the minimum order quantity ( MOQ ) ?
Answer: No quantity limited, sample order is acceptable.
Questions: What does your customization mean?
Answer: We can customize software for you , boot animation, mounting bracket, shell, color and so on. Including all the changes you want
Questions : How many days can be shipped ?
Answer: 3-7days for sample orders, 10-25 days for bulk orders.
Questions: How will you deliver my goods to me ?
Answer: We ship by air and sea generally. Including DHL, UPS, FEDEX, TNT and SF.
Questions: How is your product quality ?
Answer: Our raw materials are purchased from qualified suppliers. Assembled by ourselves. And we have a strong quality control team to guarantee the quality of our products.
Questions: How long is your warranty ?
Answer: Our warranty is 1 year after delivery. SIBO pay a lot attention to after-sales service. it's our pleasure to service of you.
Questions: What we can do ?
ODM/OEM is warmly weclome!
Trial order is acceptable !
