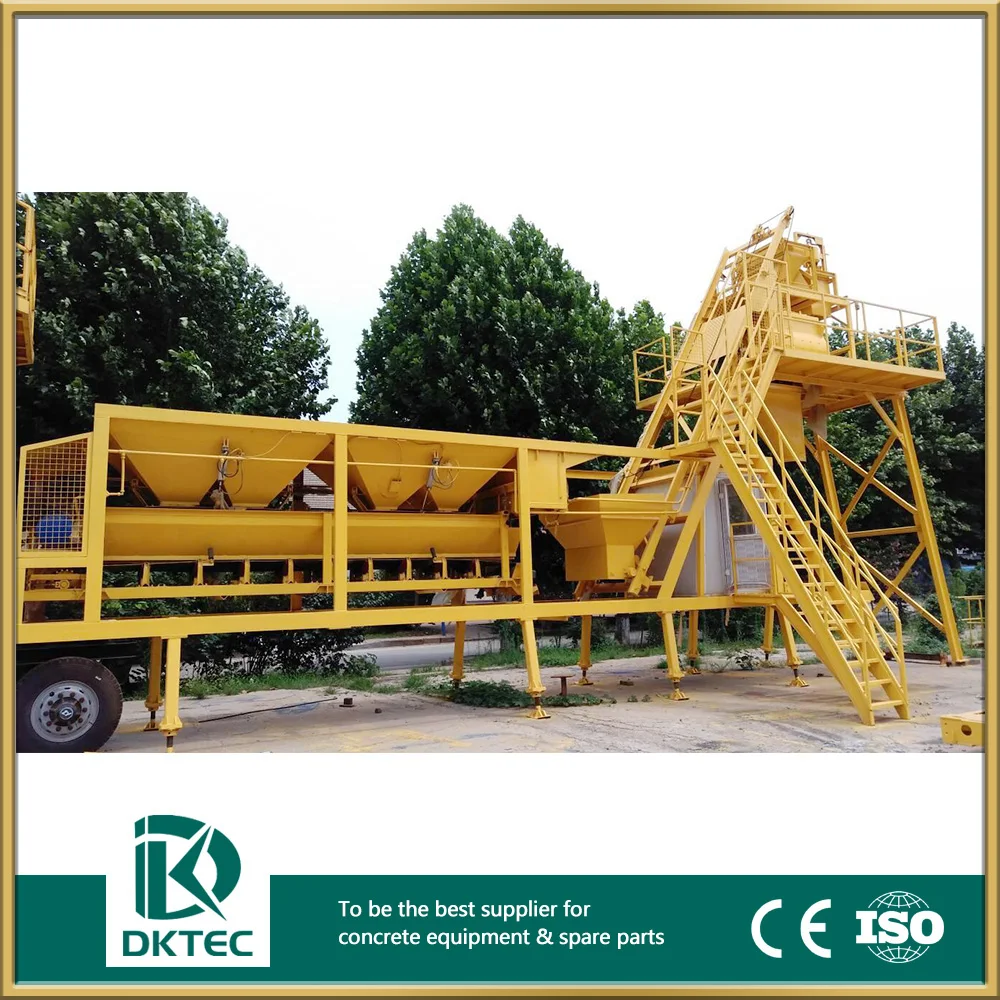

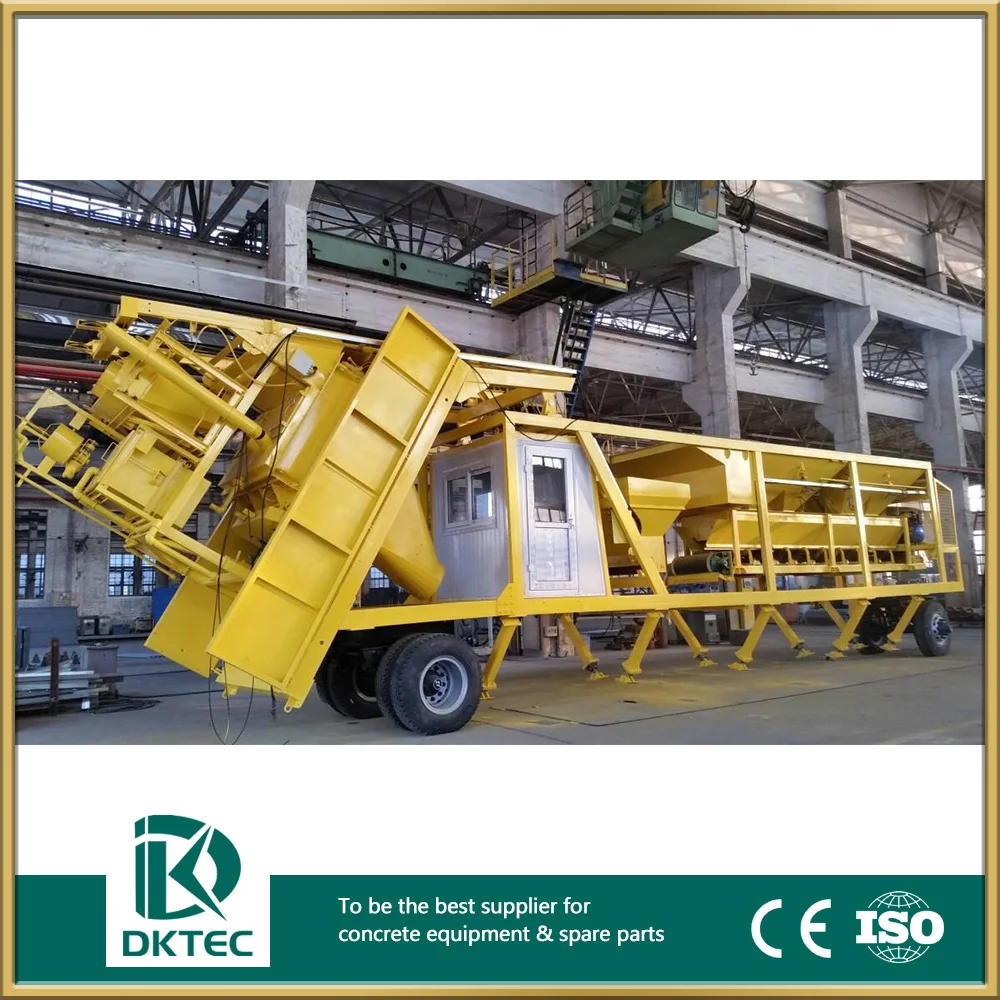

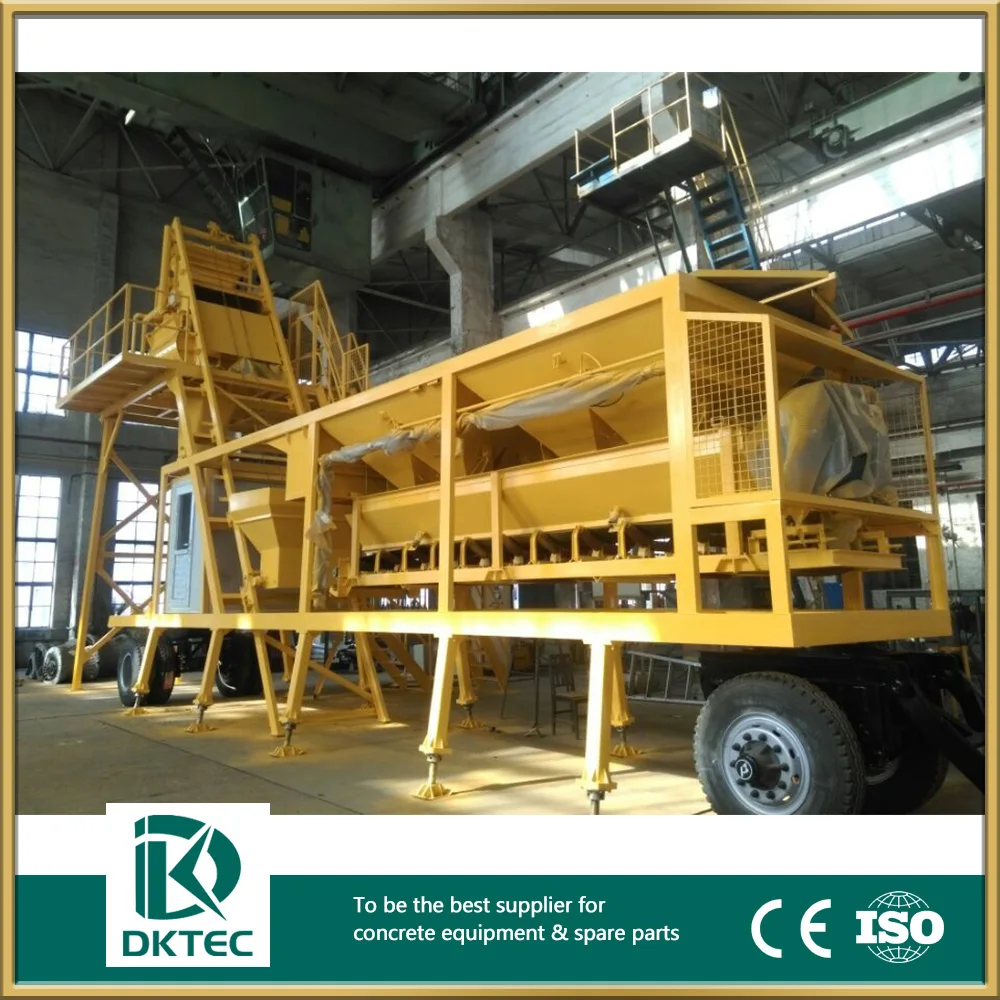

35m3 Ready Mix Small Mobile Concrete Batching Plant for Sale

Product Overview

Description













Performance Characteristics

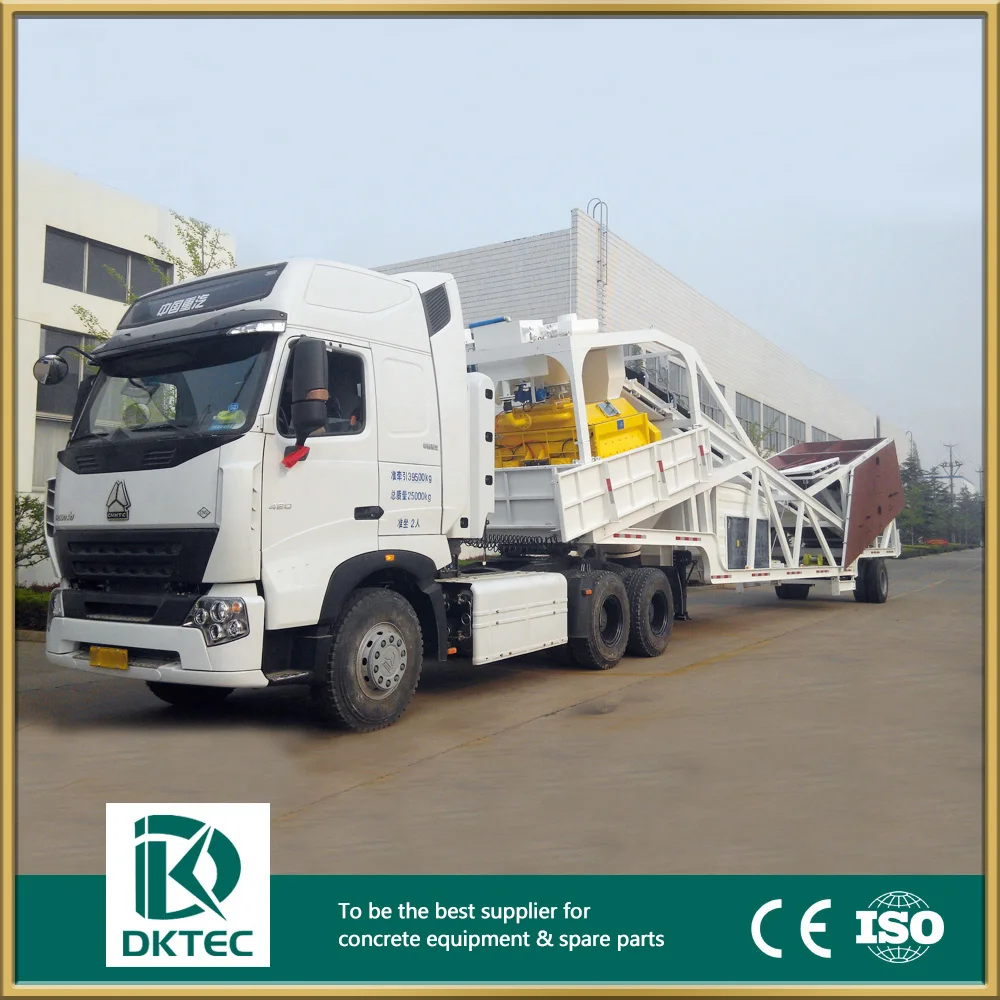

1. The installation & disassembly is convenient and rapid, Integral movement by trailer is flexible, Easy storage management

2. Compact structure and small occupied area, sample installation foundation

3. High degree of automation, sample operation, small investment and quick effect, suit for mobile
construction such as road and railway, bridge, port, water-power construction





Specification





Item		Unit	YZHS25	YZHS35	YZHS40	YZHS60	YZHS75
Theory productivity		m³/h	25	35	40	60	75
Output of mixer		m³	0.5	0.75	0.75	1	1.5
Feeding type			lifting hopper	lifting hopper	Belt Feeding	Belt Feeding	Belt Feeding
Batcher model			PLD800	PLD1200	PLD1200-Ⅲ	PLD1600-Ⅲ	PLD2400Q-Ⅲ
Batcher(bin's amount)		m³	4x4	4x4	8x4	8x4	8x4
mixer's power		kw	18.5	30	30	22x2	30x2
Lifting power		kw	5.5	7.5	15	7.5x2	11x2
Discharge height		m	3.8	3.8	3.8	3.8	3.8
Max weighing & Accuracy	Aggregate	kg	1500±2%	1500±2%	3000±2%	3000±2%	3000±2%
	Powder material	kg	300±1%	300±1%	500±1%	600±1%	800±1%
	Water	kg	150±1%	150±1%	200±1%	250±1%	300±1%
	Additives	kg	20±1%	20±1%	20±1%	20±1%	20±1%
