Computerized continous type single needle lock stitch quilting machine price

Product Overview

Description

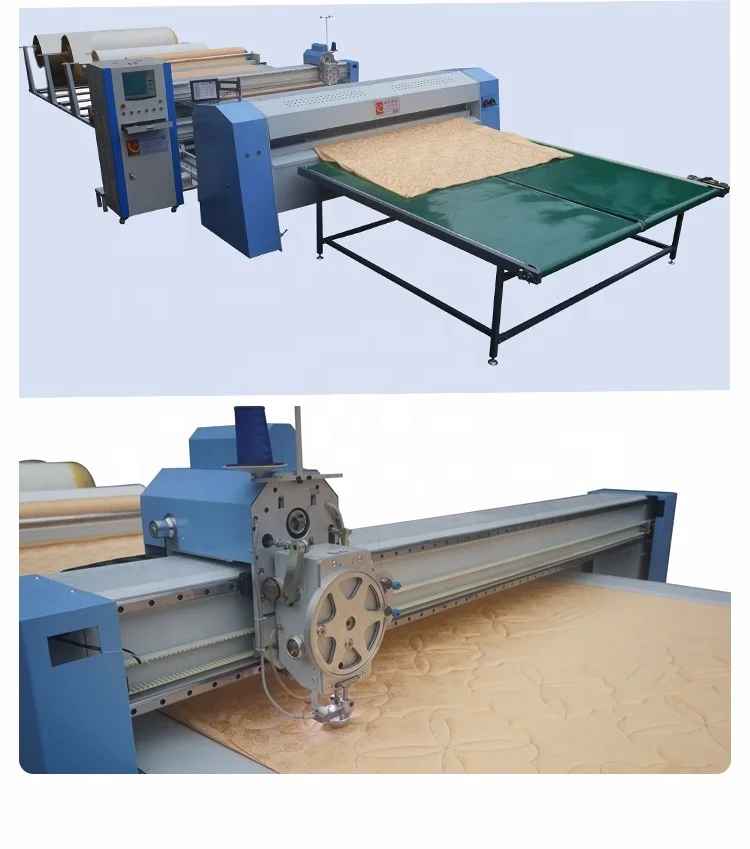

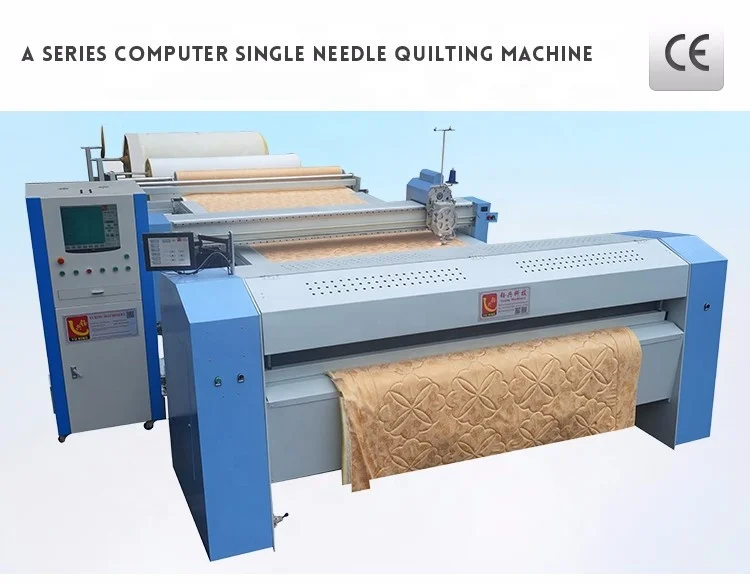

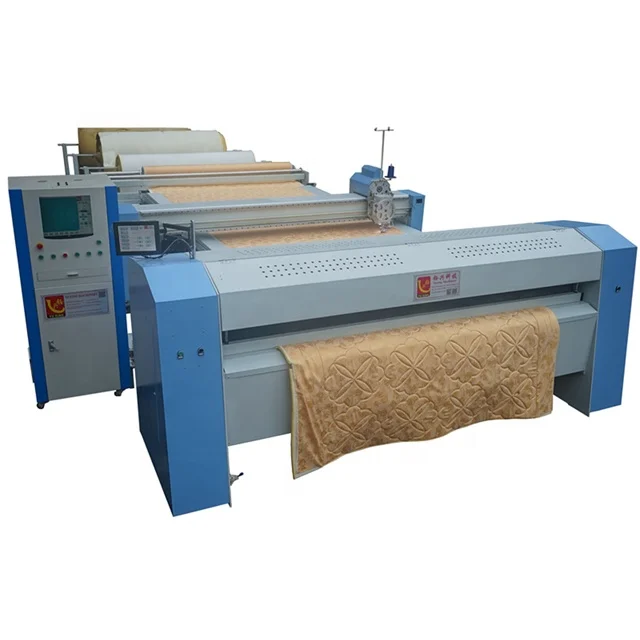

Computer Single Needle Quilting Machine(YXS-1A)

computer single needle quilting machine for quilt, mattress. continious quilting,

1.can make big independent design.

2. automatic feed-in and cutting system.

3. extremely large rotary shuttle, Japan servo motor. Imported quilting head.

4. computer can store 10000 patterns.

Specification:

Product Name	Computer Single Needle Quilting Machine
Model	YXS-1A
Size(L*W*H)	13880*3700*2000mm
Weight	3500kg
Quilting area width	1200-2400mm
Max.quilting thickness	60mm
Max.quilting speed	2500rpm
Motor	Servo motor
Air pressure	0.6Mpa
Rated voltage	380V/50HZ
Power	6.5KW

Function:

1. Extra large rotating shuttle, can effectively prevent thread broken. Arbitrary span quilting, detect thread broken without contact, click anywhere in screen for pattern compensation.

2. Computer controlled, save patterns in disk for long time. Customer can add patterns according to needs, simple and convenient.

3.  360°independent quilting, one million memory system can total save 10000 patterns.

4. Highly reliable,even stitches,pattern will not easily deformed.

5. Capable of angle and pattern correction.

6. Adopt Japan servo motor for higher precision.

7. Low noice, low vibration,steady running.

8. Computer pattern-designing software,compatible with all kinds of quilting file and quilting system.

9. Memory function when power off.

10. Thin material adjustment function.

11. Automatic material feeding,pulling and cutting device.

12. Auto-sotp function, the machine is auto-stop when thread is broken.
