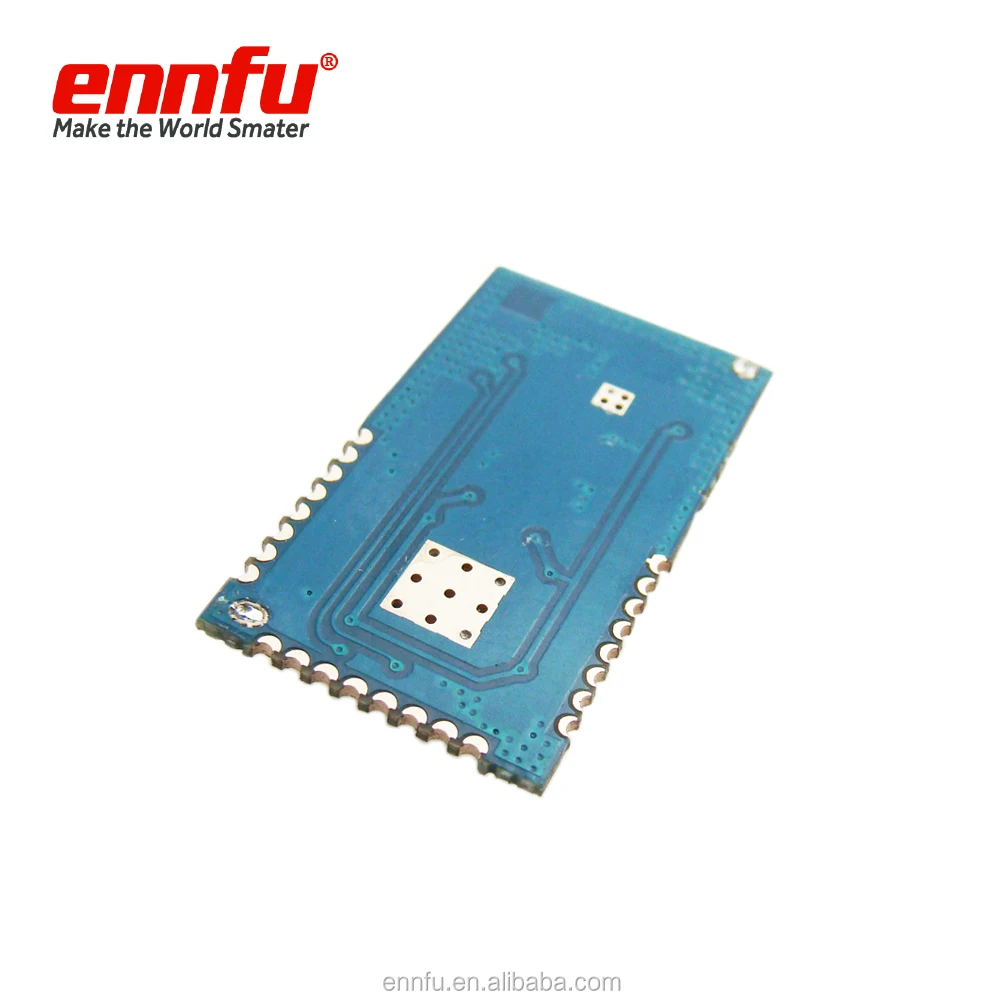

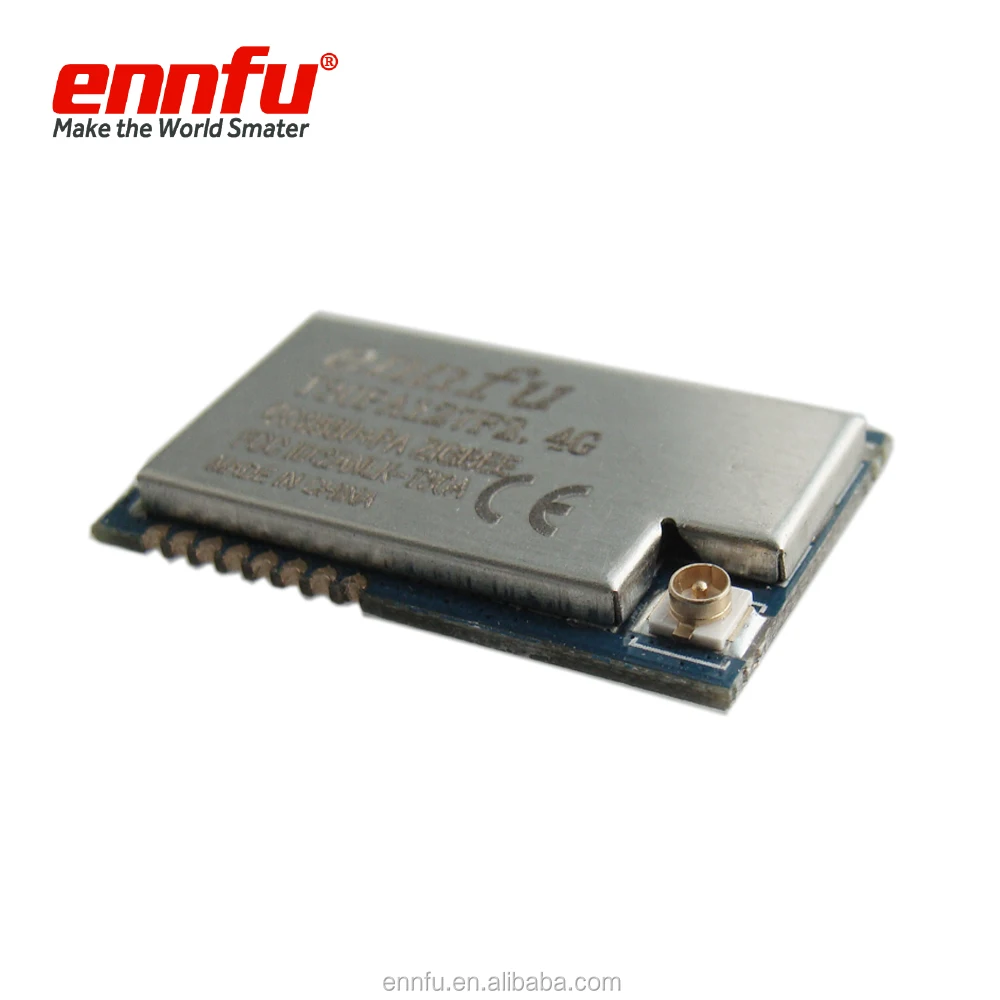

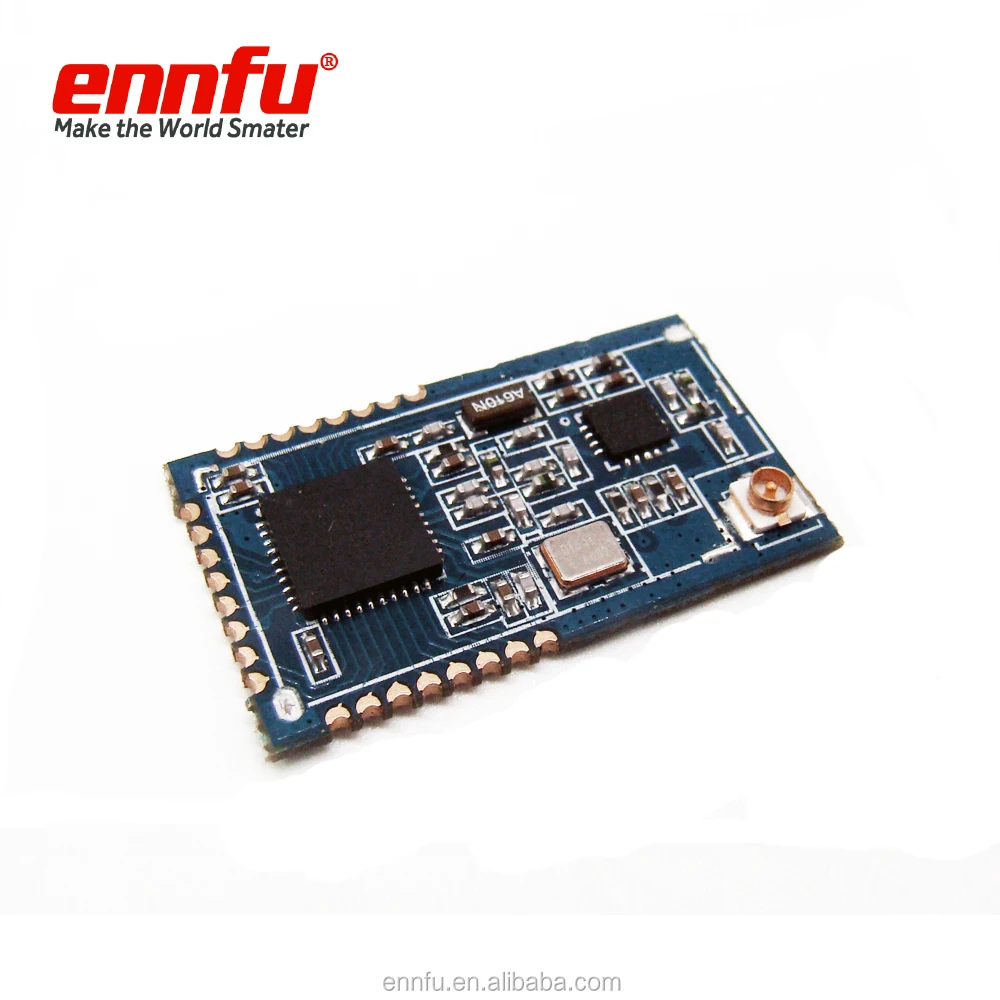

T30PA127F2.4G is a tiny volume integrated 2.4GHz Zigbee wireless module,which was based on TI CC2530 Zigbee RF chip and Nordic RTF 2401 PA chip technology, adopted standard IEEE 802.15.4 protocol.
In the actualc test condition,max. data transfer distance up to about800 meters, can be widely used into the following applications:
TYPICAL APPLICATIONS: • Industrial Control and Data Monitoring • Environmental and Health Monitoring • Home Automation, Entertainment and Toys • Security, Location and Asset Tracking • Emergency and Disaster Response • Military/Battlefield Applications
PRODUCT CHARACTERS:
1, Tiny Volume SMD Design
Module size 14.6mm*20.45mm*2.7mm 2,Immersion Gold Provide a best SMD Performance
3, Original Chips TI,Murata,Epson Orginal Chips Assurance 4, Pre-Programmed Optional Mostly shorten the time of developing new products
TECHNICAL PARAMETERS:
No.
Parameter Name
Parameter Value
Summary
1
RF chip
CC2530
TI
2
PA chip
RFX2401
NORDIC
3
Module size
14.9mm*25.9mm*2.7mm
Including IPEX
4
Module weight
1.7mg
Including IPEX
5
Work frequency
2400~2483.5MHz
2.4GHz IEEE 802.15.4 PROTOCOL
6
Craft
Immersion gold
SMD,SIMMERSION GOLD,LEAD FREE
7
Interface mode
3*8*1.27mm
SMD
8
Power supply
2.0~3.6V DC
Caution:Causing permanent damage to the module when Higher than 3.6vdc.
9
Comm level
+0.7~+5V
10
Actual test transimit distance Result
About 800m
Test condition: Weather:Sunny,35℃;
Relative humidity:65%; Test location:Open wide space
T7010 Zigbee Coordinator+Wifi Gateway Module with RS232/RS485/iO Output
CC ZIGBEE TEST MODULE
